C-801

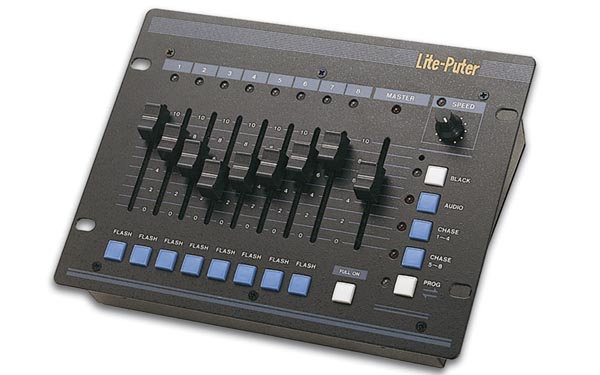

Lite-Puter C-801 8-CHANNEL DIMMING CONSOLE
- master + 8 dimming controls with LED indication of active channel
- 8 flash buttons + 1 "full-on" master flash button
- master/slave combination with other LPTC801 possible through 8-pin DIN socket
- 2 chase modes (channel 1-4 and channel 5-8), chase direction reversible
- chasing speed: manual adjustment or music-controlled (through built-in microphone or audio input through external 100mV mono jack)
- blackout control button
- signal output: 2 x 8-pin DIN socket (0 ~ 10Vdc)
- signal input: 8-pin DIN socket
Specifications
- power supply: 20Vdc through dimmer pack (LPTP404D)
- dimensions: 240 x 176 x 90mm
- weight: 1.8kg
