CX-1B
Lite-Puter CX-1B, DMX-Tester

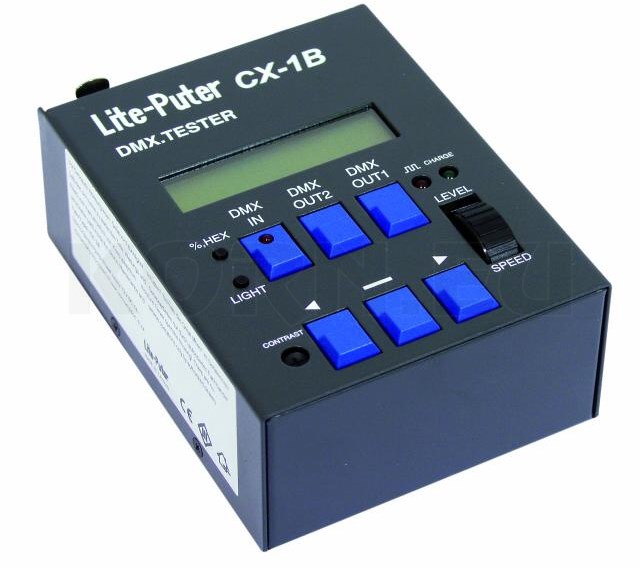

The Lite-Puter CX-1B is a portable, handheld DMX-512 tester used for checking DMX signal levels and cable connections in stage and architectural lighting systems.
Key Features and Specifications
- Functionality: The primary function of the Lite-Puter CX-1B is to test DMX-512 signals. It can check both DMX input and output levels and features an auto-fade output for testing purposes.
- Display Units: The device provides DMX levels in three different display units for flexibility: percentage (%), hexadecimal (hex), and binary.

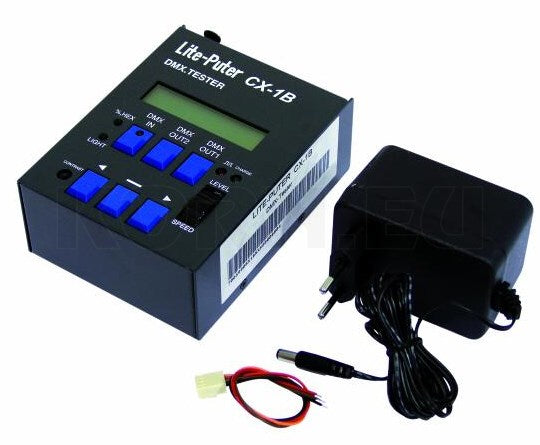

- Portability: It features a built-in rechargeable battery, allowing it to be used in various locations without needing a constant power source. According to the manufacturer, the battery charges in 2 hours and offers a continuous operating time of 6 hours.
- Cable Testing: A key feature is the cable test function, which helps verify correct cable connections and identify any mistakes in the wiring.
- Power Saving: The unit includes an LCD backlight power saving mode to extend battery life during use.

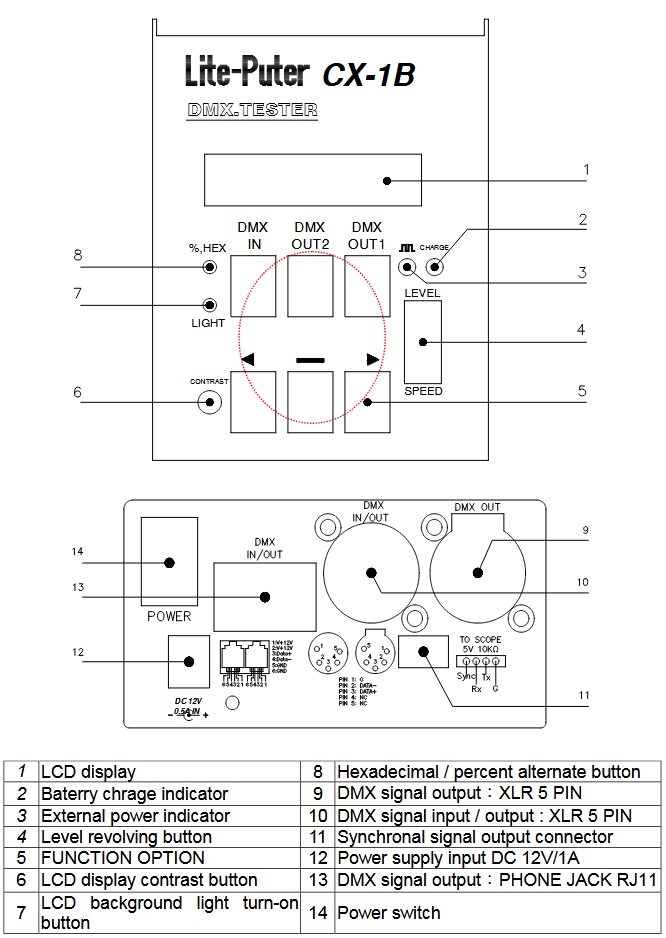

- Connectivity: It offers a range of signal connectors including 5-PIN XLR (input/output) and PHONE JACK RJ11 (output).
- Power Input: The power input is DC 12V/1A.
- Dimensions & Weight: According to the manufacturer's specification for the similar CX-1C model, the dimensions are approximately 97(W) x 135(H) x 38(D) mm and it weighs around 750g.
