AUDIOROOT vmDBOX‑HRS‑cc – Ultra‑Compact DC Power Distributor with Integrated Multifunction Meter

Estimated delivery time: 1–2 weeks.

Product description

The Audioroot vmDBOX-HRS-cc is a space-saving, intelligent DC power distribution box designed for ENG sound bags and portable setups. With six DC outputs, rugged Hirose locking connectors, and a high‑contrast OLED display for real-time power metrics, this device offers unmatched control and reliability — all in a 119 g ultra‑compact form.

Smart Energy Monitoring

At the heart of the vmDBOX-HRS-cc lies an integrated coulomb counter — a critical tool when working with standard, non‑SMBus batteries. Unlike “smart” batteries with built‑in communication protocols, standard batteries offer no way to track energy consumption. The vmDBOX-HRS-cc fills this gap by precisely measuring current, voltage, and time to calculate:

• Amp‑hours (Ah)

• Watt‑hours (Wh)

• Real‑time power draw (A and W)

• Battery runtime

This enables users to estimate remaining battery capacity, avoid unexpected shutdowns, and optimize power usage, even with basic lithium or NiMH battery packs — a vital advantage for demanding field work.

Key Features

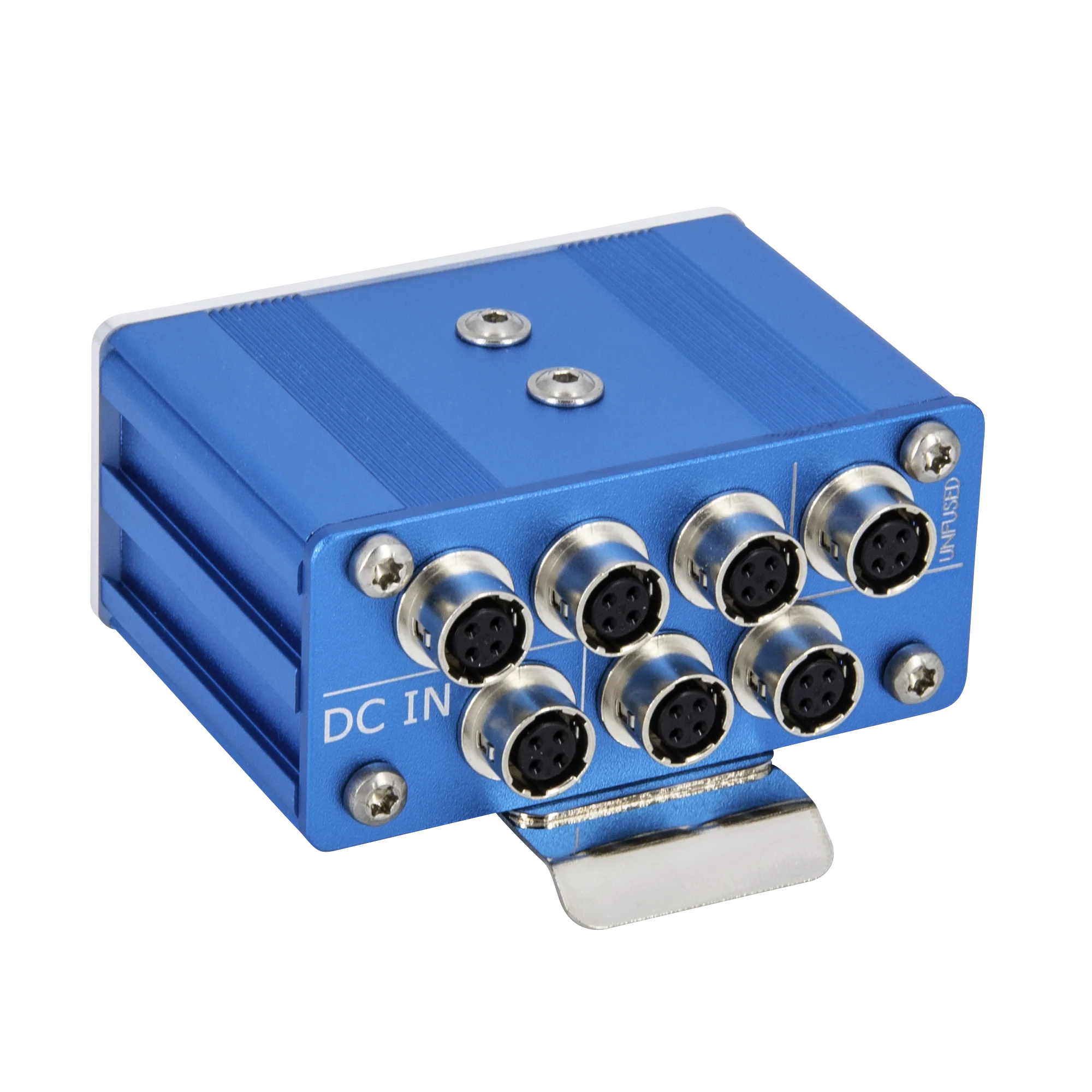

• 6 DC outputs with locking Hirose connectors

  • 5 fused (2.5A resettable)

  • 1 unfused for high‑power gear

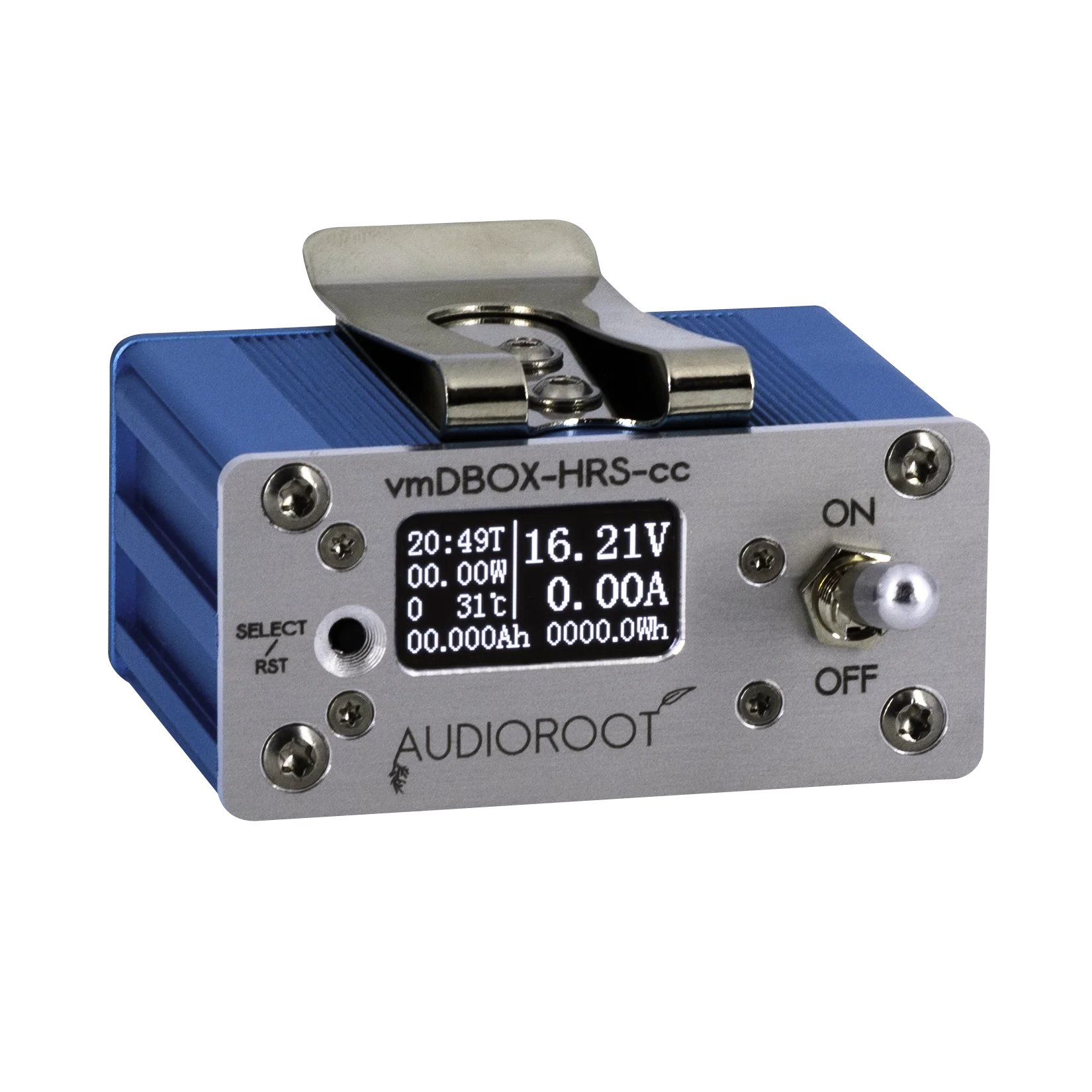

• Multifunction OLED display

  • Shows voltage, current, power, energy consumption, runtime, and internal temperature

• Dual energy data sets

  • SELECT/RST button toggles or resets two independent usage profiles

• Ultra‑low self‑consumption to preserve battery life

• Wide input range

  • Compatible with any 5V–24V DC battery or power supply

• Flexible mounting

  • Includes removable belt clip (top or bottom mount) for versatile bag integration

Specifications

• Inputs/Outputs: 1 × DC input, 6 × Hirose DC outputs (5 fused, 1 unfused)

• Maximum current load: 7A

• Size: 65 × 50 × 30 mm

• Weight: 119 g

• Power source compatibility: 5V–24V DC

The Audioroot vmDBOX‑HRS‑cc is your compact, reliable, and intelligent power hub — ideal for ENG professionals seeking seamless integration, power safety, and smart monitoring with any battery system.
