eSMART BG-DU

AUDIOROOT eSMART BG‑DU – Advanced Smart DC Power Distributor

Estimated delivery time: 1–2 weeks.

Product description

The eSMART BG-DU is a compact, lightweight, and intelligent power distributor designed for demanding audio setups in large sound bags or compact location carts. Featuring 8 switchable, protected outputs, a real-time fuel gauge, and wide battery compatibility, it delivers reliable and efficient power management in the field.

Thanks to its integrated coulomb counter and advanced monitoring system, the BG-DU offers precise, real-time insight into battery status: remaining capacity (%), runtime estimation, voltage, current, and power consumption. It is fully compatible with all eSMART Li-XXwh and Li-neo smart batteries, enabling enhanced communication when used with the appropriate 4-wire input cable.

The eSMART BG-DU stands out as the only portable power distributor on the market equipped with a true coulomb counter and battery capacity learning routine. Unlike basic voltage-based monitoring systems, the BG-DU analyzes actual current flow over time to accurately learn and track the true capacity of any connected battery, even non-smart models (SLA, NiMH, or standard Li-Ion). This advanced approach allows the BG-DU to provide reliable runtime predictions and real-time state-of-charge monitoring, ensuring sound professionals can confidently manage power—even without using SMBus or smart battery technology.

Key Features

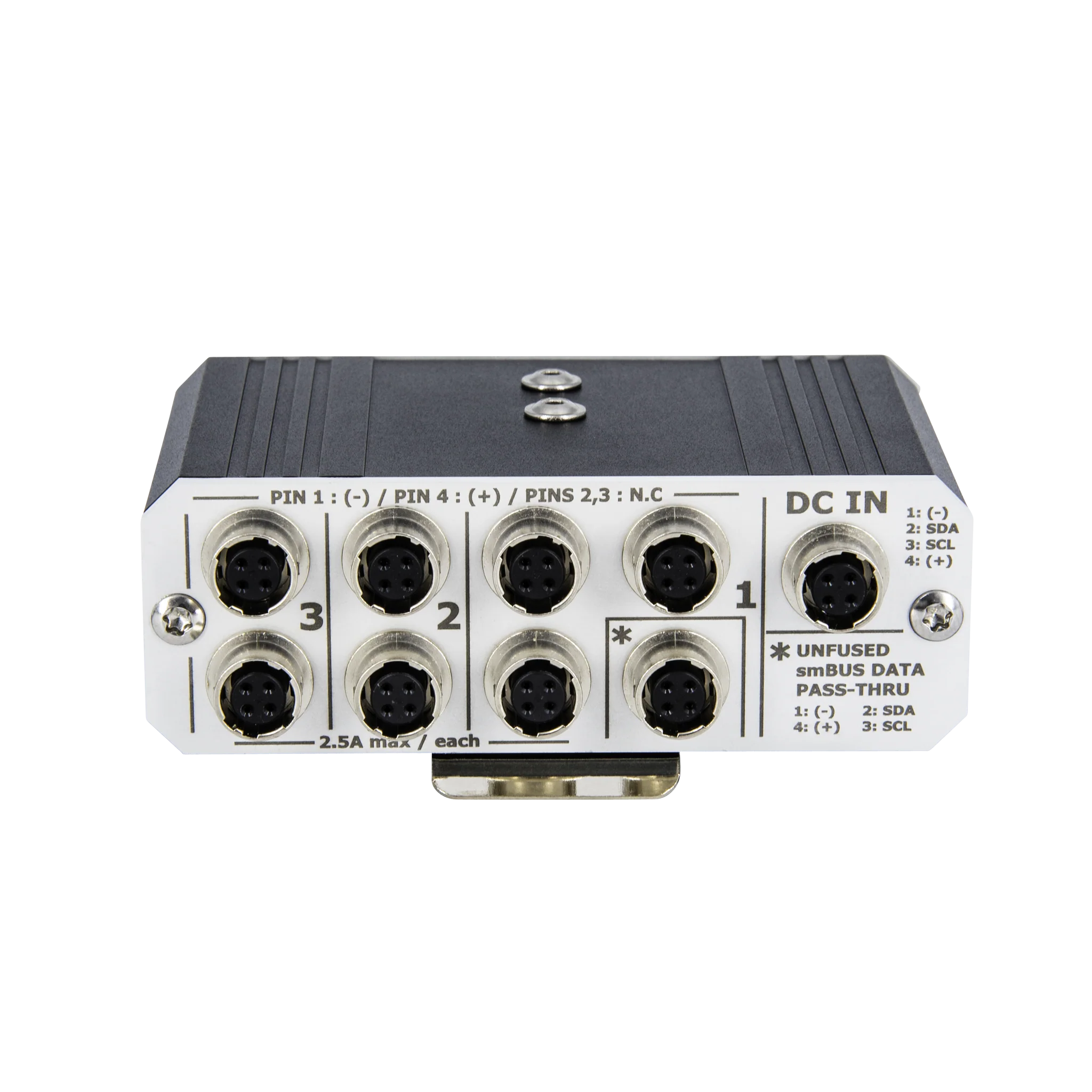

• 8 outputs, switchable via 3 locking switches

• 1 unfused output with SMBus pass-thru

• Polyswitch 2.5A resettable fuses on all other outputs

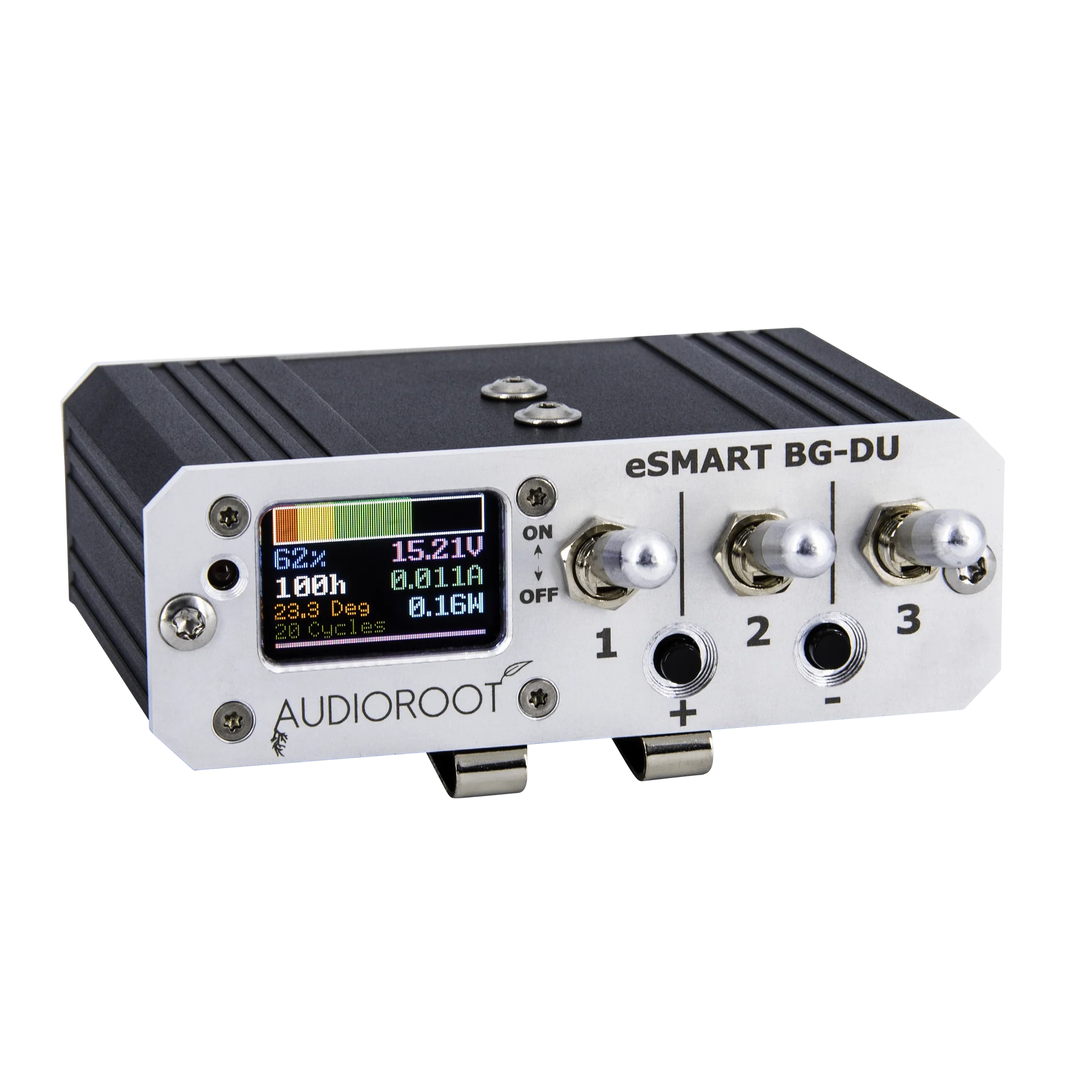

• Smart fuel gauge with real-time battery diagnostics on a full color OLED display

• Visual low battery warning: blinking LED below 10% capacity

• Operates with 10–24V battery sources (SLA, NiMH, Li-Ion)

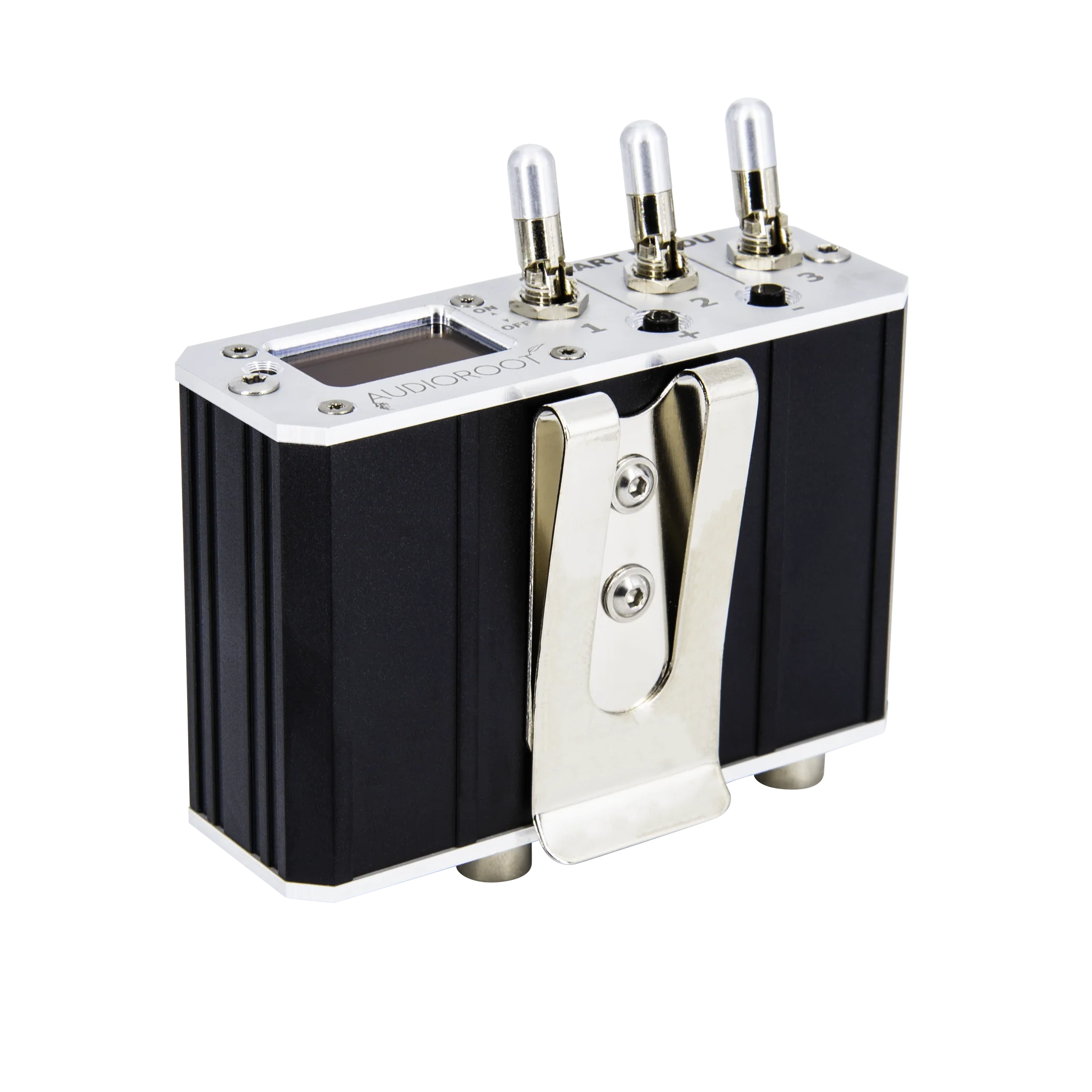

• Compact and rugged design (129 g, 85 × 75 × 30 mm) with stainless steel clip for flexible mounting

• Max current draw: 5 Amps

• Max battery capacity: up to 40Ah (200Ah optional variant on request)
