12-channel audio mixer. Soundcraft's MPMi mixers are compact and ideally equipped for live sound applications including fixed installations, houses of worship and portable PA. For increased versatility, each model in the MPMi range has two subgroups as well as a main stereo mix, making control of groups of channels much easier to manage. These are supplemented by 3 Auxiliary busses which can be used for effects sends or to provide a foldback monitor mix for artists.
The MPMi consoles use vertically mounted PCBs which are secured with nutted pots for extra strength, stability and easy servicing. Well-spaced controls provide easy access at those critical control moments, enhanced by clear legending which highlights linked or associated functions.
Sound quality is assured by Soundcraft’s now-legendary GB30 mic preamp and the use of professional condenser microphones is facilitated by the provision of globally switched +48V phantom power. New circuit designs have improved audio quality, and lowered the overall noise floor of the console. An integral universal power supply negates the need for an external power module.
Rack ears are included with 12 channel consoles.

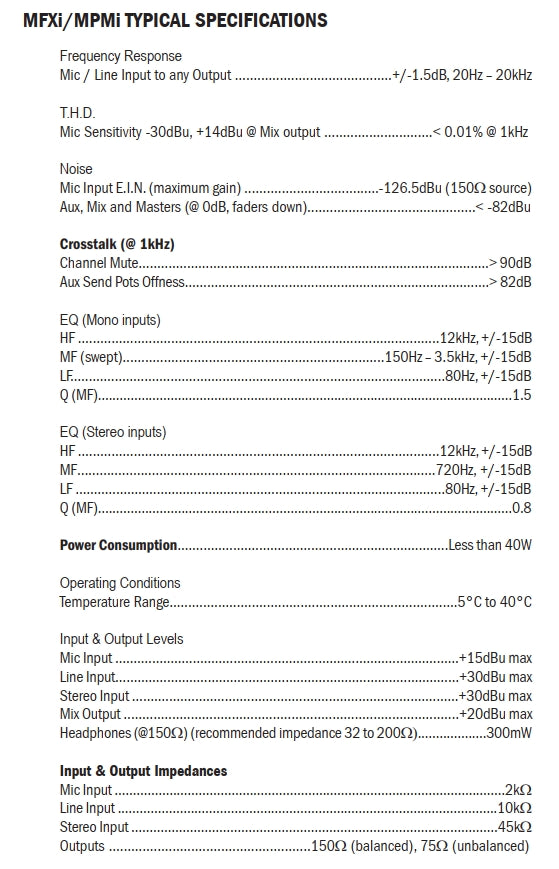

|Frequency Response - Mic / Line Input to any Output||+/-1.5dB, 20Hz – 20kHz|
|T.H.D. - Mic Sensitivity -30dBu, +14dBu @ Mix output||< 0.01% @ 1kHz|
|Mic Input E.I.N. (maximum gain)||-126.5dBu (150Ohm source)|
|Aux, Mix and Masters (@ 0dB, faders down)||< -85dBu|
|Crosstalk (@ 1kHz) - Channel Mute||> 96dB|
|Crosstalk (@ 1kHz) - Aux Send Pots Offness||> 86dB|
|EQ (Mono Inputs) - HF||12kHz, +/-15dB|
|EQ (Mono Inputs) - MF (swept)||150Hz – 3.5kHz, +/-15dB|
|EQ (Mono Inputs) - LF||80Hz, +/-15dB|
|EQ (Mono Inputs) - Q||1.5|
|EQ (Stereo Inputs) - HF||12kHz, +/-15dB|
|EQ (Stereo Inputs) - MF||720Hz, +/-15dB|
|EQ (Stereo Inputs) - LF||80Hz, +/-15dB|
|Power Consumption||Less than 40W|
|Temperature Range||5°C to +40°C|
|Input & Output Levels - Mic Inputs||+15dBu max.|
|Input & Output Levels - Line Inputs||+30dBu max.|
|Input & Output Levels - Stereo Input||+30dBu max.|
|Input & Output Levels - Mix Output||+20dBu max.|
|Recommended headphones impedance||32 - 200Ohm|
|Input & Output Impedances - Mic Inputs||2kOhm|
|Input & Output Impedances - Line Input||10kOhm|
|Input & Output Impedances - Stereo Input||45kOhm|
|Input & Output Impedances - Outputs||150kOhm (balanced), 75Ohm (unbalanced)|
|Height||MPMi 12/2: 482mm (19.0");
|Width||MPMi 12/2: 94mm (3.7");
|Depth||MPMi 12/2: 405mm (16.0");
|Weight||MPMi 12/2: 6.7kg (14.8lb);
