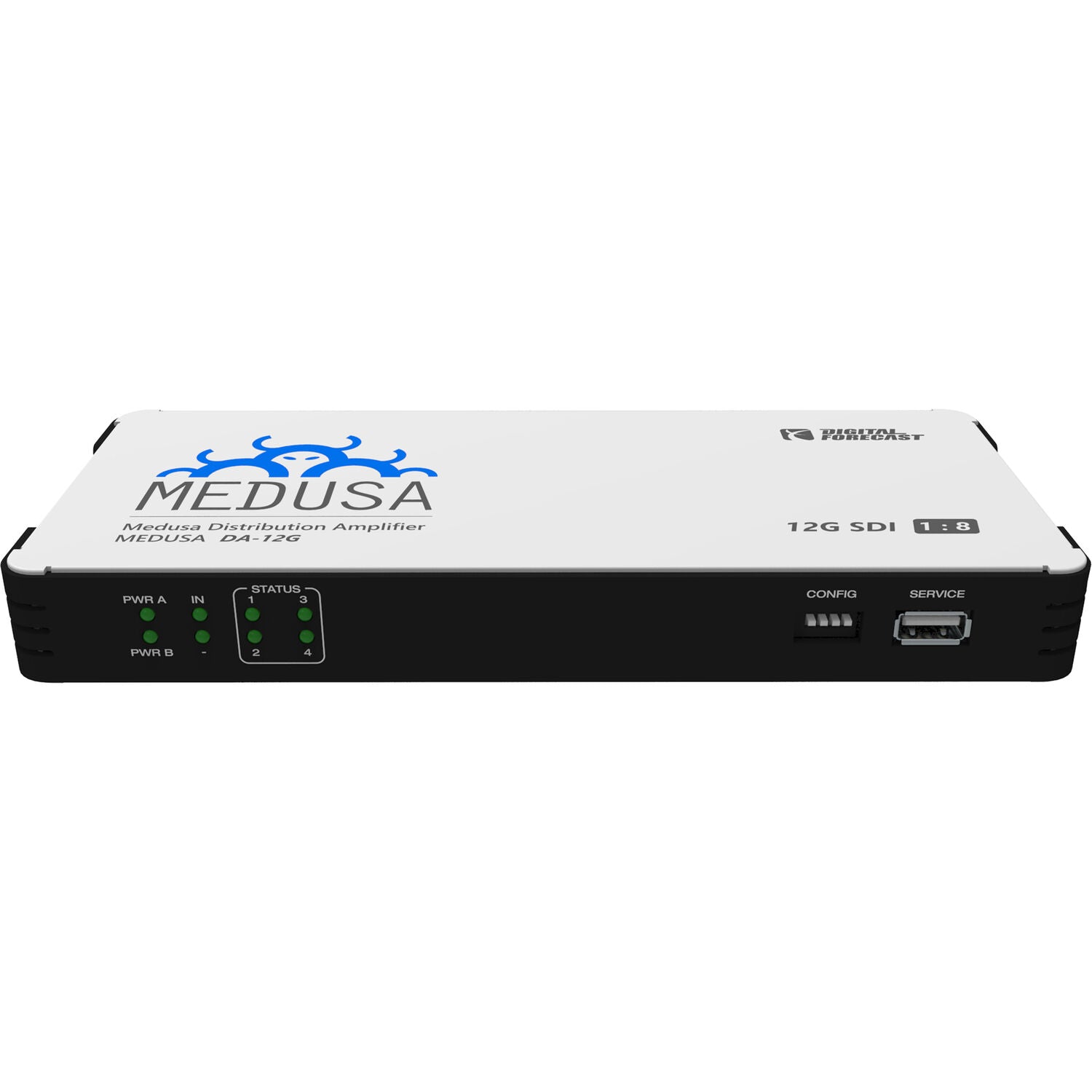

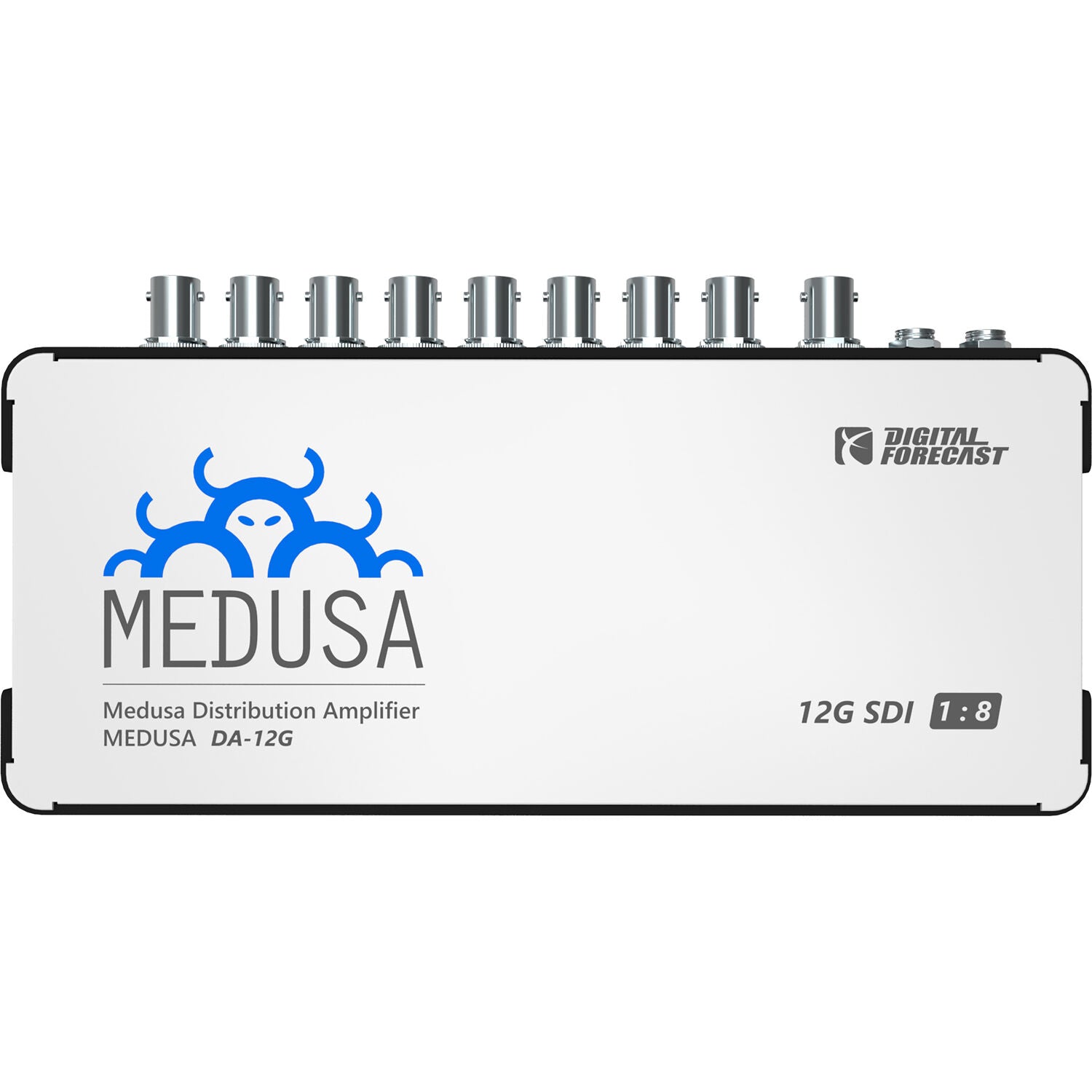

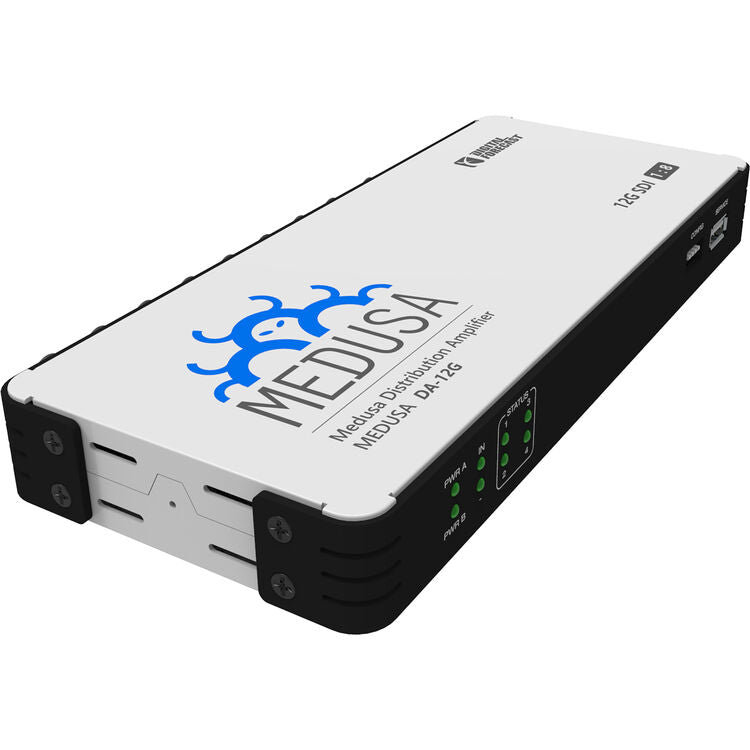

MEDUSA DA-12G

DIGITAL FORECAST MEDUSA DA-12G 12G SDI Video 1:8 Distribution Amplifier (1 Input to 8 Outputs)

Descriptions

Medusa DA - 12G is a splitter that receives HD, 3G, 6G, 12G SDI signals
and distributes them to 8 outputs.
Medusa DA supports dual power supply for stable signal distribution.

Feature

• HD, 3G, 6G, 12G SDI signal distribution amplifier

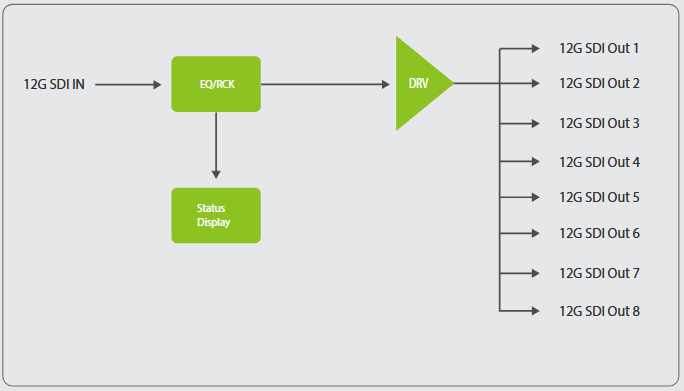

• Cable equalizer & re-clocker inside
• Up to 60m (12G grade) [ When using a 12G dedicated cable]

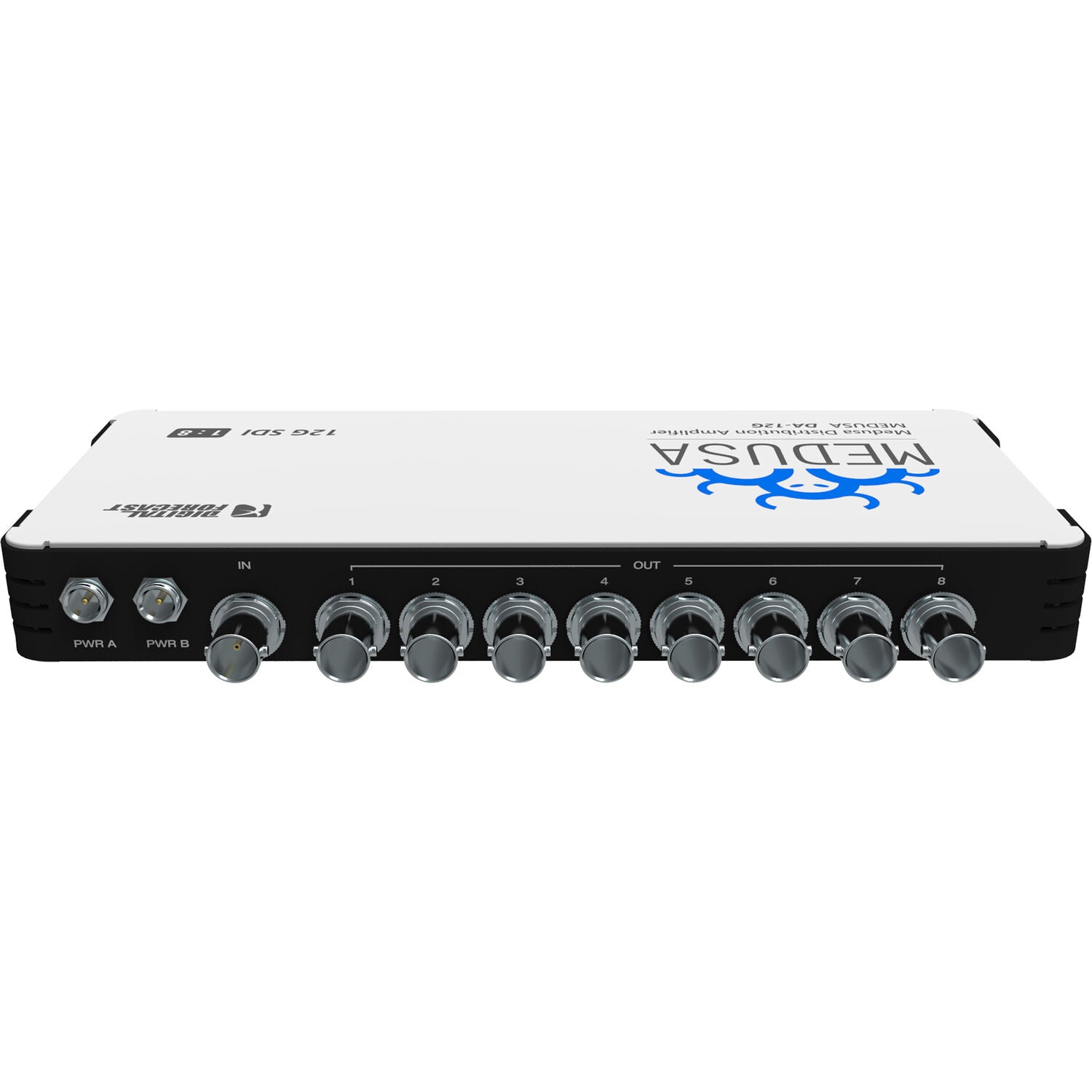

• 1 SDI input ( HD/3G/6G/12G )
• 8 SDI out ( HD/3G/6G/12G )
• Supports Dual power.(DC 12V power)

Specifications

• Supports multi-rate SDI formats:
• SMPTE 296M: 720p(60/59.94/50)
• SMPTE 274M: 1080i(60/59.94/50), 1080p (30/29.97/25/24/23.98)
• SMPTE 424M: 1080p(60/59.94/50) 3G
• SMPTE-ST2081 : 2160p (30/29.97/25/24/23.98) 6G
• SMPTE-ST2082 : 2160p (60/59.94/50) 12G

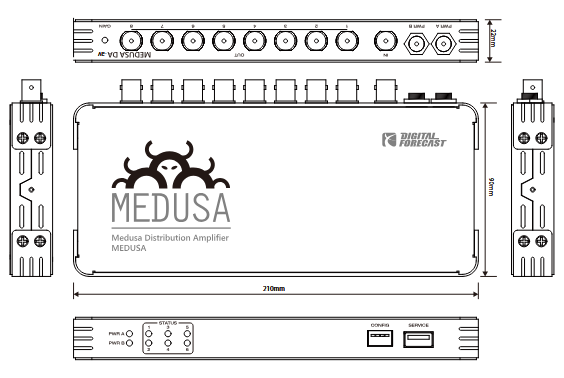

Dimensions 210 x 98 x 22 (mm)
Weight 323g
Power +12 VDC
Power consumption 4.5 Watts (Max : 6Watts)
Operating temperature 0℃ ~ 55℃, 0 to 95% RH, non-condensing
