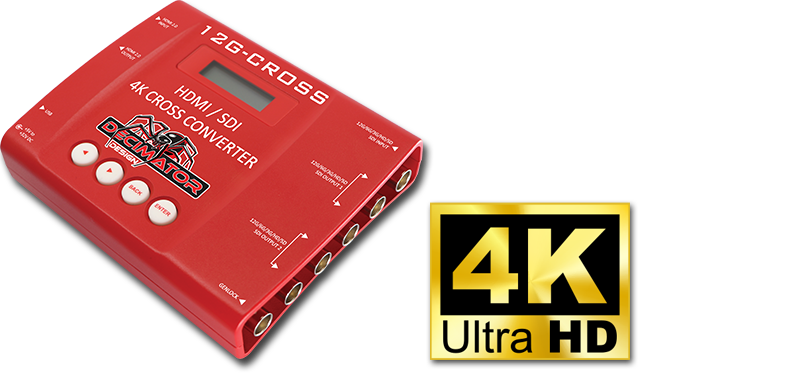

Decimator 12G‑CROSS – 12G‑SDI / HDMI 2.0 4K Cross Converter with Advanced Scaling & Frame‑Rate Conversion

The Decimator 12G‑CROSS is a compact, ultra‑versatile 4K cross‑converter designed for professional broadcast, production and AV environments that demand maximum flexibility, format interoperability and rock‑solid reliability. Built in a robust aluminium enclosure with no fan, the 12G‑CROSS delivers silent, low‑power operation suitable for studios, OB vans, live events and field production.

Featuring a powerful 4K Motion Adaptive Scaling Engine, full 12G/6G/3G/HD/SD‑SDI support, HDMI 2.0, frame‑rate conversion, test pattern generation and a built‑in LCD control interface, the 12G‑CROSS is one of the most capable format converters in its class.

Key Features

• 12G‑SDI ↔ HDMI 2.0 cross‑conversion

• 4K60 support (4096×2160 & 3840×2160)

• Advanced 4K scaling engine with motion‑adaptive processing

• Frame‑rate conversion between 351 input formats and 57 output formats

• Horizontal & vertical flipping

• Genlock input with lock to SDI, HDMI or external reference

• Professional test pattern generator

  • 58 test patterns

  • 58 output formats

  • Luma & Chroma zone plates

• 294 VESA formats supported via HDMI input

• 1×4 SDI distribution amplifier (4 re‑clocked SDI outputs)

• Audio pair routing for SDI and HDMI outputs

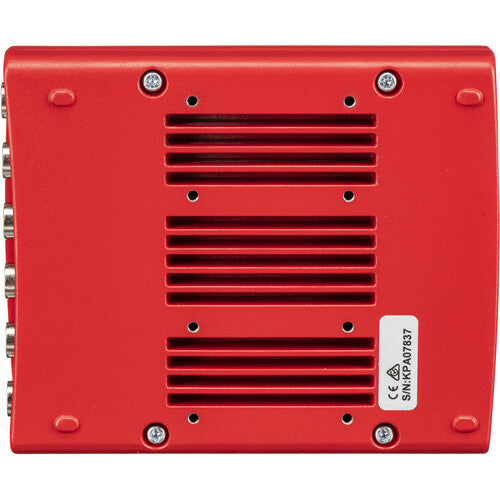

• Fanless aluminium chassis (silent operation)

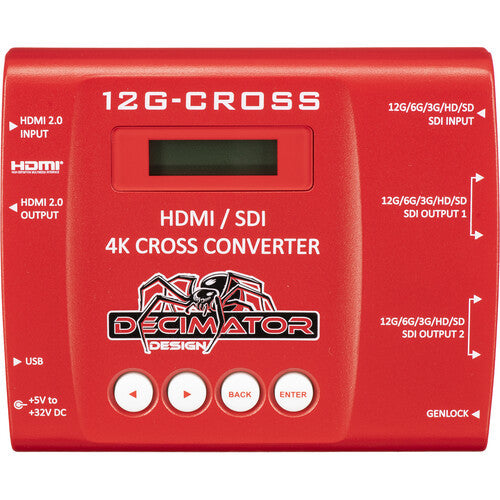

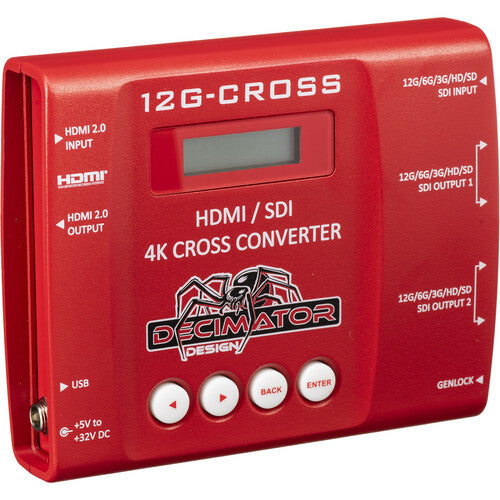

• LCD screen + button menu (no DIP switches, no PC required)

• USB port for control & firmware updates

• Locking DC power connector

Supported Input Formats

SDI Inputs

• 12G‑SDI

  • 3840/4096 × 2160p @ 60/59.94/50

• 6G‑SDI

  • 3840/4096 × 2160p @ 30/29.97/25/24/23.98

• 3G‑SDI (A & B)

  • 1920/2048 × 1080p @ 60/59.94/50

• HD‑SDI

  • 1080i @ 60/59.94/50

  • 1080p/psf @ 30/29.97/25/24/23.98

  • 720p @ 60/59.94/50/30/29.97/25/24/23.98

• SD‑SDI

  • 720×576 (PAL)

  • 720×480i59.94 (NTSC)

HDMI Inputs

• 4096/3840 × 2160p @ 60/59.94/50/30/29.97/25/24/23.98

• 1920 × 1080p @ all common frame rates

• 1080i @ 60/59.94/50

• 1280 × 720p @ 60/59.94/50/30/29.97/25

• 720×480p59.94 / 720×576p50

• 720×480i59.94 / 720×576i50

• 294 VESA PC formats

Scaling & Conversion Engine

The 12G‑CROSS performs:

• Up‑conversion (SD → HD → 4K)

• Down‑conversion (4K → HD/SD)

• Cross‑conversion (e.g., 1080i ↔ 1080p)

• Frame‑rate conversion (integer & fractional)

• Aspect ratio control

• Color space conversion (BT.709 ↔ BT.2020)

• Horizontal/vertical flip

• Motion‑adaptive 4K scaling

• Internal precision up to 32–40 bits for superior image quality

Total possible conversions:

• 20,007 (from website)

• 3,249 (from brochure’s 57-format engine) (Both numbers are correct depending on mode: full engine vs. 57‑format scaling engine.)

Outputs

HDMI Output

• HDMI 2.0

• Selectable source: HDMI IN, SDI IN, or Scaler

SDI Outputs

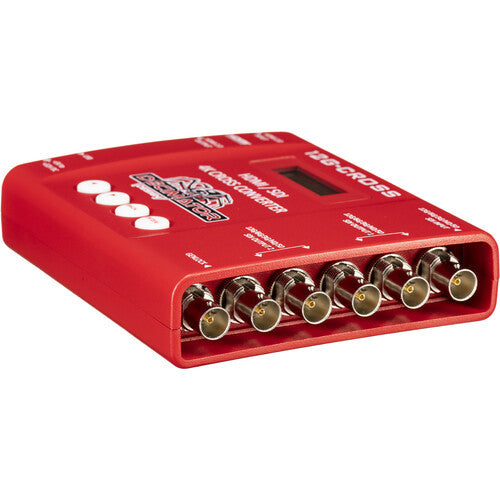

• 4 × 12G/6G/3G/HD/SD‑SDI outputs

  • 2 × re‑clocked loop‑through

  • 2 × processed outputs

Test Pattern Generator

• 58 test patterns

• 58 output formats

• Includes:

  • Luma zone plates

  • Chroma zone plates

  • Color bars

  • Grids

  • Alignment patterns

Menu / Control

• Full LCD screen with intuitive button navigation

• No DIP switches

• No PC required for configuration

• USB port for firmware updates

• Adjustable LCD backlight & status timeout

Power & Build

• +5V to +32V DC (wide‑range input)

• Locking DC connector

• Aluminium enclosure

• Fanless (silent)

• Dimensions:

  • 106 × 130 × 31 mm

  • (4.2" × 5.1" × 1.2")

• Low power consumption

Typical Applications

• Broadcast & OB‑van signal routing

• 4K production monitoring

• Live event AV systems

• Camera‑to‑switcher format matching

• HDMI/SDI interoperability

• Color‑accurate monitoring with LUT workflows

• Field conversion & troubleshooting
