MA-360P

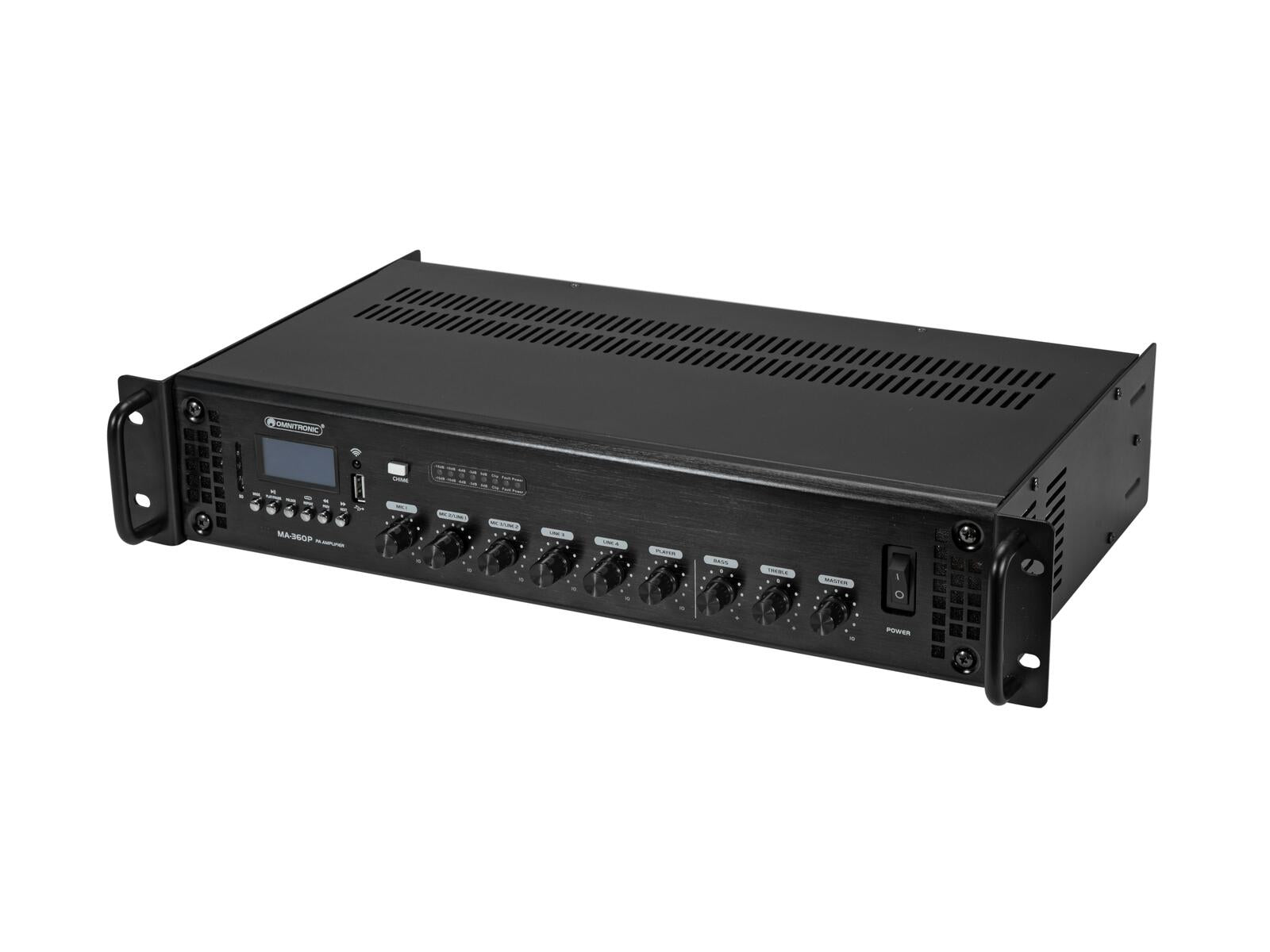

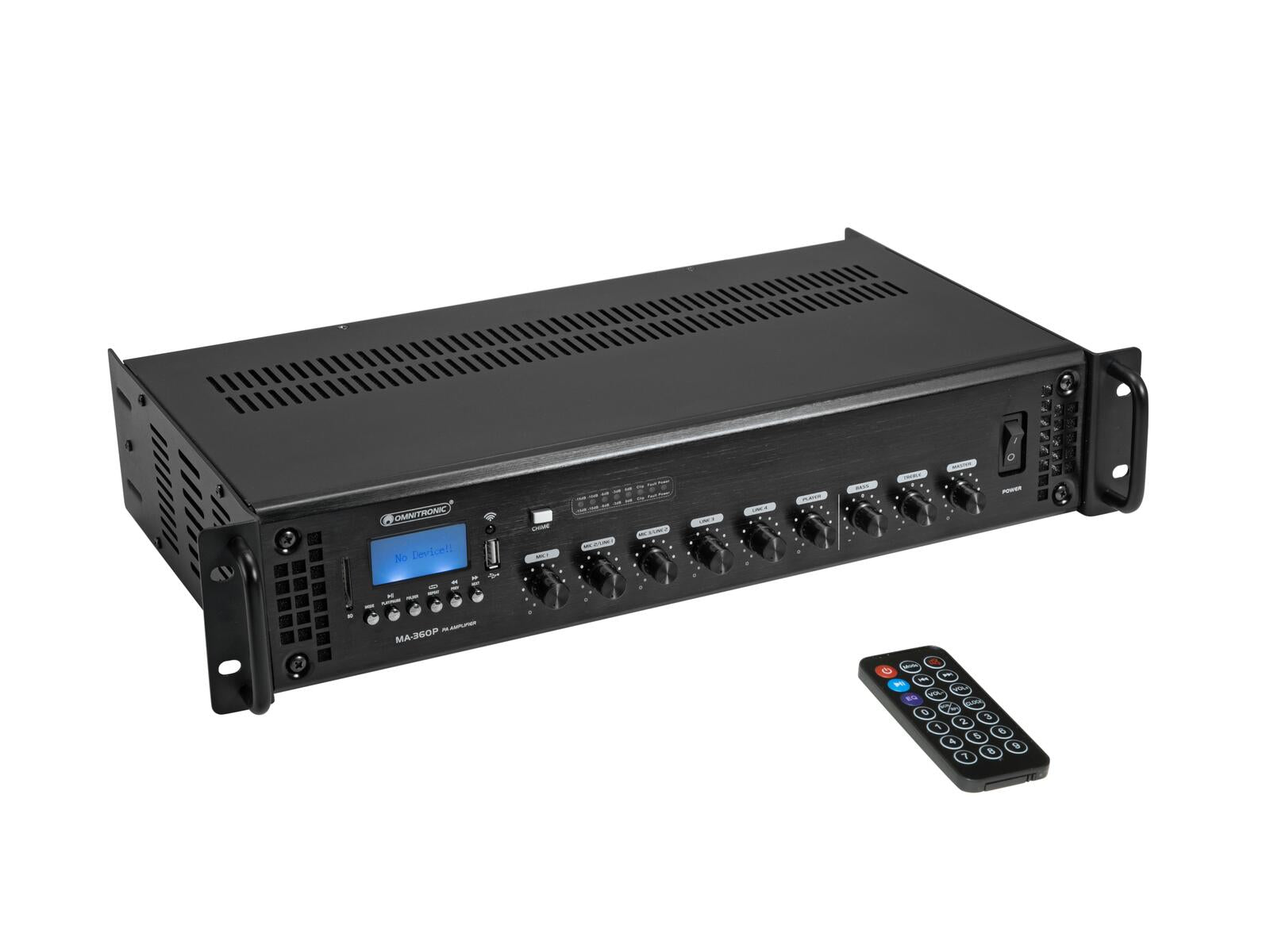

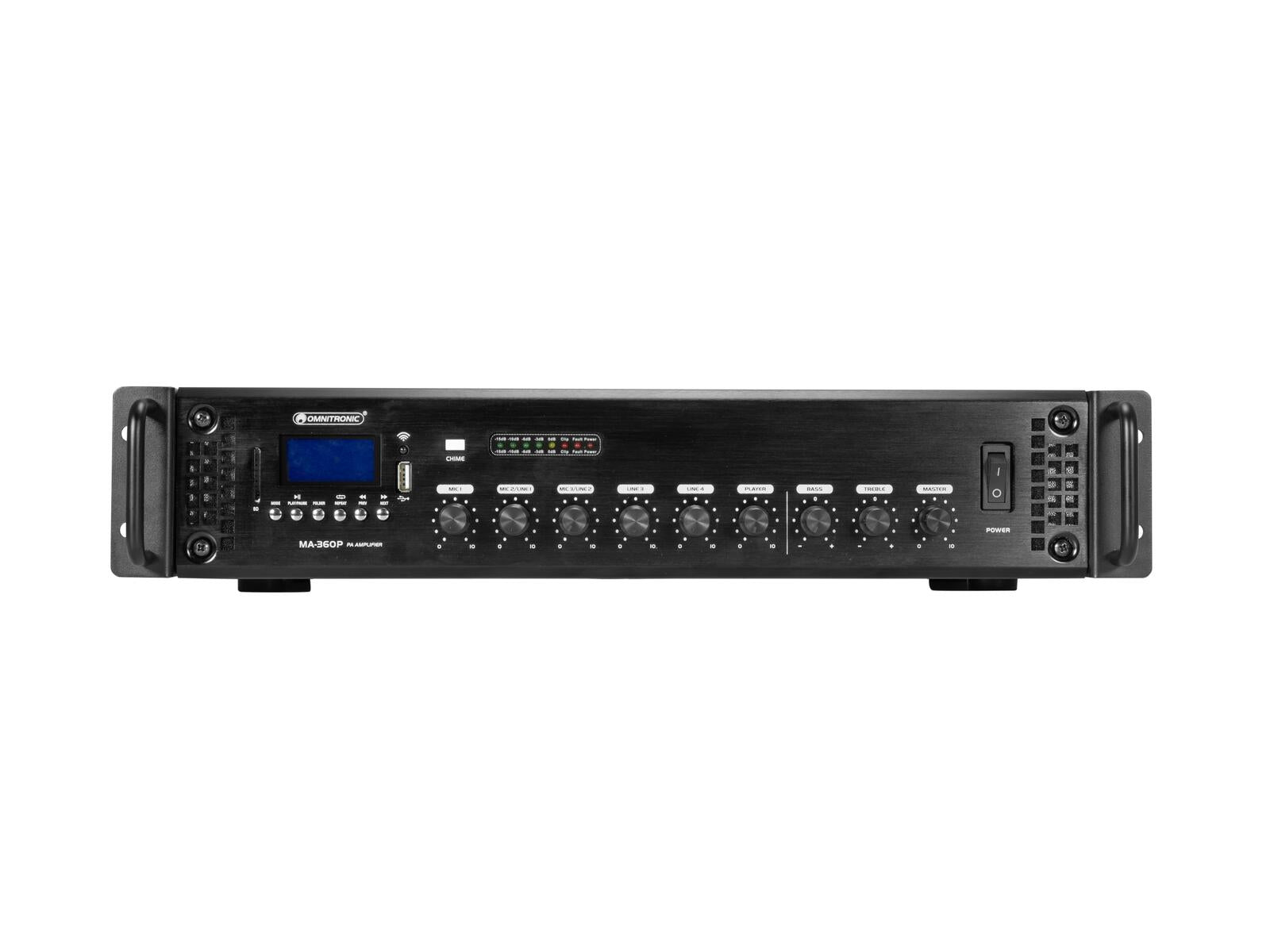

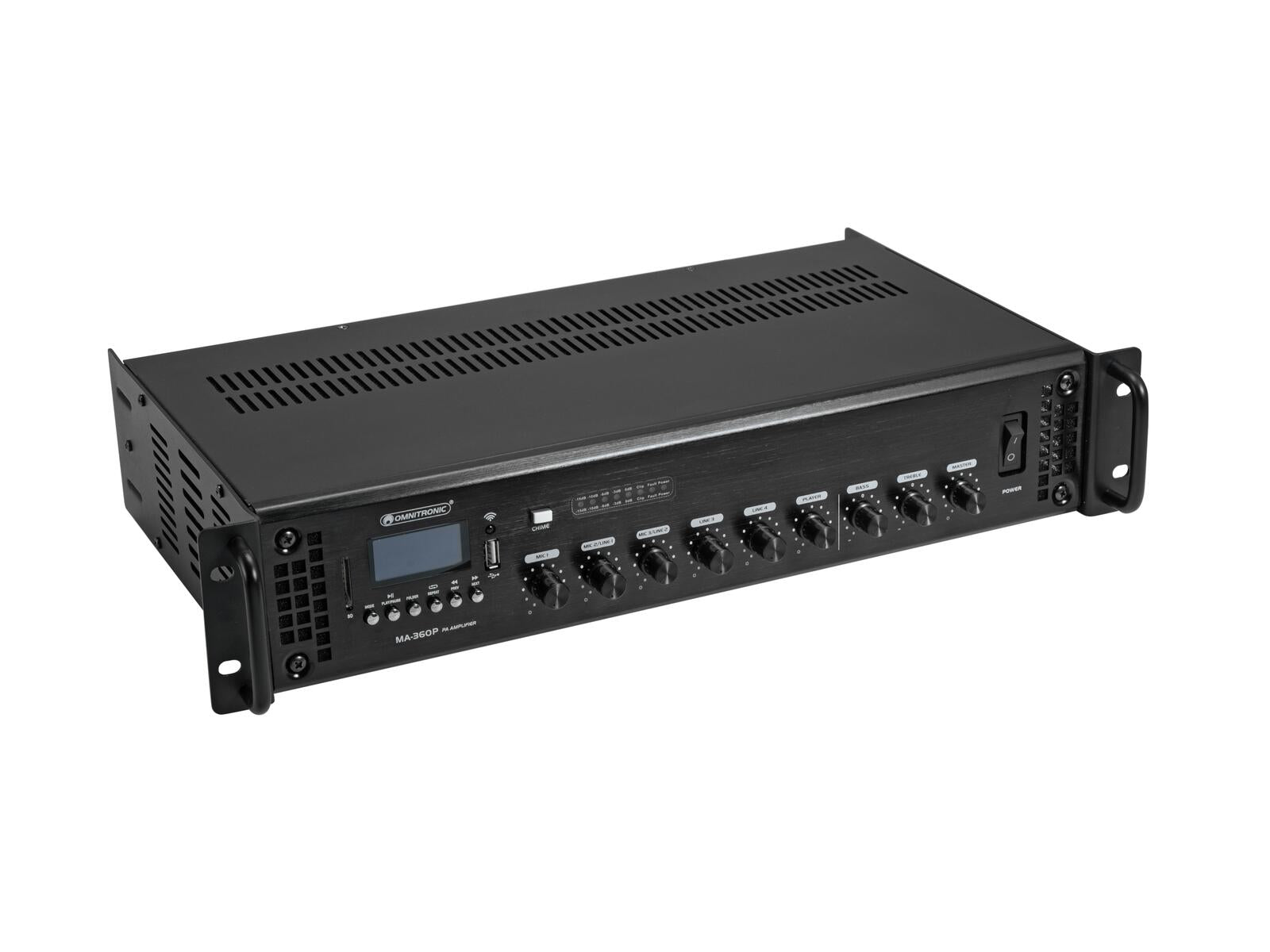

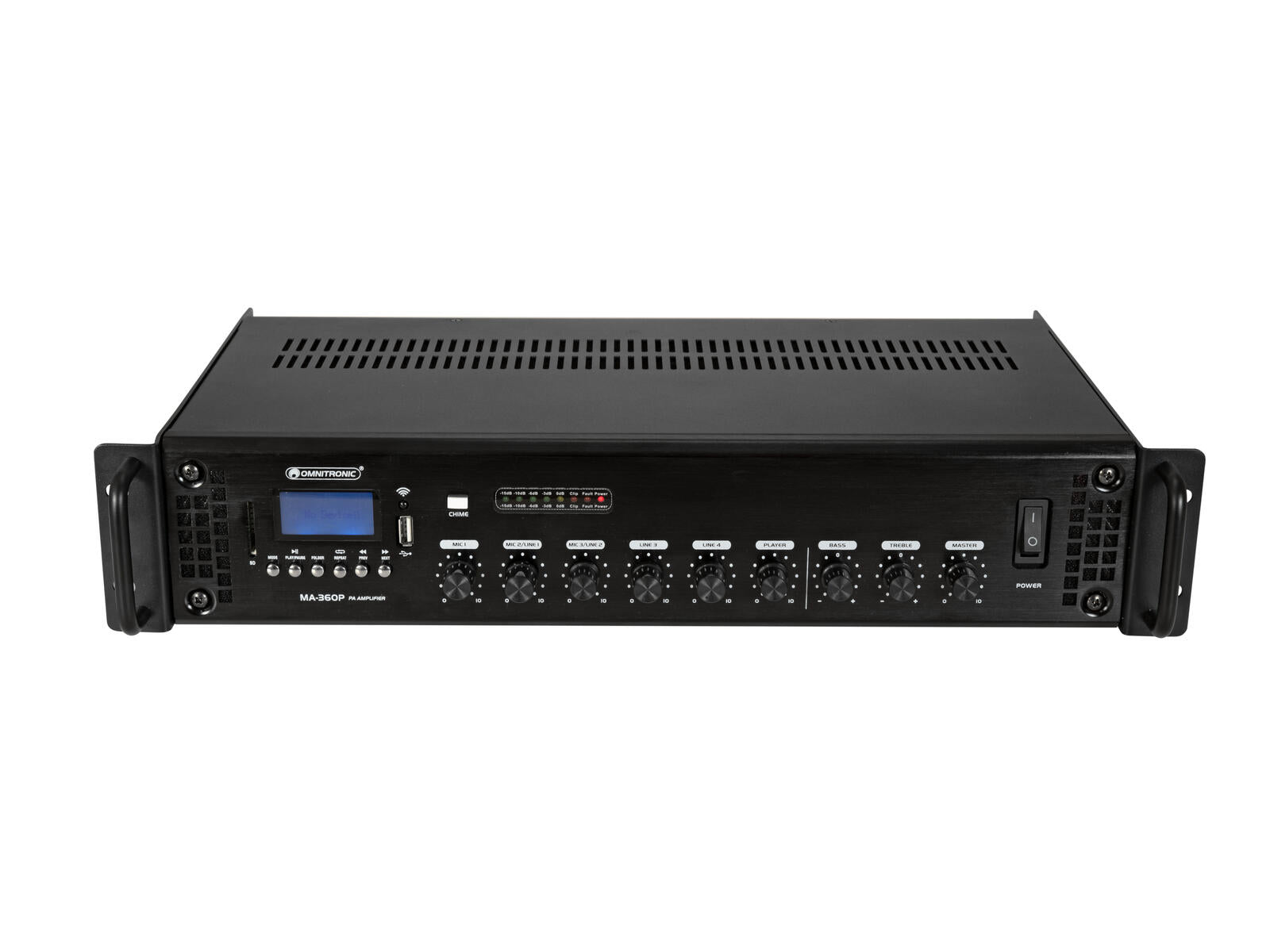

OMNITRONIC MA-360P PA Mixing Amplifier
PA mixing amplifier with audio player,IR remote control and Bluetooth, 360 W RMS
- Stream music wireless from your mobile devices (e.g. smartphone, tablet) via Bluetooth
- SD card slot and USB port
- Folder navigation, repeat functions and random play
- 3 microphone inputs with separate level controls
- Mic 1 with phantom power and priority circuit
- Mic 2 and 3 switchable mic/line
- 2 line inputs with separate level controls
- 1 line output
- Treble and bass and master controls for the output signal
- 5-digit LED level meter
- Chime, switchable
- (19") 48.3 cm rack installation 2 U
- The device is cooled by cooling fan
- Control via IR remote control; Bluetooth
- For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms
Technical specifications
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 720 W |
| Protection class: | Protection class I |
| Output power: | 360 W RMS |
| Power connection: | Fixed power supply cord with safety plug |
| Device fuse: | 5 x 20 mm, T 6.3 A fuse replaceable |
| Frequency range: | 50 - 18000 Hz |
| S/N ratio: | >75 dB microphone >85 dB line |
| THD: | <0.5 % at 1 kHz |
| Cooling: | Cooling fan |
| Impedance: | Public address systems 100V; 4-16 ohms; Public address systems 70V |
| Control: | IR remote control; Bluetooth |
| Audio player: | USB + SD + Bluetooth |
| Housing color: | Black |
| Circuitry: | Class AB |
| Control elements: | Power switch, Master control, level control per channel, tone control, audio player; regular talkover, phantom power switch |
| Controls: | Overload; short-circuit; limiter; overheat |
| Status LED: | Power, fault, clip, level meter |

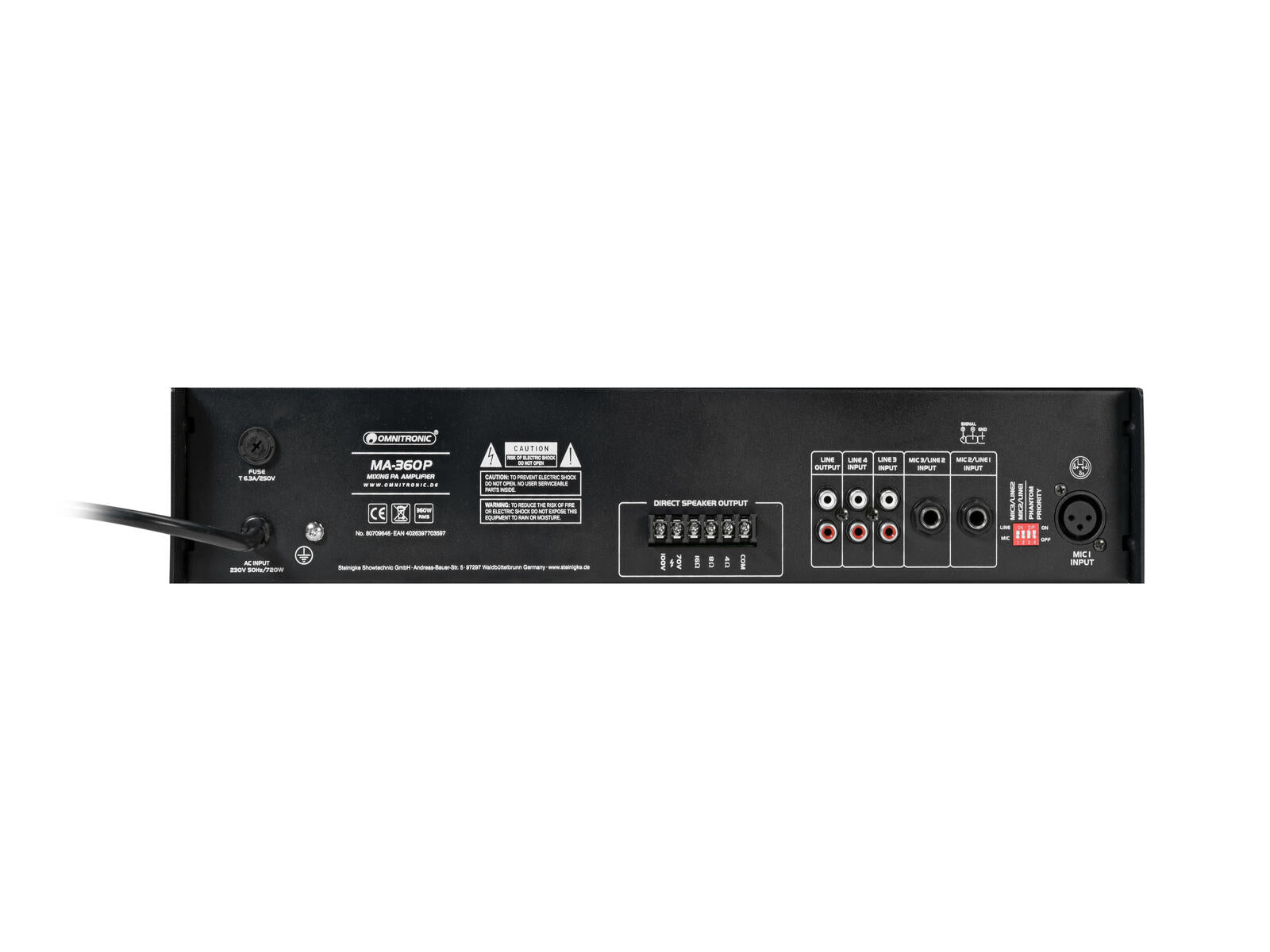

| Connections: | Input: microphone via 2 x 6.3 mm plug (unbal.) Input: microphone via 1 x 3-pin XLR Input: line via 3 x stereo RCA 0.3 V Output: rec. via 1 x stereo RCA 0.3 V Output: speaker via screw terminal |
| Equalizer: | Master: 1 x 2-band tone control mono |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Dimensions: | Width: 48.3 cm Depth: 32 cm Height: 9.2 cm |
| Weight: | 7.00 kg |
| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Audio player | |
| Bluetooth device name: | Bluetooth |
| Music format: | MP3, WMA; WAV, FLAC |
| Number of files: | Max. 999 |
| Available storage media: | USB devices/SD cards max. 32GB (FAT 32) |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397703597 | 8,40 kg | 53cm x 44cm x 18cm |
