LM-9414
inter-M LM-9414 4 BUS MIC LINE MIXER

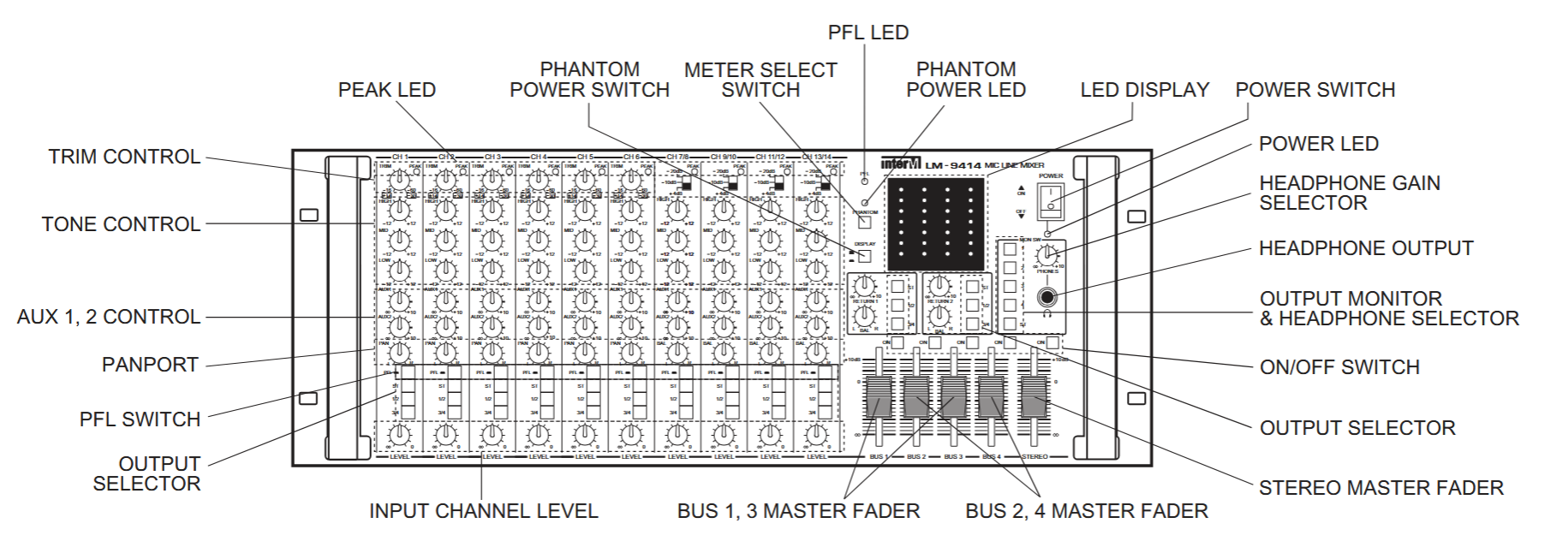

FEATURES
14 CHANNEL INPUTS, 4 CHANNEL OUTPUTS
AND
STEREO OUTPUT
Any sound source of microphone, turntable,cassette
deck can be applied to 6 mono and 4 stereo(14 channel
inputs), 4 output and stereo output are provided.
EQUALIZERS ON EACH INPUT CHANNEL
3 Element equalizers are provided to adjust the acoustic
characteristics according to microphone, speakers and
room structure.
TRIM CONTROL AND PEAK INDICATOR ON EACH
INPUT CHANNEL
Trim control and peak indicator which are provided on
each channel to adjust input level.
CONSTANT LEVEL PAN CONTROLS FOR EACH
MONO CHANNEL AND EACH STEREO CHANNEL
Constant level pan controls for placing each mono
channel in the left-right stereo spectrum, as well as
balance controls for each stereo channel.
CHANNEL INSERTS OF THE 6 MONOPHONIC
INPUT CHANNELS
Channel inserts are provided for each of 6 monophonic
input channels.
PFL, ST, 1/2, 3/4 OUTPUT SELECTOR SWITCH
ON EACH INPUT
PFL and ST, 1/2, 3/4 switch are provided on channel for
easy monitoring and curing.
LED DISPLAY SELECTOR
Bus 1, 2, 3, 4, or LR, PFL, monitor level can be selected
for versatile use.

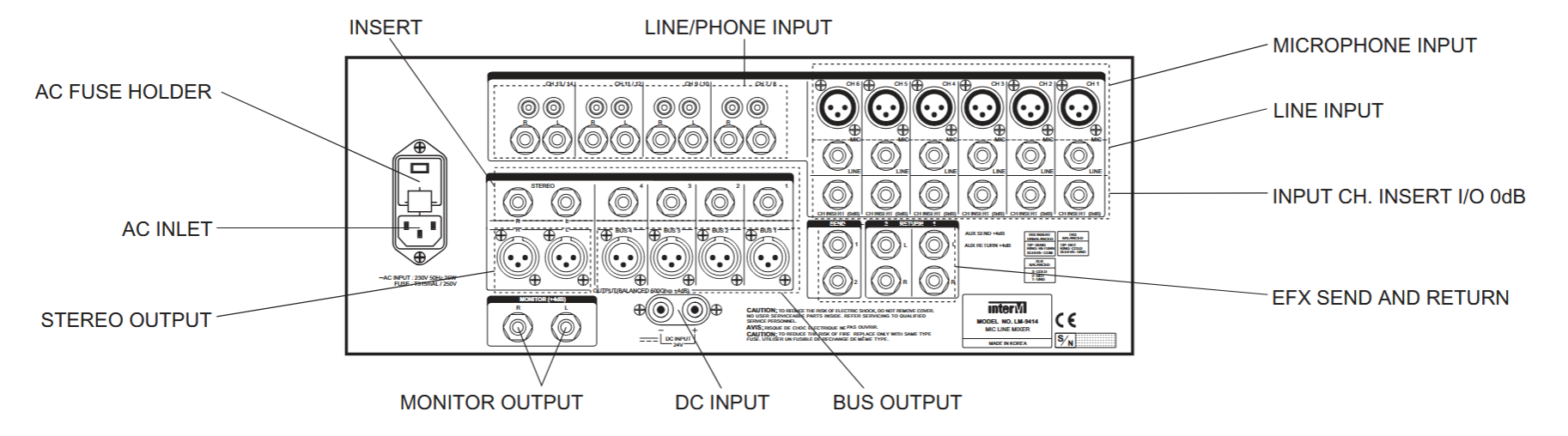

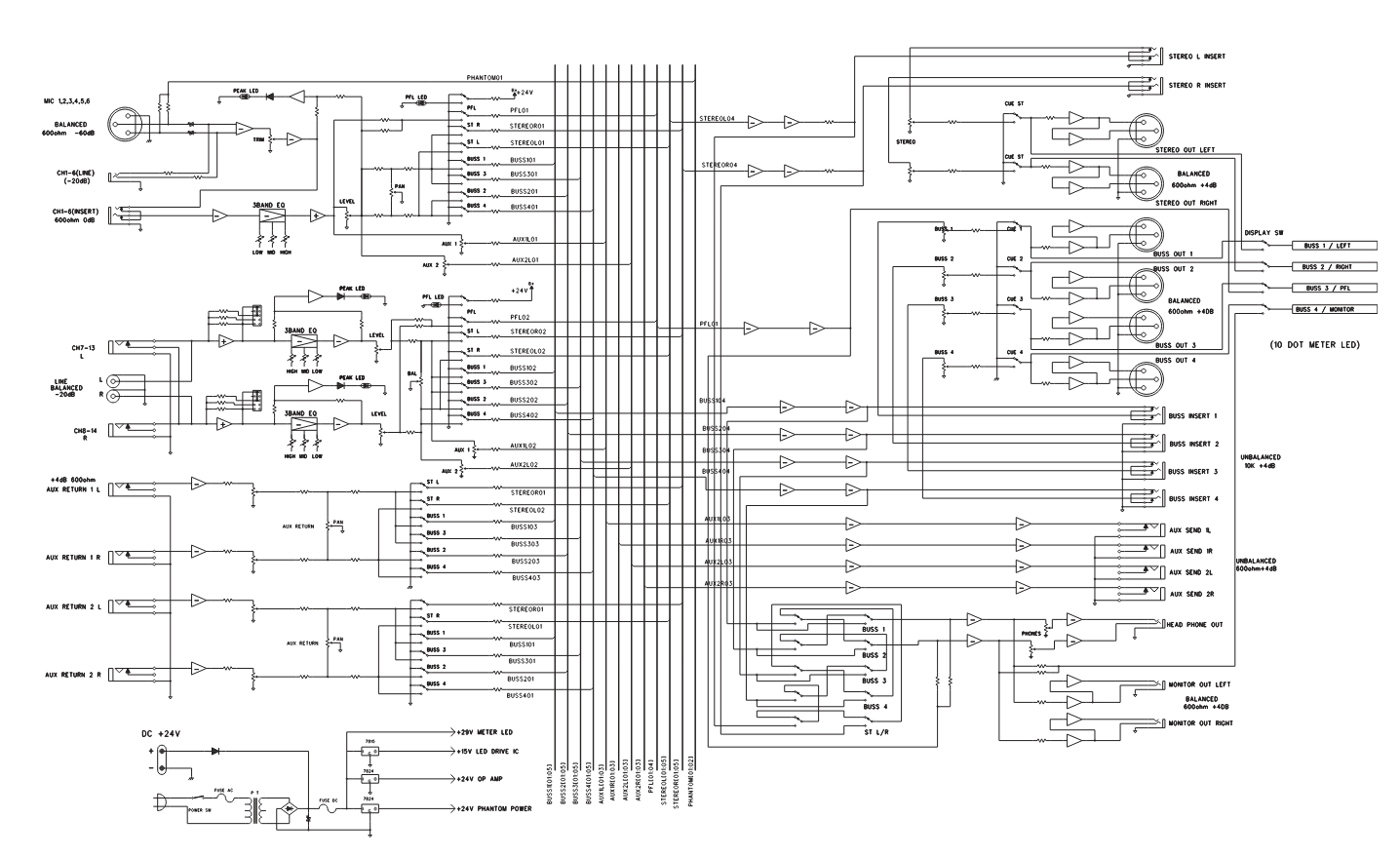

SPECIFICATIONS
ELECTRICAL
Rated Output/Impedance
Bus Output..........................................+4dB/600Ω BAL
Headphone Output ............................................2V/33Ω
Monitor Output ....................................+4dB/600Ω BAL
Stereo Output .....................................+4dB/600Ω BAL
Input Sensitivity/Impedance
Mic .........................................-60dB~-16dB/600Ω BAL
Line..........................-20dB, -10dB,+4dB/10kΩ UNBAL
Insert........................................................................0dB
T.H.D(at 1kHz Rated Output) ..............Less than 0.05%
Frequency Response ......................20Hz~20kHz(-1dB)
Tone Control
High ....................................................±12dB(at 10kHz)
Mid ........................................................±12dB(at 1kHz)
Low .....................................................±12dB(at 100Hz)
Crosstalk...............................................More than 70dB
GENERAL
Power Source... AC 100V/120V/230V/240V, 50/60Hz, DC 24V
Power Consumption ...............................................30W
Weight ...................................................................8.3kg
Dimensions .....................482(W) 177(H) 280(D)mm
