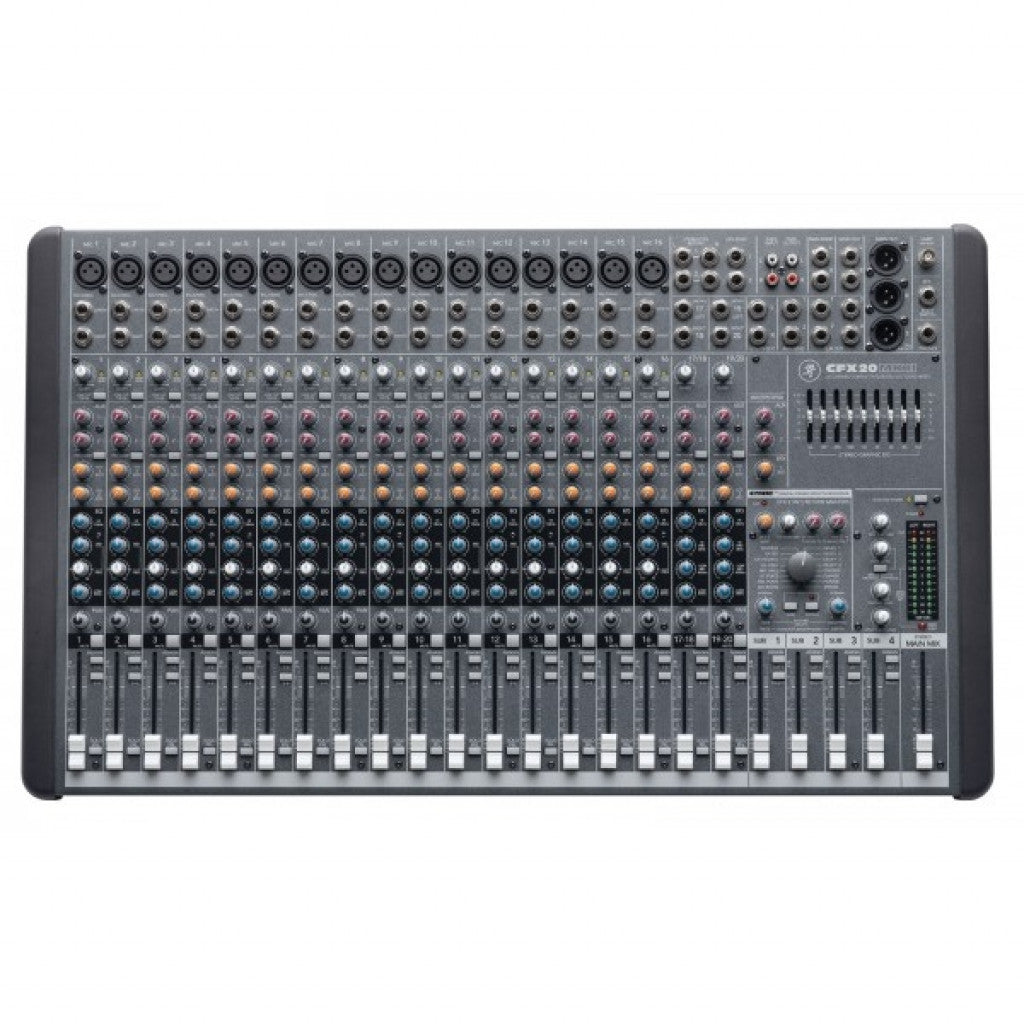

MACKIE CFX-20 MKII Audio Mixer with Effects, inserts and 4 groups

CFX-20 MKII Features

20 Channel Mixer with FX

20-channel / 4-bus compact mixer with Effects (EFX).

High-headroom Mackie mic preamps with RF rejection

32-bit EMAC™ digital effects with 9 reverbs, 4 delays,

phaser, chorus, flange; 2 parameter controls + EFX,

wide spatial expander,

External and internal EFX sends,

EFX to Monitor control,

9-band stereo graphic equalizer,

Inserts on all mic channels and main mix

True 4-bus design with direct sub outs and L/R assign

2 Pre/Post Aux Sends and 2 internal/external FX level sends on each channel

3-band EQ with swept mid (100 Hz to 8 kHz) on mic/ line channels

4-band EQ on stereo line channels

Pan, Mute, PFL solo on each channel

Inserts and 100 Hz low-cut filters on all mic/line channels

Subwoofer output from built-in 18 dB/oct. 75 Hz crossover

Ingenious Break switch

Mix via Break switch

Headphone output with level control

Tape/CD inputs with level control assignable to Main

Logarithmic taper 60 mm faders

48V phantom power

12V BNC lamp jack
