VSM-200

TC Electronic

To see item prices, please log in
Only 2 left!

TC Electronic Voice Solo VSM-200 996510051

TC Helicon Voice Solo VSM-200 Active Vocal Monitor 150W

VSM-200 Features:

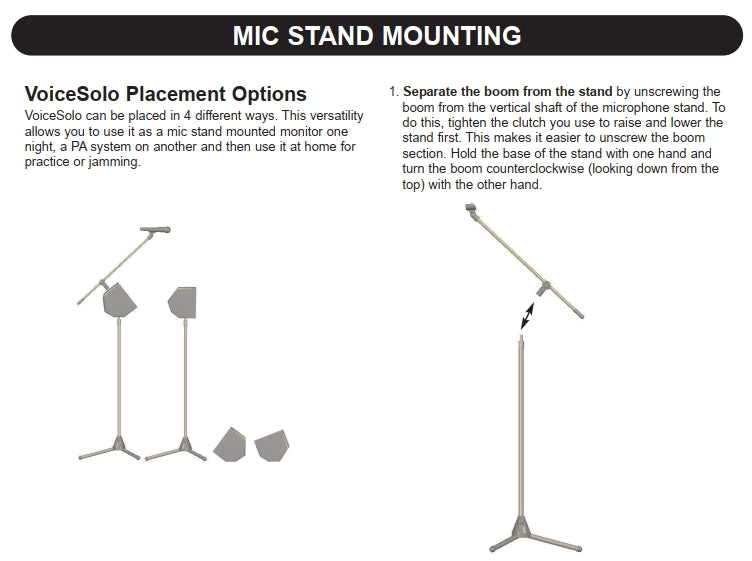

• Quick mic stand set up. Integrates with Boom so the
same stand is used for the monitor and microphone.
• Versatile placement options provided by dual stand
mounting holes and dual bevelled edges for floor
mounting.
• Two-way point source 6.5" ICT™ driver for optimal near-
field live monitoring.
• High volume capability: 116dB peak SPL at .5m
• 150W BASH amplifier.
• Cast aluminum enclosure for maximum rigidity and
minimum cabinet resonance

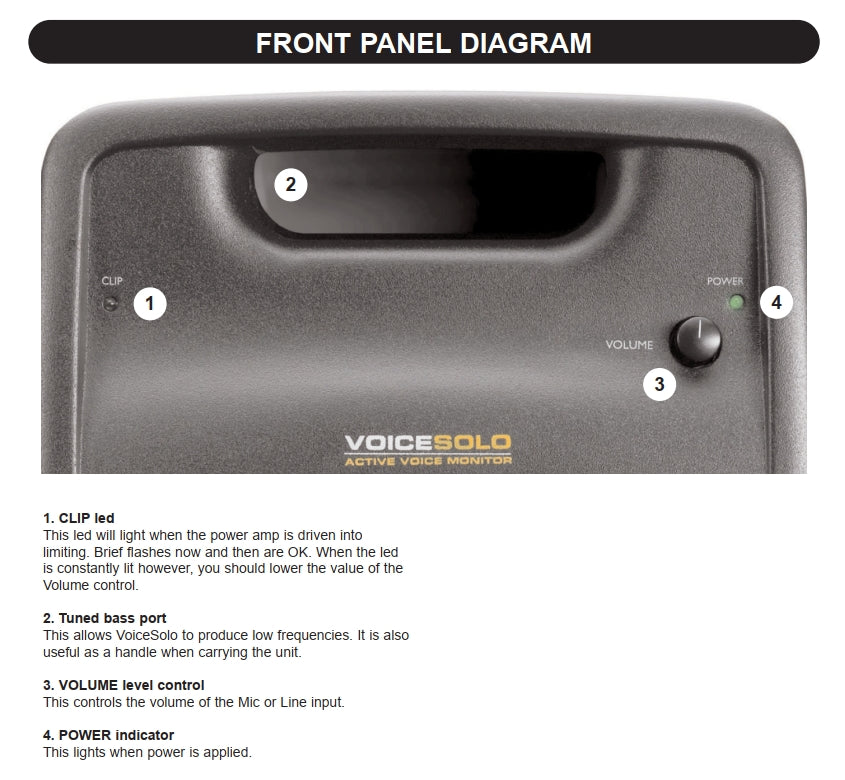

• Front panel mounted volume control for easy access.
• XLR or 1/4" input, line or mic level

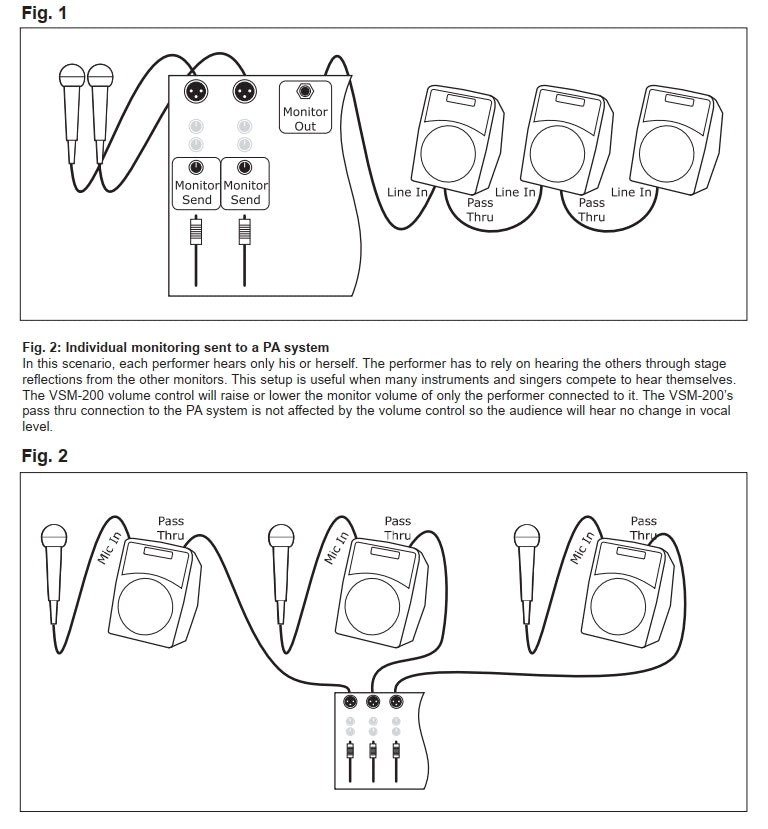

• Pass thru connection to PA

SPECIFICATIONS

Audio Connections
Parallel XLR and ¼-inch inputs with XLR Mic thru
Power Amp
150 watts BASH® technology into 4 ohms (200 watts peak)
Distortion: 0.5% @ 150W; 10% @ 200W
Frequency response: 75 Hz – 20 kHz
Input sensitivity 20 dBu to -40 dBu
Speaker
Speaker: 6.5 inch ICT custom-designed point source driver
including inductively coupled tweeter
Nominal impedance: 4 ohms
120 Watt Program / 240 Watt Peak power handling
Conical dispersion: 90 degrees
Frequency response: 120 Hz–20 kHz
Peak SPL: 116 dB @ .5 meter
Case
Enclosure of molded aluminum with integral bass port
Color: Black
Dimensions
(H x W x D): 9" x 7" x 9.75"
(23 cm x 18 cm x 25 cm)
Shipping weight: 12 lbs. (5.5 kg)
Net weight: 10.8 lbs. (4.9 kg)
AC
Two non-interchangeable units:
220-240 VAC ~60 Hz 1.2A Fuse: T1.25AL 250V
120 VAC ~60 Hz 2A Fuse: T2AL 250V
