UWP-D27/K21

The UWP-D27 is a complete wireless audio package that’s ideal for on-camera interviews, live presentations and other applications where you need to capture crisp, clear sound with minimum fuss. The ECM-V1BMP omni-directional lavalier microphone connects to the light, compact UTX-B40 bodypack transmitter that’s worn by an interviewee. Audio is transmitted wirelessly to the URX-P41D 2-channel portable receiver, with quick and easy wireless pairing between transmitter and receiver. An optional Multi Interface Shoe Adaptor simplifies audio recording with compatible Sony cameras and handheld camcorders.

Key new features include:
1) Digital audio interface to improve sound quality
 • Sony’s Digital Audio Processing, which uses DSP (digital signal processing) for digital companding, improves sound quality by optimizing a time-constant range between the transmitter and receiver, making the reproduction of sound more accurate. It provides superb transient response performance which for interview style recording means the audio is clear and crisp.

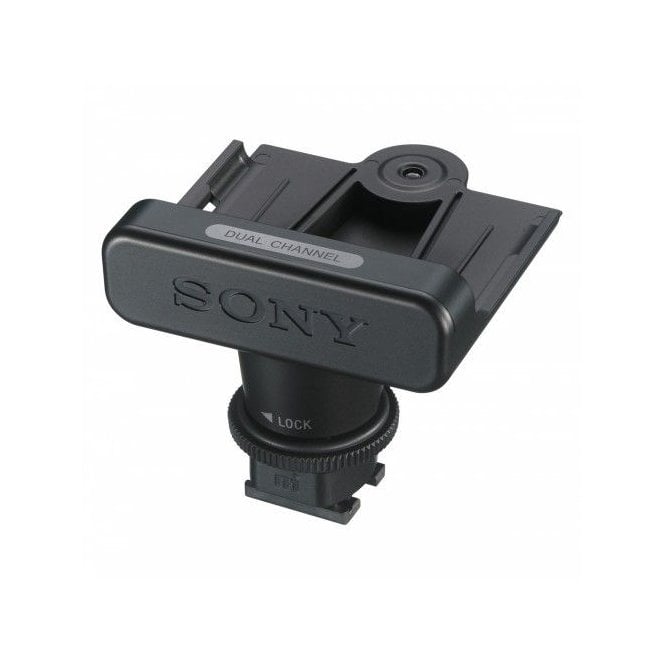

 • Using the SMAD-P5 MI shoe adaptor enables direct digital audio recording and delivers high sound quality with low noise by skipping the D/A and A/D process. This interface is compatible with a wide range of Sony’s XDCAM camcorders and Alpha interchangeable lens cameras.* It also integrates seamlessly with Sony’s camcorders and displays audio information on the viewfinder for enhanced usability in the field.
2) “NFC SYNC” function to allow quick and easy channel setting

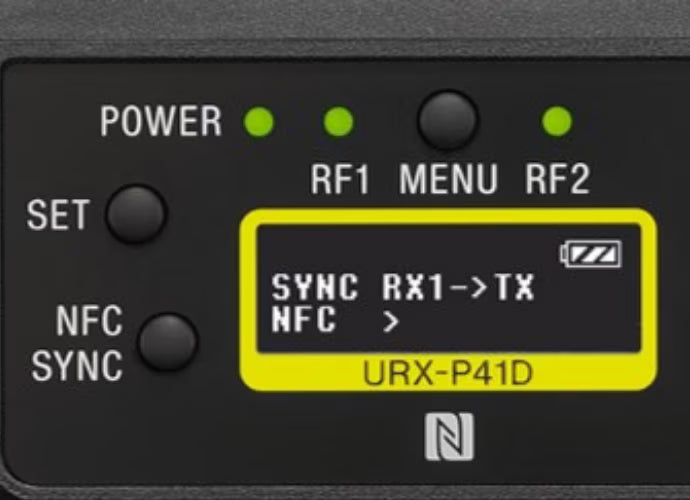

 • Simple and quick channel setting for reliable RF transmission when time pressure is high is becoming crucial. Delivering enhanced usability, the unique “NFC SYNC” feature is designed for easy and fast frequency setting. By simply holding the NFC SYNC button on the receiver for a few seconds, it automatically scans the appropriate frequency. Thereafter, just touching the receiver to the transmitter will sync the channel for optimum speed and efficiency.
3) Compact form factor, with improved ergonomics

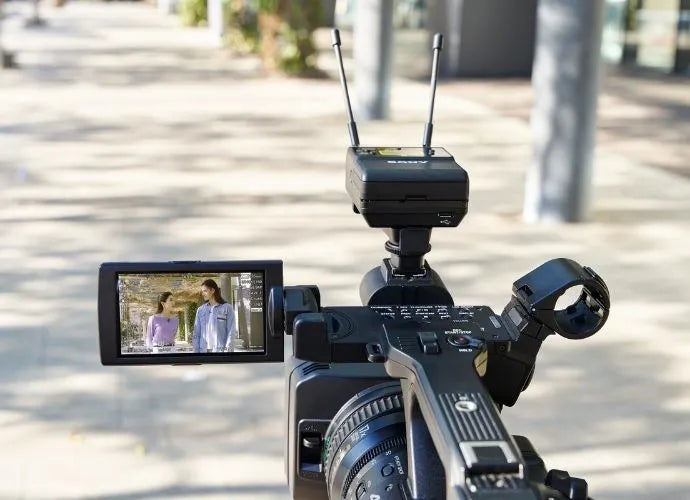

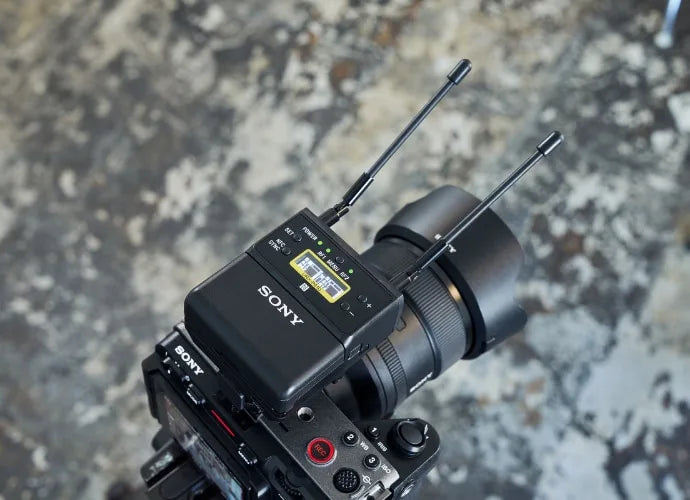

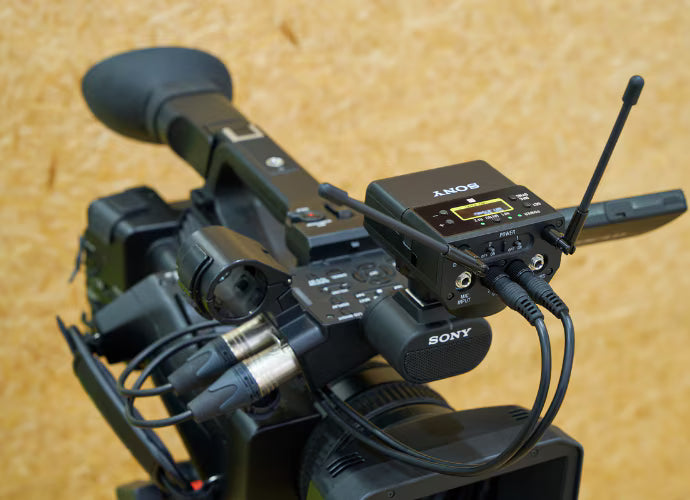

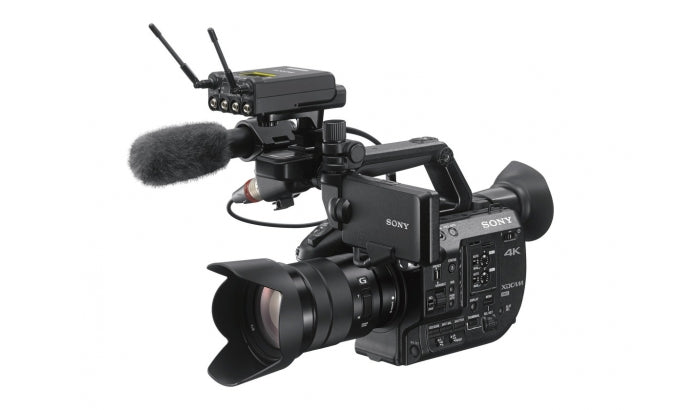

 • By reducing the size of the receiver from previous generations, the URX-P41D can sit on top of the camera or ILC attached to the MI shoe or cold shoe allowing for improved balance on the camera
4) External Microphone Input and Three-channel mixing function
 • The External Microphone Input for an additional wired microphone widens the sound capture options. Three-channel audio recording is available by using a Sony’s lavalier microphone through the external microphone input. Furthermore, four-channel audio recording is also possible when using a stereo microphone through the external microphone input.
5) Stable RF reception
 • The URX-P41D can reduce interruptions in reception (RF signal dropout), by utilizing a space diversity reception system, which achieves highly stable reception because of its two receiving antennas. The angle of the antennas on the portable receiver can also be adjusted, which helps to further eliminate signal dropout.
6) Functions to improve performance when on location
 • Auto gain mode and Output level control brings the user peace of mind that the audio levels are correct when out in the field. Auto gain will help to prevent any unwanted distortion and Output level control (when using XLR cable) allows the user to increase the output level where necessary.

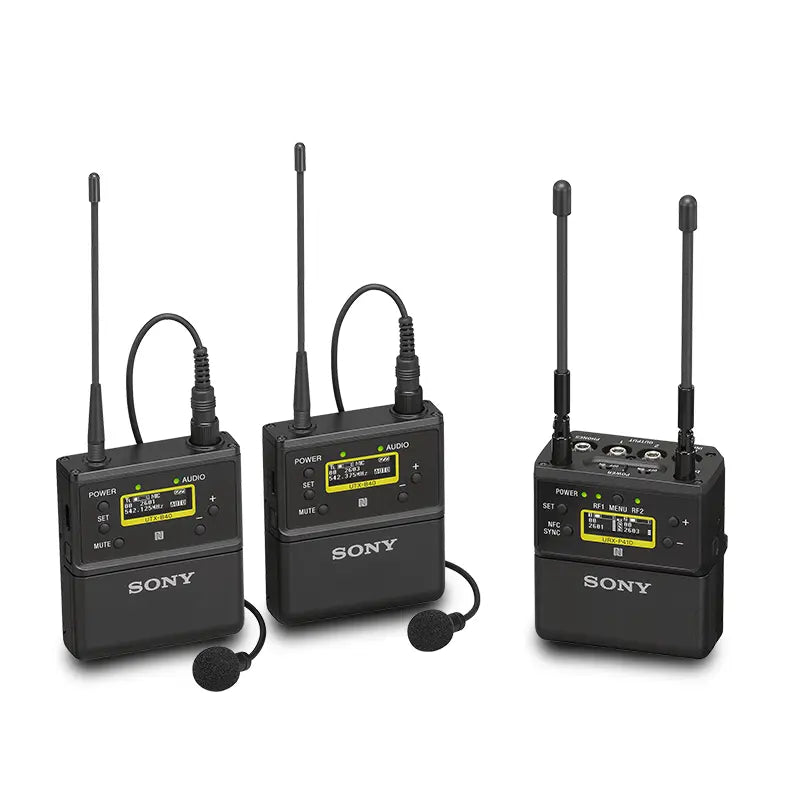

Set consisting of:

• 2x Sony UTX-B40/K21 digital bodypack transmitter
• 1x Sony URX-P41D/K21 portable 2-channel receiver

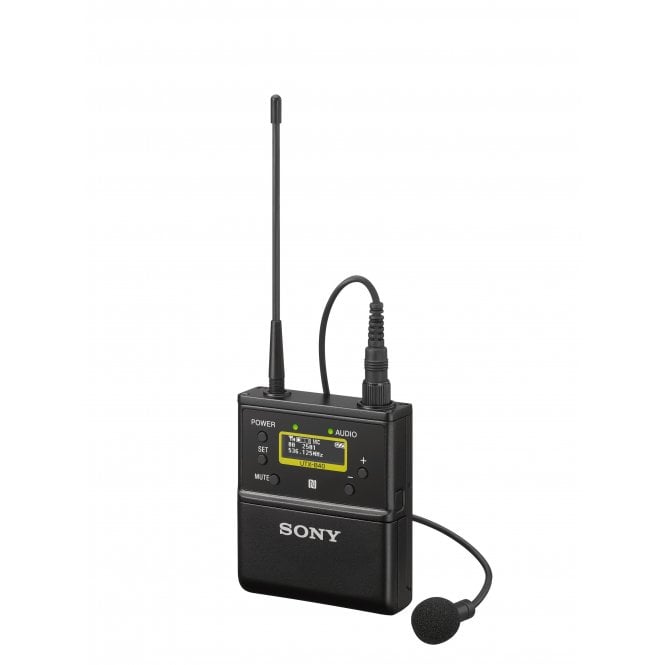

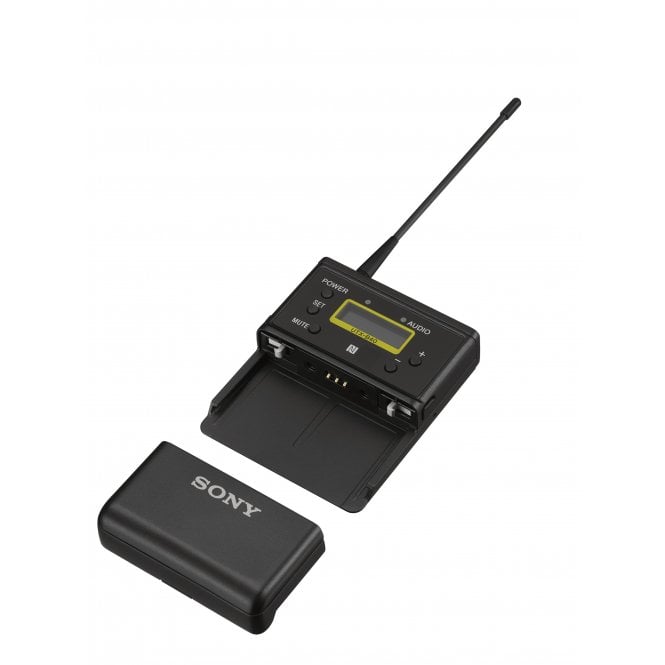

Properties UTX-B40/K21:

This digital bodyback transmitter of the UWP-D series is particularly suitable for use in the electronic news gathering.

• TV channel: 21 - 29
• Frequency range: 470 - 542 MHz
• Operating time: ca. 8 hours
• Weight: ca. 83 g (without batteries)

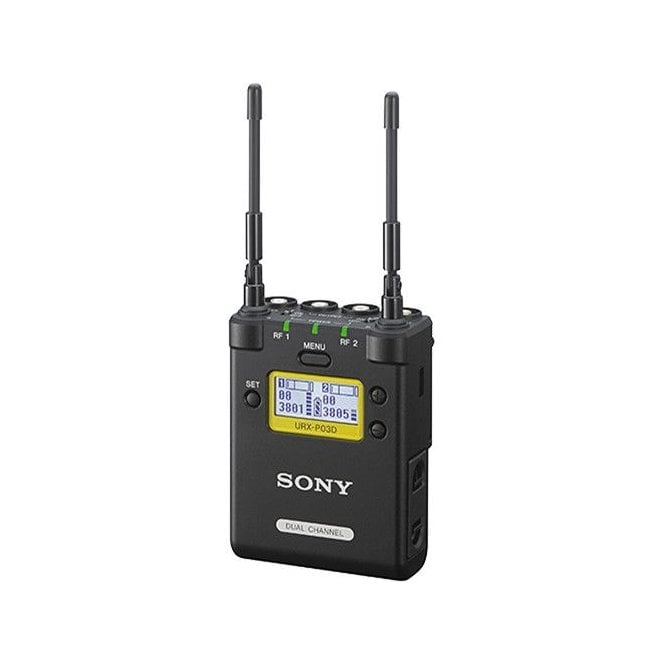

• Compatible with the receivers of the Sony UWP series such as URX-P03D
• Fully digital audio processing improves the transient response between the transmitter and receiver and delivers a high-quality sound
• Built-in digital compander from Sony increases the signal-to-noise ratio and prevents clipping
• USB port for power supply
• Microphone/Line input: Jack socket, 3-pin, 3.5 mm
• Attenuation: 0 dB to 27 dB in steps of 3 dB

Properties URX-P41D/K21:

• OLED display
• Camera side wireless operation with the 2-channel SMAD-P5 MI shoe adapter (Multi Interface) (not included)
• Wide bandwidth: 3 versions cover the frequency range from 470 to 694 MHz
• True diversity for stable audio
• NFC SYNC function enables secure channel pairing between UTX-B40 wireless transmitter and URX-P41D receiver
• TV channel: 21-29
• Frequency range: 470-542 MHz
• Frequency response: 23 Hz to 18 kHz
• Distortion (T.H.D.): 0.9% or less
• Signal-to-noise ratio: 60 dB (1 kHz sine wave, 5 kHz modulation), 96 dB (max. deviation, A-weighted)
• Audio delay: approx. 0.35 ms (analog output), approx. 0.24 ms (digital output)
• Reference input level: -50 dBV (±12 dB adjustable, 3 dB steps)
• Audio output level:
  -60 dBV (jack plug, 3-pin, 3.5 mm diameter, analog output)
  -20 dBFS (external connector, digital output)
  -50 dBV (external connector, analog output)
• Audio output adjustment range: -12 dB to +12 dB (in steps of 3 dB)

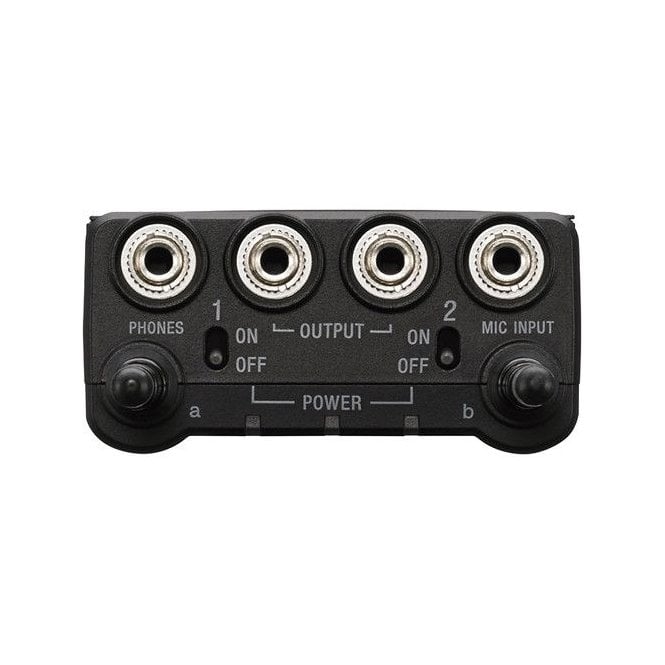

Data links:

• 1x Audio input analog (microphone): 3.5 mm jack (unbalanced), 3-pin
• 2x Audio output: 3.5 mm jack (balanced), 3-pin, external connector
• 1x Headphone output: 3.5 mm jack

General product information:

• Dimensions (WxHxD): 6.3 x 7 x 3.5 cm (without antenna)
• Weight: approx. 159 g (without batteries)
• Power supply: 3.0 V DC (with two AA alkaline batteries (LR6)), 5.0 V DC (via USB Type-C connector)
• Headphone output power: max. 10 mW (16 Ohm)
• Operating temperature: 0 to +50 °C
• Storage temperature: -20 °C to +55 °C

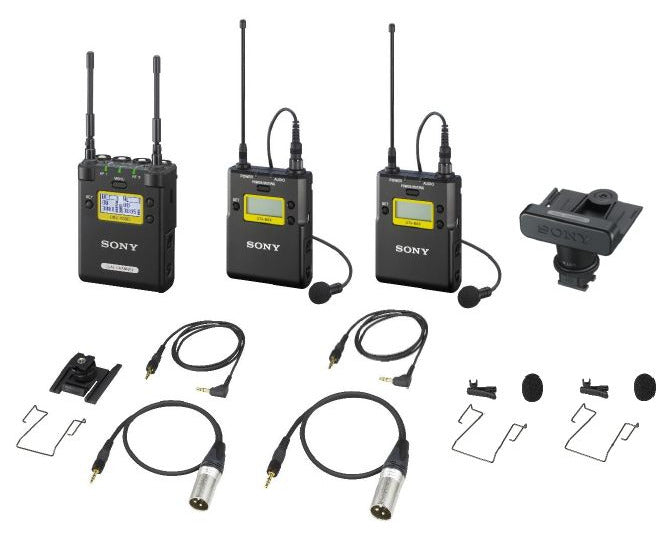

Included in delivery:

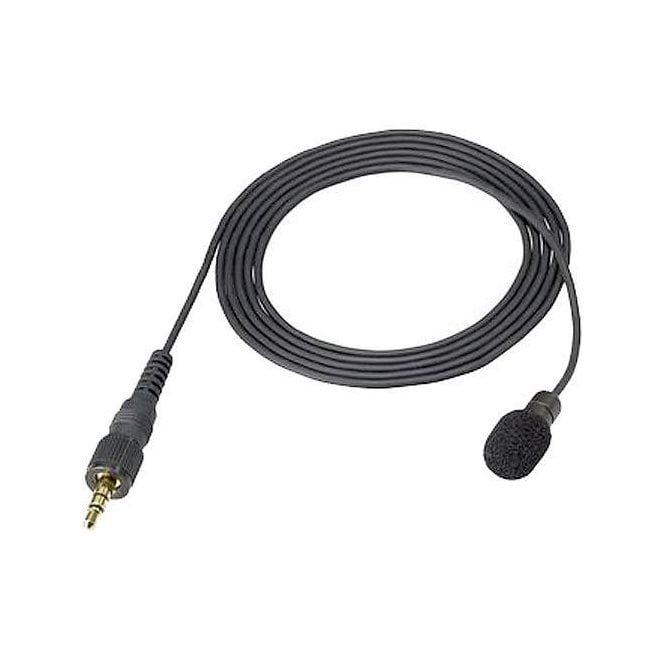

• 2x ECM-V1BMP lavalier microphone
• 2x Microphone clip
• 2x Windscreen
• 2x Adapter cable XLR to BMP for the URX-P40
• 1x Adapter cable mini stereo plug to BMP for the URX-P41D
• 3x Belt clip
