RM-05

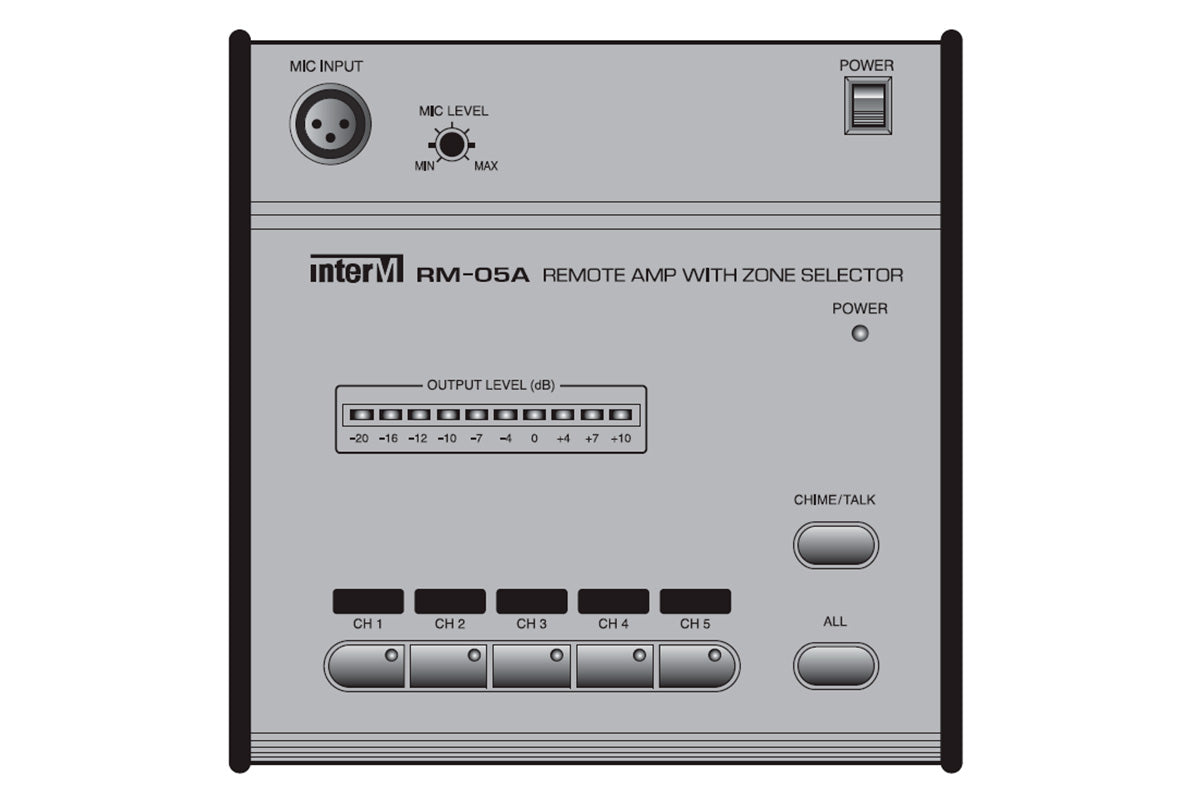

inter-M RM-05 5 Zone Paging Microphone
Appointment
The microphone console RM-05A is designed to control zones and transmit speech messages from the microphone, provides for work with Inter-M-EM-50A/120A/240A, PA-2026/212/248/236/260, PAM-510/520, PAM-312/324/336/348, automatic Alert unit SC-05EM.

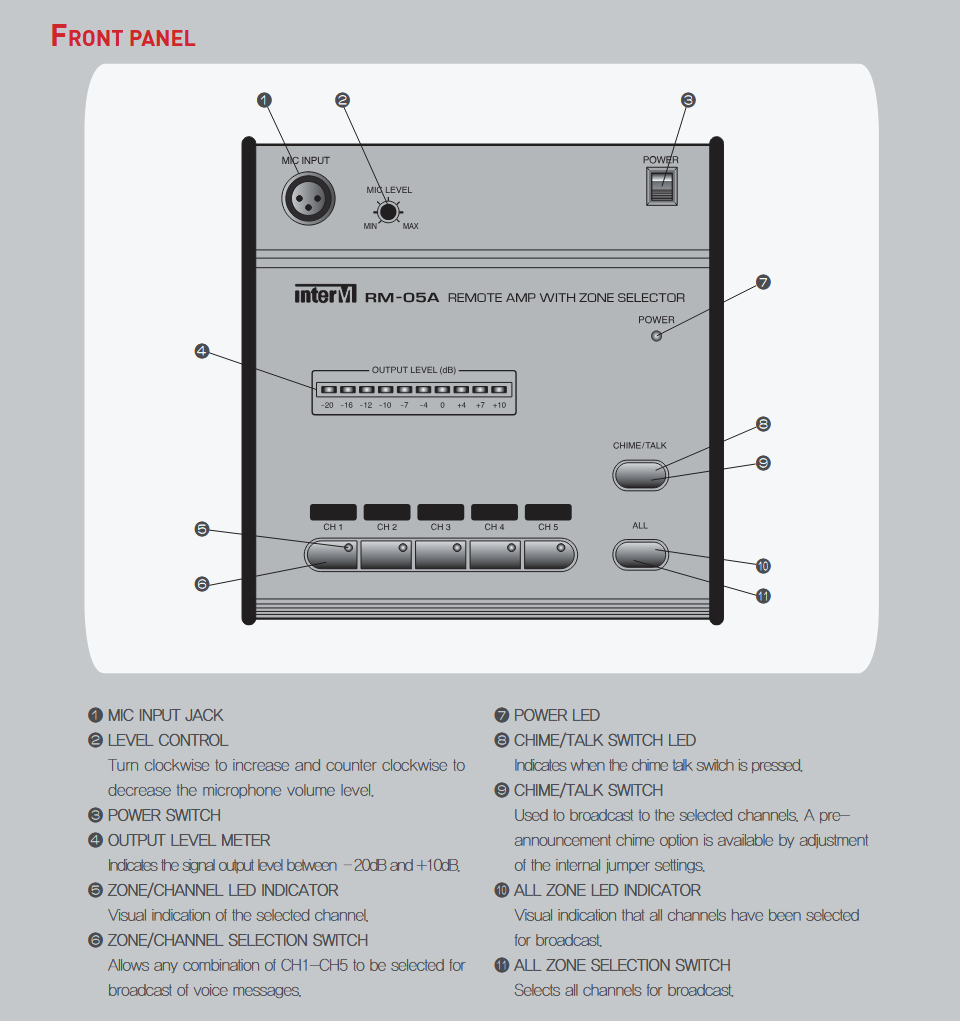

Constructive Features
- Table microphone in a flexible tubular holder;
- Selector on 5 zones of notification with light indications of active zones;
- Built-in tonal signal of attracting attention "Gong";
- Peak indicator of the level of the output signal;
- Microphone sensitivity regulator;

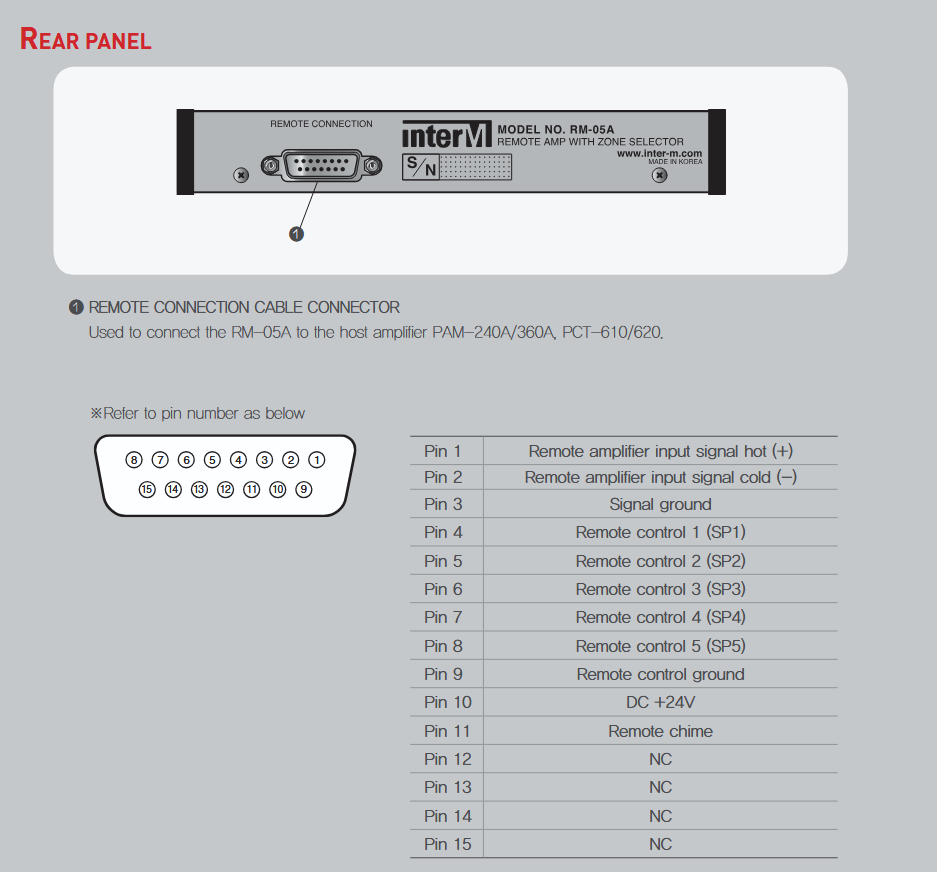

- Power of the console is carried out on the control cable.
Specifications RM-05A Inter-M
| Manufacturer | Inter-M |
| Selection of zones | 5 zones |
| Built-in sources | tone signal "Gong" |
| Frequency range | 100 Hz-16 kHz |
| Linear exit | 1V/600 Om (symmetrical) |
| Signal/Noise Ratio | more than 50 dB |
| Zone management | Normally open "dry contacts" |
| Food | 24V DC/5 W |
| Dimensions | 194х60х205 mm |
| Weight | 1.08 kg |
