RE3-ACC-PASP

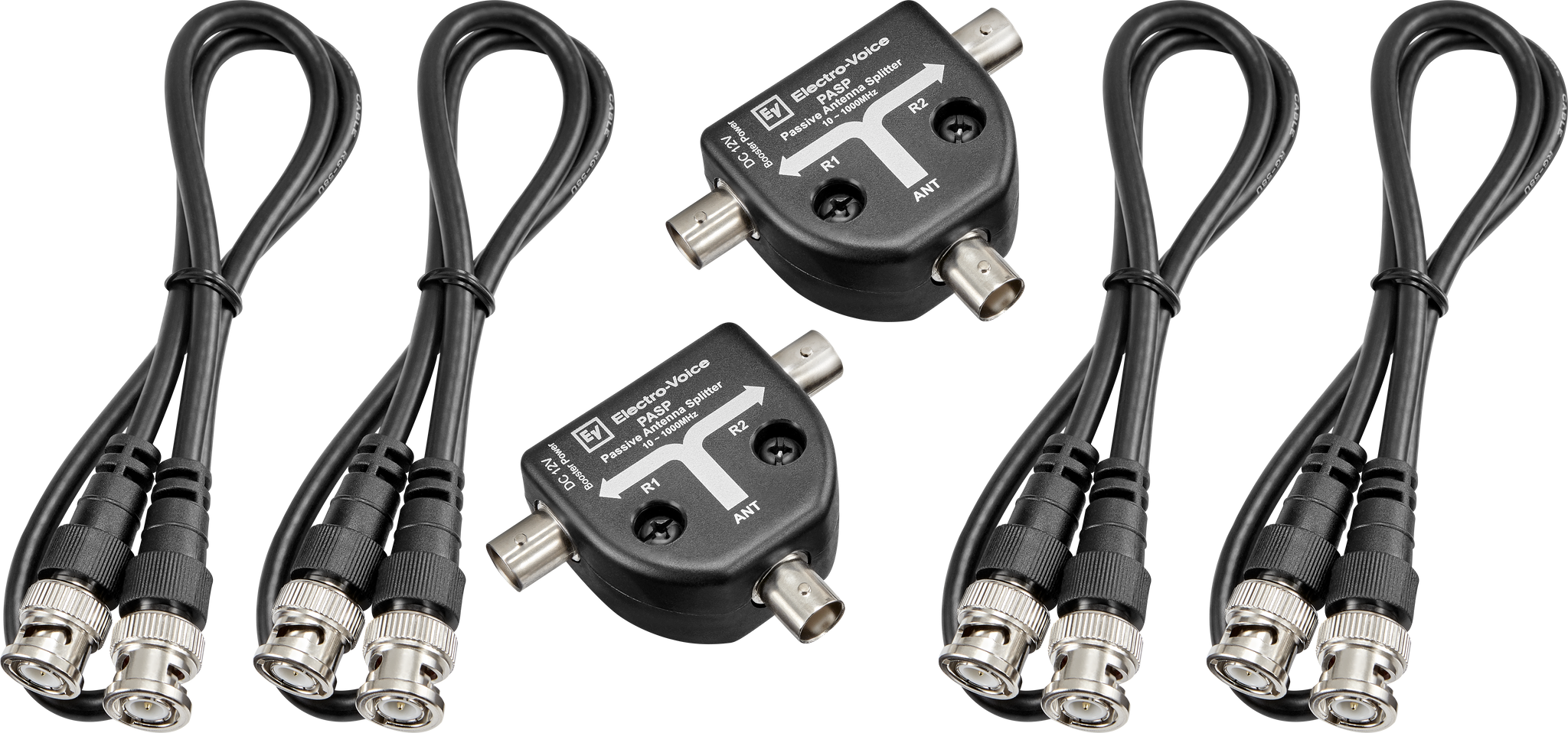

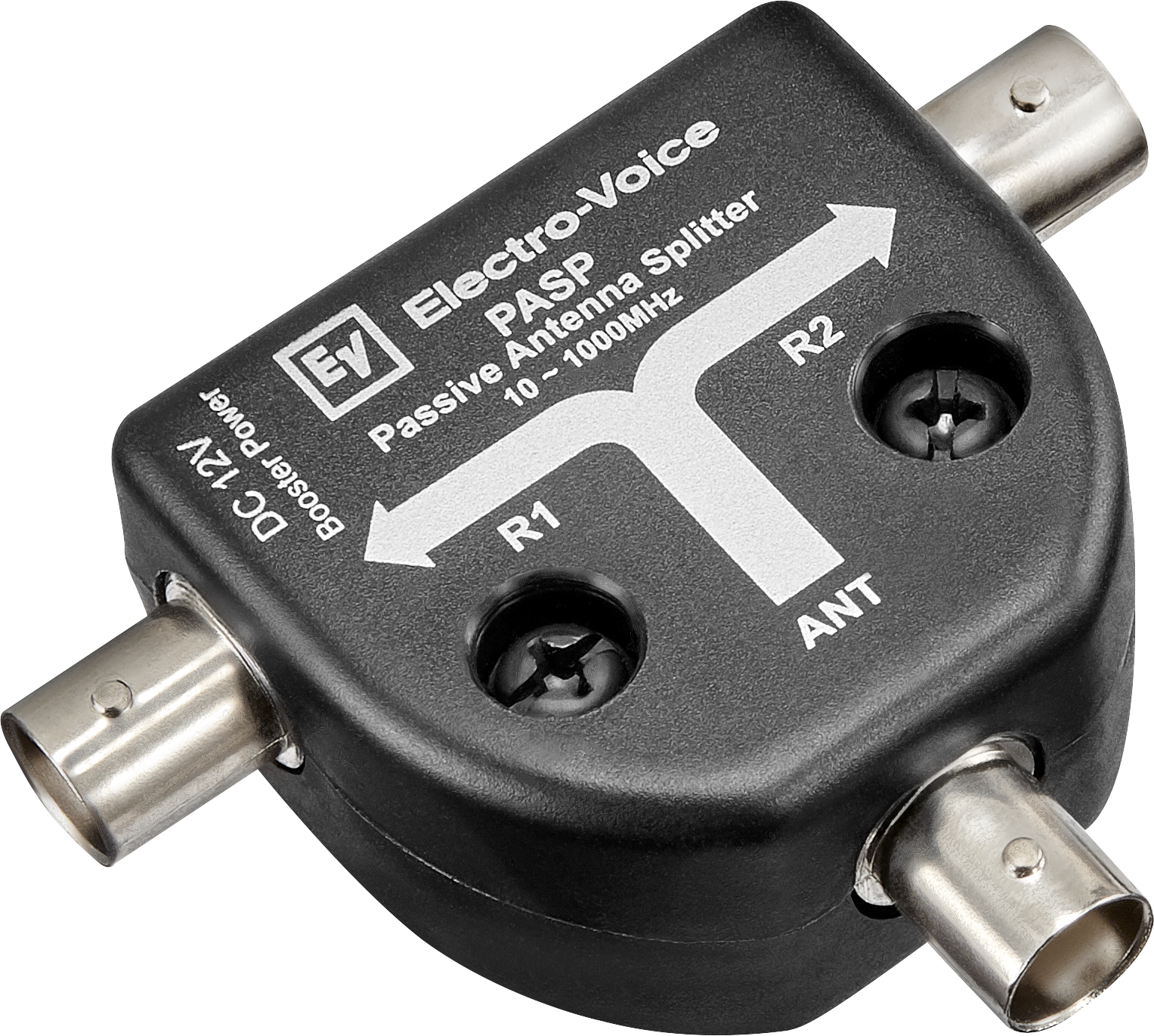

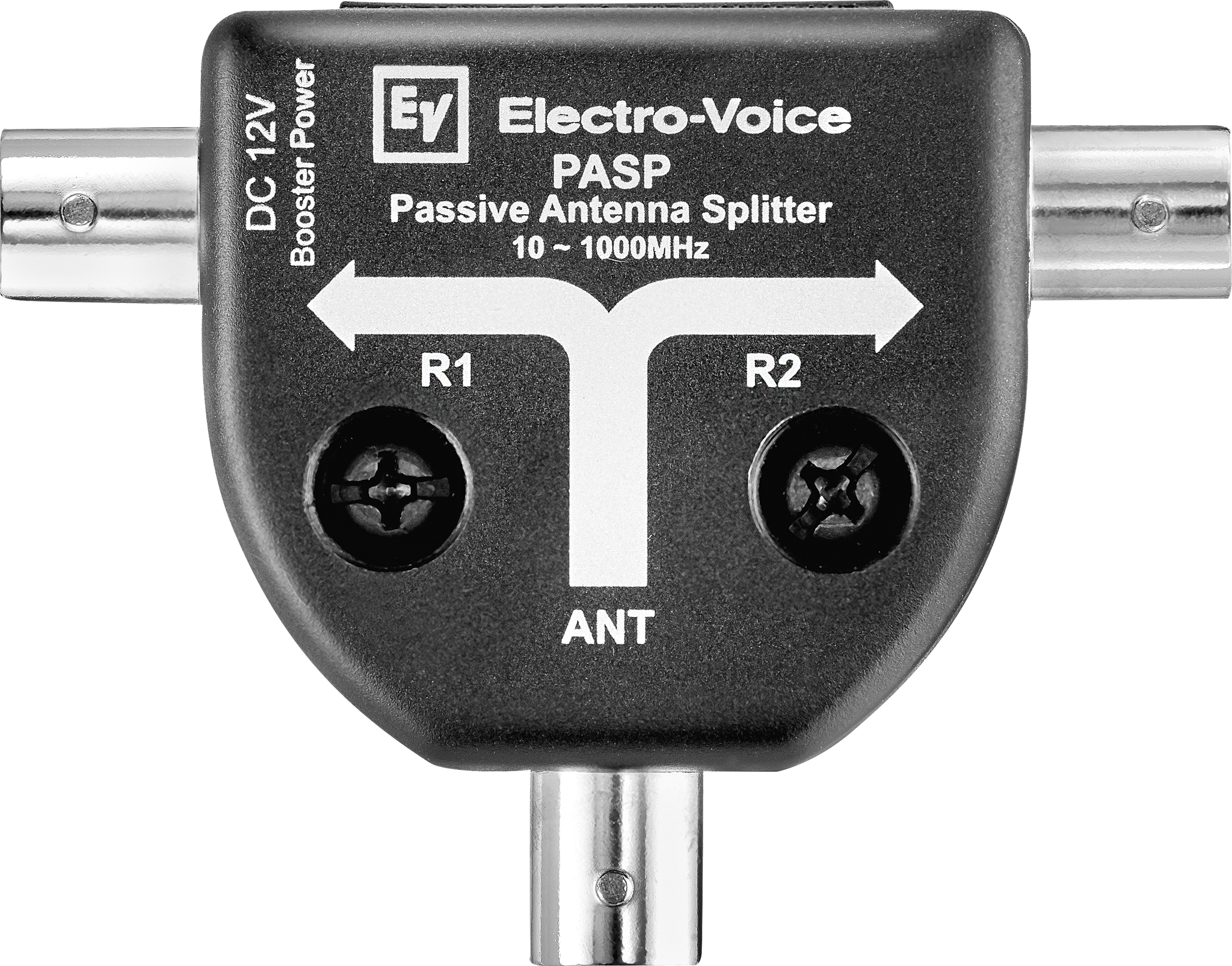

Electro‑Voice RE3‑ACC‑PASP – Passive Antenna Splitter for RE3 Wireless Systems

The Electro‑Voice RE3‑ACC‑PASP is a high‑quality passive antenna splitter designed for expanding RE3 wireless microphone systems. It allows two diversity receivers to share a single pair of antennas, reducing RF clutter and simplifying antenna distribution in multi‑channel setups.

Built with precision RF components, the PASP maintains excellent signal integrity with minimal insertion loss, ensuring stable performance even in demanding live sound environments. Its rugged metal housing and compact form factor make it ideal for touring, installations and portable production systems.

Estimated delivery time: 2–4 weeks.

Key Features

• Passive antenna splitter for RE3 wireless receivers

• Enables two diversity receivers to share one antenna pair

• Wideband RF design for consistent performance across the RE3 frequency range

• Low insertion loss for maximum signal reliability

• Rugged metal chassis suitable for stage and touring use

• Compact and lightweight for easy rack integration

• Requires no external power

Technical Specifications

• Frequency range: 470–960 MHz (RE3 wideband)

• RF connectors: 4× BNC female

  • 2× antenna inputs (A/B)

  • 2× antenna outputs (A/B)

• Type: Passive RF splitter

• Insertion loss: Low-loss design (typical for passive splitters)

• Housing: Metal

• Compatibility: Electro‑Voice RE3 receivers and accessories

Typical Applications

• Multi‑receiver wireless microphone setups

• Live sound and touring

• Corporate AV and conference systems

• Houses of worship

• Broadcast and production environments

• Installations requiring clean, centralized antenna distribution
