Rack PR-2ST, 4U
To see item prices, please log in

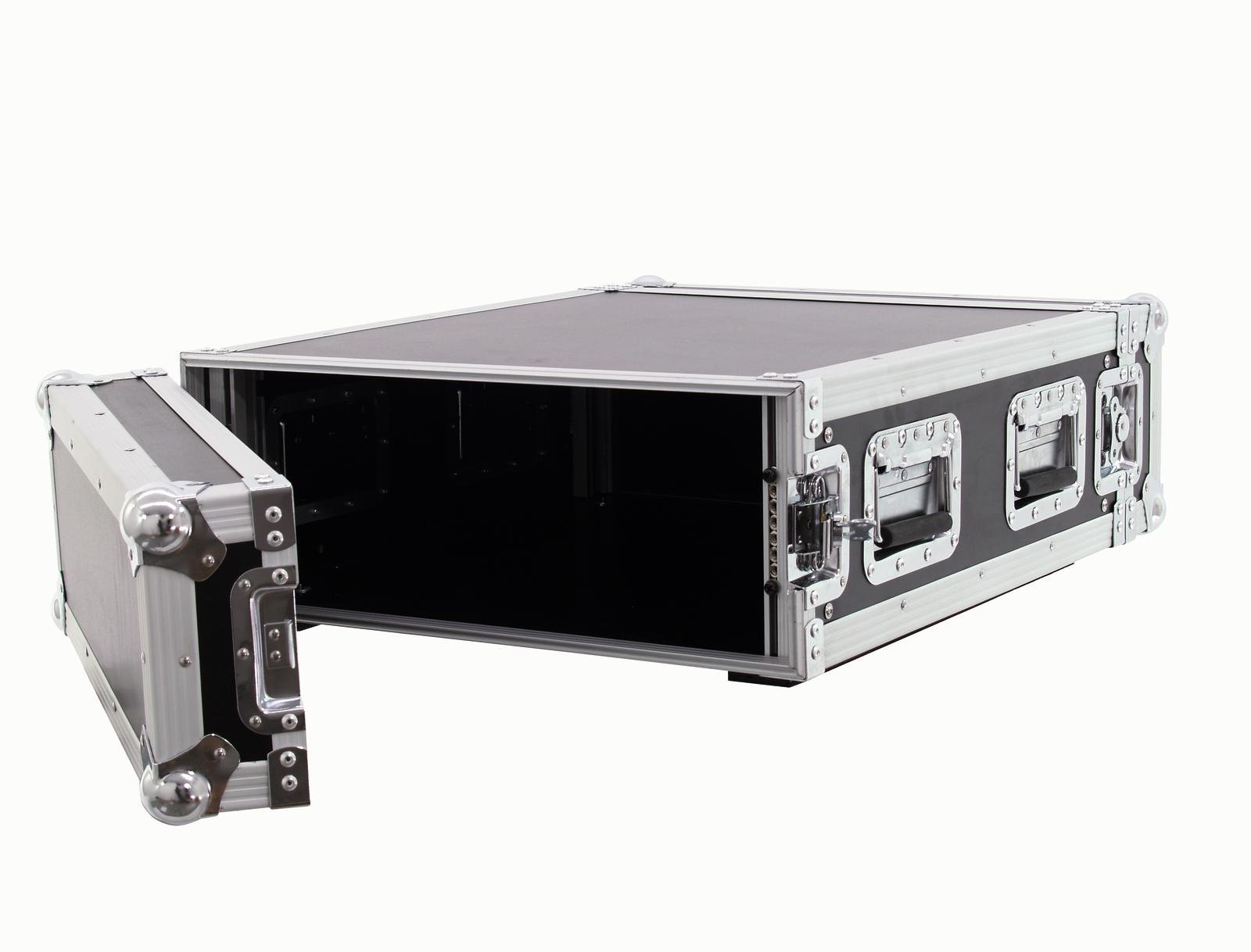

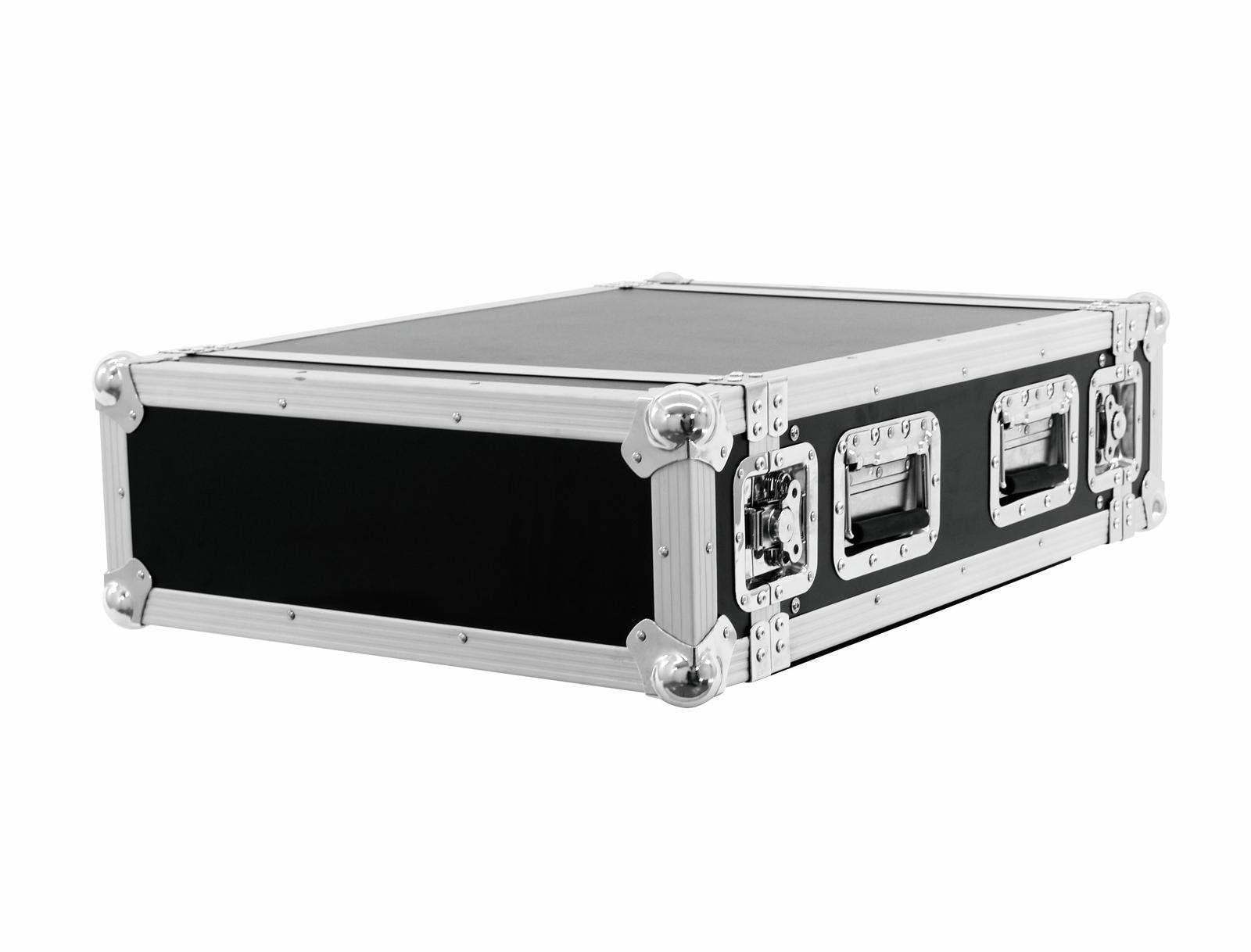

ROADINGER Amplifier Rack PR-2ST, 4U, 57cm deep
Flightcase for 483 mm devices (19")
The ROADINGER amplifier rack PR-2ST including rack rails with 4 U is ideally suited for your 19" equipment such as power amplifiers and other additional equipment.
The maximum installation depth is 550 mm plus 90 mm per cover.
The high-quality workmanship with multi-layer glued wood and the aluminium profile frame with rounded corners as well as the three-legged, medium-sized steel ball corners provide stability.
The amplifier rack is equipped with four high-quality butterfly locks, four chrome-plated case folding handles and two wooden sliding rails on the bottom. Both lids are removable (double door version).
The maximum load is 50 kg.
Features
Rack case
- Front and rear rack rails
- High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated
- 2 removable covers (double-Door-Version)
- Aluminum profile frames 30mm with rounded edges
- 4 hinged, chromium plated case handles
- 4 high-quality butterfly locks
- 2 wooden slide rails on the bottom
- Available in different height units (1 U = 44 mm)
- With profile rails suitable for 19" units
- With extra large installation depth
- 4 U
Technical specifications
| Maximum load: | 50 kg |
| Removable covers: | 2 pc/pcs |
| Aluminum profile frames: | 30 mm |
| Case handle: | 4 pc/pcs |
| Lock: | Butterfly lock: 4 pc/pcs |
| Transport aid: | 2 x wooden slide rails on the bottom |
| Material: | Plywood multi-layer glued, 7 mm |
| Color: | Black, laminated |
| Front panel width: | 19" |
| Mounting height: | Approx. 18 cm (4 U) |
| Mounting depth: | 550 mm |
| Housing design: | 4 U |

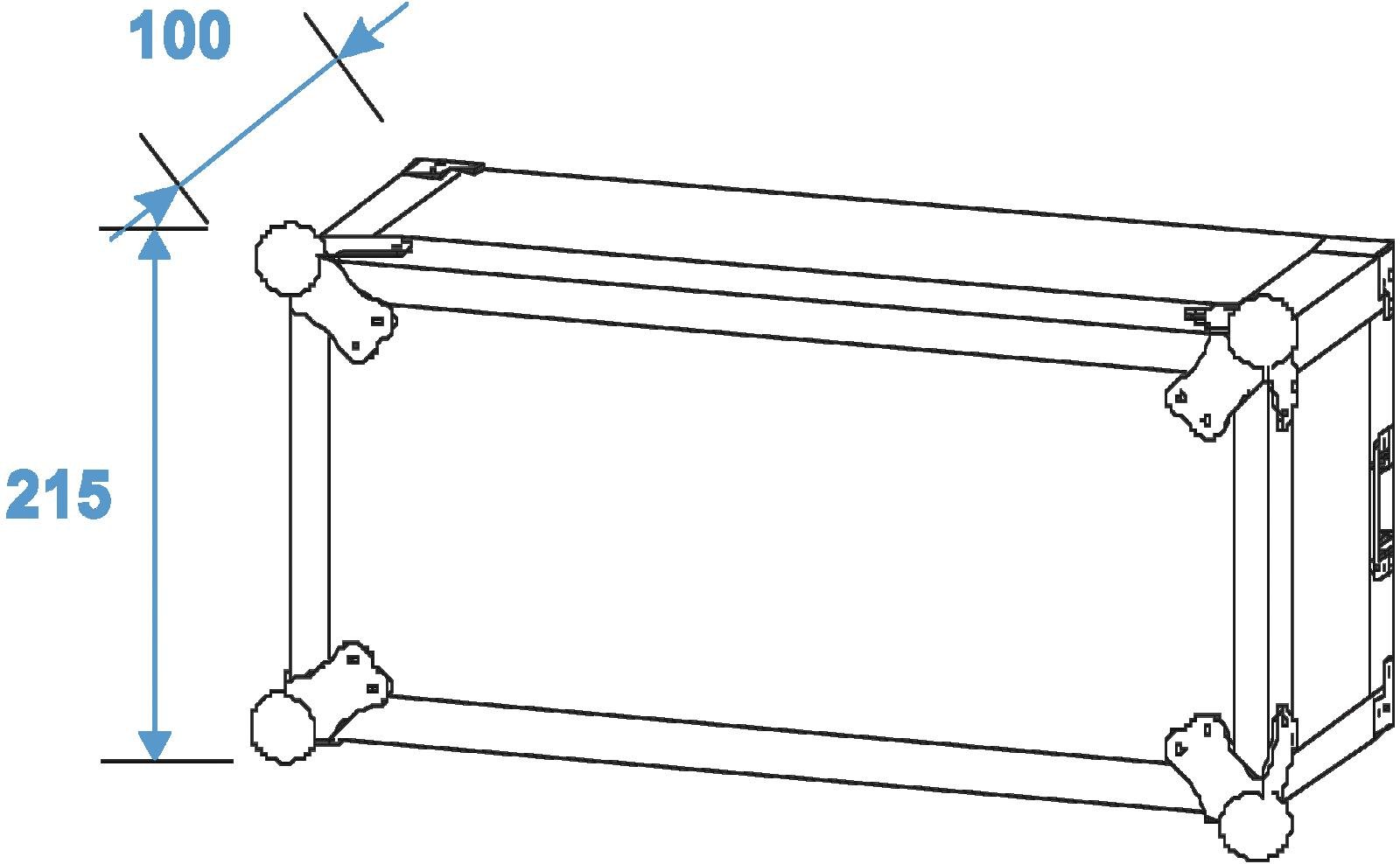

| Dimensions: | Width: 54,5 cm Depth: 80 cm Height: 22 cm |
| Weight: | 10,55 kg |
