Roland - R-05 WAVE/MP3 Recorder + Cover/Wind Screen Set for R-05
Protective Gear for the R-05

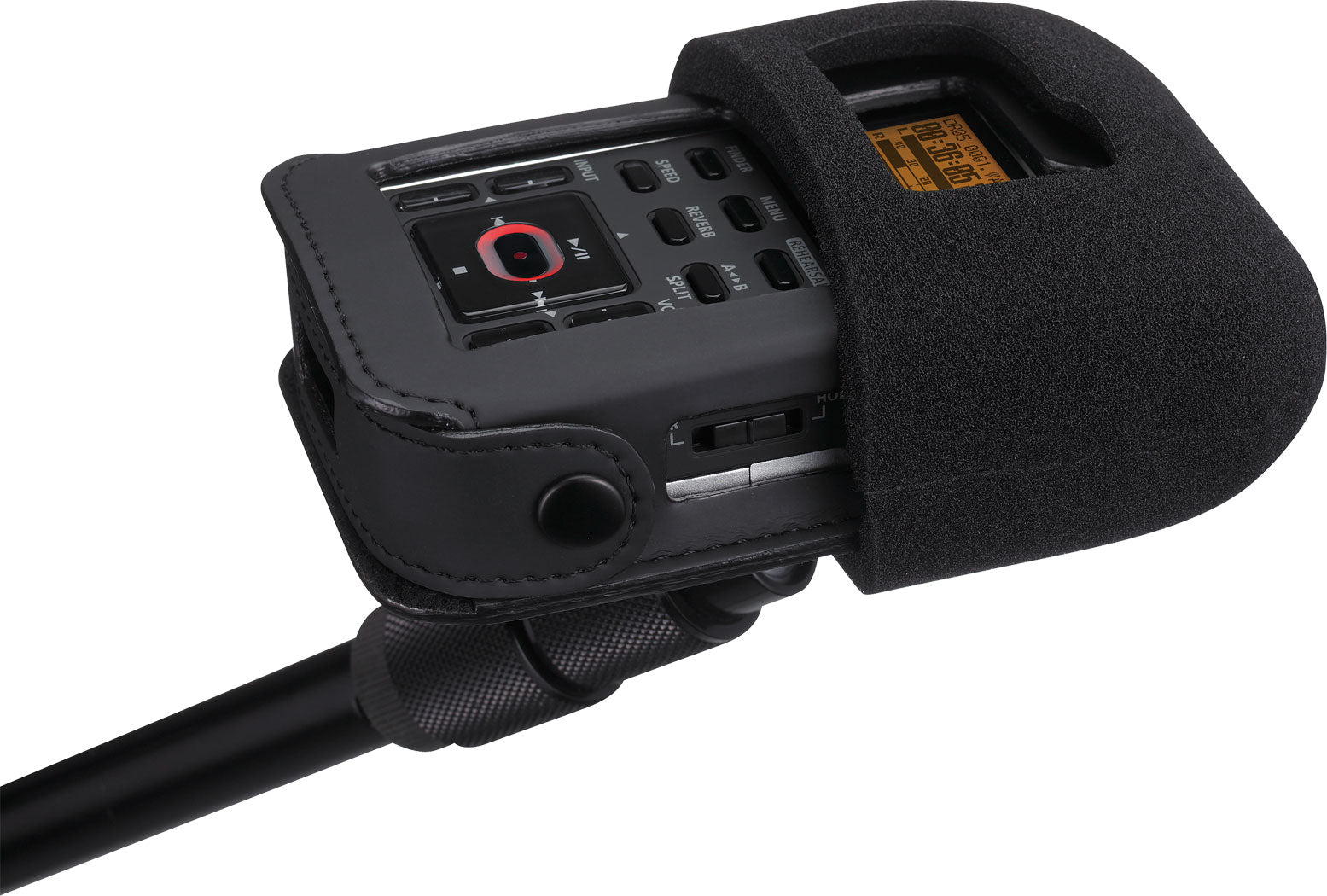

This package includes a special cover for the R-05 recorder, plus a windscreen that can be used with the cover on. This cover protects the R-05 against dirt, scratches, and minor impacts. During recordings, it reduces handling noise and surface vibration. The windscreen is made of special material that minimizes the undesirable effects ofwind noise.
- Main material
- Dedicated Cover
- Polyurethane
- Windscreen
- Polyurethane

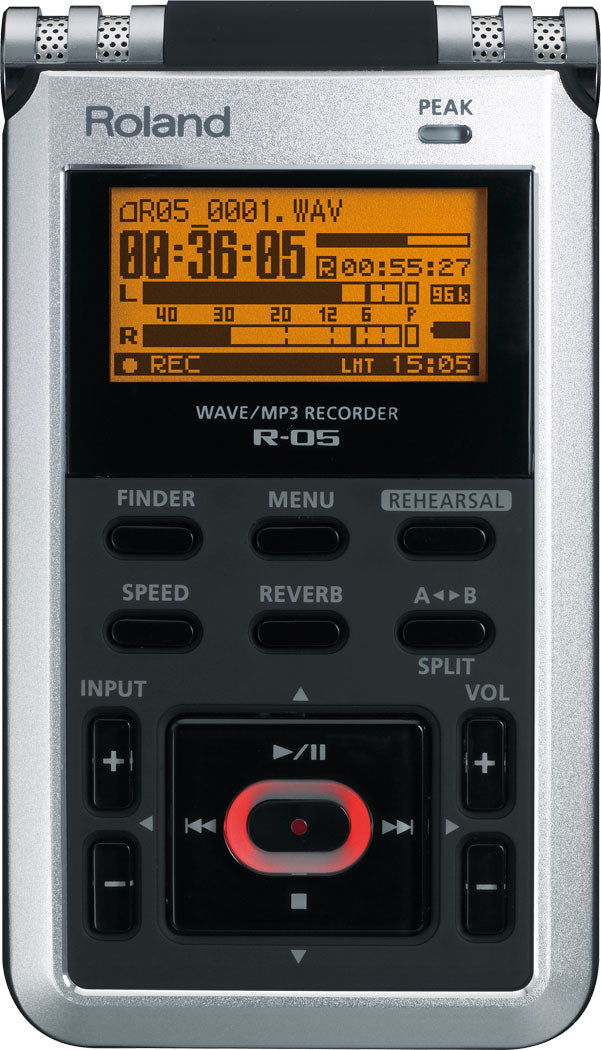

R-05
Affordable Pocket Recorder with Advanced Features
The compact R-05 is easy to use, affordable, and packed with big-ticket features that raise the bar in its price class. Experience crystal-clear 24/96 capture, enhanced recording and editing features, and extended battery life (over 16 hours per charge). On stage, in rehearsal, at school, on the street, in the boardroom — whenever inspiration strikes, let the R-05 capture the moment with convenience and quality.
- High-quality stereo recording (24-bit / 96kHz) with the built-in stereo mic or external input
- Records directly to SD card with extended battery life (over 30 hours continuous playback, over 16 hours continuous recording)
- Record 16-bit WAV and MP3 files simultaneously
- Strong, attractive metallic exterior
- Onboard editing functions; built-in reverb
- Music-practice features (change tempo without changing pitch, loop playback, etc.)
- Auto record start, auto song split, auto level adjust
- Pre Record function (captures 2 seconds of audio that precedes pressing REC)
- Use as a high-quality portable audio player (plays WAV and MP3 files)
- Includes windscreen and built-in tripod mounting socket
-
24/96 Recording
The R-05 provides pristine, uncompressed stereo recording directly to SD card — up to 24-bit/96kHz resolution. Whether recording directly with the built-in stereo mic or capturing sounds from an externally connected microphone or stereo line input, you’ll be impressed with the R-05’s detail and clarity. And for worry-free recording, the convenient Rehearsal mode ensures that you won’t overload the input.
-
Onboard Editing
Even though the R-05 integrates fluidly with computers via USB 2.0, this new-generation recorder doesn’t require a PC for editing. For speed and convenience, you can trim, divide, and combine within the R-05. And for those who’d like to apply a high-gloss finish to their recordings, the R-05 is equipped with built-in reverb.
-
Rehearsal Mode
In a rehearsal studio, you can make clear recordings of your band, even at high volume levels. The R-05 can automatically set the optimum recording level, and can split the songs for you automatically. It’s also possible to simultaneously record a high-quality WAV file for CD production and an MP3 file for file sharing.
-
Music-Practice Partner
The R-05 can help you practice your instrument or vocals. You can repeatedly loop a specified region of audio, or change the playback speed without changing the pitch. You can play back a difficult phrase slowly or play back at high speed to grasp the overall structure of a song in a short time.
-
For Non-Musicians Too!
Musicians will naturally gravitate to the R-05, but this portable recorder is great for many non-musical applications as well. Record lectures, speeches, and meetings, for example. The high-sensitivity, built-in microphone will clearly capture all of the voices in a room. The included windscreen and tripod mount enhance optimal placement and cleaner recordings as well.
Recorder PartTracks2 (stereo one pair)Signal ProcessingAD/DA conversion: 24 bits, 44.1/48/88.2/96 kHzData Type (Recording)WAVE (Sampling Rate: 44.1/48/88.2/96 kHz, Bit Depth: 16/24 bits)
MP3 (Sampling Rate: 44.1/48 kHz, Bit Rates: 64/96/128/160/192/224/320 kbps)
WAVE + MP3 (Sampling Rate: 44.1/48 kHz, Bit Depth: 16 bits, Bit Rates: 128 kbps)
*MP3 ... MPEG-1 Audio Layer 3Data Type (Playback)WAVE (Sampling Rate: 32/44.1/48/88.2/96 kHz, Bit Depth: 16/24 bits)
MP3 (Sampling Rate: 32/44.1/48 kHz, Bit Rates: 32 - 320 kbps or VBR)
WAVE+MP3 (16-bit+128 kbps/48 kHz): 76 mins/GB
WAVE+MP3 (16-bit+128 kbps/44.1 kHz): 82 mins/GB
*MP3 ... MPEG-1 Audio Layer 3, VBR ... Variable Bit RateMemory CardSD Card, SDHC format compatibleRecording Time*WAV (24-bit/96 kHz): 27 mins/GB
WAV (24-bit/88.2 kHz): 30 mins/GB
WAV (24-bit/48 kHz): 54 mins/GB
WAV (24-bit/44.1 kHz): 59 mins/GB
WAV (16-bit/96 kHz): 40 mins/GB
WAV (16-bit/88.2 kHz): 44 mins/GB
WAV (16-bit/48 kHz): 81 mins/GB
WAV (16-bit/44.1 kHz): 88 mins/GB
MP3 (320 kbps): 392 mins/GB
MP3 (128 kbps): 980 mins/GB
* Each recording time is approximate. The times may change depending on the card specifications.
* In case that there are plural files, the sum of recording time would be shorter than above.Input/OutputAudio InputsInternal Stereo Microphone
Mic input (Stereo miniature phone type, plug-in powered mic)
Line input (Stereo miniature phone type)
*The Internal/External Mic and the Line input can't be used at the same time (Line input priority).Audio OutputPhones (Stereo miniature phone type)Nominal Input Level (Variable)Mic input: -33 dBu (MIC GAIN is H, Default input level)
Mic input: -15 dBu (MIC GAIN is L, Default input level)
Line input: -7 dBu (Default input level)
* 0 dBu = 0.775 VrmsInput ImpedanceMic input (MIC GAIN is H): 7k ohms
Mic input (MIC GAIN is L): 5k ohms
Line input: 8 k ohmsOutput Level20 mW + 20 mW (In case 16 ohms load)Recommended Load Impedance16 ohms or greaterFrequency Response20 Hz to 40 kHz
USB InterfaceMini-B type connector (support USB 2.0/1.1 mass storage device class)EffectsReverb4 types (Hall1, Hall2, Room, Plate)Speed change50 - 150 % of playback speed
* Playback only. Excludes playback in 88.2 kHz or 96 kHz.
* Reverb and Speed Change can't be used at the same time.OthersDisplay128 x 64 dot graphic displayPower SupplyAC Adaptor
Alkaline dry battery LR6 (AA) type x 2 or Nickel Hydrogen battery (HR15/51) x 2
Current Draw290 mA (maximum)Duration of continuous use with Alkaline battery operationPlayback: over 30 hours
Recording: over 16 hours
* These figures will vary depending on the actual conditions of use.AccessoriesOwner's manual
Quick start guide
SD card
Batteries (two AA)
USB cable (mini-B type)
WindscreenOptionsAC Adaptor: PSB6U series
Silicone Rubber Case: OP-R05S
Cover / Windscreen Set: OP-R05C
Carrying Pouch: OP-RP1
Microphone Stand Adaptor: OP-MSA1
Binaural Microphones / Earphones: CS-10EM
Stereo Microphone: CS-15S
Size and WeightWidth60 mm
2-3/8 inchesDepth103 mm
4-1/16 inchesHeight25 mm
1 inchesWeight140 g
0 lbs. 5 oz.
