PP-9214

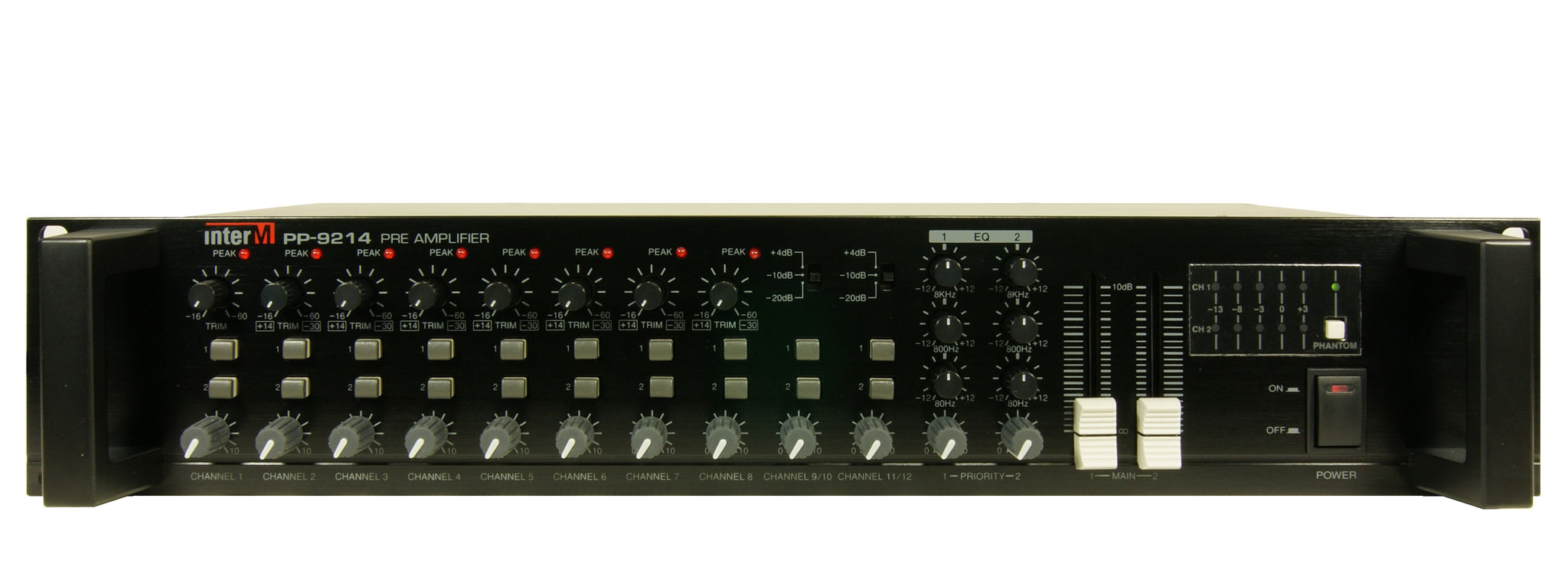

inter-M PP-9214 Mixer Pre-Amplifier

Mixer Pre-Amplifier
Two output pre-amplifier allowing any of the 10 input signals to
be routed to either Output 1, Output 2 or both. Ideal for dual zone
applications in factories, leisure centres, hotels and general PA
installations.
Features:
• 8 Mic inputs (XLR)
• 8 Line inputs (¼” jack)
• 2 Stereo inputs (phono/¼” jack)
• 2 Outputs (XLR)
• Phantom power (18v block switched)
• Record output (2 x ¼” jack)
• Priority, mic 1, priority input 1, priority input 2
• 3 Band EQ per output
• Signal allocation per input channel
• 24v DC powered option
• 2U high, 19” rack mounting

Specifications:
Model: PP-9214:
Inputs 8 Mic (XLR)
8 Mono Line (¼” Jack)
2 Stereo Line (2 x ¼” Jack / 2 x Stereo Phono)
Input Sensitivity/Impedance Mic -60dB / 600Ω Balanced
Line -30dB / 10kΩ Balanced
Stereo +4dB, -10dB, -20dB / 10kΩ Unbalanced
Output Sensitivity/Impedance Master +4dBm / 600Ω Balanced
Rec Out -6dB / 10kΩ
Phantom Power Mic 1~8 18v DC Block Switched
Frequency Response 20Hz ~ 20KHz
Power Requirement 230v AC 50Hz / 24v DC
Dimensions 482(W) x 88(H) x 280(D)mm
Weight 12.8kg
