PM9208

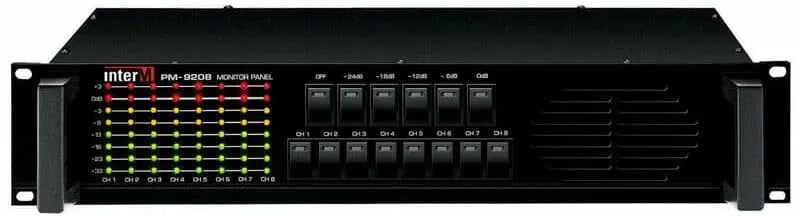

inter-M PM9208 8 zones speaker lines control unit

Ideal for large commercial installations, the PM-9208 allows 8 separate 100v signals (speaker lines/
amplifier outputs) to be monitored, using simple push switch selection and internal loudspeaker to
select and listen to the required signal.
Visual indication of output is also provided via 10 segment LED meter.

• Eight channel control board
• Bargraph of 8 LED segments for each channel
• Integrated speaker
• Channel selectors
• LED indication on each switch
• Monitors eight lines 70 / 100V
• Operation 24 VDC only
• Rack assembly (2U)

Specifications
Frequency response 32Hz – 16kHz
Signal input 70V or 100V
Power source 24VDC
Weight (Kg) 3.8
Dimensions (W x H x D) 482mm x 88mm x 280 mm
