MKH 416‑P48 U3

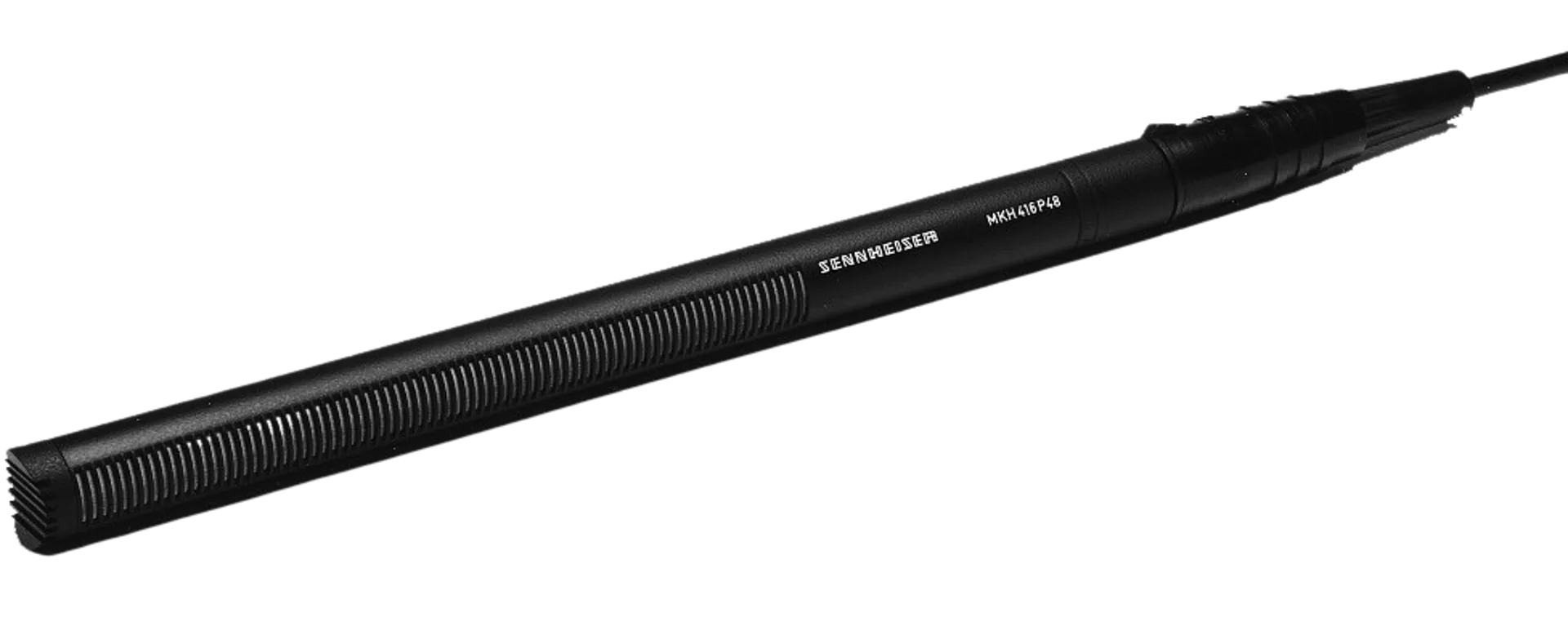

Sennheiser MKH 416 – Short Shotgun Microphone (RF Condenser)

SKU: 001511

Product Description

The Sennheiser MKH 416 is a compact RF‑condenser shotgun microphone designed for film, broadcast and location recording. Its pressure‑gradient capsule and short interference tube deliver high directivity with excellent rejection of side and rear noise, making it ideal for outdoor production and challenging acoustic environments. The RF condenser principle provides outstanding immunity to humidity, ensuring reliable performance in adverse climatic conditions. With low self‑noise, high sensitivity and strong consonant articulation, the MKH 416 is a long‑standing industry standard for ENG, film dialogue, voice‑over and broadcast applications.

The microphone features a rugged matte‑black metal body and transformerless, fully floating balanced output. It ships with a microphone clamp, foam windshield and protective pouch.

Key Features

• RF condenser design highly immune to humidity

• Pressure‑gradient receiver with short interference tube

• Super‑cardioid / lobar pickup pattern

• Very low self‑noise and high sensitivity

• Excellent feedback and side‑noise rejection

• Transformerless, fully floating balanced output

• Rugged matte‑black all‑metal housing

• Suitable for demanding exterior filming and reporting

Specifications

Acoustic Performance

Frequency response: 40 – 20,000 Hz Pick‑up pattern: super‑cardioid / lobar Sensitivity (1 kHz): 25 mV/Pa ± 1 dB Equivalent noise level: 24 dB (CCIR) / 13 dB (A‑weighted) Max SPL: 130 dB SPL

Electrical

Transducer principle: RF condenser microphone Nominal impedance: 25 Ω Minimum terminating impedance: 800 Ω Power supply: 48 V ± 4 V phantom power Current consumption: ~2 mA

Environmental

Temperature range: –10 °C to +70 °C

Physical

Finish: matte black Connector: 3‑pin XLR Pin assignment: 1 – Ground / housing 2 – NF (+) / supply (+) 3 – NF (–) / supply (–) Dimensions: Ø 19 × 250 mm Weight: 175 g

Delivery Includes

• MKH 416‑P48 U3 microphone

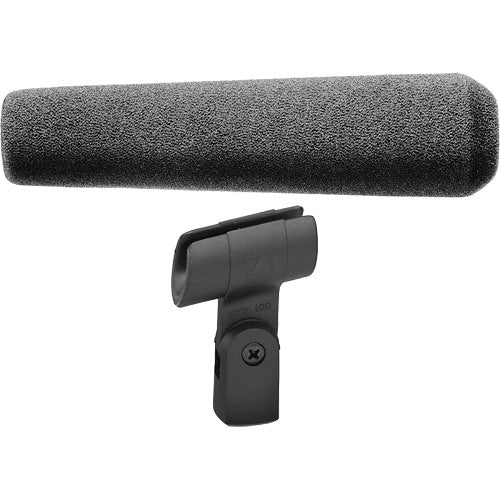

• MZQ 100 microphone clamp

• MZW 415 foam windshield

• Pouch

• Instruction manual

Identifiers

• SKU: 001511

• Article No.: 001511

• HS Code: 8518.10.00
