LQ2804

Technical data

• Voltage 230 V / 50 Hz
• Frequency response 10 Hz - 30 kHz
• Attenuation < 200 @ 100 Hz
• Ascension times > 20 V/s
• Signal noise distance > 100 dB/A @ 20 Hz - 20 kHz
• THD < 0.5 % @ 1W - full power
• Impedance 10 kOhm

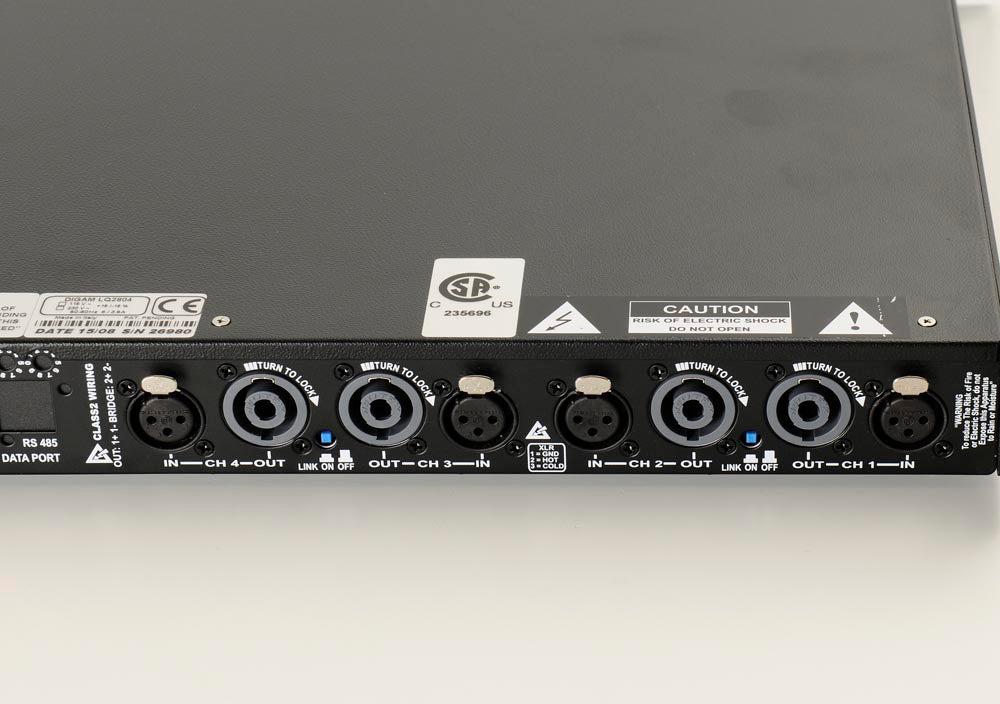

• Inputs XLR, jack
• Outputs Neutrik 4-pol Speakon
• Power at 4 Ohms 4 x 700 W
• Power at 8 Ohms 4 x 360 W
• Power at 8 Ohm Bridge Operation 2 x 1400 W
• Power at 16 Ohm Bridge Operation 2 x 720 W
• Integrated crossover no
• Dimensions (W x H x D) 483 x 45 x 358 mm
• Weight 7.3 kg
