LH-026

OMNITRONIC

€89,90
Unit price per

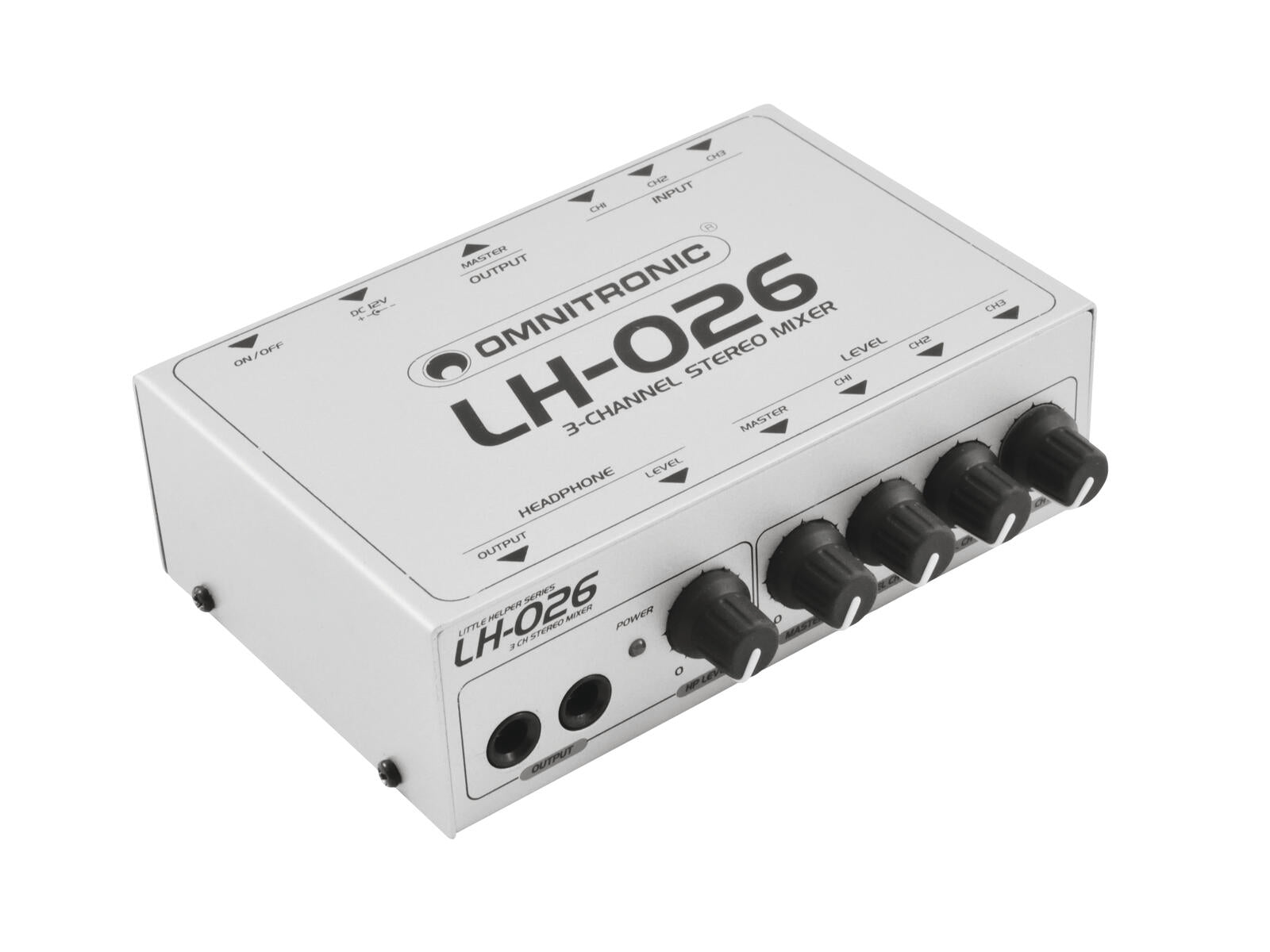

OMNITRONIC LH‑026 – 3‑Channel Stereo Mixer (RCA)

SKU: 10355026

Product Description

The OMNITRONIC LH‑026 is a compact 3‑channel stereo line mixer designed for installations, mobile DJs, entertainers and portable audio setups. It mixes three stereo RCA sources into a single stereo output, with individual level controls per channel and an adjustable master output. Two 6.3 mm headphone outputs with shared level control allow convenient monitoring. The lightweight housing and external 12 V power supply make the LH‑026 suitable for small racks, desktop setups and mobile use.

Key Features

Mixes 3 stereo RCA inputs into 1 stereo RCA output
Separate level control for each input channel
Adjustable stereo master output
2 × 6.3 mm headphone outputs with shared level control
Compact and lightweight design
Ideal for installations, mobile DJs, entertainers and portable audio rigs

Specifications

Electrical

Power supply: 12 V / 150 mA Power connection: Coaxial DC connector, AC adapter included Frequency range: 20 – 20,000 Hz S/N ratio: > 70 dB THD: < 0.005% at 1 kHz Gain: 27 dB Max level: Input –30 dB, Output +13 dB

Inputs & Outputs

Inputs: 3 × stereo RCA Output: 1 × stereo RCA Headphones: 2 × 6.3 mm jack Input impedance: 10 kΩ Output impedance: 100 kΩ

Physical

Dimensions (device): 14.7 × 11.5 × 4.5 cm Weight (device): 0.74 kg Logistics weight: 0.89 kg Package size: 23 × 13.5 × 8 cm

Scope of Delivery

LH‑026 mixer
External mains adapter
4 × rubber feet
User manual

Identifiers

SKU: 10355026
GTIN / EAN: 4026397448467
HS Code: 8543.70.90
