L-5.5CUHWS

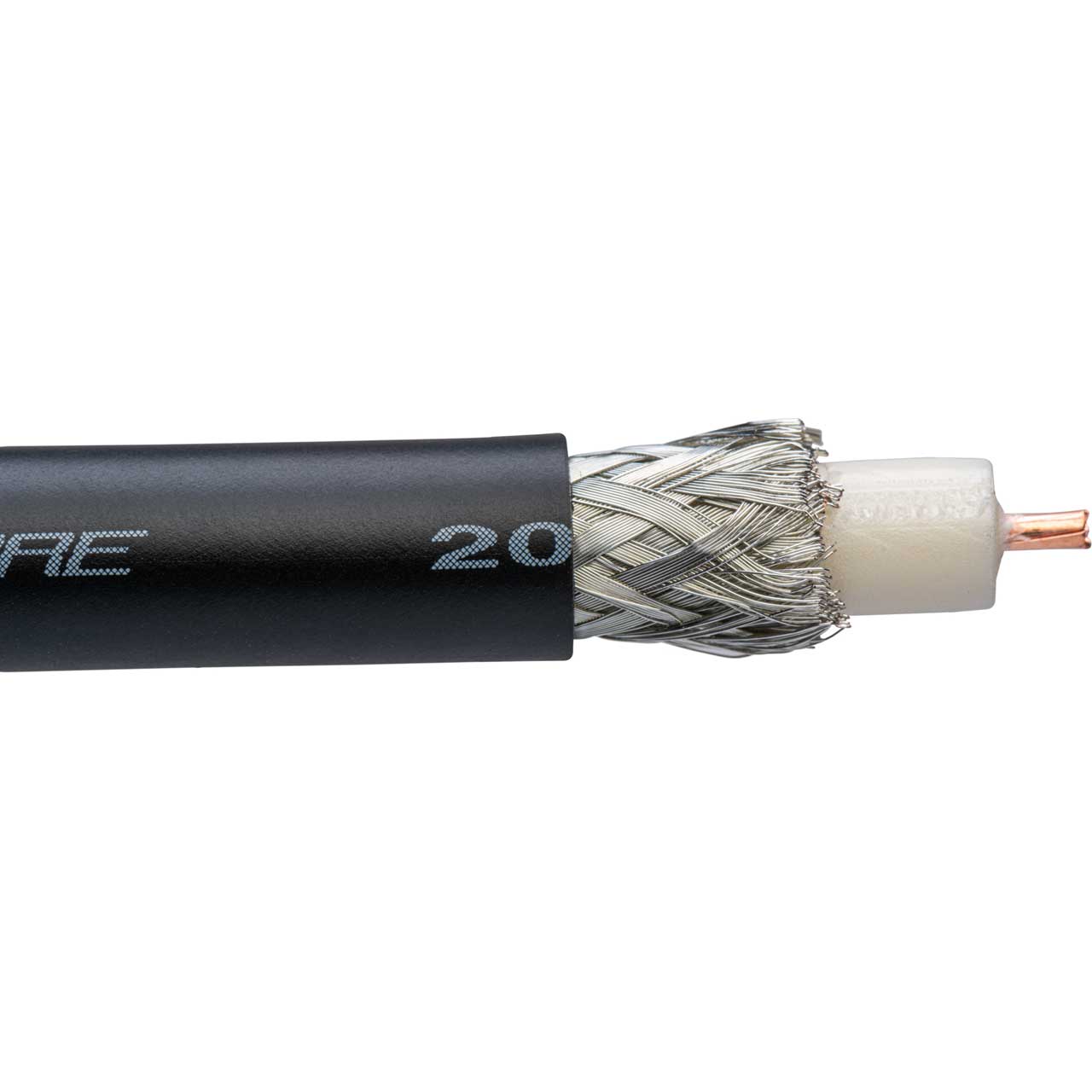

You may already be familiar with Canare L-5.5CUHD 12G-SDI coaxial cable... Canare L-5.5CUHWS takes this coax to the next level of flexibility. The Canare L-5.5CUHWS is specifically designed for 12G-SDI mobile applications with an extra flexibility to simplify outside broadcast use in trucks or outdoor film sets. It features a revolutionary hybrid stranded and solid annealed copper center conductor that is compressed to transmit 12G 4K up to 100 feet.

Use the Canare BCP-D55UHW 12G-SDI BNC for L-5.5CUHWS as well as the CB055W strain relief boot to gives cable ends exceptional durability when constantly plugging and unplugging from equipment.

Features:
 Specially designed for 12G-SDI mobile applications
 Flexible and low loss structure
 High-density double-braided shield
 Highly-foamed PE insulation

Specifications:
 Conductors
 Number of Conductors: 1
 Inner Conductor:
 Construction: 7/Compact Strand
 Nom. Cross Section Area: 1.30mm
 Outer Diameter: 1.30mm
 Insulation:
 Thickness: 2.13mm
 Outer Diameter: 5.56mm
 Outer Conductor 1:
 Construction (carr/end): 24/10/0.10TA
 Pitch: <= 42
 Outer Diameter: 6.0mm
 Outer Conductor 2:
 Construction (carr/end): 24/10/0.10TA
 Pitch: <= 38
 Outer Diameter: 0.256" (6.5mm)
 Sheath:
 Thickness: 0.8mm
 Color: BLK,
 Outer Diameter: 8.1mm
 Electrical
 DC Resistance:
 Inner Conductor: <= 14.0Ω/km (20°C) J
 Outer Conductor: <= 5.8Ω/km (20°C) J
 Insulation Resistance: >= 1000MΩ-km J
 Voltage Proof: AC1000V 1 minute Not Breakdown
 Characteristics Impendance: 75±3Ω (10MHz)
 Nominal Capacitance: 54nF/km ( 1kHz)
 Nominal Attenuation:
 10MHz: 1.7dB/100m
 30MHz: 3.1dB/100m
 72MHz: 4.8dB/100m
 88MHz: 5.3dB/100m
 135MHz: 6.7dB/100m
 180MHz: 7.7dB/100m
 270MHz: 9.6dB/100m
 750MHz: 16.7dB/100m
 1.3GHz: 22.7dB/100m
 1.5GHz: 24.6dB/100m
 2.0GHz: 29.0dB/100m
 2.5GHz: 33.0dB/100m
 3.0GHz: 36.7dB/100m
 6.0GHz: 56.0dB/100m
 Mechanical
 Tensile Properties of Sheath:
 Strength: >= 14.0 MPa
 Elongation: >= 230 %
 Tension: <= 89 N
 Bend Radius: More than 6 times of the cable O.D.
 Environmental
 Migration: No deformity, discoloration or other flaws must be found on ABS resin plates during visual inspection.
 Flame Retardance: Flame must extinguish naturally within 60 seconds.
 Note: Testing must be performed under standard conditions set down in "JIS C 60068-1 General Environmental Testing Rules (Electric/Electronics)."
 Standard Conditions: Unless otherwise specified, all tests and measurements should be performed within a normal temperature range of 15-35°C, a relative humidity of 25-75%, and an atmospheric pressure of 86-106kPa.
