FGG.0B.302.CLAD52Z

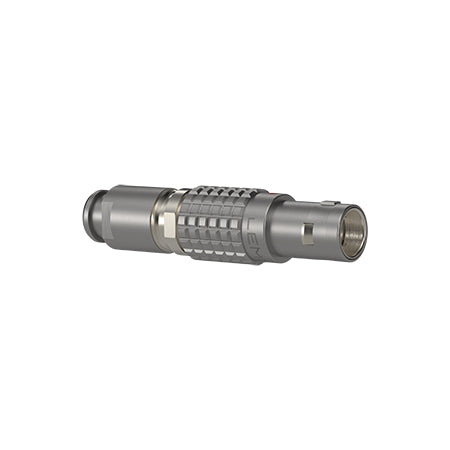

LEMO - FGG.0B.302.CLAD52Z - Circular Connector, 0B Series, Cable Mount Plug, 2 Contacts, Solder Pin, Push-Pull, Brass Body

Number of contacts Low Voltage 2
Wire Size/AWG 28 - 20
Gender Standard
Plug Plug - Straight
Locking system Push-pull
Jacket cable outside diameter [mm] 4.30 - 5.20 mm
Size 0B

Technical details
Electrical Configuration
Number of contacts Low Voltage 2
Contact Termination Low voltage Solder
R (max) 4.8 mOhm
Insert configuration value 0B.302 - 2 Low Voltage
Insulator L: PEEK (UL 94 / V-0/1.5)
Rated current 10 A
Vtest (contact-contact) 1.9 kV (DC)
Vtest (contact-shell) 1.5 kV (DC)
Max. Solid Conductor 0.56 mm² (AWG 20)
Max. Stranded Conductor 0.56 mm² (AWG 20)
Bucket Dia. 1.0 mm (0.039in)
Contact Dia. 0.9 mm (0.035in)
Wire Size/AWG 28 - 20
Gender Standard
Form & Material
Shell style / Model id FG - Straight plug, cable collet and nut for fitting a bend
relief
Plug Straight
Housing material
Brass (chrome plated [SAE AMS 2460]) shell and collet
nut, nickel plated [SAE AMS QQ N 290] brass latch
sleeve and mid pieces
Locking system Push-pull
Keying G: 1 key (alpha=0, plug: male contacts, receptacle:
female contacts)
Colour Grey
Variant Nut for fitting a bend relief
Weight 8.4 g

Environment
Technical domain
Audio Video, Energy and Industrial, Medical,
Semiconductor, Specialties and Other, Test and
Measurement, Transportation, Aerospace and UAV
Environmental sealing (IP rating) IP50
Endurance 5000 mating cycles
Temperature range -55°C / +250°C (max. temperature valid for short
periods of use.)
Climatic Category 55/175/21
Humidity (max) <=95% [at 60 deg C /140 F]
Shielding (min) 75 dB (10 MHz)
Shielding (min) 40 dB (1 GHz)
Shock Resistance 100 g [ 6 ms]
Vibration 15 g [10 Hz - 2000 Hz]
Salt Spray Corrosion >1000 hr
Cable fixation
Cable termination protection For cable bend relief
Fixation type Cable collet
Jacket cable outside diameter [mm] 4.30 - 5.20 mm
