EW-DP ME2 Set (Q1-6)

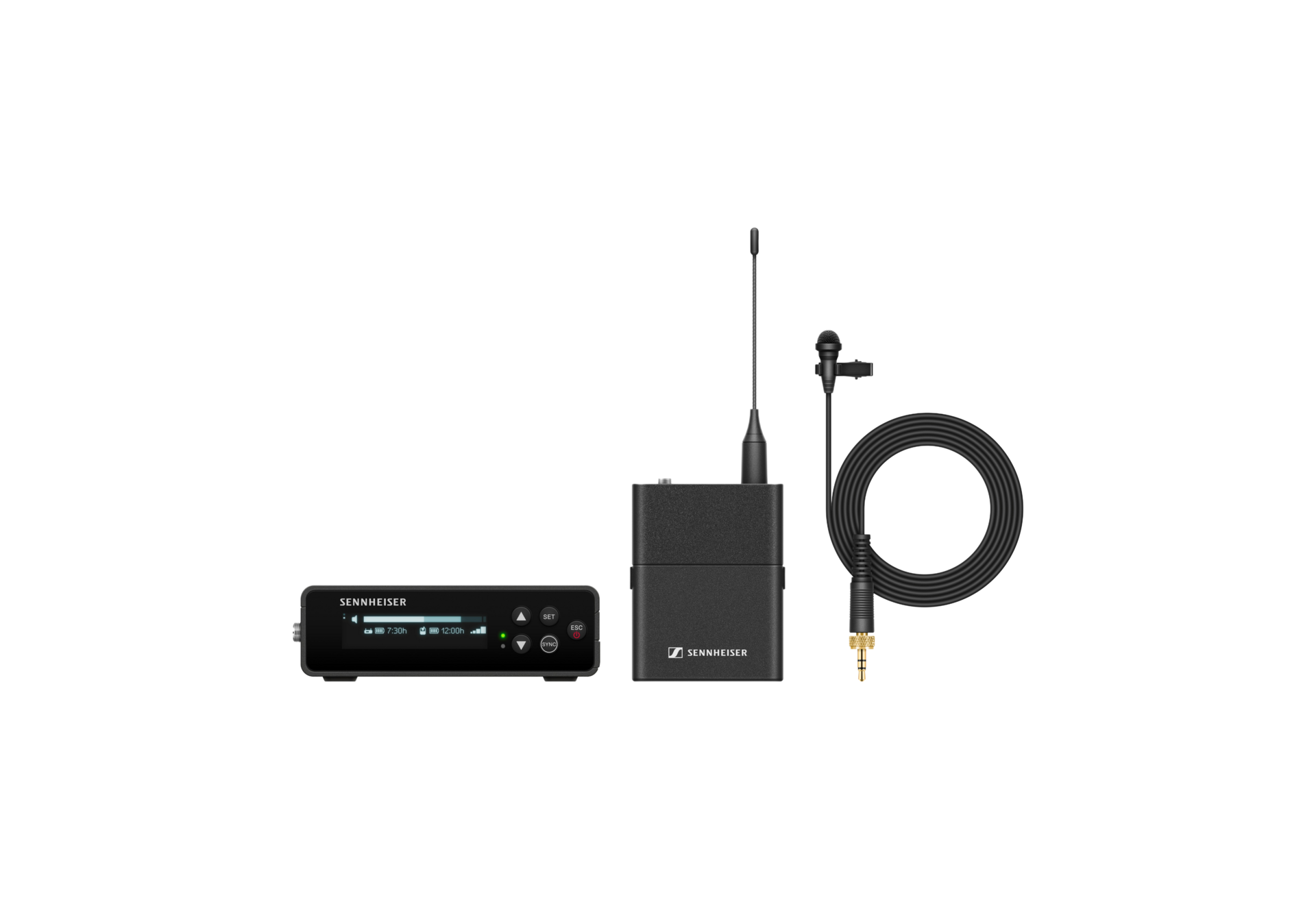

Sennheiser EW-DP ME2 Set, Camera-Mount Digital Wireless Omni Lavalier Mic System (Q1-6: 470 to 526 MHz)
Article No. 700010
Key Features
- Creators, Videographers, Newsgatherers
- ME 2 Omnidirectional Lavalier Mic
- Lightweight Bodypack Transmitter
- True-Diversity Camera-Mount Receiver
- Pro Features with Fast & Easy Setup
- 134 dB of Dynamic Range, 24-Bit Audio
- 56 MHz Bandwidth, 2240 Frequencies
- Setup/Operate from Phone via Bluetooth
- 12-Hr Bodypack/7-Hr Receiver + USB Power
- Expandable to 58 Mic Channels/330' Range
System
| Wireless technology | digital UHF |
| Number of RF channel frequencies | 2240 |
| Transmitters included | 1 x Body-pack |
| RF frequency band | From 470 to 526 MHz |
| Frequency step size | 25 kHz |
| RF bandwidth | 56 MHz |
| RF channel scanning | Automatic scanning |
| Maximum number of transmitters per band | 58 |
| Compatible with mobile app | Android and iOS, App name: Sennheiser Smart Assist |
| Bluetooth | 5.1 LE |
| Bluetooth operating distance | 20’/36.6 m (transmitter synchronisation, app control) |
| Latency | 1,9 ms |
| Dynamic range | 134 dB |
| Encryption | None |

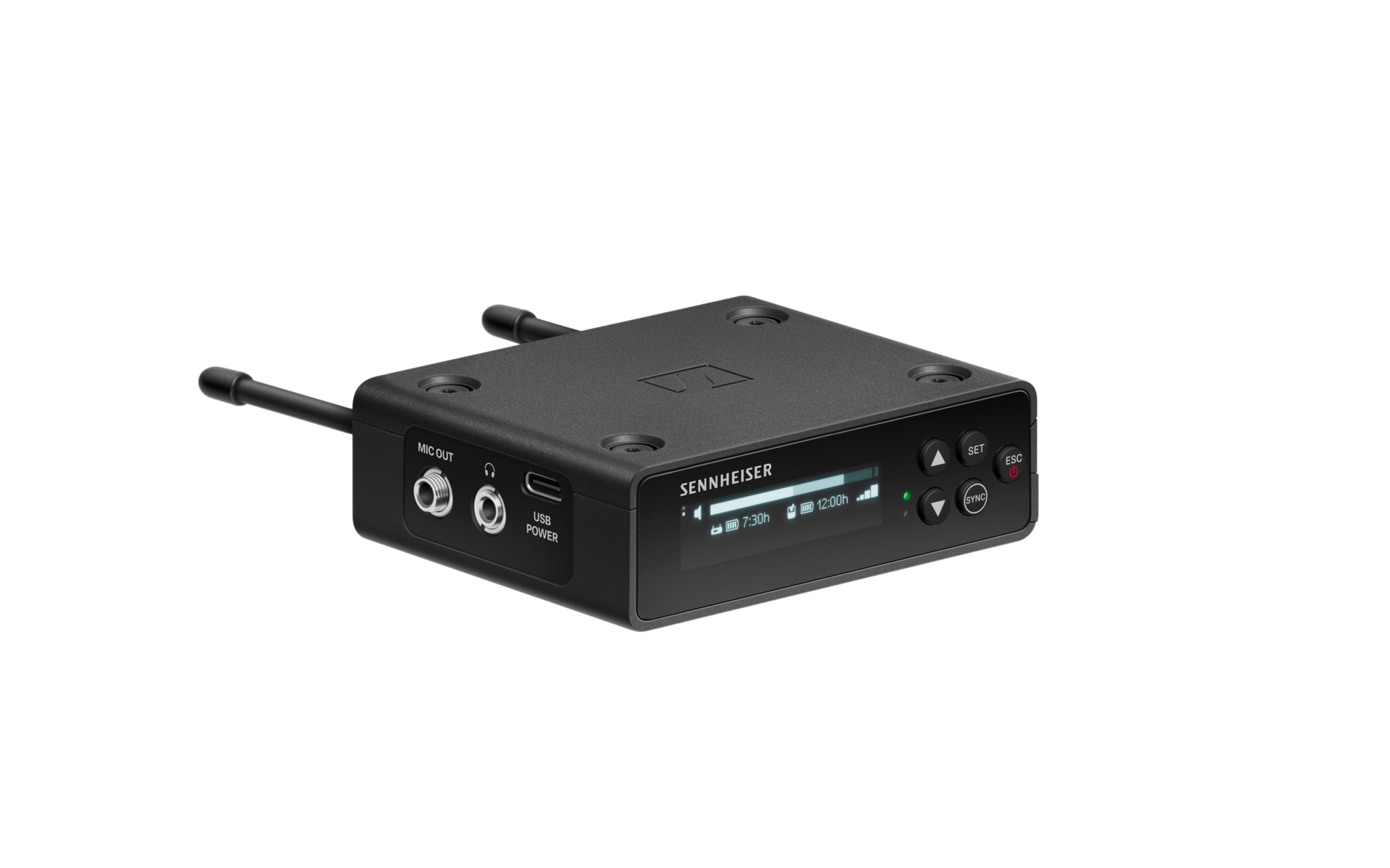

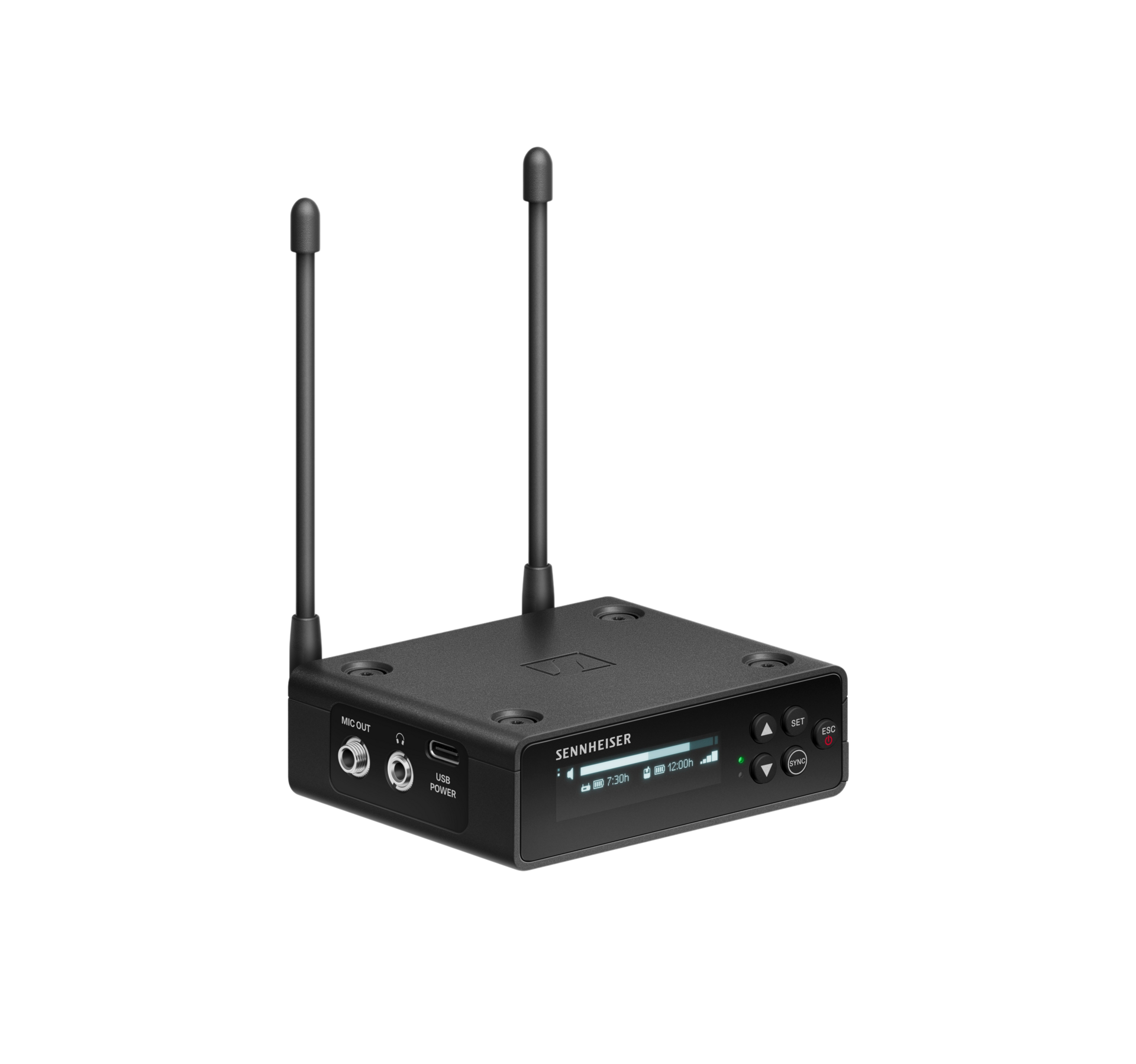

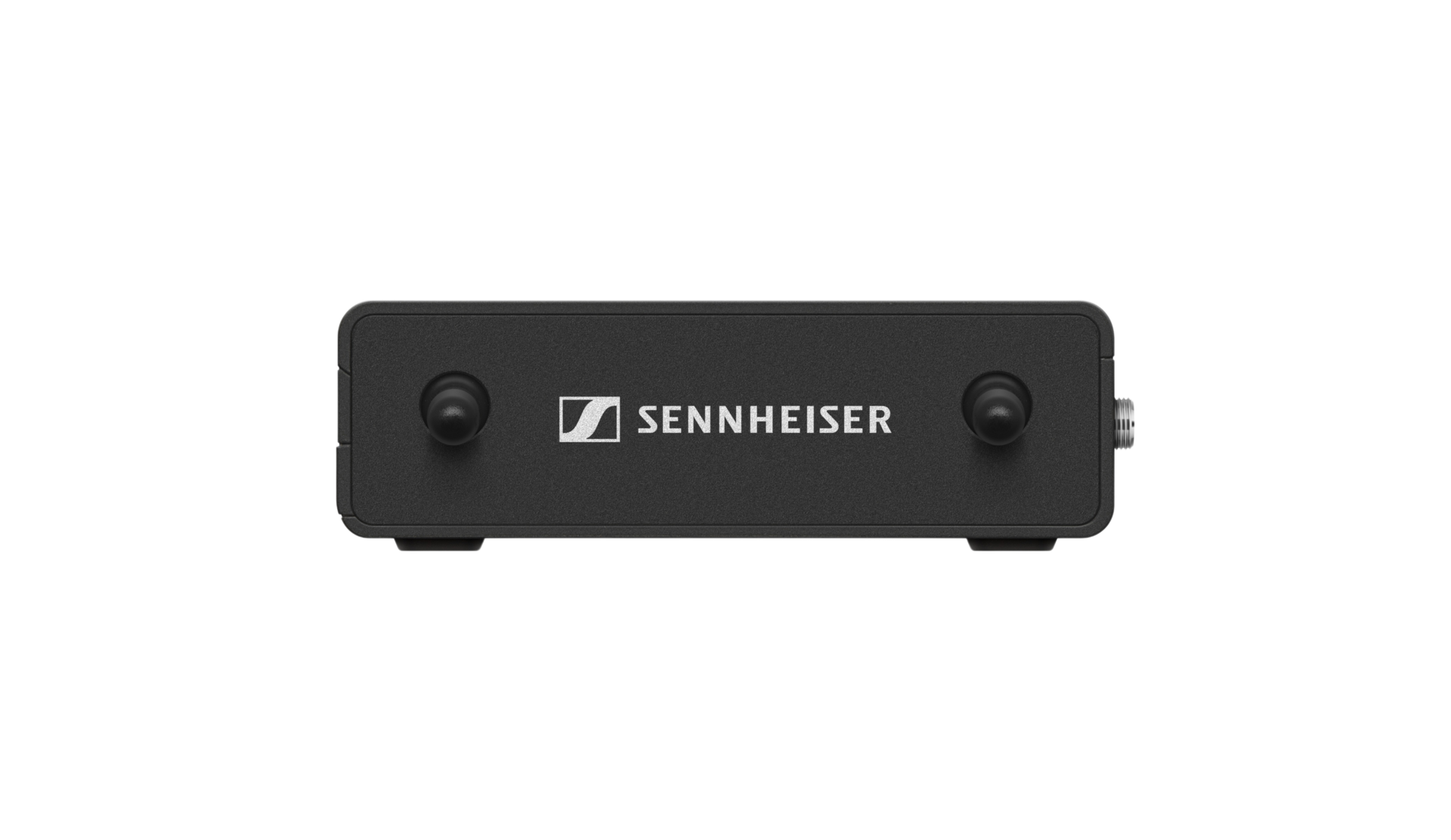

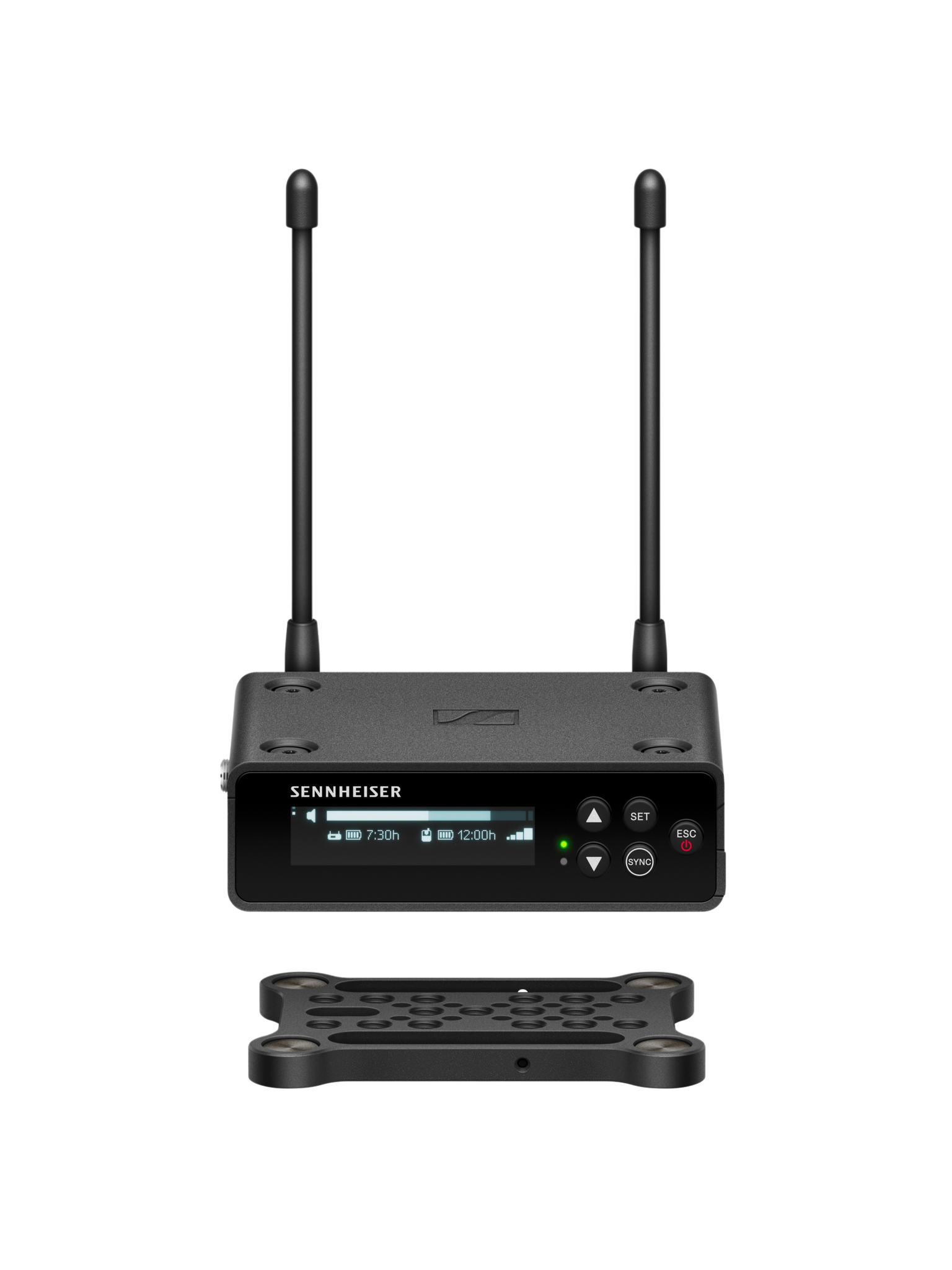

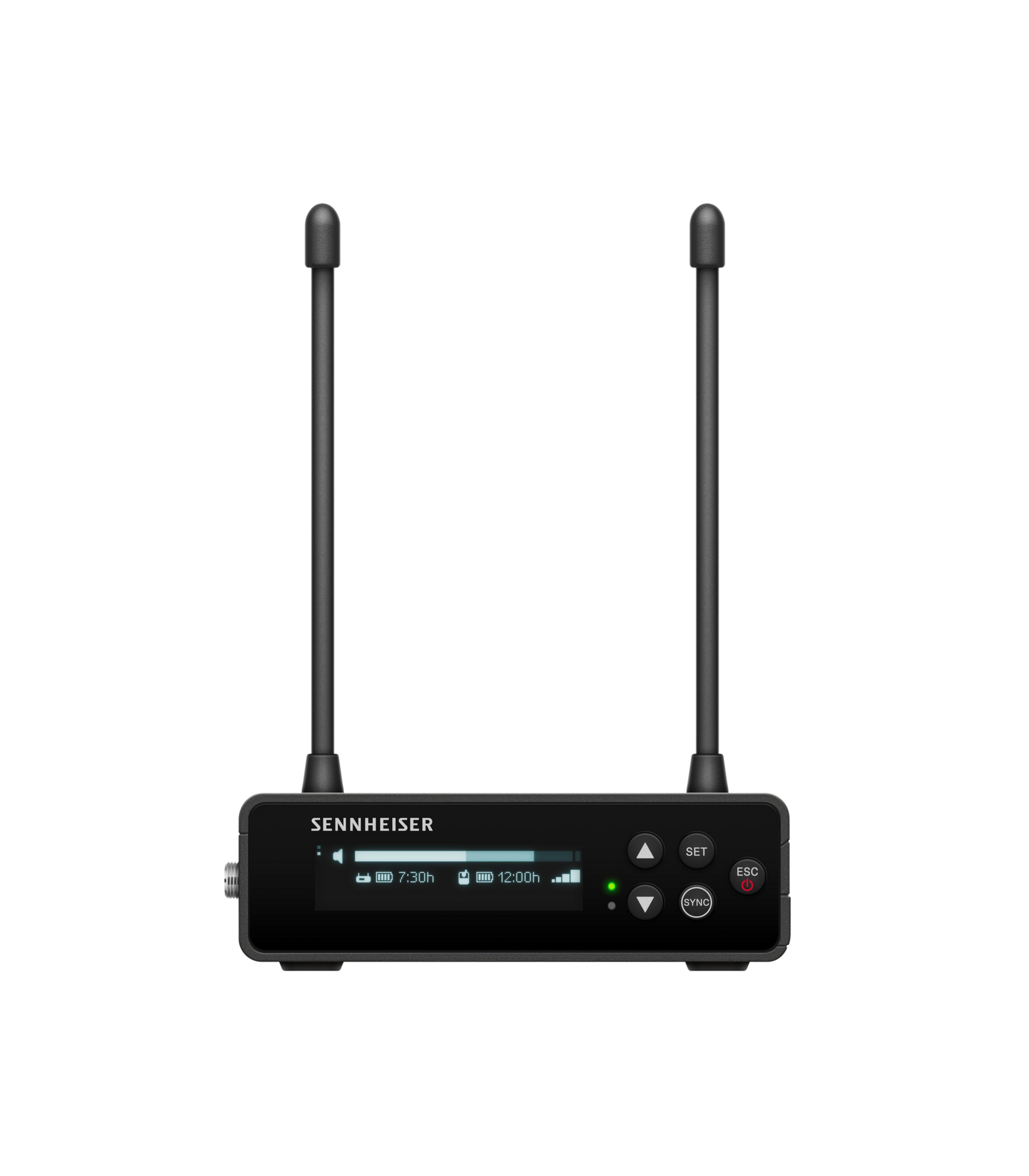

Receiver
| Weight | 140 g |
| Dimensions | 8,6 x 6,7 x 2,8 cm |

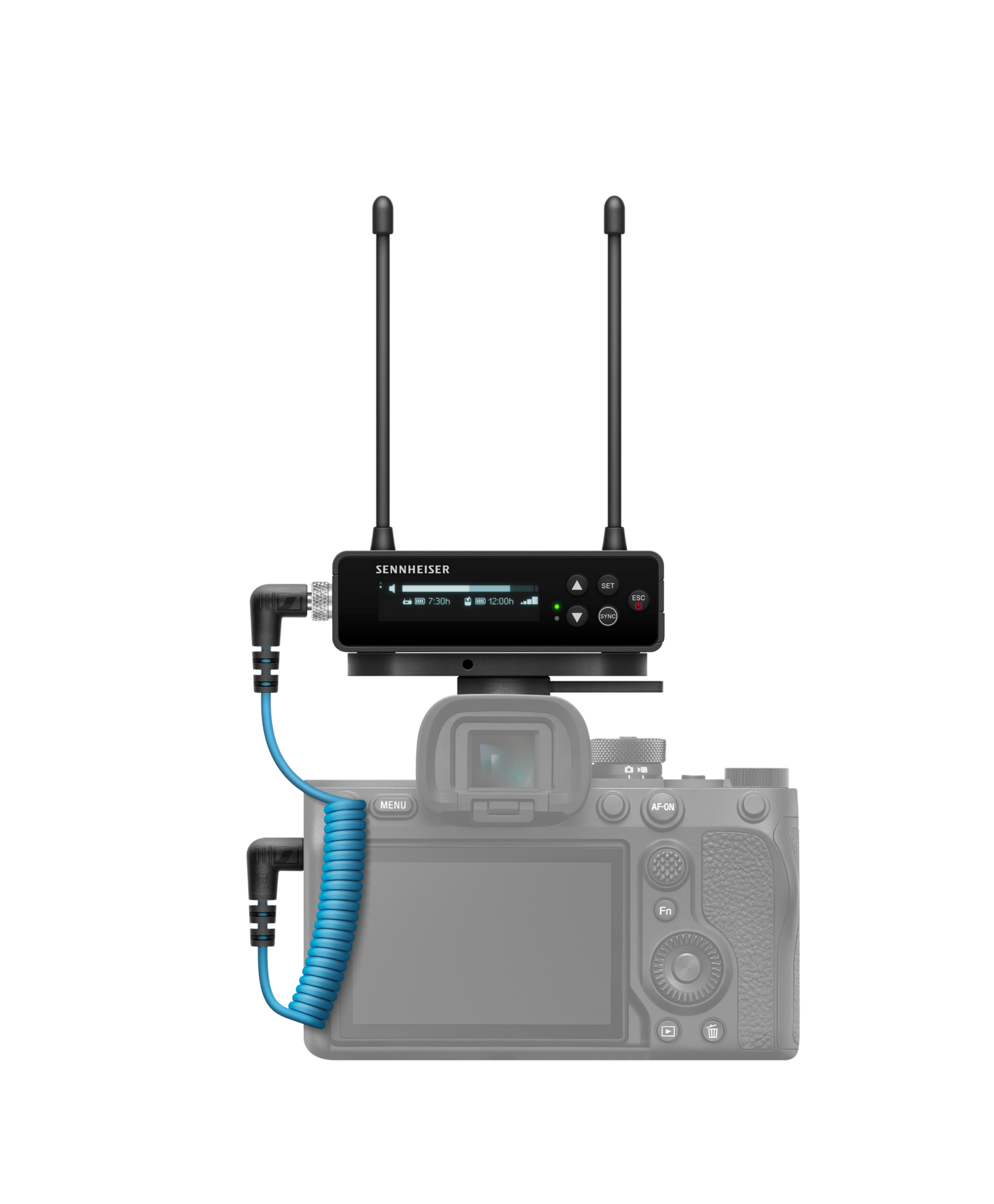

| Receiver type | Camera mounting |
| Mounting options | Belt Clip, Shoe Mount, 1/4″-20 Female (with hardware included) |

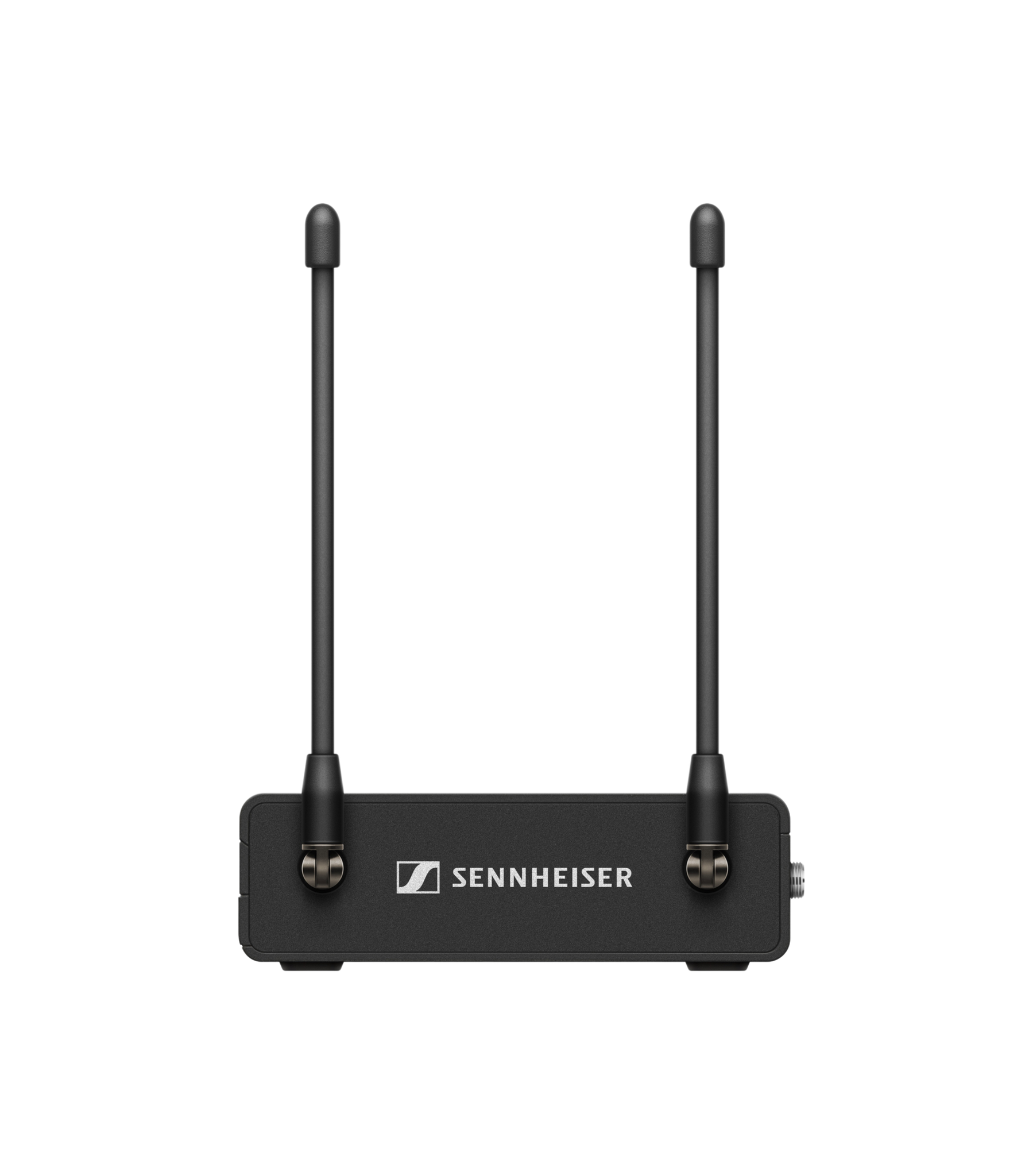

| Antenna | 2 fixed 1/4 wave rods |
| Number of audio channels | 1 |

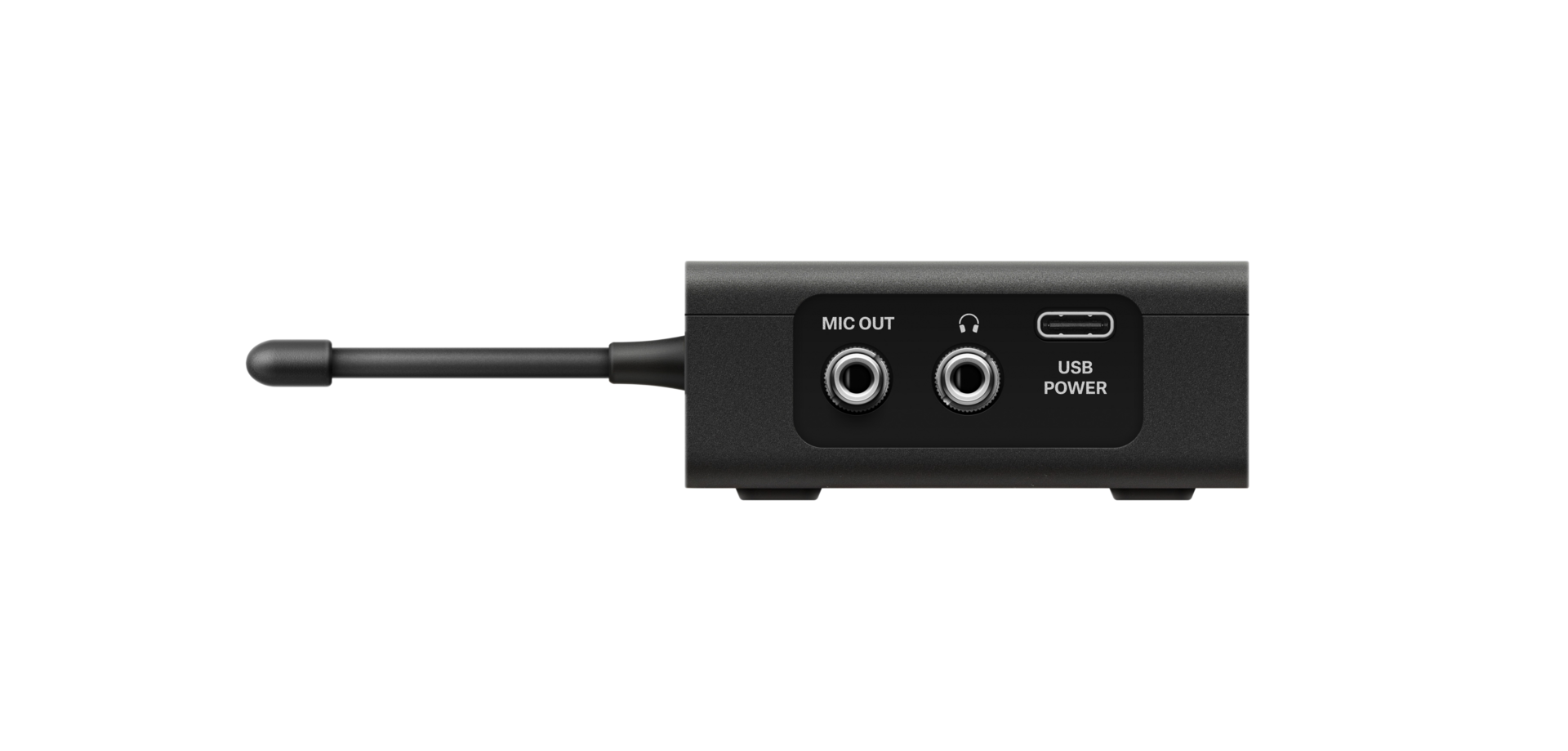

| I/O audio | 1 x 1/8″/3.5 mm female TRS unbalanced output (lockable) 1 x 1/8″/3.5 mm TRS female unbalanced headphone output (lockable) |
| Audio output level | 1/8″/3.5 mm output: 2 dBV (maximum, unbalanced) |
| Frequency response | From 20 Hz to 20 kHz +3 dB |

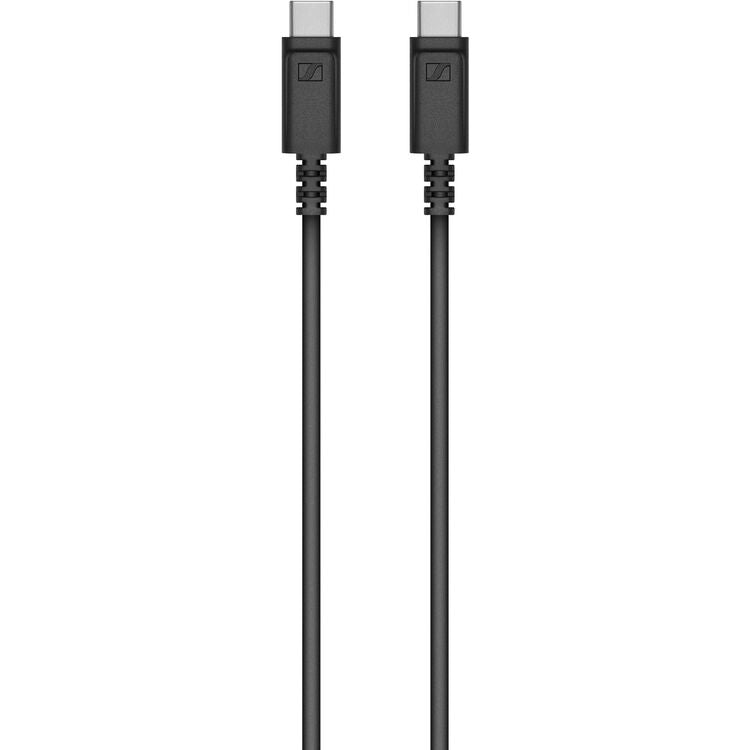

| USB/Lightning connectivity | 1 x USB-C female (bus power, charging) |
| RF output power | 10 mW (EIRP) |
| Power requirements | Battery, bus power supply (USB) |

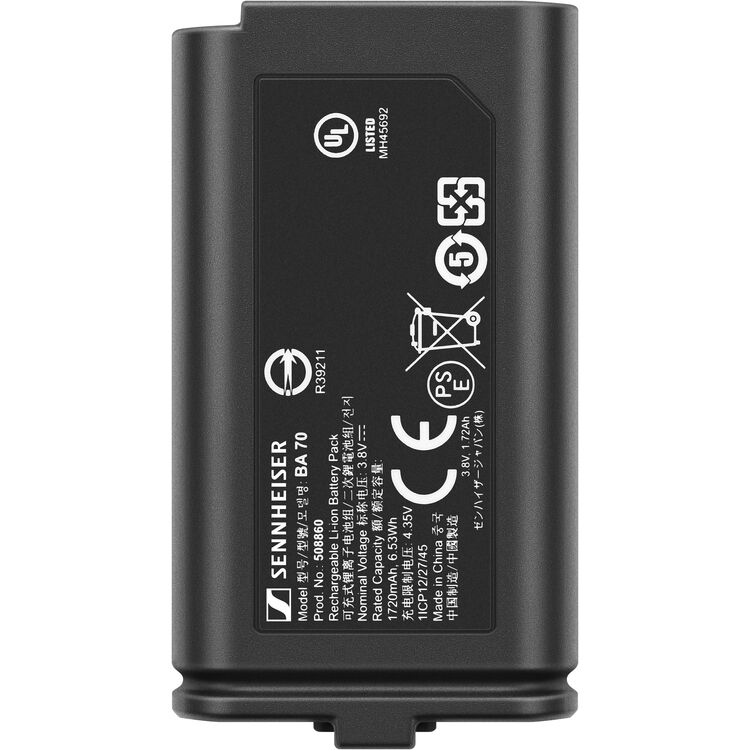

| Battery Type | 2 x AA (included) 1 x Sennheiser battery pack (included) |
| Battery life | 7 hours |

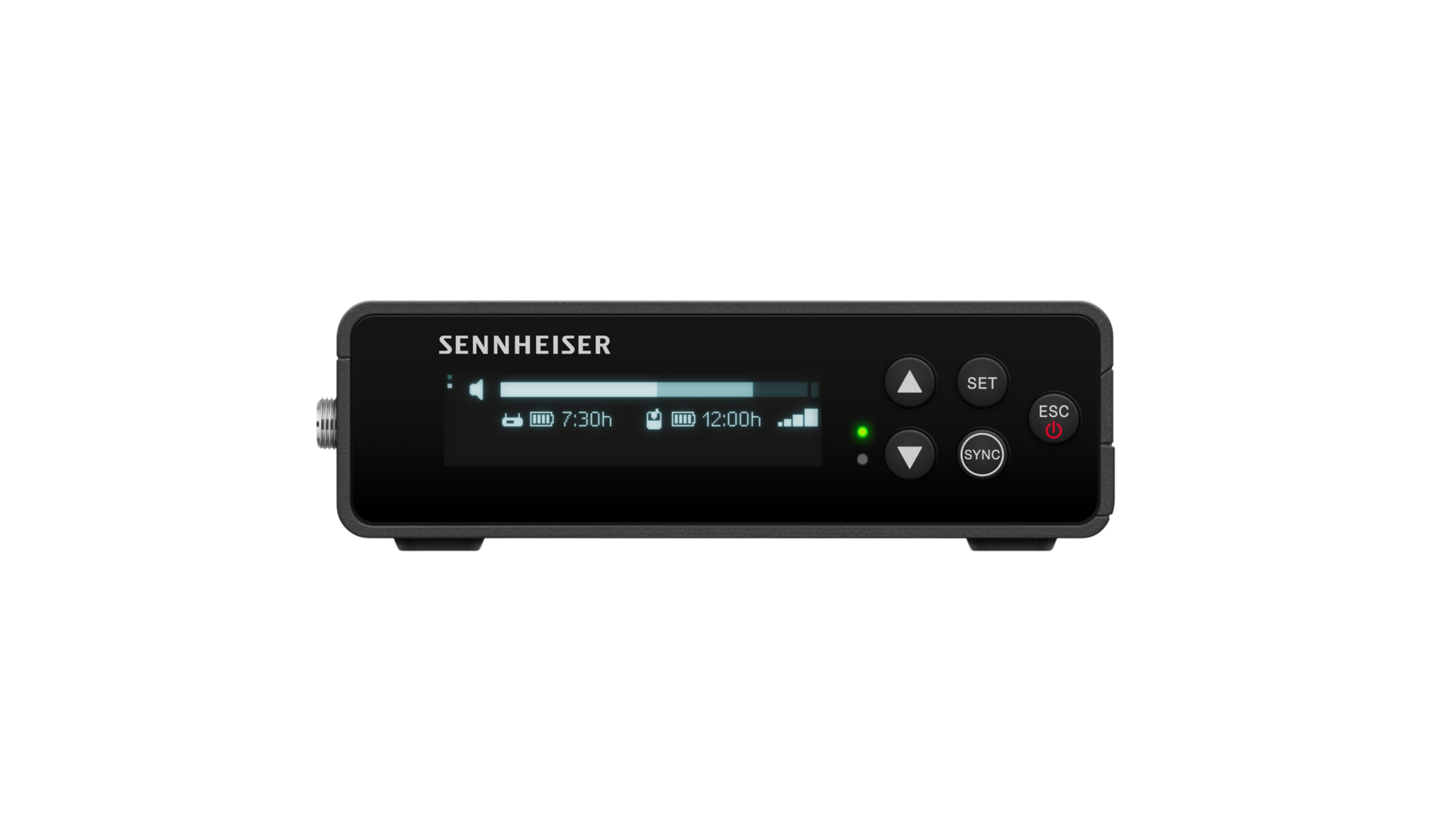

| Displays and indicators | 1 x Backlit OLED (AF level, frequency, mute, RF level, transmitter battery status) |
| Operating temperature | From -10 to 55 °C |
Transmitter 1
| Weight | 120 g (without batteries) |
| Dimensions | 6.3 x 8 x 2 cm (without antennas) |
| Transmitter type | Bodypack |
| RF output power | 0 mW (ERP), up to 10 mW (EIRP) |
| I/O audio | 1 x 1/8″/3.5 mm female TRS input (lockable) |
| Silencing | Mute switch |
| Audio input level | From 2 to 4.35 V RMS |
| Frequency response | From 20 Hz to 20 kHz |
| Synchronisation method | Bluetooth |
| Antenna | 1 x Flexible whip, fixed (belt-mounted) |
| Power requirements | Battery |
| Battery Type | 1 x Sennheiser battery pack (included) 2 x AA (not included) |
| Battery life | 12 hours (Sennheiser battery pack), 8 hours (alkaline) |
| Displays and indicators | 1 x LED (silent) 1 x LED (synchronisation) |
| Case | Metal |
| Operating temperature | From -10 to 55 °C |

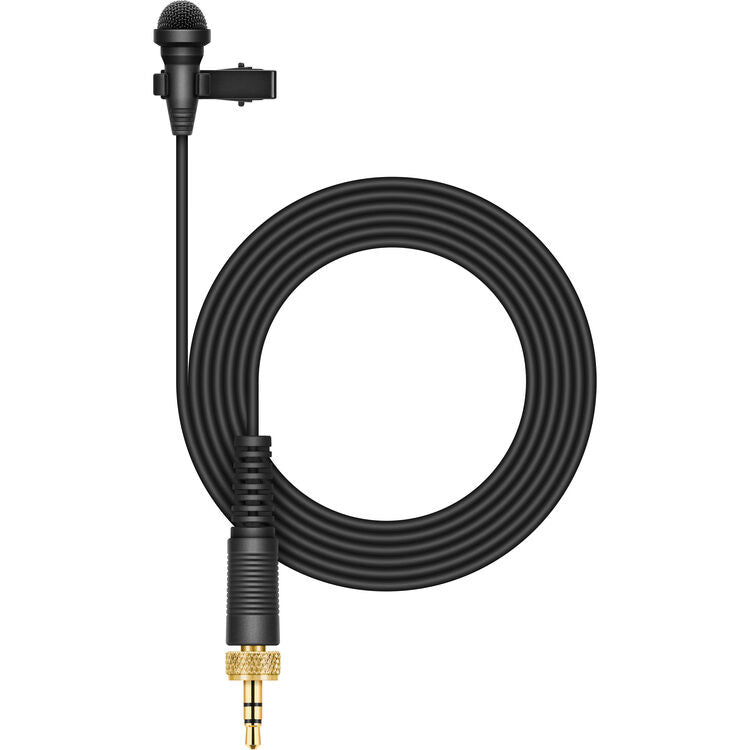

Microphone
| Microphone type | Lavalier |
| Sound field | Mono |
| Electret capsule | Condenser |
| Polar diagram | Omnidirectional |
| Frequency range | From 50 Hz to 18 kHz |
| Operating voltage | 7,5 V |
| Equivalent noise level | 32 dB |
| Maximum SPL | 130 dB SPL |
| Sensitivity | 17 mV/Pa at 1 kHz |
| Outputs | 1 x 1/8″/3.5 mm TRS male (lockable) |
| Cable length | 1,6 m |
| Color | Black |
