EVID-EC8.2W

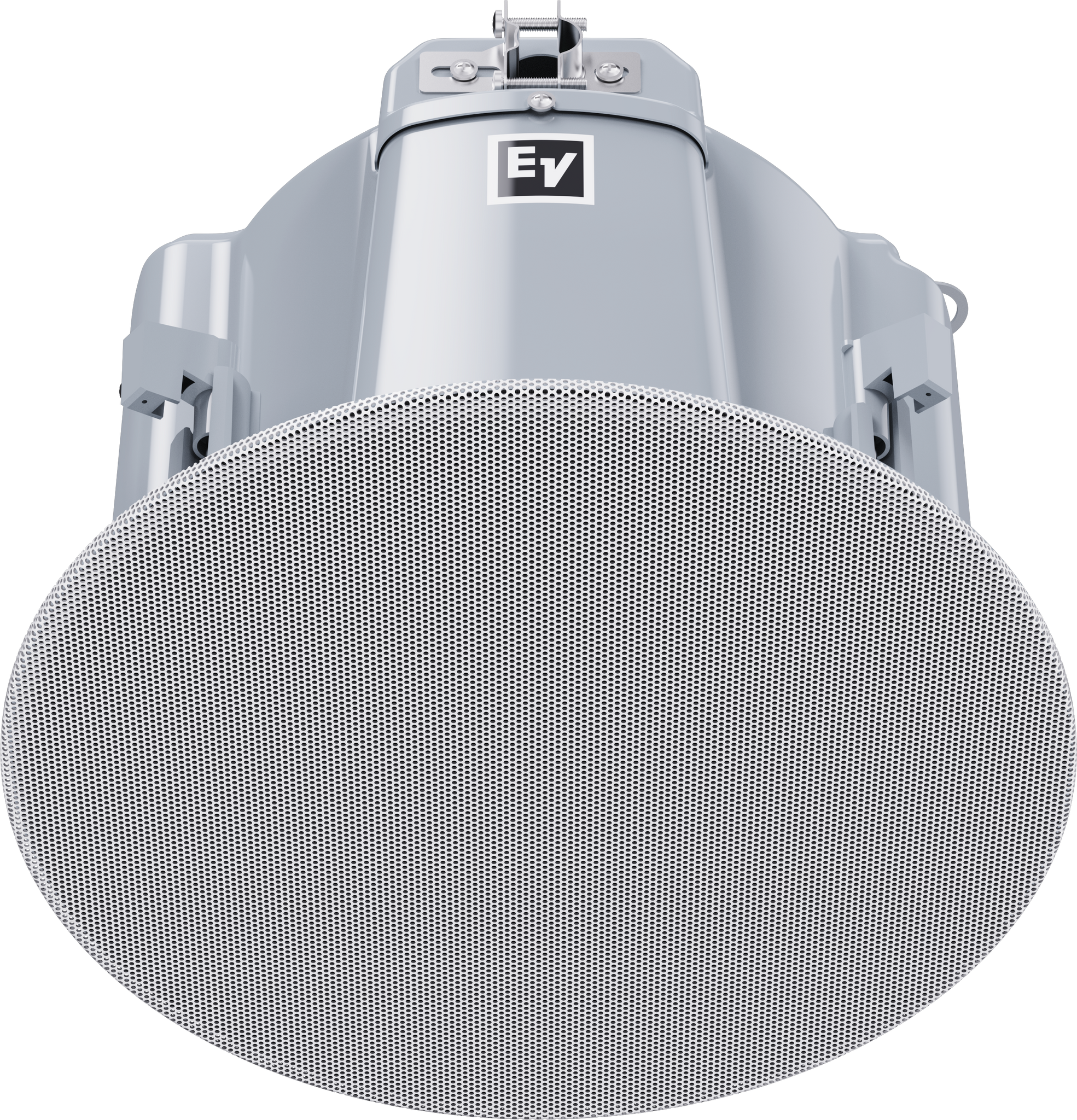

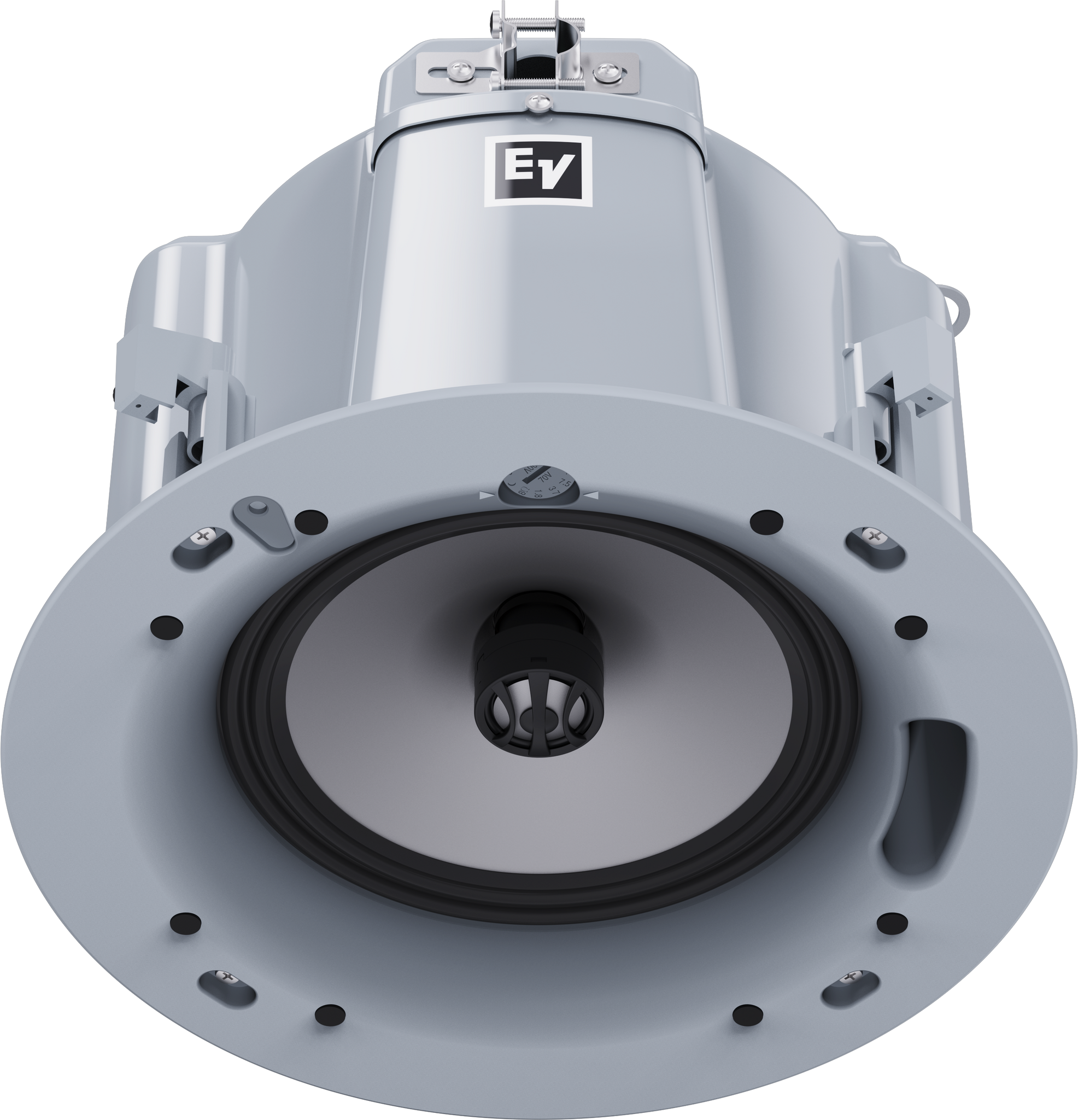

Electro‑Voice EVID‑EC8.2 – 8" Coaxial Ceiling Speaker, 70/100V, White (1 piece)

SKU: EVID‑EC8.2

Product Description

The Electro‑Voice EVID‑EC8.2 is a complete 8‑inch coaxial two‑way ceiling loudspeaker designed for commercial installations requiring high output, wide coverage and reliable long‑term performance. According to the datasheet, “The Electro‑Voice EVID‑EC8.2 is a complete 8-inch coaxial two-way loudspeaker that offers excellent sound quality and outstanding reliability with first-class aesthetics.”

It features a bezel‑less magnetic grille, front‑baffle wattage tap selector and a low‑profile steel enclosure suitable for tight ceiling spaces. The integrated transformer supports 70/100‑volt distributed audio systems with multiple tap settings and an 8‑ohm bypass. A tile bridge, C‑ring and installation accessories are included for safe mounting in mineral‑wool or fiber‑tile ceilings. The speaker is certified to UL 1480A, UL 2043, CSA C22.2 No. 205 and IEC 62368‑1.

Key Features

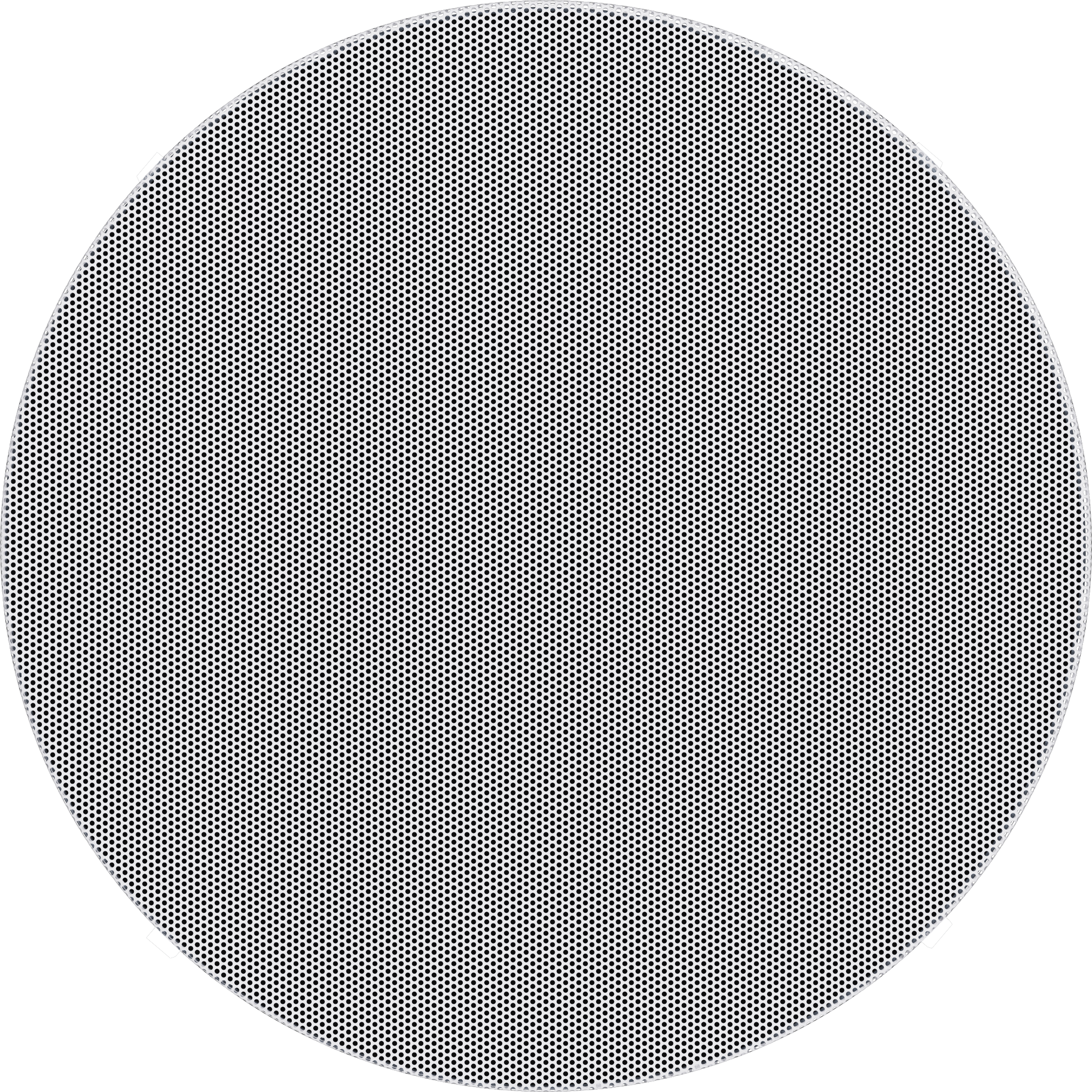

• Bezel‑less magnetic grille

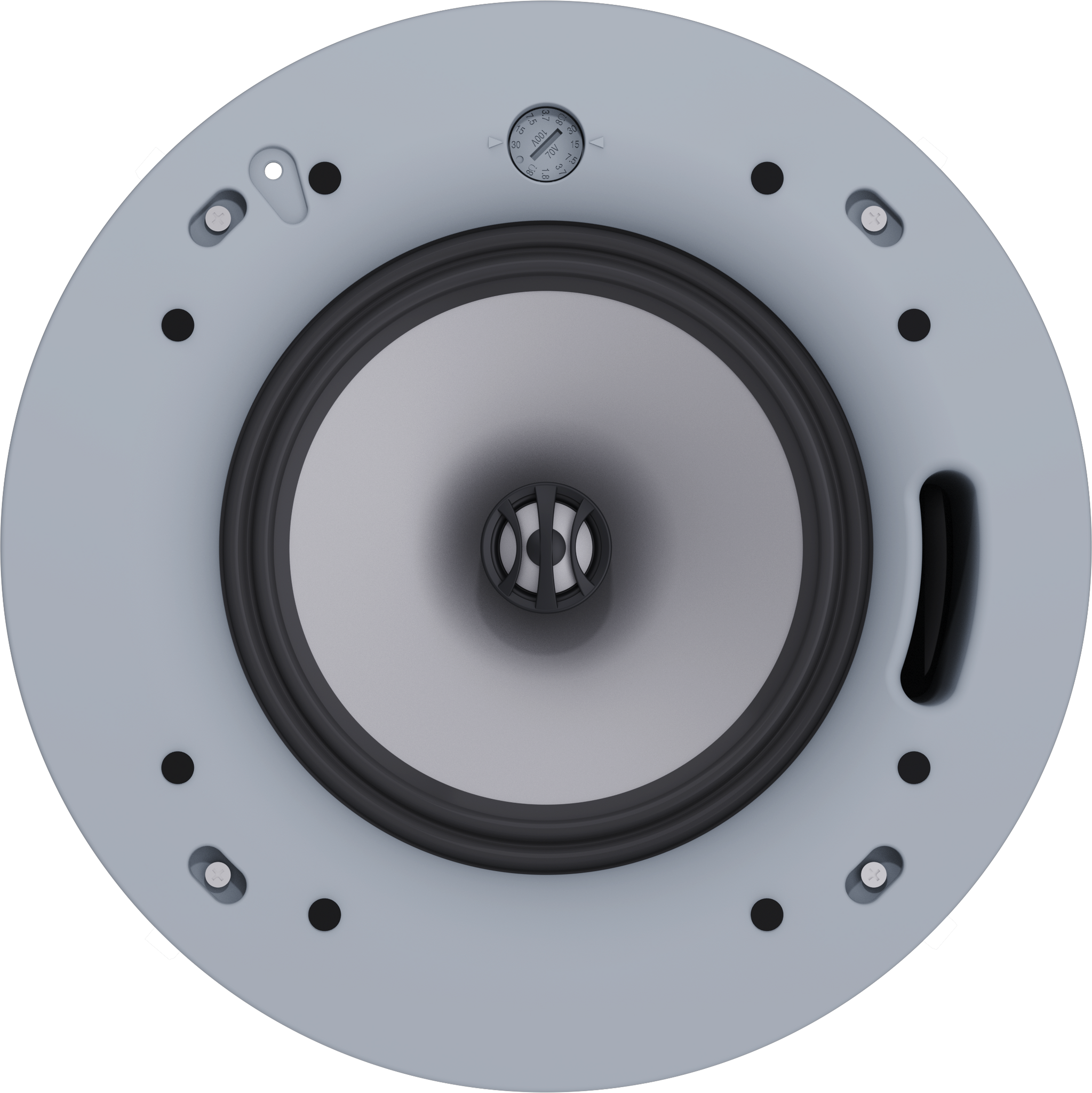

• Front‑baffle wattage tap adjustment

• Includes tile bridge and C‑ring

• UL 1480A, UL 2043, CSA C22.2 No. 205, IEC 62368‑1 certified

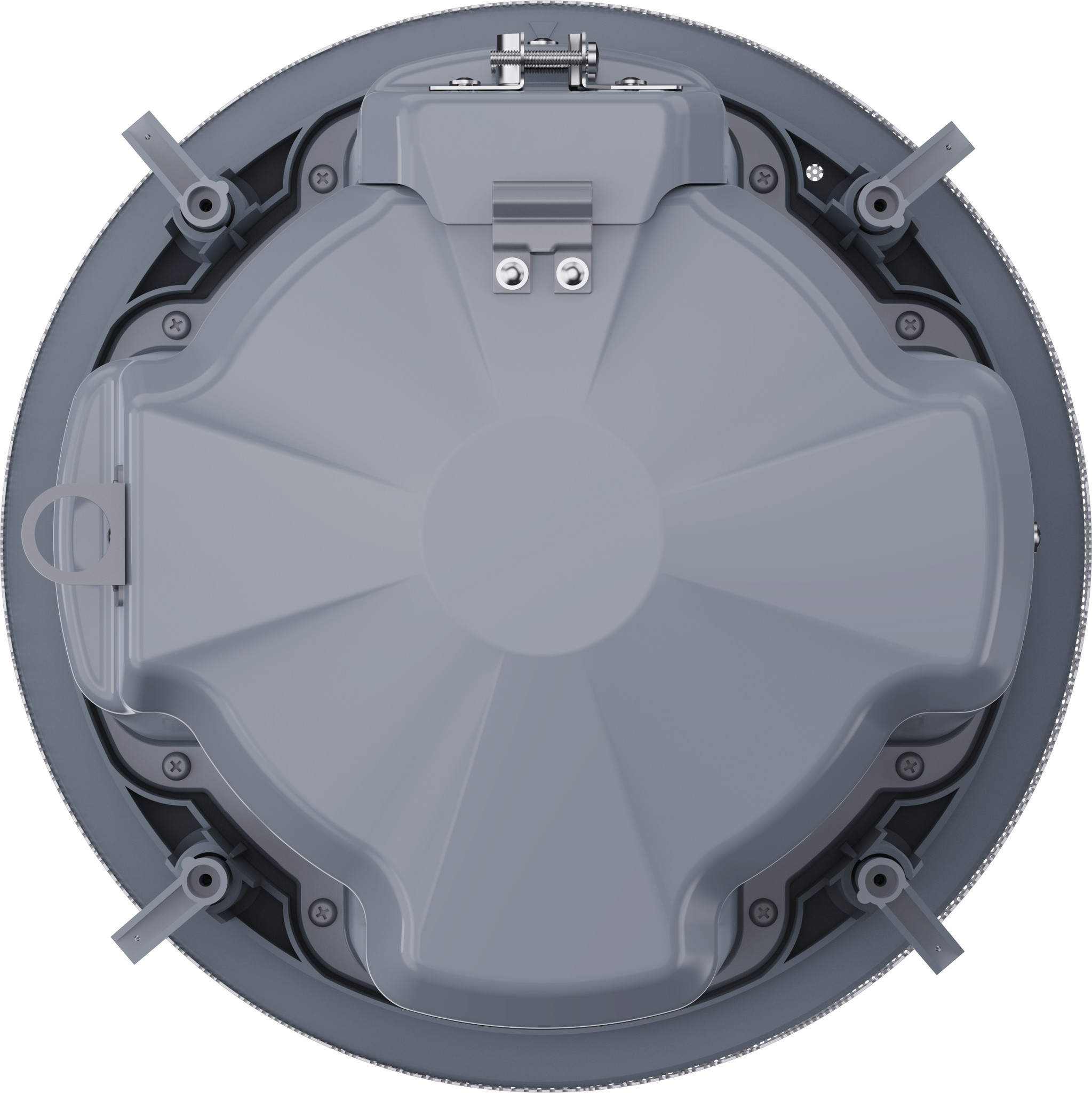

• Low‑profile steel enclosure for tight spaces

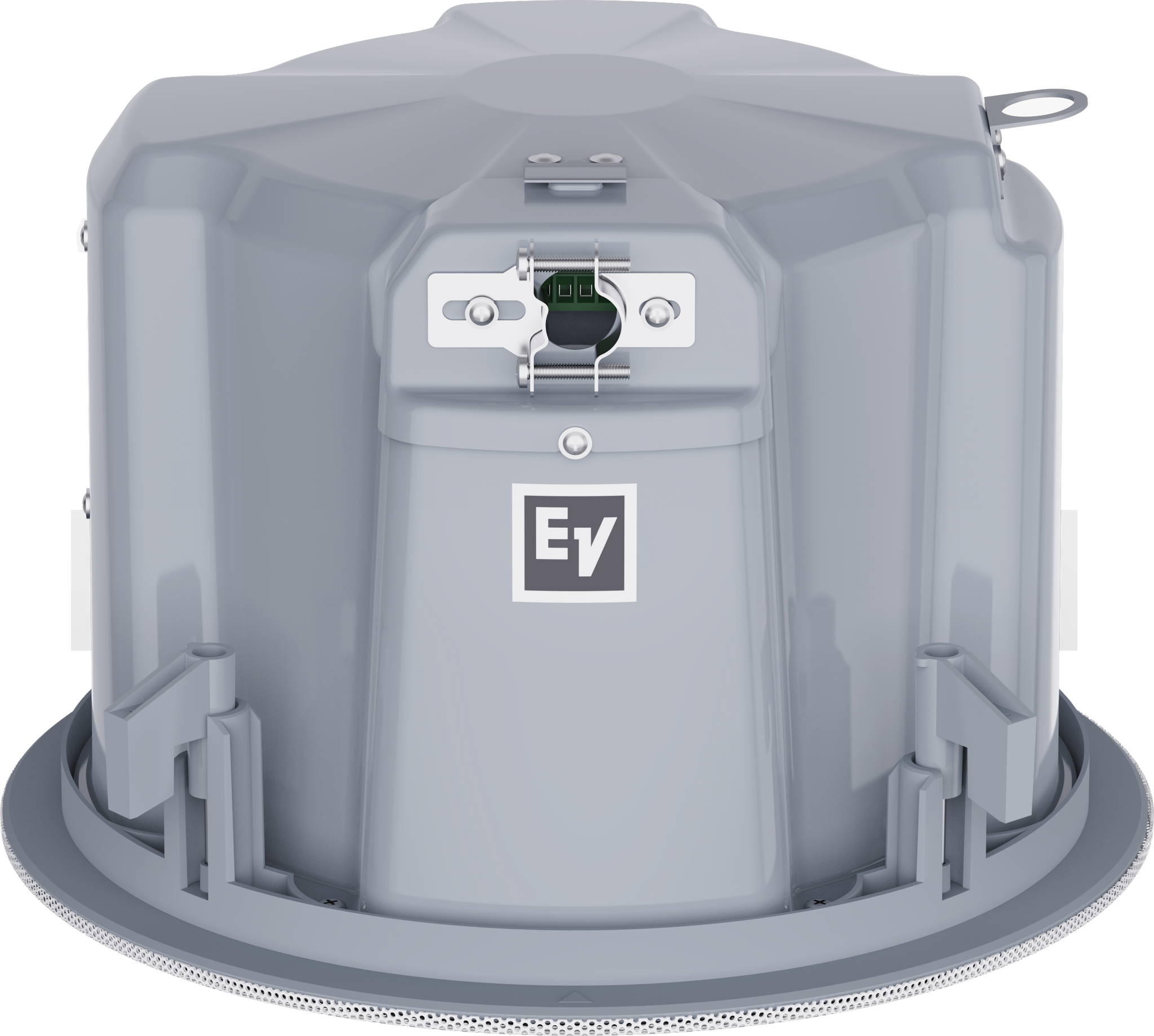

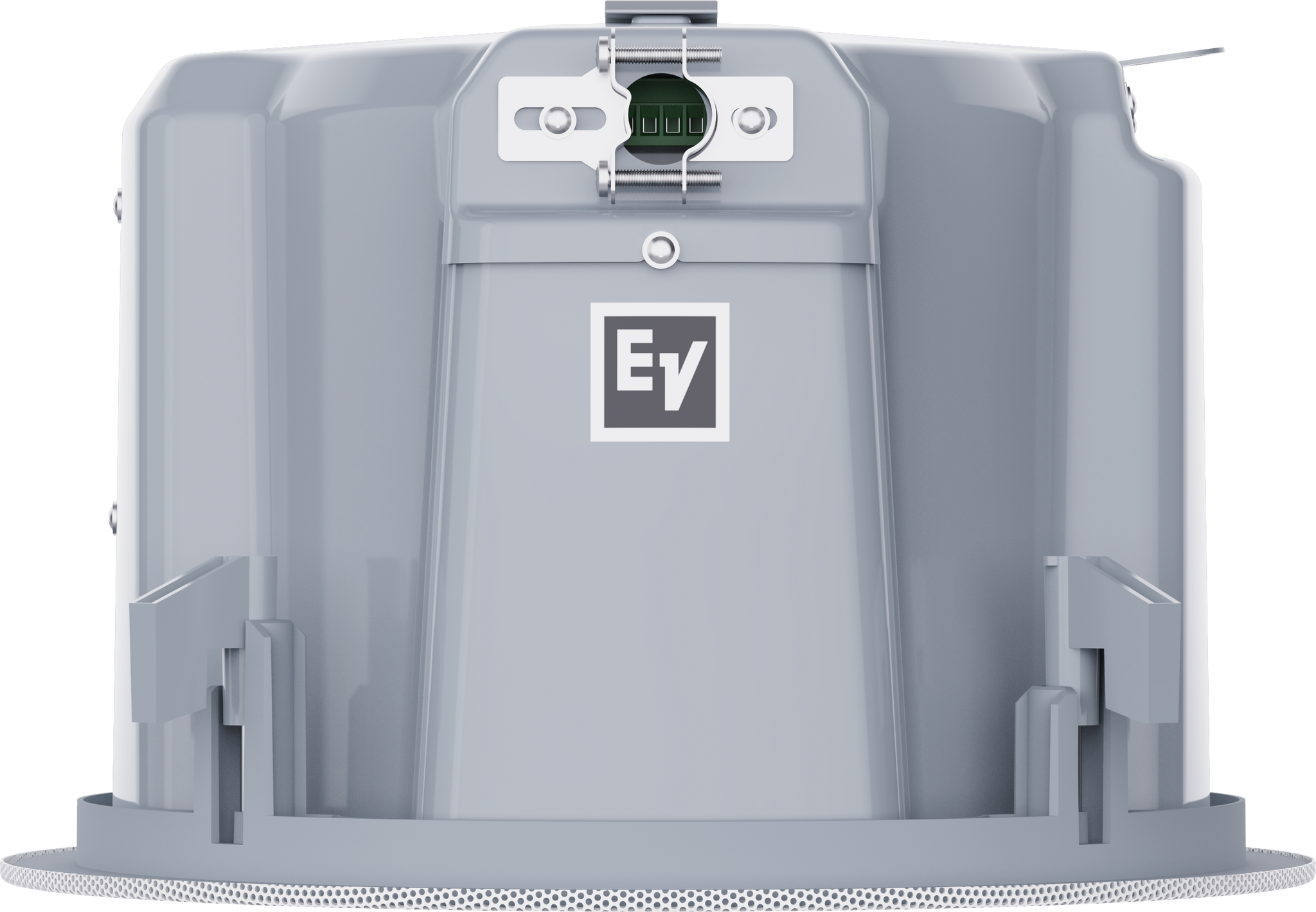

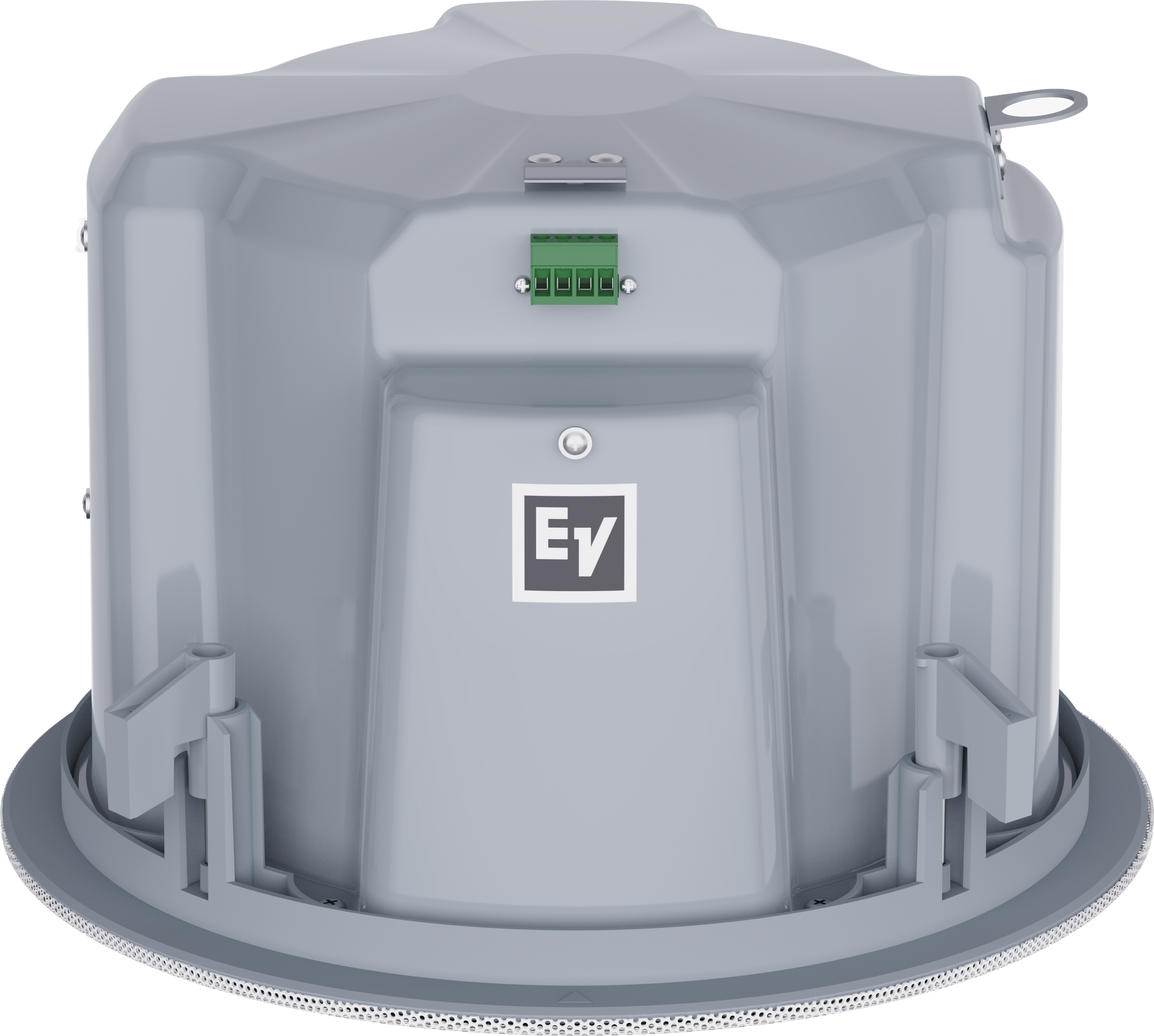

• 4‑pin Euroblock input + pass‑through

Specifications

Acoustic Performance

Frequency range (–10 dB): 75 Hz – 20,000 Hz Maximum SPL (continuous/peak): 110 dB / 116 dB Sensitivity (1 W/1 m): 92 dB SPL Coverage angle: 90° conical

Power & Impedance

Power handling (continuous/peak): 70 W / 280 W Long‑term power (continuous/peak): 50 W / 200 W Nominal impedance: 8 Ω Recommended high‑pass: 70 Hz (24 dB/oct) Transformer taps (70V): 30 / 15 / 7.5 / 3.75 / 1.88 W Transformer taps (100V): 30 / 15 / 7.5 / 3.75 W

Transducers

LF driver: 8 in HF driver: 1 in

Construction

Baffle: UL 94V‑0 ABS Rear enclosure: heavy‑gauge coated steel Grille: powder‑coated steel Connector: 4‑pin Euroblock (input + pass‑through) Max wire size: 12 AWG / 3.3 mm²

Dimensions & Mounting

Cutout diameter: 10.70 in / 272 mm Overall dimensions (Ø × D): 11.9 × 7.8 in / 302 × 198.8 mm Mounting depth: 7.6 in / 194 mm Ceiling thickness: 0.5–1.5 in / 12.5–38 mm Weight (single): 10.6 lb / 4.8 kg Shipping weight (pair): 27.6 lb / 12.5 kg IP rating: IP34 Use: Indoor Operating temperature: 32–122 °F / 0–50 °C

Parts Included

• 2 × Ceiling loudspeaker

• 2 × Magnetic grille

• 2 × Loudspeaker connection cover

• 4 × Ceiling tile rail

• 2 × C‑ring

• 4 × Screws

• 1 × Cutout template

• 2 × Paint cover

• 1 × Quick installation guide

Identifiers

• SKU: EVID‑EC8.2

• Order Number: F.01U.417.790

• HS Code: 8518.22.00

• EU CN Code: 8518.22.00 (Multiple‑speaker systems — correct classification for commercial ceiling loudspeakers.)
