EVID-EC4.2W

Electro‑Voice EVID‑EC4.2 – 4" Coaxial Ceiling Speaker, 70/100V, White (1 piece)

SKU: EVID‑EC4.2

Product Description

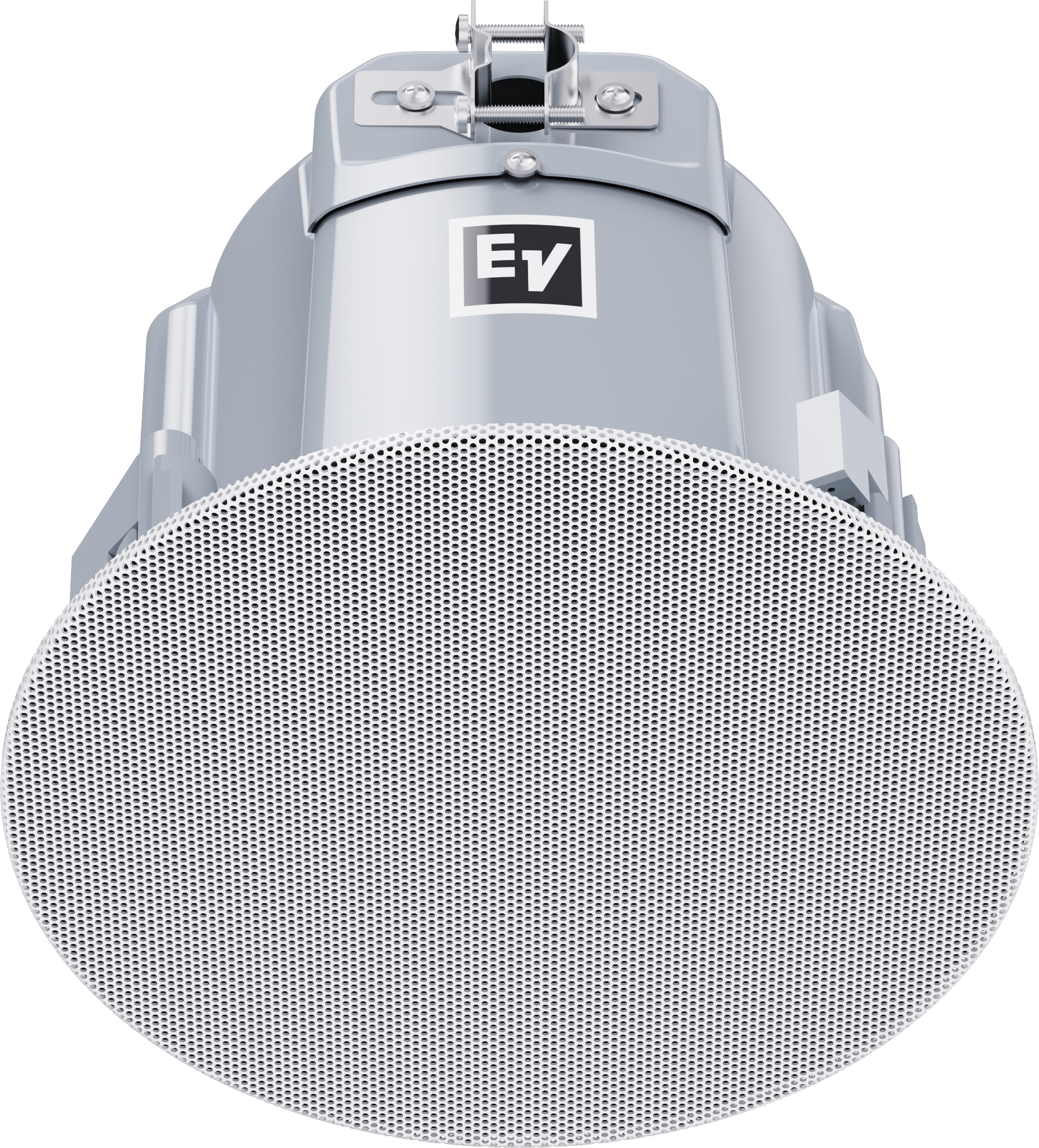

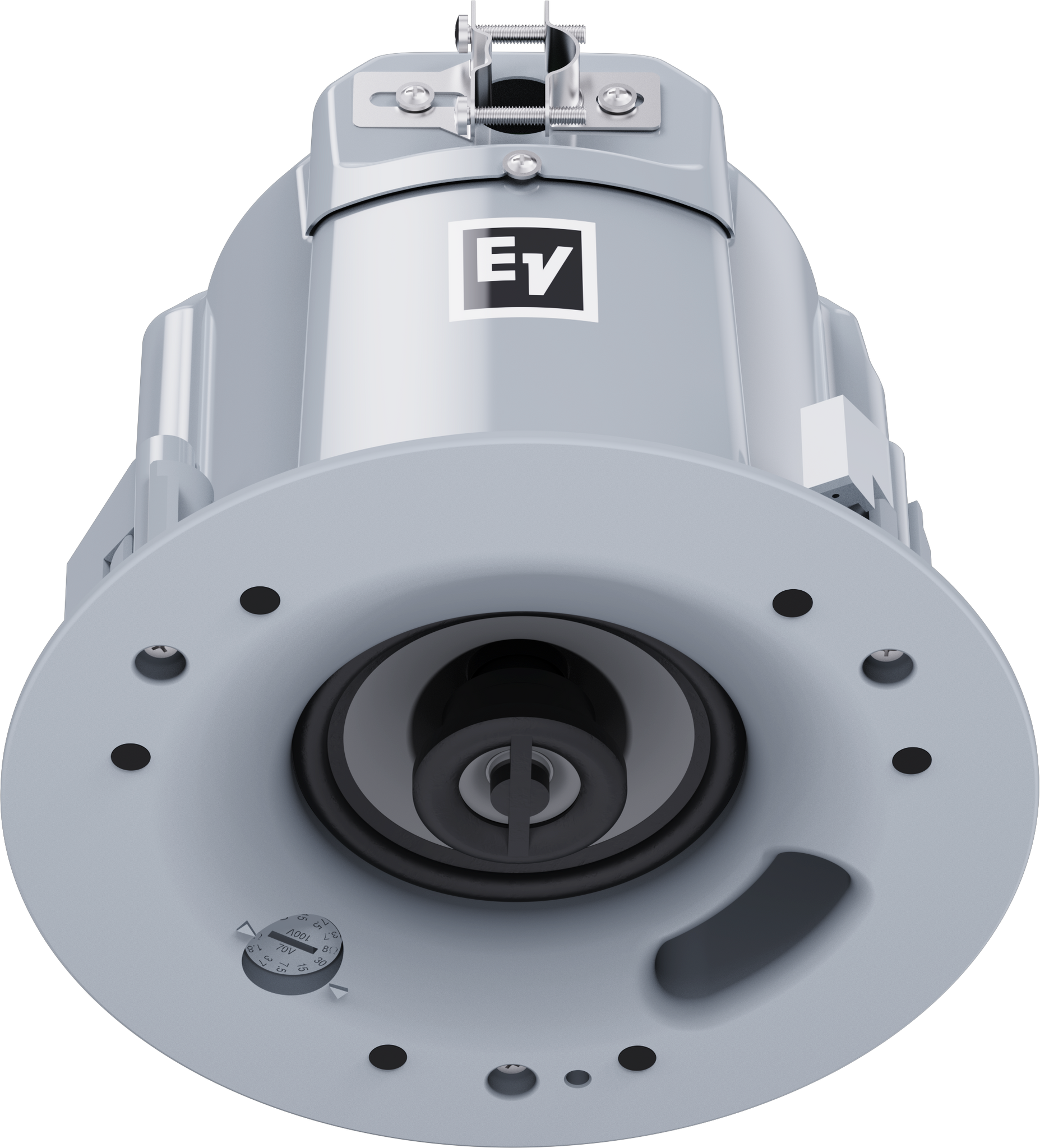

The Electro‑Voice EVID‑EC4.2 is a compact 4‑inch two‑way coaxial ceiling loudspeaker designed for commercial installations requiring high reliability, clean aesthetics and consistent audio performance. The bezel‑less magnetic grille, front‑baffle wattage tap selector and low‑profile steel enclosure make it suitable for modern architectural environments and tight ceiling spaces. The integrated 70/100‑volt transformer provides multiple power tap options, including an 8‑ohm bypass, selectable directly from the front baffle. The speaker ships with a tile bridge, C‑ring, magnetic grille and installation accessories for safe mounting in mineral‑wool or fiber‑tile ceilings. Certified to UL 1480A, UL 2043, CSA C22.2 No. 205 and IEC 62368‑1, the EVID‑EC4.2 is built for professional use in commercial audio systems.

Key Features

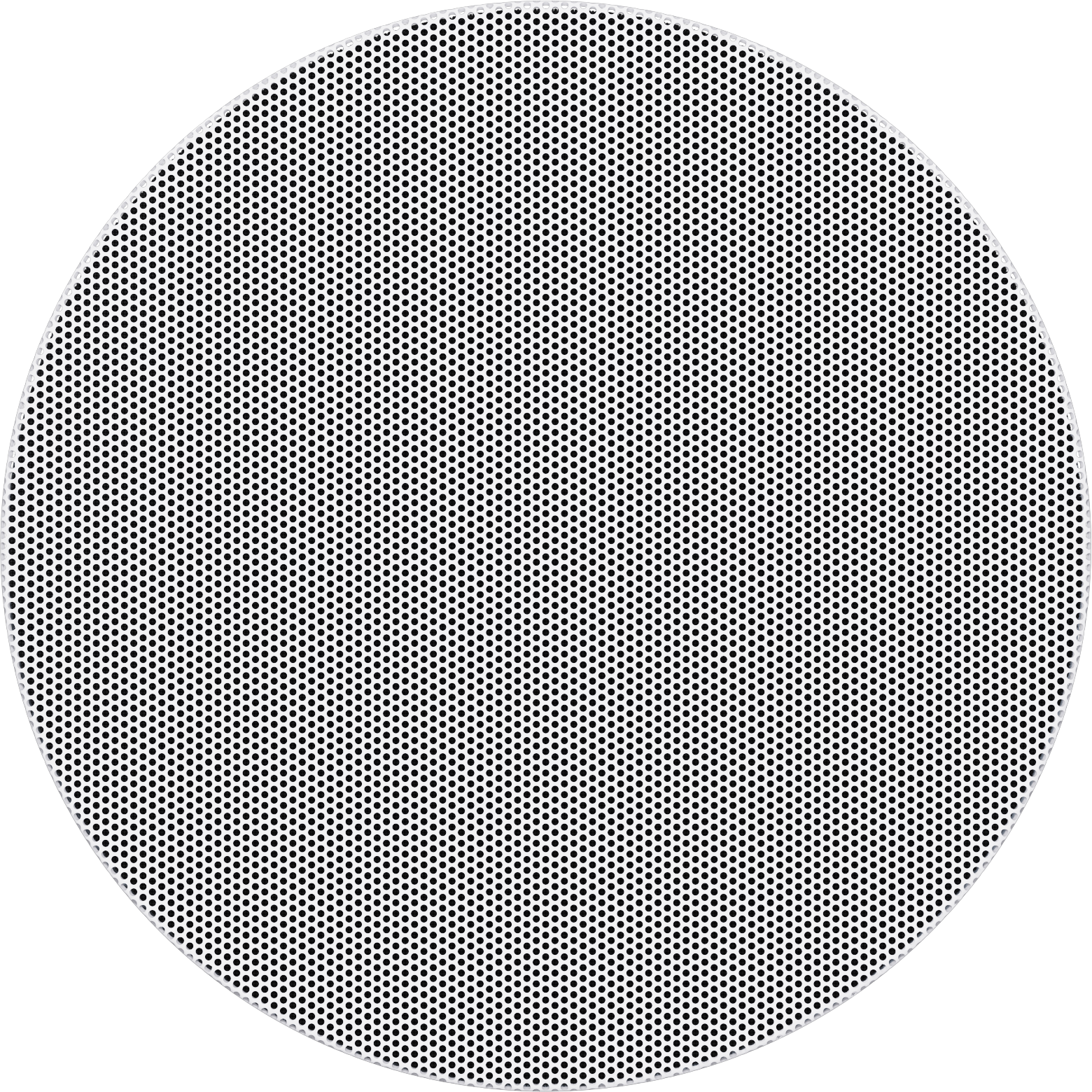

• Bezel‑less magnetic grille for clean architectural appearance

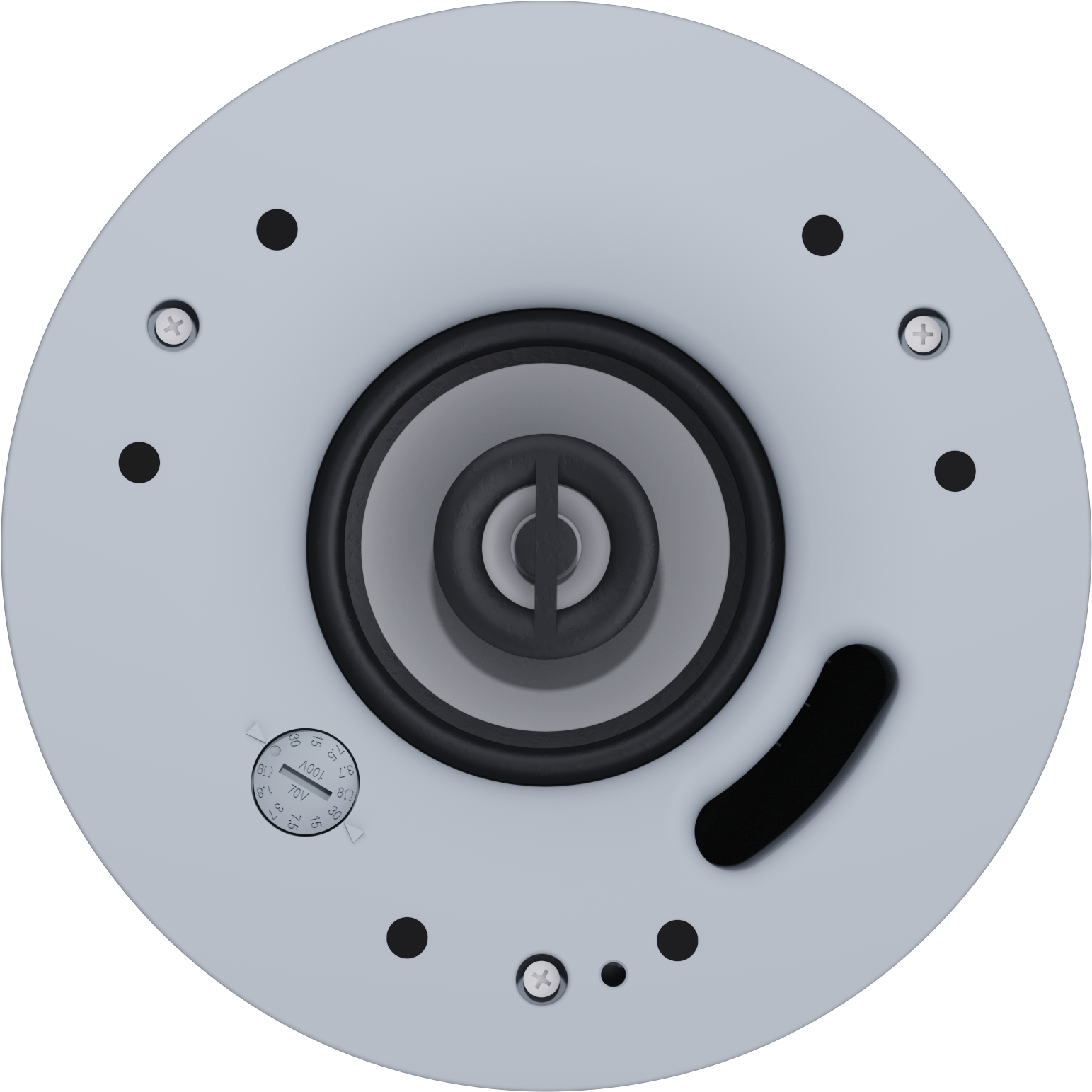

• Front‑baffle wattage tap adjustment (70/100V + 8‑ohm bypass)

• Includes tile rail and C‑ring for safe ceiling installation

• UL 1480A, UL 2043, CSA C22.2 No. 205 and IEC 62368‑1 certified

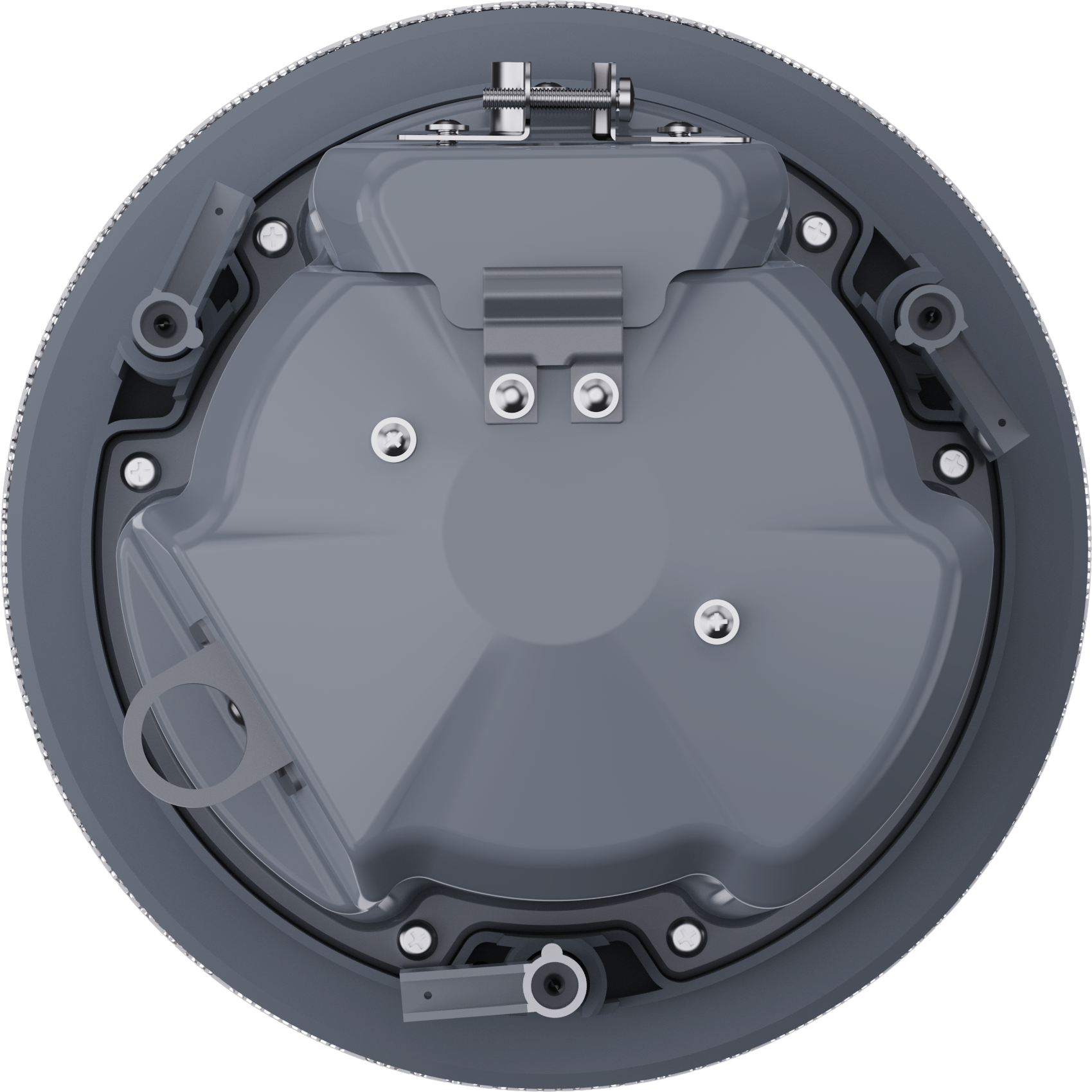

• Low‑profile steel enclosure for tight‑space mounting

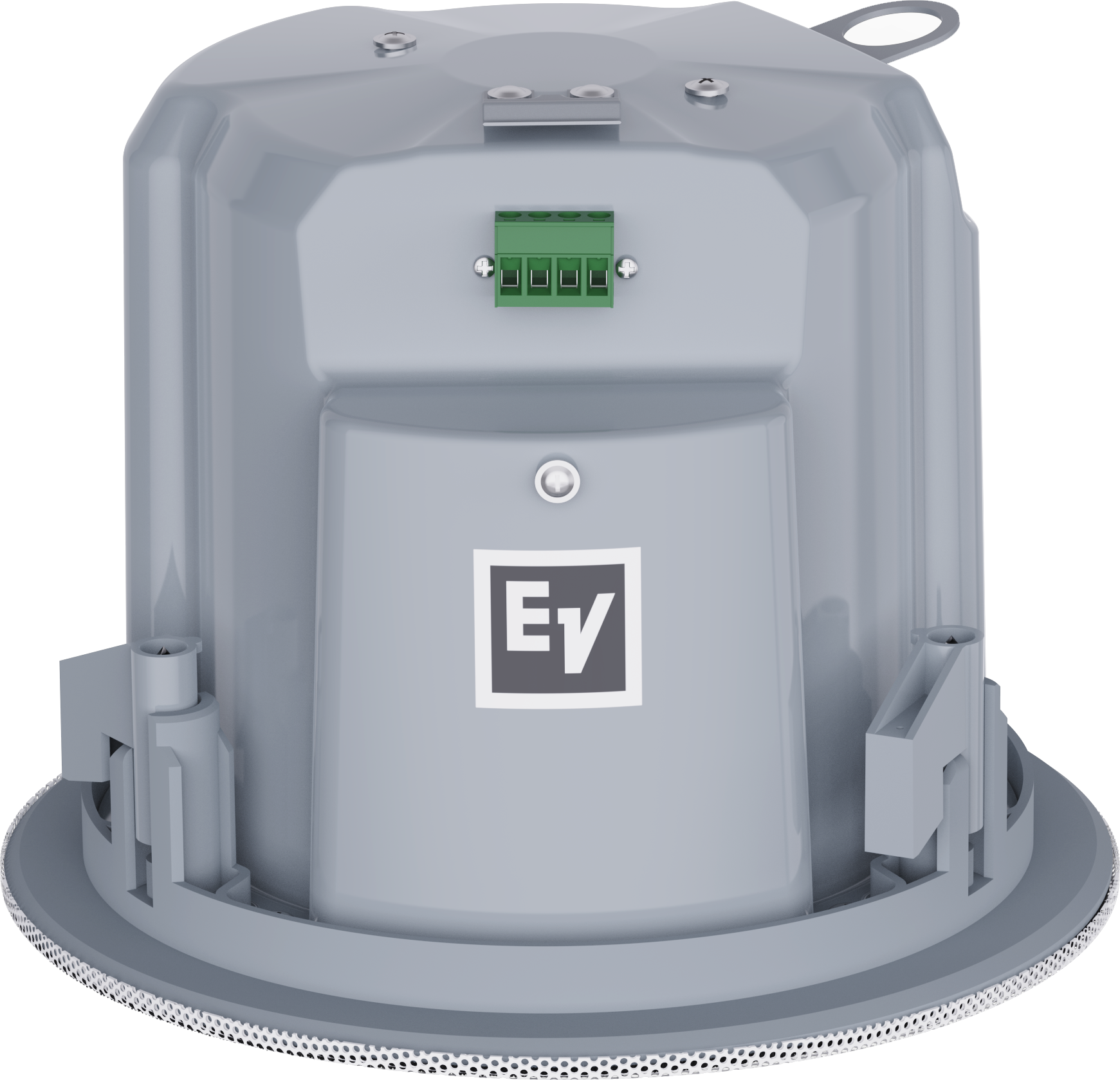

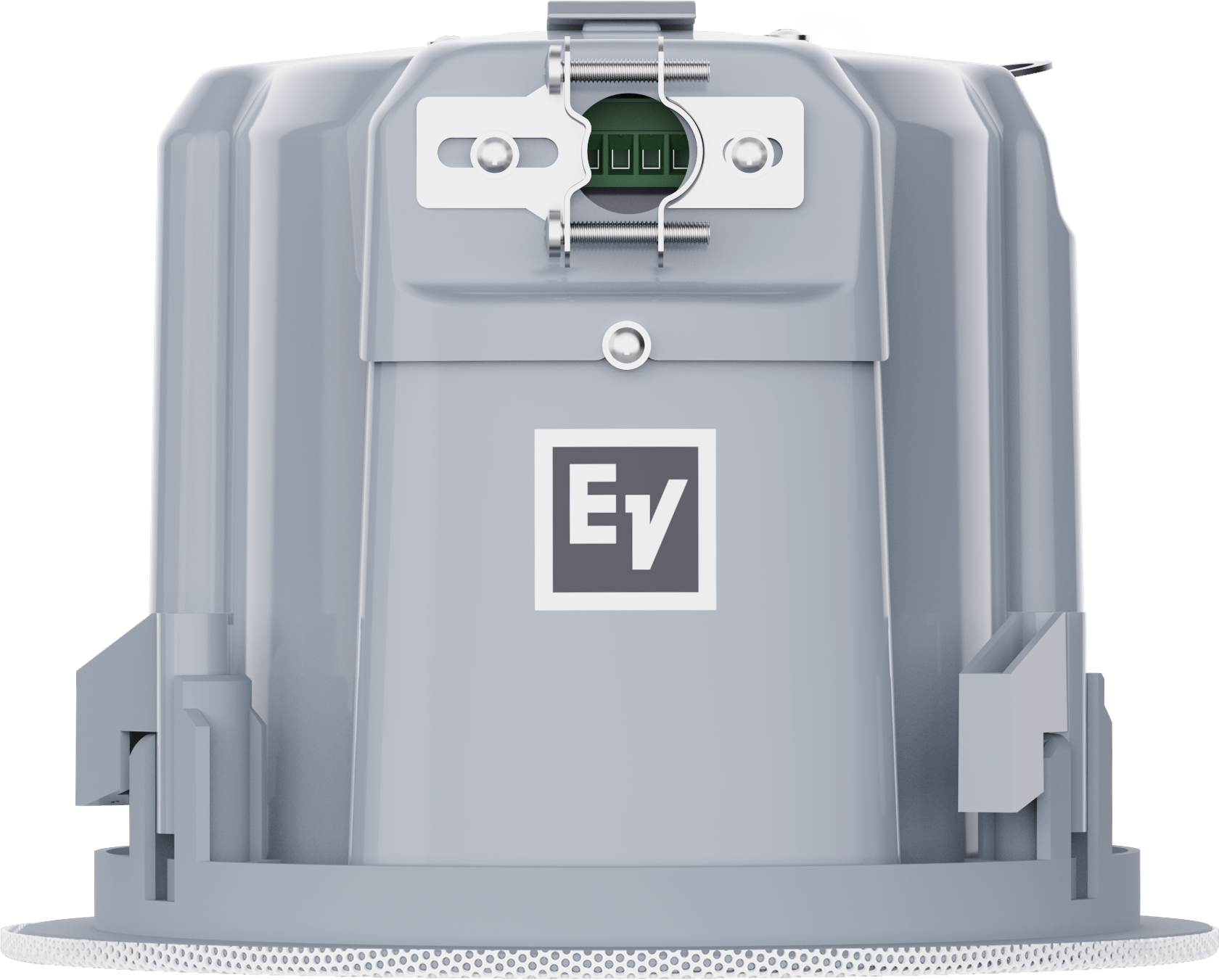

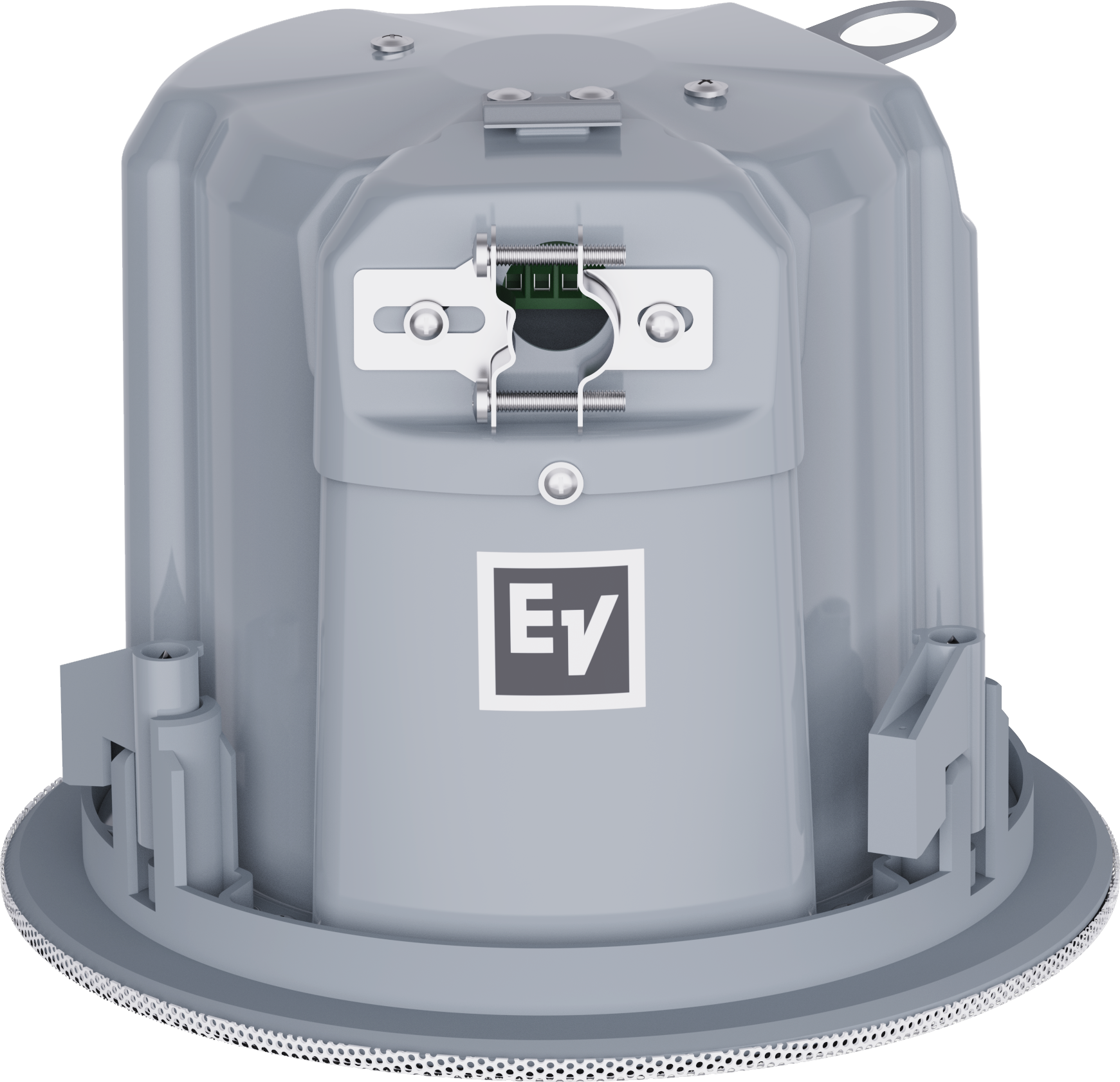

• 4‑pin Euroblock input with pass‑through for daisy‑chain wiring

Specifications

Acoustic Performance

Frequency range (–10 dB): 80 Hz – 20,000 Hz Maximum SPL (continuous/peak): 106 dB / 112 dB Sensitivity (1 W/1 m): 89 dB SPL Coverage angle: 130° conical

Power & Impedance

Power handling (continuous/peak): 50 W / 200 W Long‑term power (continuous/peak): 40 W / 160 W Nominal impedance: 8 Ω Recommended high‑pass: 90 Hz (24 dB/oct) Transformer taps (70V): 20 / 10 / 5 / 2.5 / 1.25 W Transformer taps (100V): 20 / 10 / 5 / 2.5 W

Transducers

LF driver: 4 in HF driver: 0.75 in Two‑way coaxial design

Construction

Baffle: UL 94V‑0 ABS Rear enclosure: heavy‑gauge coated steel Grille: powder‑coated steel Connector: 4‑pin Euroblock (input + pass‑through) Max wire size: 12 AWG / 3.3 mm²

Dimensions & Mounting

Cutout diameter: 7.20 in / 183 mm Overall dimensions (Ø × D): 8.4 × 6.5 in / 212 × 163.4 mm Mounting depth: 6.2 in / 158 mm Ceiling thickness: 0.5–1.5 in / 12.5–38 mm Weight (single): 5.70 lb / 2.60 kg Shipping weight (pair): 15.40 lb / 7 kg IP rating: IP34 Use: Indoor Operating temperature: 32–122 °F / 0–50 °C

Parts Included

• 2 × Ceiling loudspeaker

• 2 × Magnetic grille

• 2 × Loudspeaker connection cover

• 4 × Ceiling tile rail

• 2 × C‑ring

• 4 × Screws

• 1 × Cutout template

• 2 × Paint cover

• 1 × Quick installation guide

Identifiers

• SKU: EVID‑EC4.2

• Order Number: F.01U.417.787

• HS Code: 8518.22.00

• EU CN Code: 8518.22.00 (Multiple‑speaker systems; correct classification for commercial ceiling loudspeakers.)
