eSMART BH1

AUDIOROOT eSMART BH1 – Single Smart Battery Holder / Holster

Estimated delivery time: 1–2 weeks.

Product description

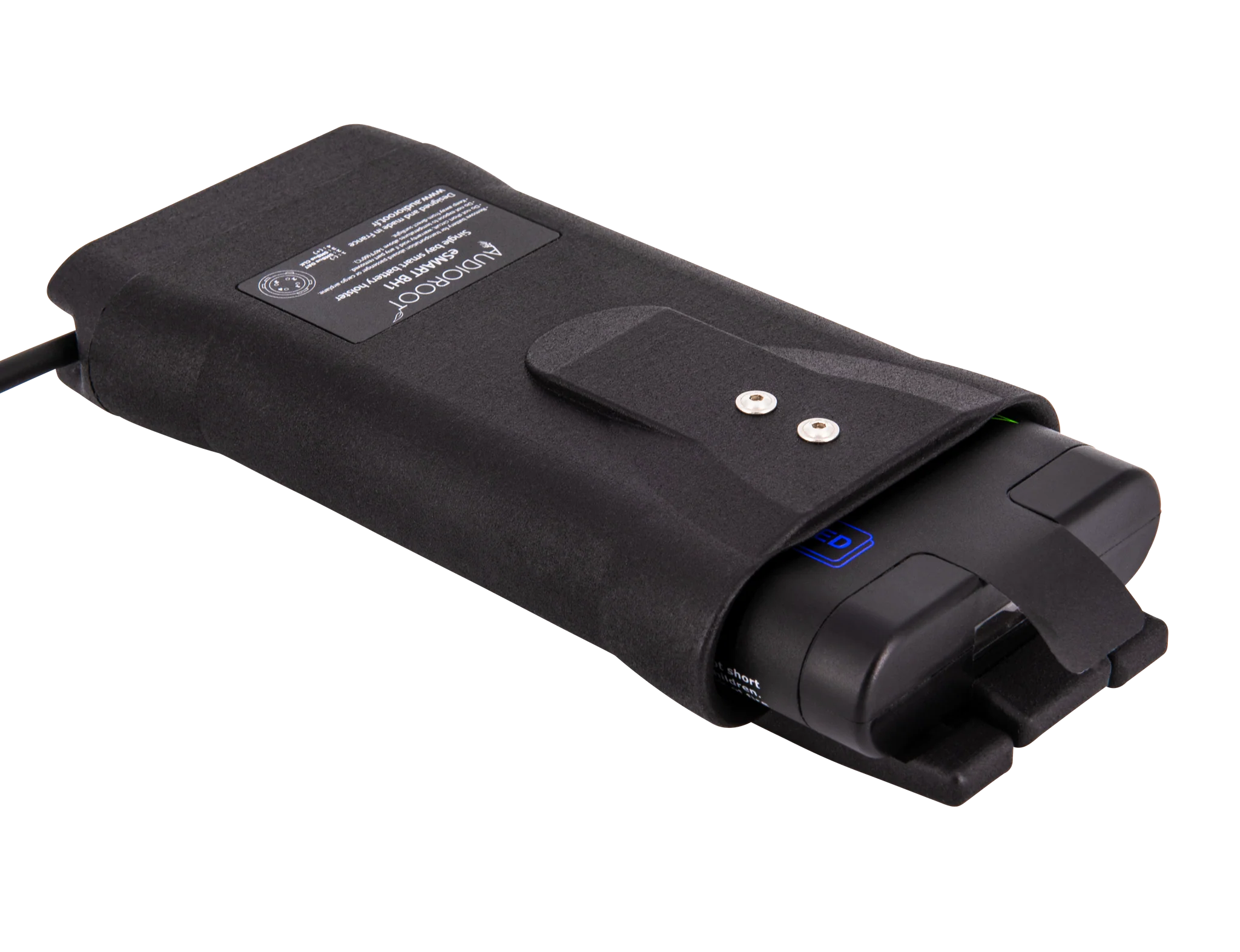

The AUDIOROOT eSMART BH1 is a compact and reliable single battery holder and holster designed for use with eSMART lithium smart batteries. Featuring a robust mechanical design and smart power/data connectivity, the BH1 is the ideal solution for powering professional audio and video equipment in mobile or fixed setups.

Key Features

Spring‑Loaded Battery Slot Securely holds one eSMART lithium battery with a spring‑loaded locking mechanism for safe attachment and quick, one‑handed removal or replacement.

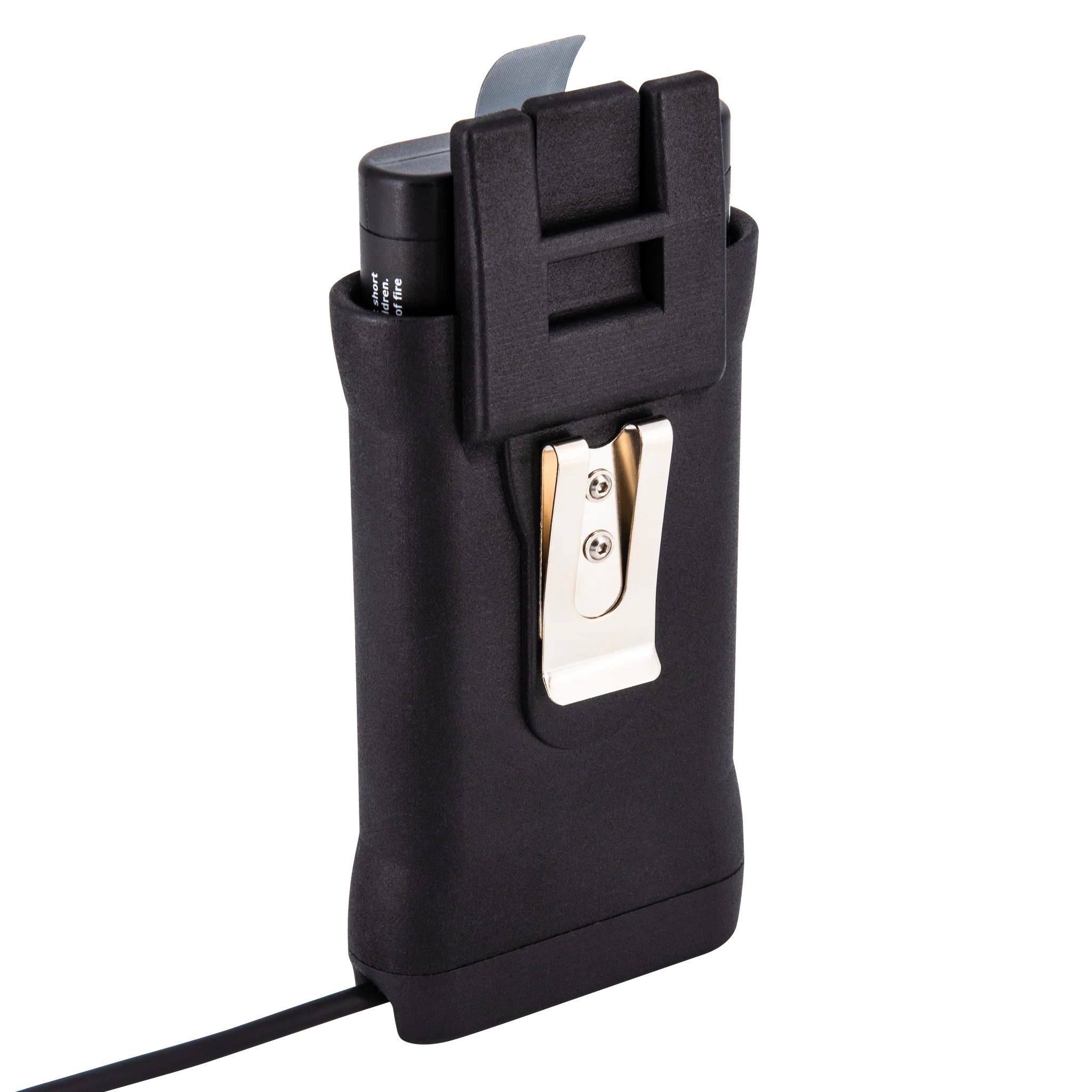

Flexible Mounting Options Includes a belt/bag clip that can be mounted on either side of the holder for convenient and versatile integration into various setups.

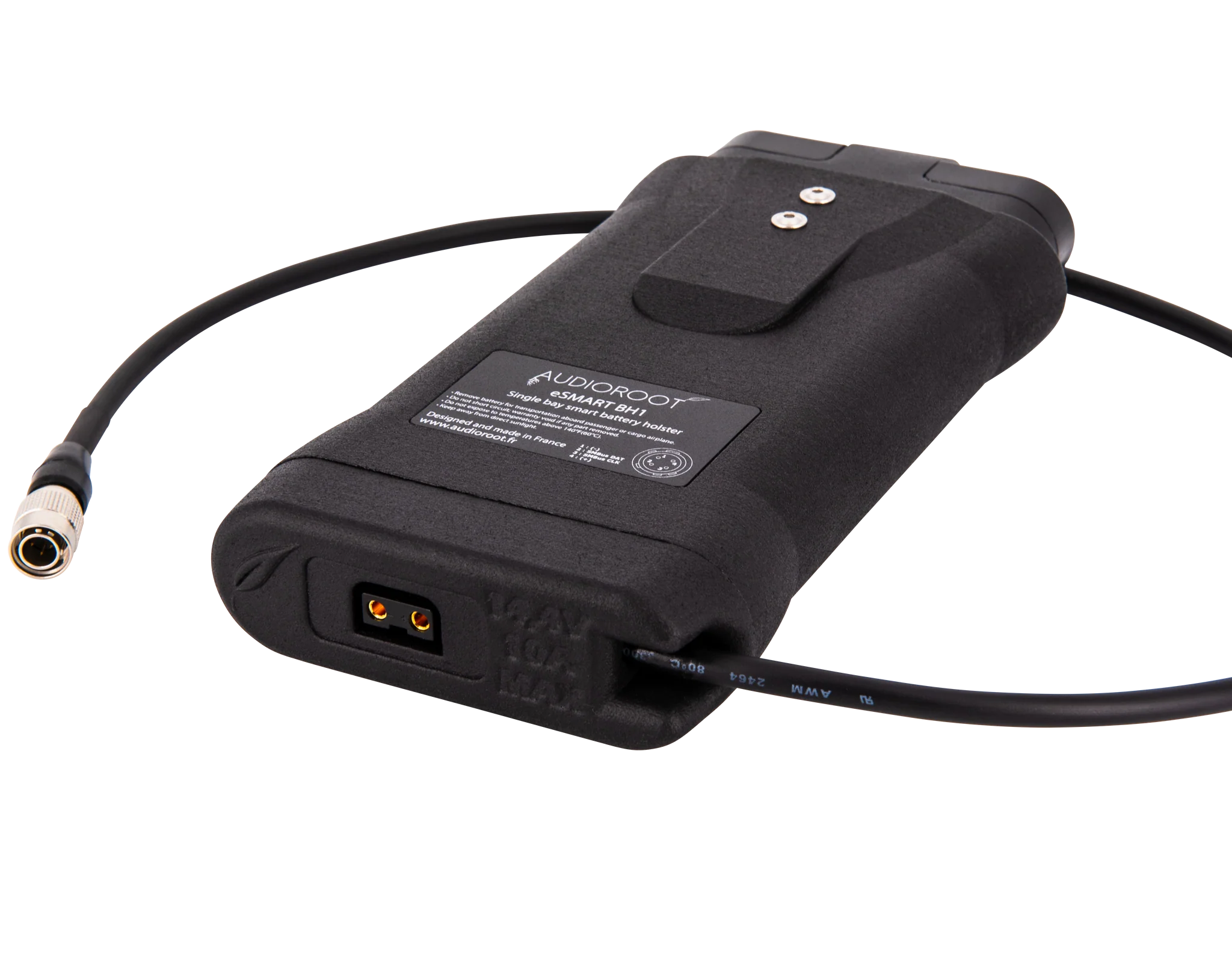

D‑TAP Output Connector Provides a dedicated D‑TAP port for direct power distribution to compatible devices.

Smart Battery Lead Output Equipped with a 4‑conductor lead output cable for power and SMBus data transmission to smart‑battery‑compatible devices.

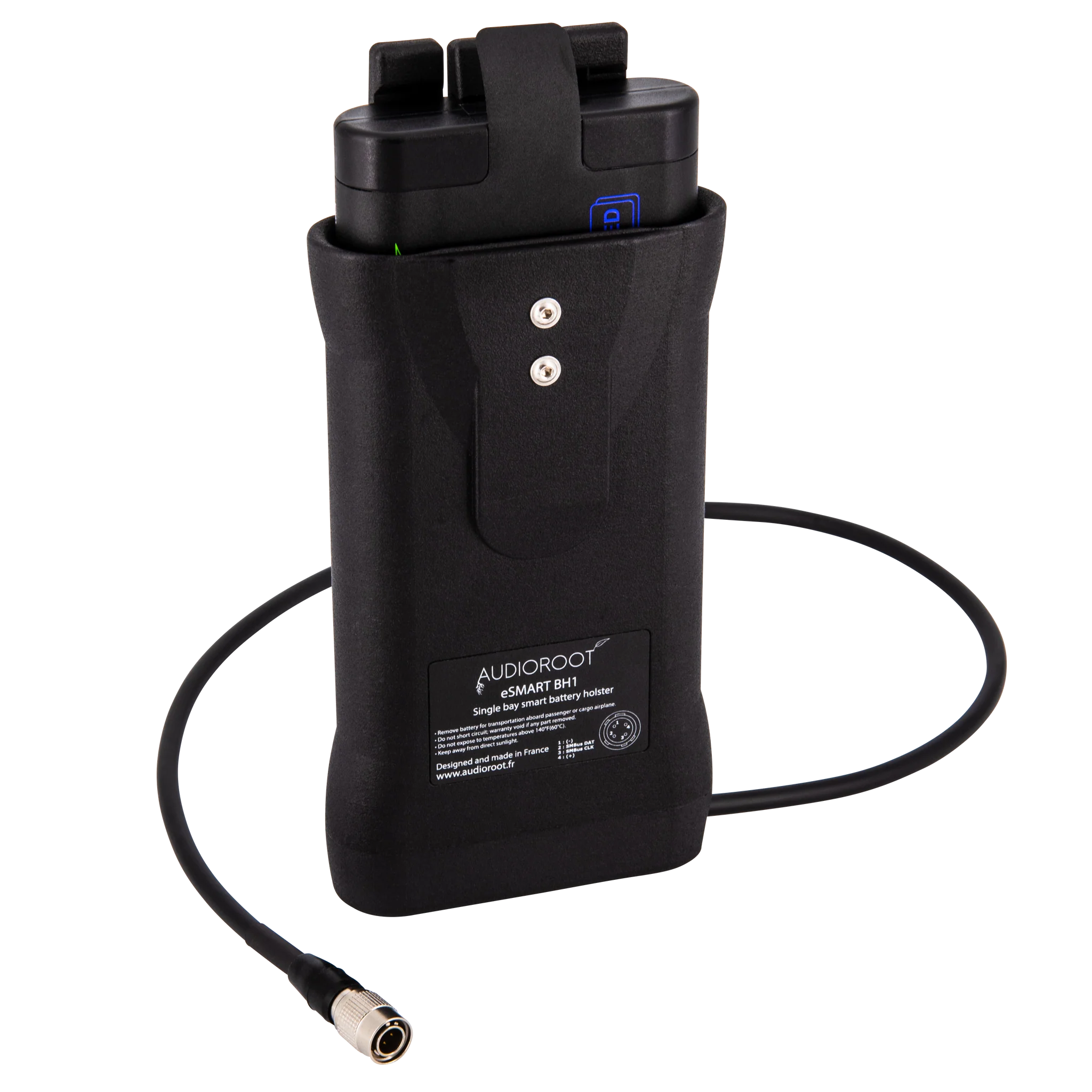

Battery Compatibility Fully compatible with 4S2P‑style (long format) smart batteries such as the eSMART Li‑96neo and Li‑98Wh.

Connector Options

The eSMART BH1 is available with a variety of professional output connectors:

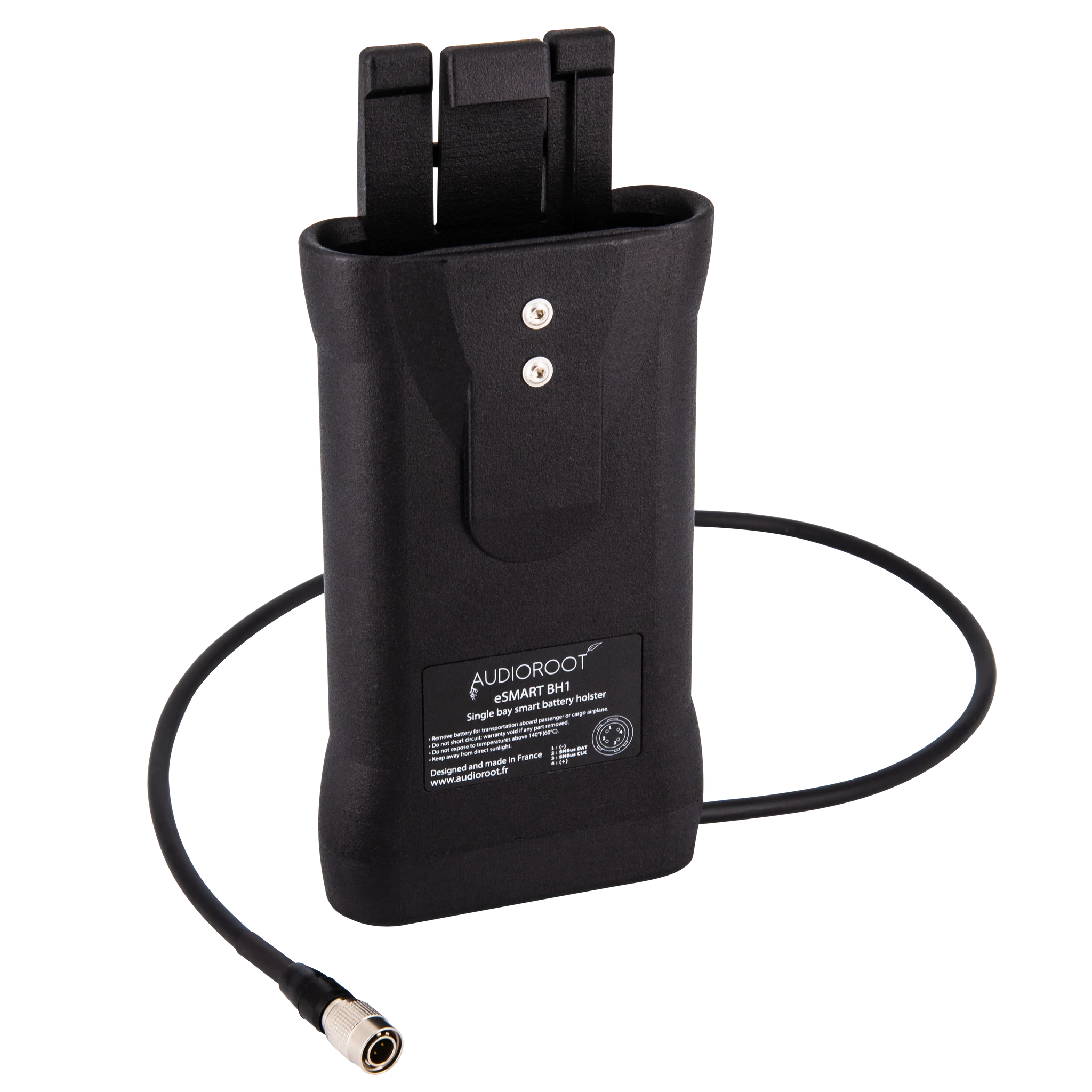

• BH1‑H – 4‑pin Hirose HRS4 (default)

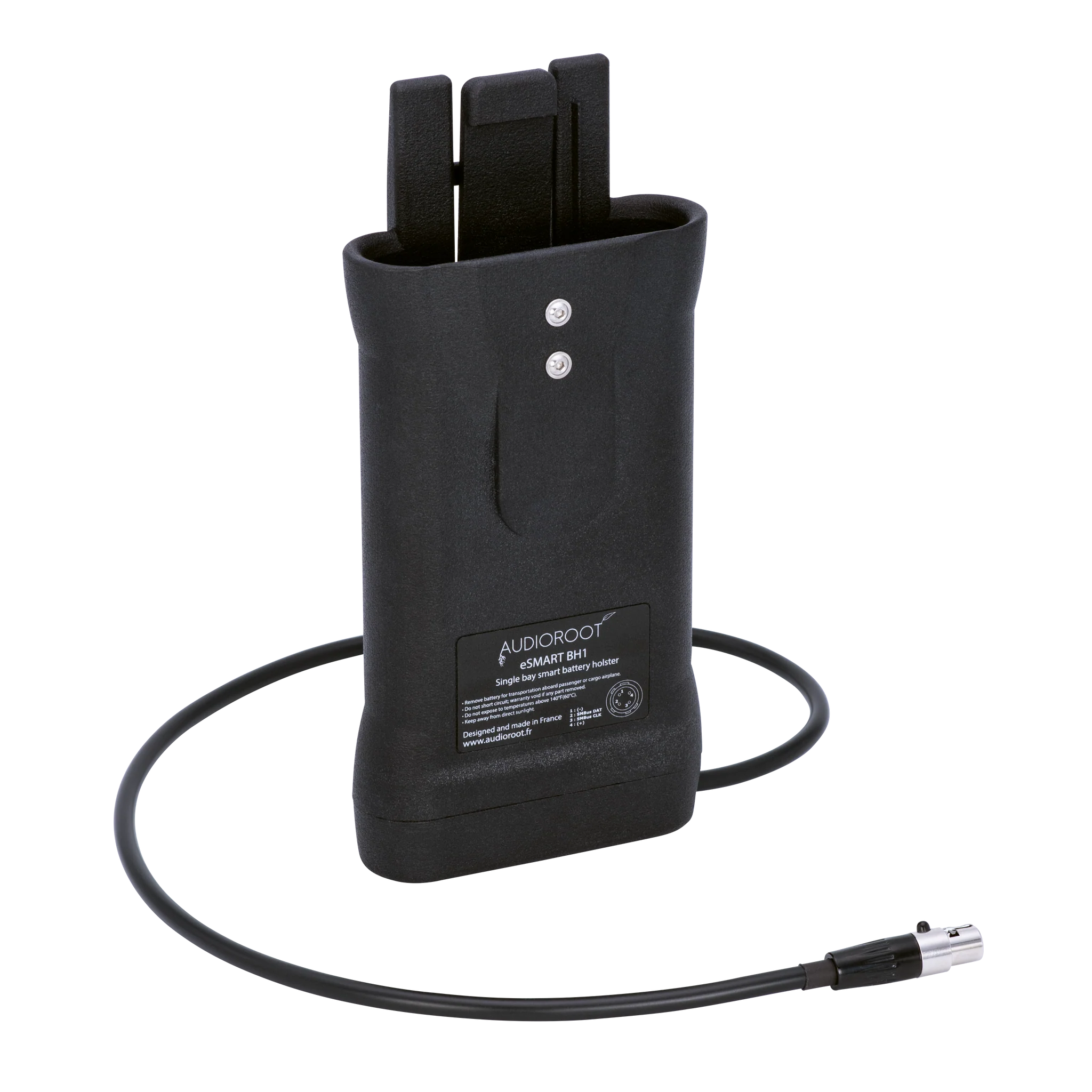

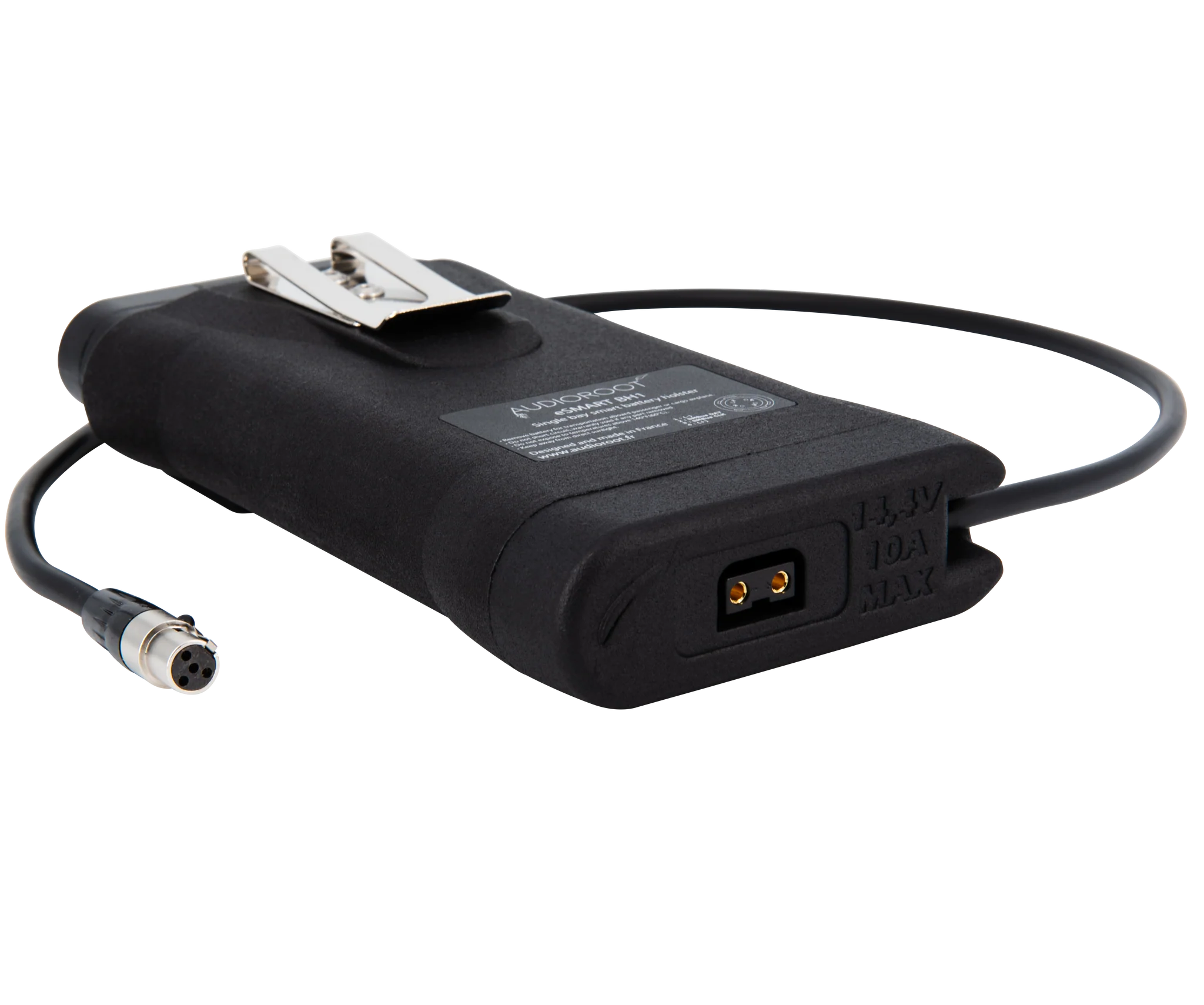

• BH1‑T – 4‑pin Switchcraft TA4F

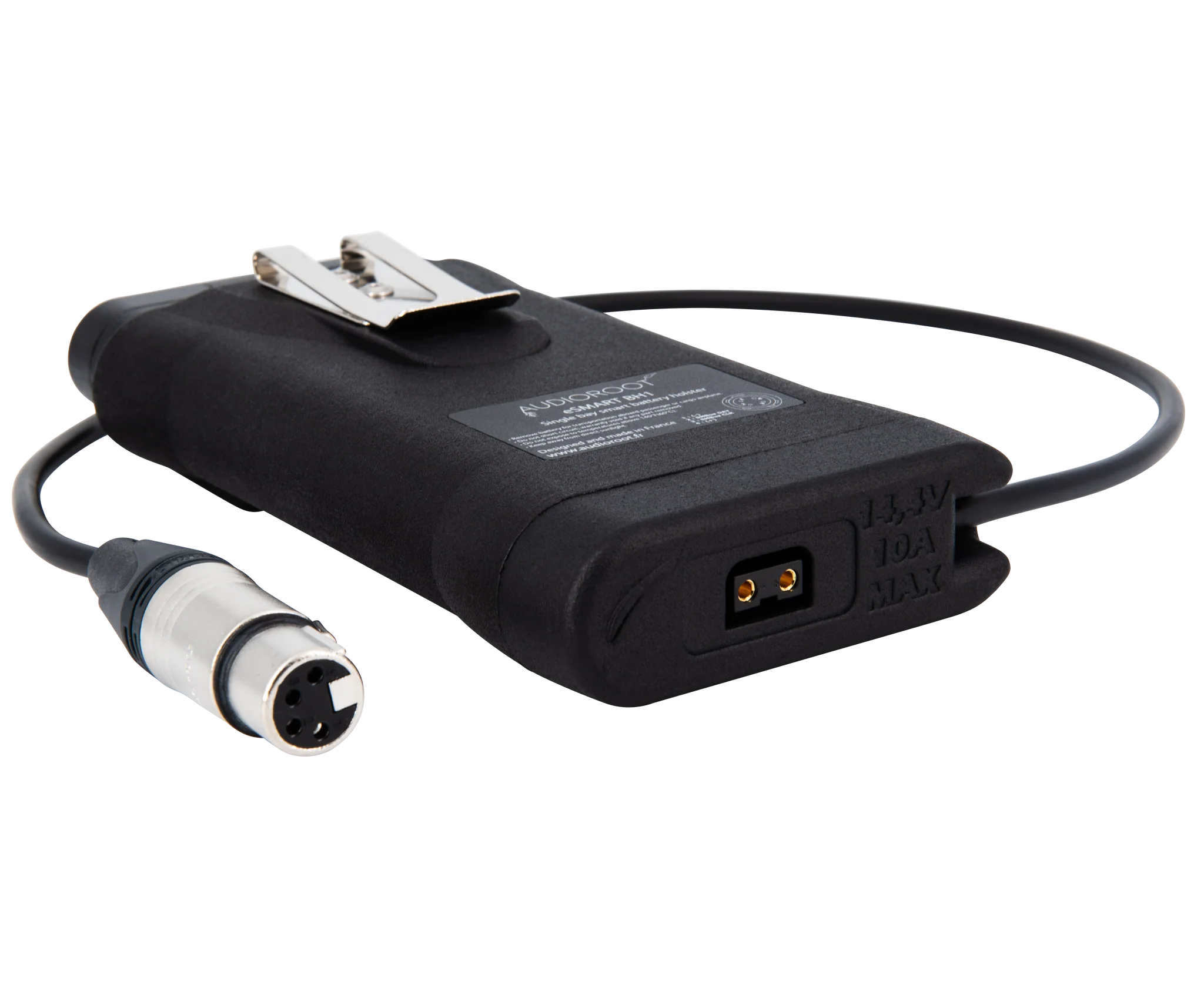

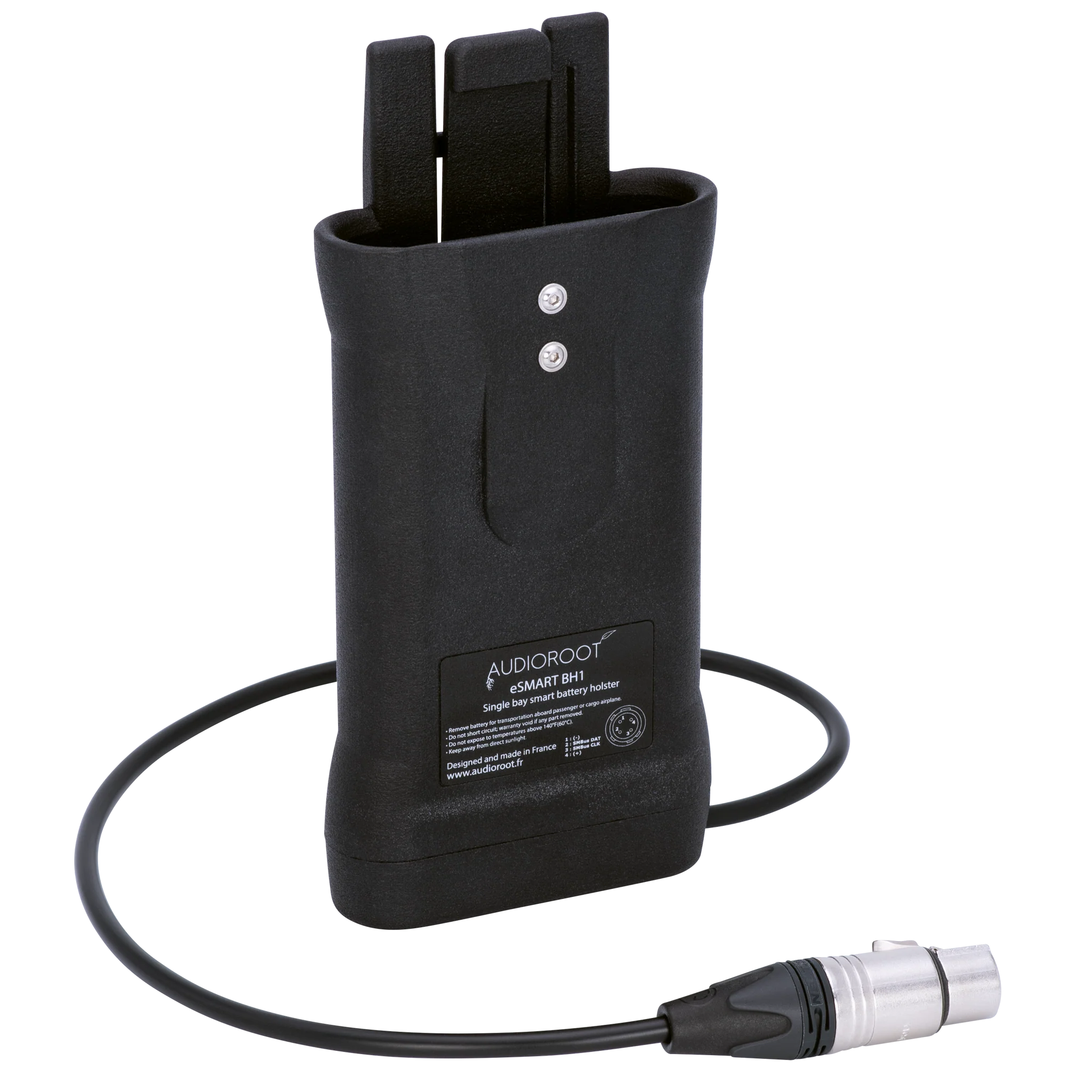

• BH1‑X – 4‑pin Neutrik XLR4F

Custom cable lengths available upon request.

Ordering Information

To specify your BH1 configuration, use the following format:

BH1‑X‑XXX

Where:

• X = Connector type

  • H = 4‑pin Hirose HRS4 (default)

  • T = 4‑pin Switchcraft TA4F

  • X = 4‑pin Neutrik XLR4F

• XXX = Cable length in centimeters (20 cm to 150 cm)

Examples:

• BH1‑H‑060: Default model with Hirose connector and 60 cm cable

• BH1‑T‑100: Model with TA4F connector and 100 cm cable
