EP-9216

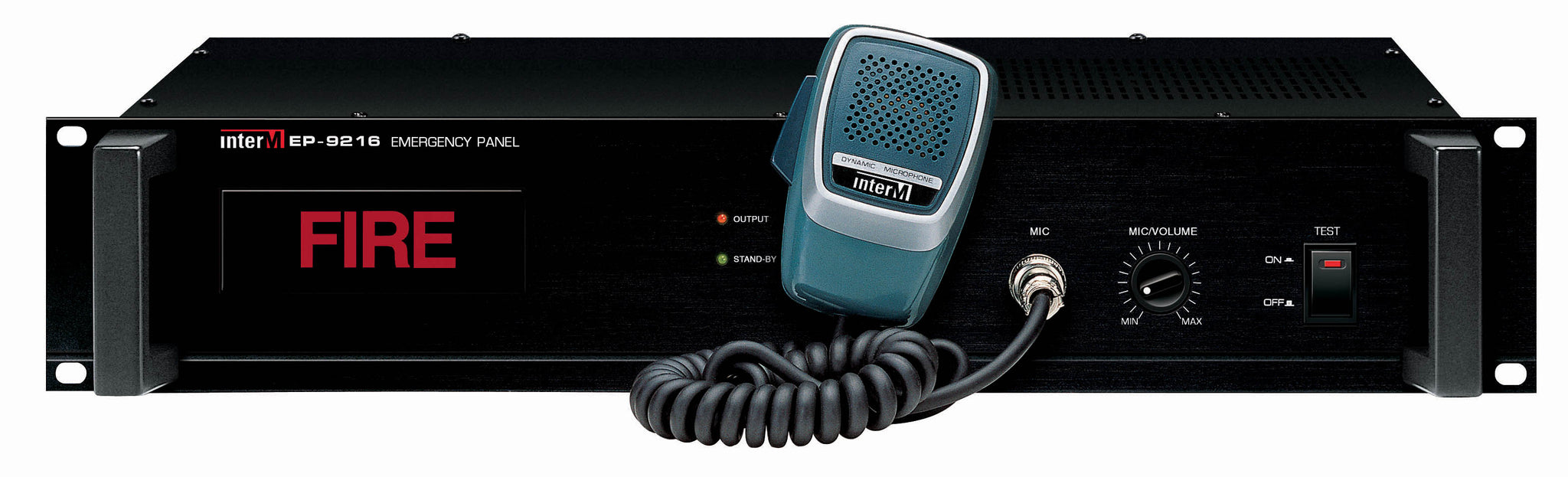

inter-M EP-9216 Emergency Panel

The alarm unit EP-9216 is not a standalone device and works only as part of the Inter-M 9000 series equipment.

FIRE ALARM
You can give the alarm by connecting with fire sensor.
AUTO OPERATING FUNCTION
You can give the alarm automatically on the next floor of
taking fire.
AUTO ANNOUNCEMENT
When fire, internal mode is operating at all times of siren
also external mode is operating that DC power is
supplied to DC out 24V terminal of rear panel and it is
possible to announce the broadcasting in manless
status after operating siren.
TEST FUNCTION
You can use the test function when you want to check
the system or want to training for keep out of the
emergency.
* This model should be used with concerning equipment
(emergency switcher-our model ES-9116, matrix-our
model PX-9116, relay group-our model RG-9116)

Features of EP-9216:

• Switching signal sources with different levels of priority.
• Control of the external warning device with a +24V control voltage.
• Built-in microphone for speech messages.
• Possibility to connect an external additional microphone.
• Built-in Siren signal generator.
• Built-in loudspeaker and light indicator FIRE.
• Installation in a hardware cabinet or rack 19".
• Work from a 24V DC DC.
