DVDO-AudioE-4

DVDO‑AudioE‑4

4K HDMI 2.0 Audio Extractor with Balanced Audio Output

SKU: DVDO‑AudioE‑4

Product Description

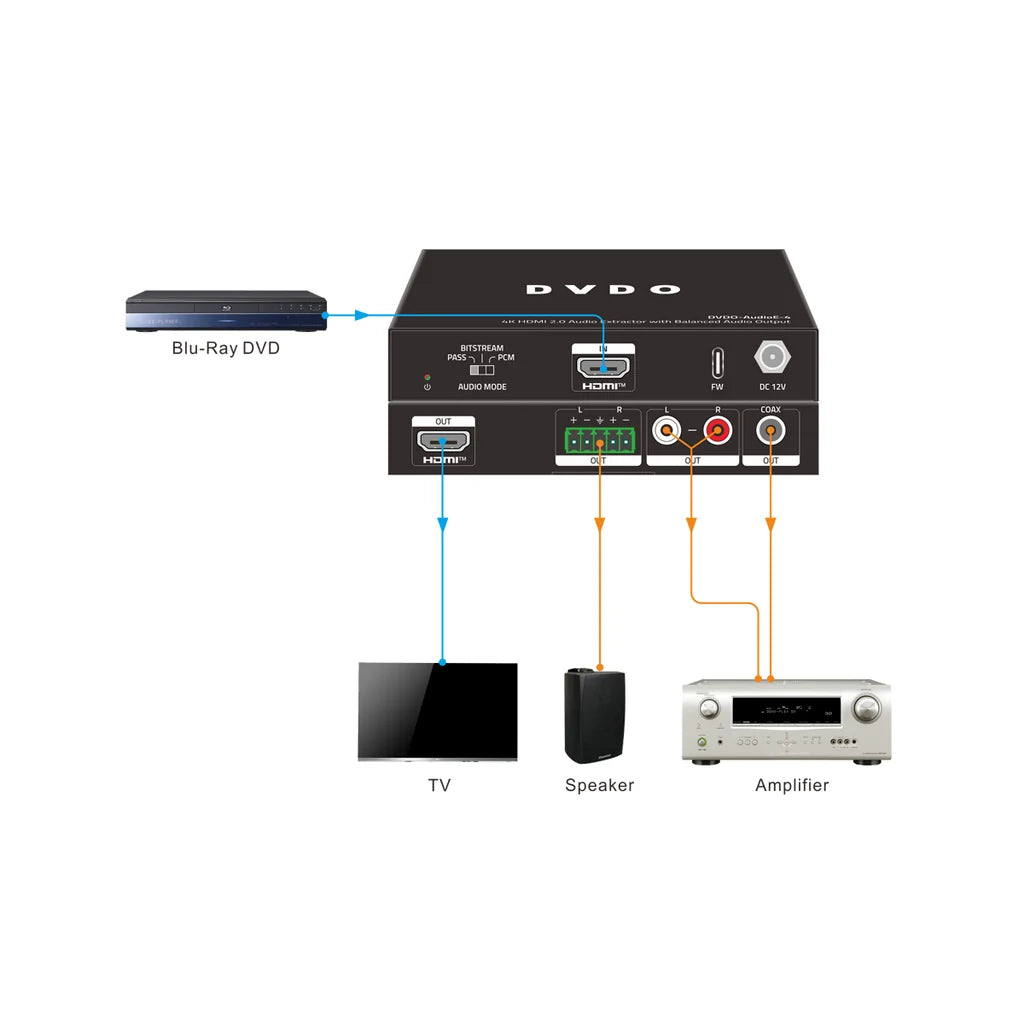

The DVDO‑AudioE‑4 is a high‑performance HDMI 2.0 audio extractor designed for professional and residential AV environments. It supports video resolutions up to 4K@60Hz 4:4:4 and is fully compliant with HDCP 2.2. The device extracts audio from any HDMI source and outputs it to balanced L/R audio, analog RCA L/R audio and coaxial digital audio, making it ideal for connecting displays, media players, streaming devices and gaming consoles to external audio systems.

With support for HDR10+, Dolby Vision, EDID management, HBR (High Bit Rate) audio and CEC pass‑through, the AudioE‑4 ensures full compatibility with modern HDMI ecosystems. Its compact design and robust feature set make it suitable for home theater, conference rooms, hospitality, education and commercial AV installations.

Key Features

• HDMI 2.0 and HDCP 2.2 compliant

• Balanced stereo L/R, analog RCA and coaxial digital audio outputs

• Three audio modes: PASS, BITSTREAM and PCM

• Supports 4K@60Hz 4:4:4, HDR10+, Dolby Vision, EDID and CEC pass‑through

• Up to 18 Gbps transmission rate

• Coaxial digital audio supports LPCM 2CH, Dolby Digital 2/5.1CH and DTS 2/5.1CH

• HDMI High Bit Rate (HBR) audio pass‑through

• Compact and easy to install

Specifications

Video

The device includes one HDMI input and one HDMI output, both using 19‑pin Type‑A HDMI 2.0 connectors. It supports a maximum data rate of 18 Gbps and resolutions up to 4K@60Hz 4:4:4. HDR10+ and Dolby Vision are fully supported.

Audio

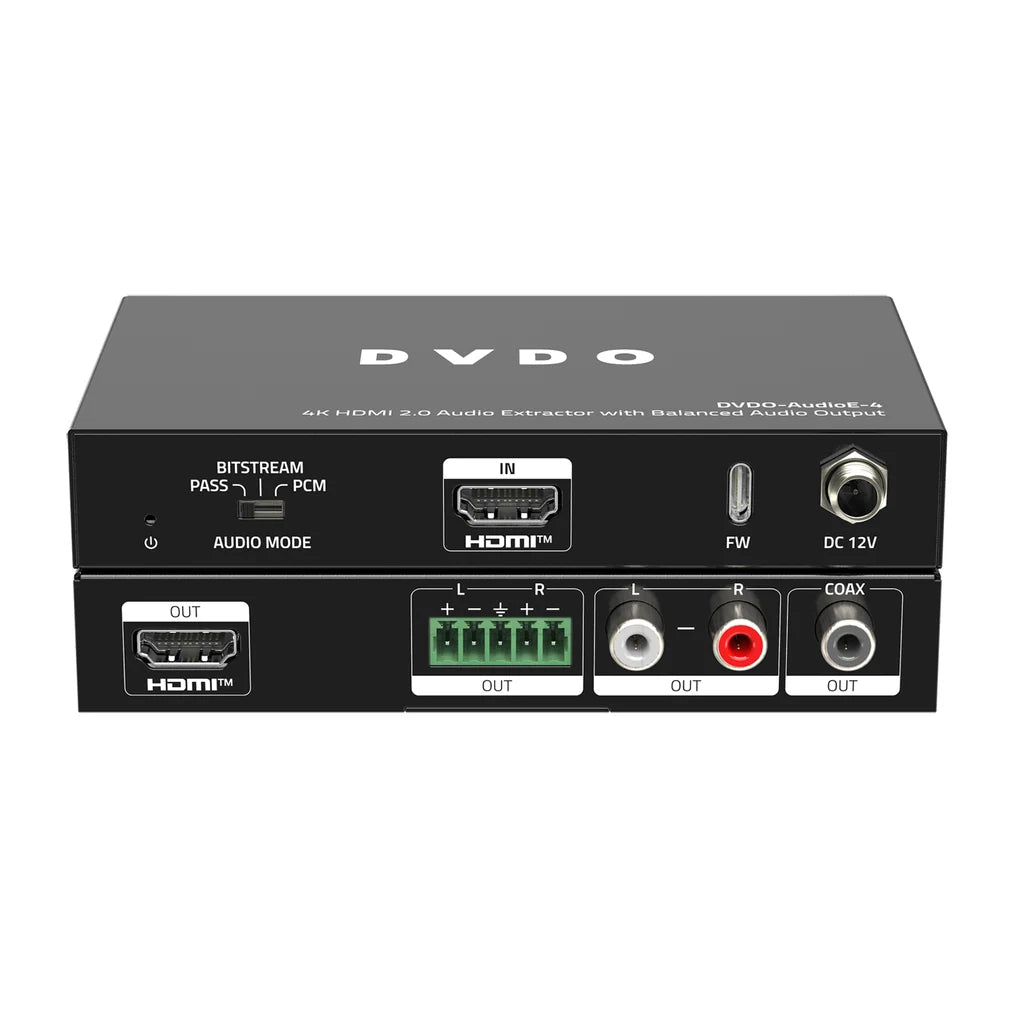

Audio outputs include balanced stereo L/R, analog RCA L/R and coaxial digital audio. Connectors consist of a 5‑pin Phoenix terminal, RCA jacks and a coaxial audio port. Stereo analog audio is output as PCM. Coaxial digital audio supports LPCM 2CH, Dolby Digital 2/5.1CH and DTS 2/5.1CH. Maximum coaxial sampling rate is 192 kHz, and maximum analog sampling rate is 48 kHz.

General

Maximum power consumption is 2.2 W. Powered by a DC 12V 1A supply. Operating temperature ranges from –5°C to +55°C, and storage temperature ranges from –25°C to +70°C. Humidity tolerance is 10%–90%. Dimensions: 126 × 21.5 × 77 mm. Net weight: 225 g.

Identifiers

• SKU: DVDO‑AudioE‑4

• HS Code: 8543.70.99
