DM-602A (B)

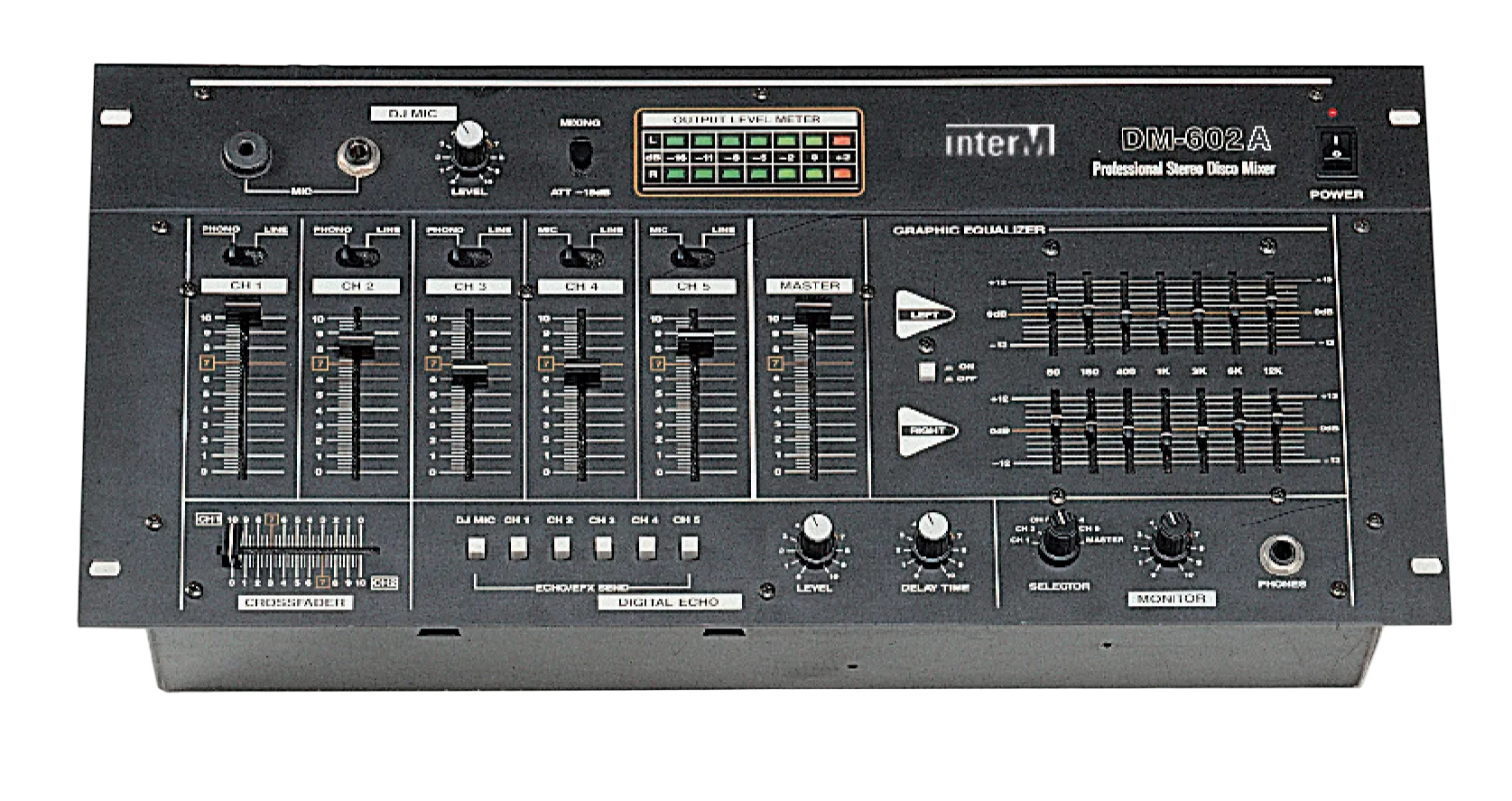

inter-M DM-602A (B) PROFESSIONAL STEREO DISCO MIXER

FEATURES

• 5 STEREO CHANNEL, DJ MIC INPUT AND
  STEREO OUTPUT
  Any sound source of microphones, turntable, electric
  organ and compact disk can be to this channel input.
  Stereo outputs of left and right are provided for
  convenient use.

• INPUTS AND OUTPUTS MONITORING
  Use can monitor the input and output signals by
  headphone and monitor output with selector switch very
  conveniently.

• CROSS FADER
  User can change the sound source by the cross fader.
  Hard left selects the output of channel 1, hard right
  selects the output of channel 2, at center both channels
  are live in equal position.

• EFFECT SEND AND RETURN, DIGITAL ECHO
  For the convenient use of effect equipment, effect send
  and return terminals are provided. To make natural and
  wide effect of echo sound, this disco mixer employs
  digital echo IC. You can adjust the time interval and
  echo level, and the select switchs are provided to make
  echo effect from each channel.

• 7 BAND GRAPHIC EQUALIZER
  This unit includes stereo 7 band graphic equalizer.

SPECIFICATIONS

ELECTRICAL
Rated Output/Impedance
Stereo Out ...............................................+4dB, UNBAL
EFX Send ................................................+4dB, UNBAL
Headphone Out ...........................................80mW/33Ω
Input Sensitivity/Impedance
Mic, DJ Mic ...................................-55dB/600Ω, UNBAL
Line ...............................................-18dB/47kΩ, UNBAL
Phono ...........................................-50dB/47kΩ, UNBAL
EFX Return ...................................-10dB/10kΩ, UNBAL
T.H.D(20Hz-20kHz) ............................................. 0.04%
Frequency Response
Mic, Line, EFX Send(+1/-3dB) ...................20Hz-20kHz
Phono(10kHz/100Hz)..............................-13.6/+13.1dB
Graphic Equalizer.................................................±12dB
......................................60, 150, 400, 1k, 3k, 6k, 12kHz
ATT(CH)................................................................-15dB
Buss Noise ............................................................-70dB
Crosstalk ...............................................................-60dB
GENERAL
Power Source..........................AC 110V-240V, 50/60Hz
Power Consumption ...............................................9.8W
Weight.......................................................................5kg
Dimensions ........................482(W) 98(H) 222(D)mm
