DAC-90
datavideo DAC-90 SDI Audio De-embedder
Introduction
DAC-90 is an audio de-embedding box that allows the user to de-embed 16 analog audio signals (4 at a time) from the SDI video signal. It features 3G/HD/SD-SDI to support up to 1080p/60 video format and automatically detects and switches between different formats. In addition, 4 mini XLR audio connectors are provided to output analog audio to audio devices such as monitors, recorders, switchers, and audio mixers. SMPTE and EBU settings are available on the audio box and assignments of the de-embedded audio signal are set using the built-in DIP switches.
Features
• Audio de-embedding from SDI signal
• Automatic detection of 3G, HD, and SD signals
• 4 analog MINI XLR audio outputs
• Assignable de-embedded audio signals

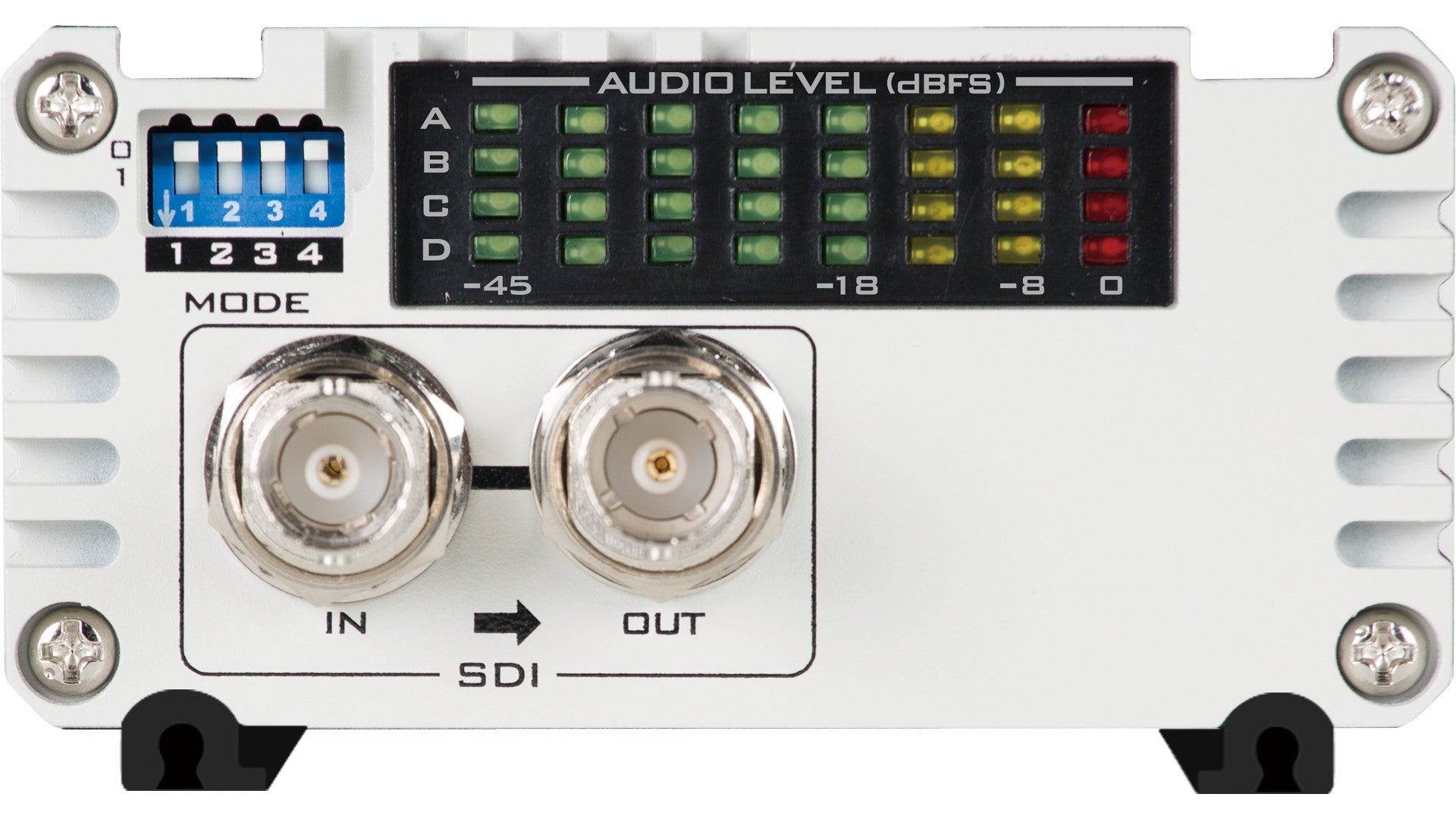

• Audio level indicator display
• Switchable SMPTE and EBU audio levels
• Control via DIP Switches

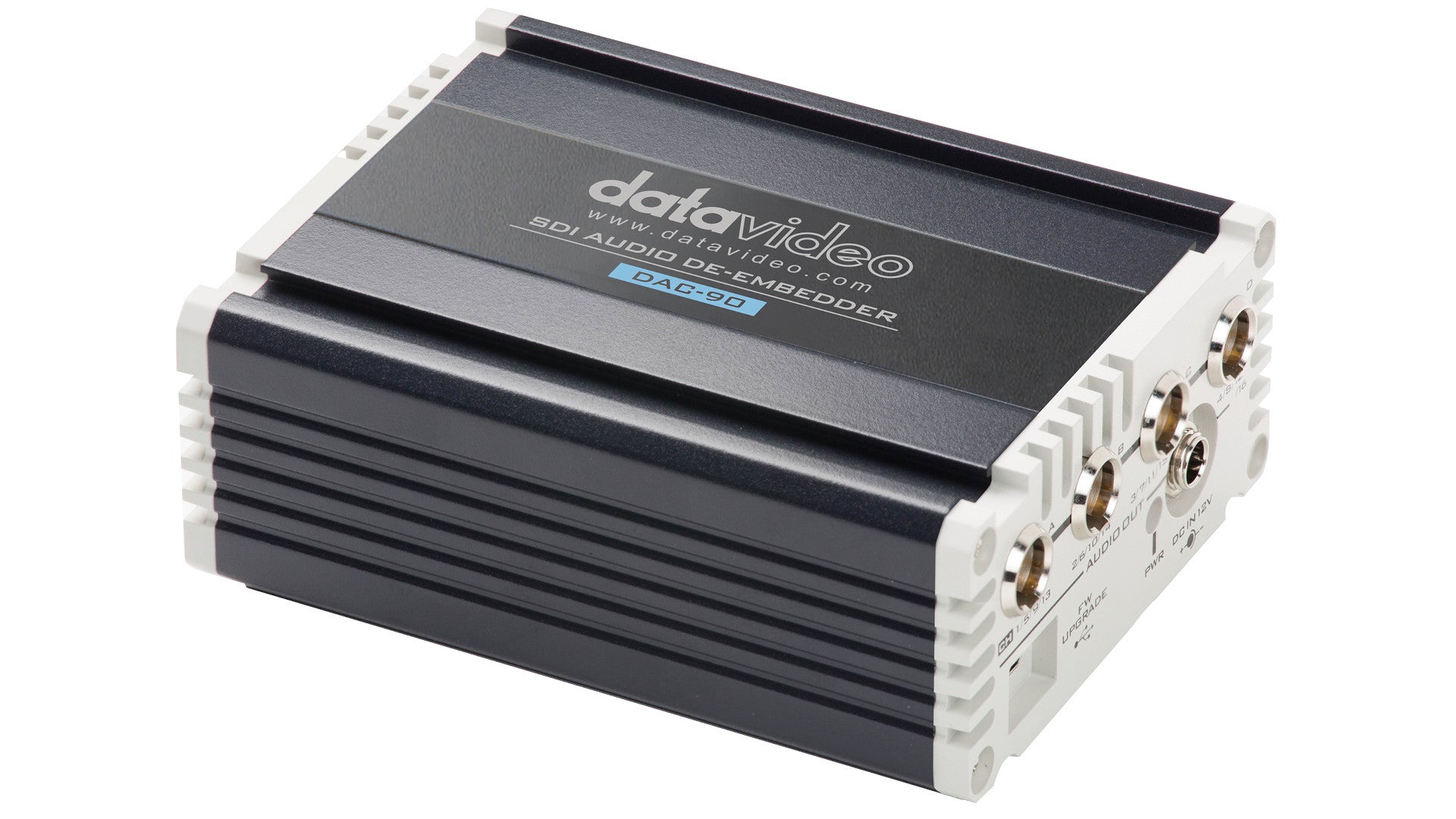

Aluminum Alloy and Heavy Duty Design
Super sturdy and durable. DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.
Configuration
Conversion
Audio De-embedder
Video Inputs
3G/HD/SD-SDI x 1
Loop Through
----
Video Outputs
3G/HD/SD-SDI x 1 (Re-clocked Loop through)
Audio Inputs
----
Audio Input Impedance
RCA 20KΩ, XLR 42KΩ
Audio Outputs
Mini XLR (Balanced) x 4
Audio Output Impedance
50Ω
Audio Format Selection
SMPTE, EBU
Audio Gain
----
Supported Video Input Formats
----
Output Resolutions
----
Equalizer
----
Reclock
----
SDI Cable Drive
----
Updates and Configuration
Mini USB x 1
Dimension (LxWxH)
112 x 85 x 45 mm
Weight
0.4 kg
Operating Temp. Range
0~40 °C
Power
DC 12V, 0.5A
What's in the Box
1 x DAC-90 product
1 x AD Switch DC 12V
2 x Mini XLR to male XLR cable
