Bridge UHD M_OTR TX/RX PAIR

DIGITAL FORECAST Bridge UHD M_OTR TX/RX SET (PAIR)

SDI to Optical Transmitter and Receiver set (transmission in one direction)

Ultra Compact 12G SDI Optic Extender

Uncompressed UHD Conversion and Transmission works in one direction

Descriptions

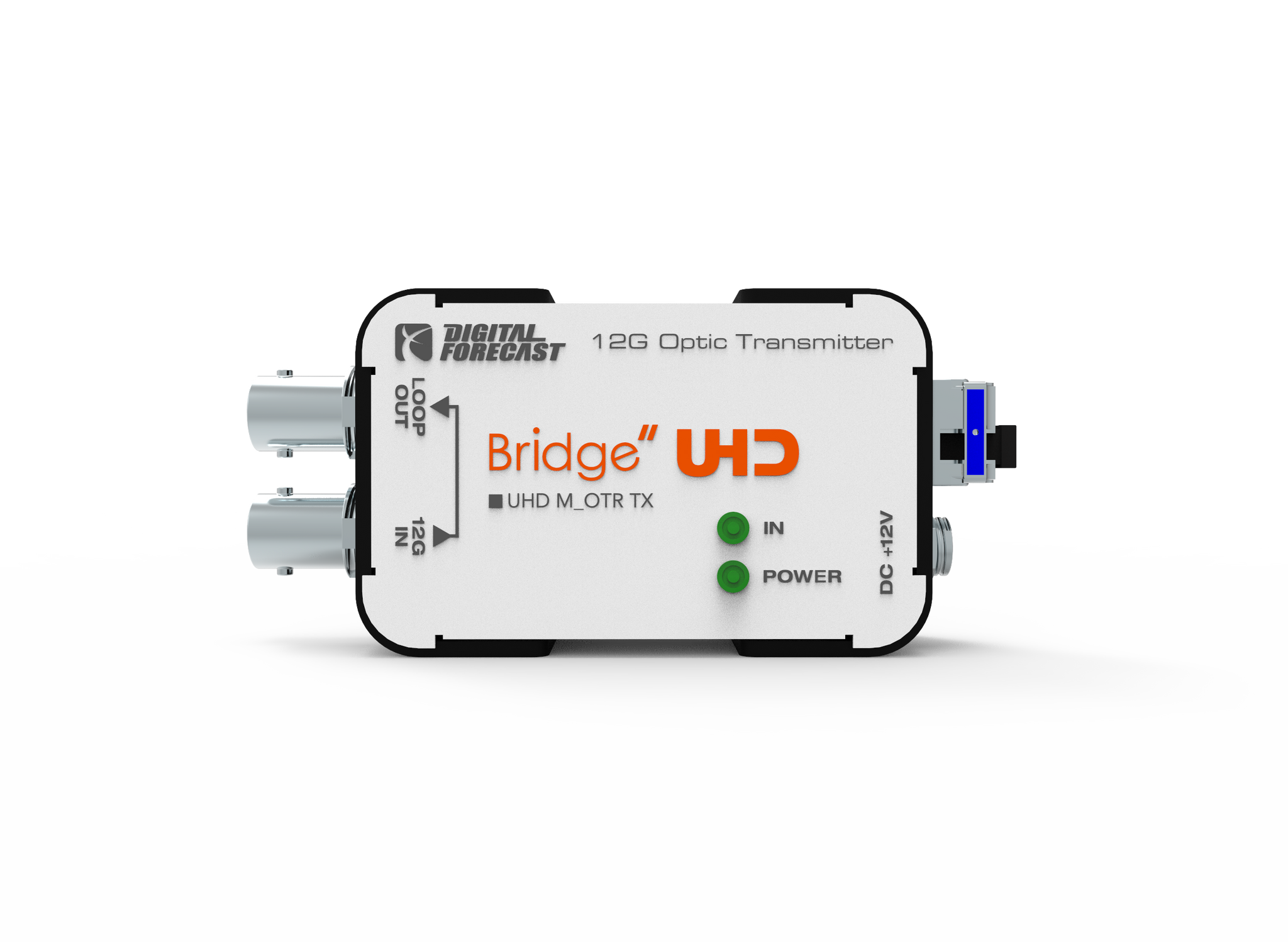

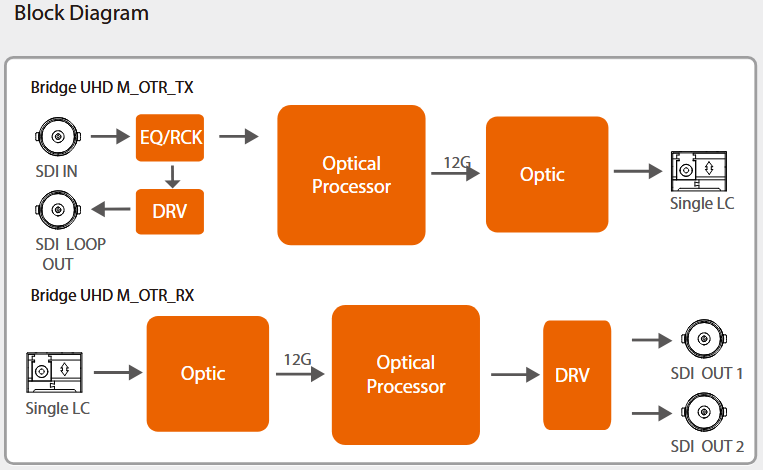

Bridge UHD M_OTR TX/RX is an optical conversion transmitter that can transmit one SDI
signal up to 10km via a single core. It can transmit up to 12G of SDI signal, and it is
compact in size and can be installed in a rack mount, making it easy to install and
maintain.

Feature

12G SFP-s with LC connector included

AC 100-240V to DC 12V Power adapter (with 5.5/2.1mm thread lockable connector) included.

• Standard SDI (SD, HD, 3G, 6G, 12G )
format supported
• UHD M_OTR TX: 1x SDI input, 1 x SDI Loop output
• UHD M_OTR RX: 2 x SDI output
• LC single mode max 10km, LC multi mode max 100m in OM3
• SDI standard support MSA type SFP

Optical Specifications:

Type : Small Form-Factor Pluggable (SFP)
Power : 3.3 V
Datarate : max 12G Single
Wavelength : 1310 nm

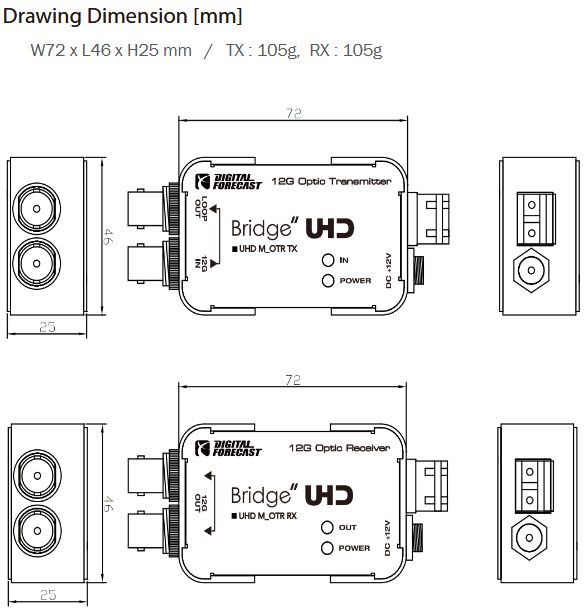

Dimensions and weight: W72 x L46 x H25 mm / TX : 105g, RX : 105g

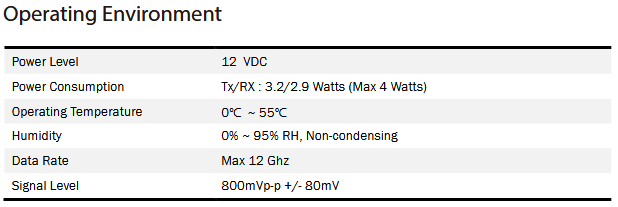

Operating Temperature 0℃ ~ 55℃
Humidity 0% ~ 95% RH, Non-condensing

Digital Video:

• SMPTE-296M : 720p (60/59.94/50)
• SMPTE-274M, SMPTE-292M : 1080i (60/59.94/50)
• SMPTE-424M : 1080p (60/59.94/50) 3G
• SMPTE-ST2081 : 2160p (30/29.97/25) 6G
• SMPTE-ST2082 : 2160p (60/59.94/50) 12G
