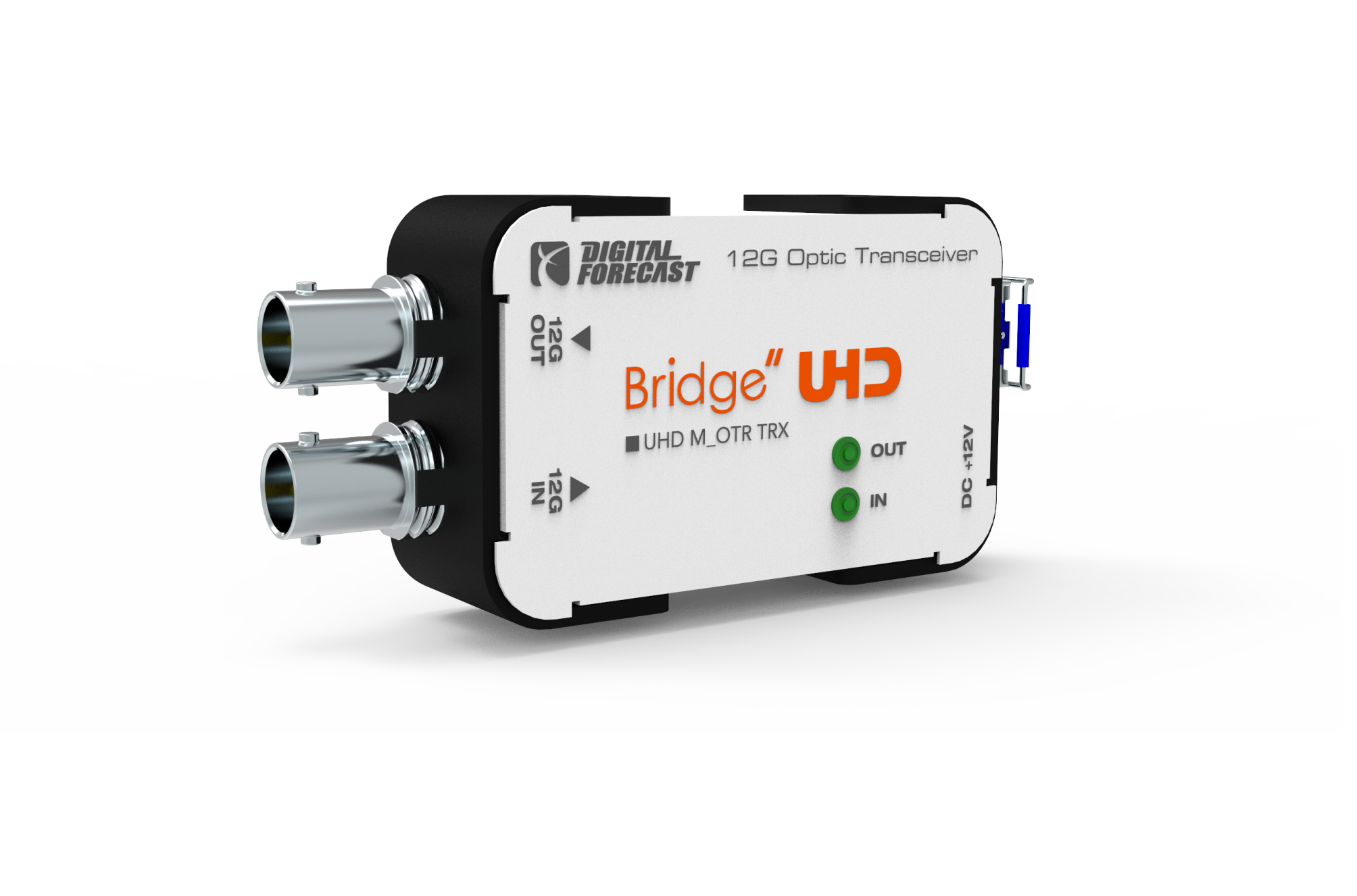

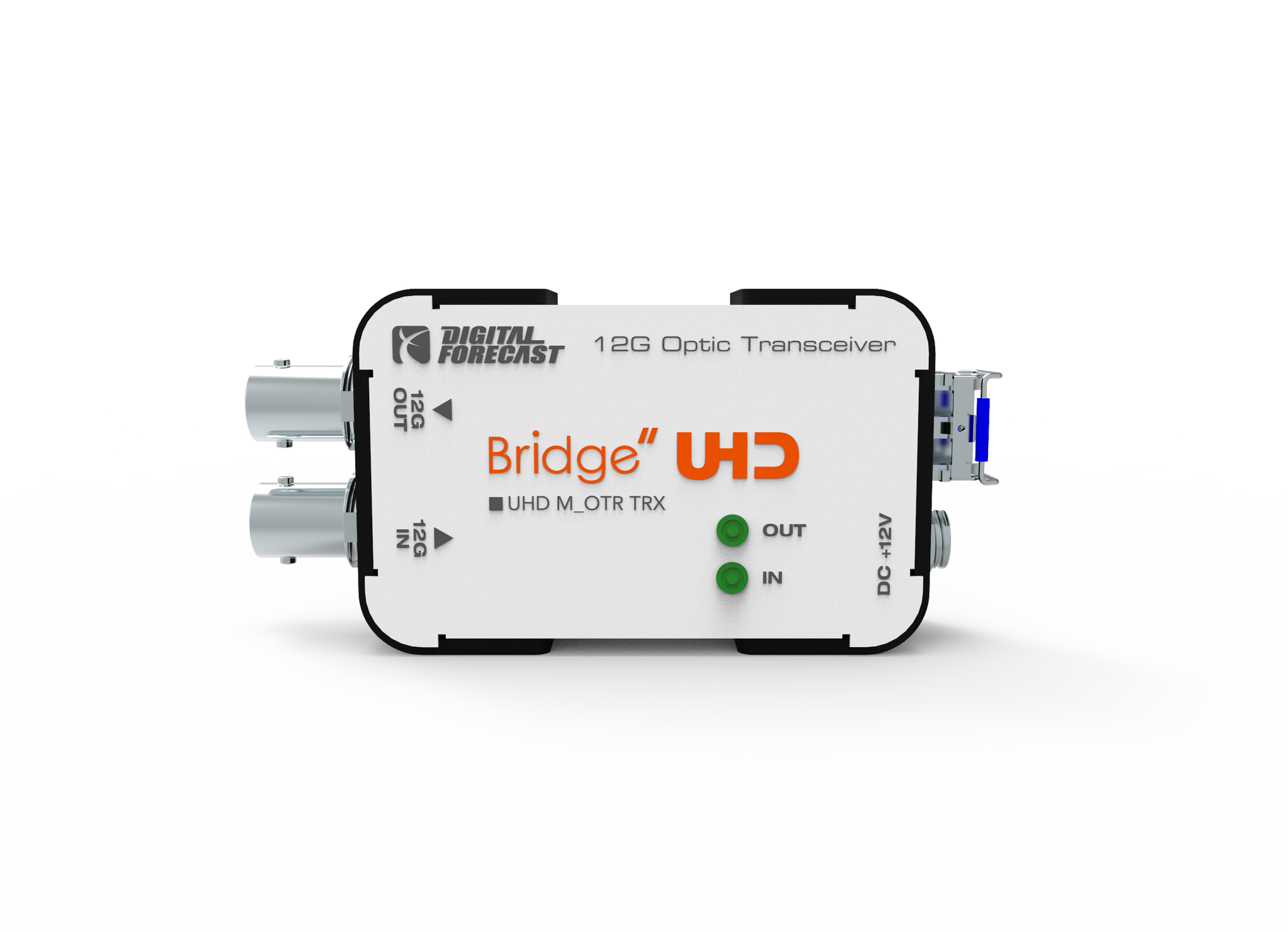

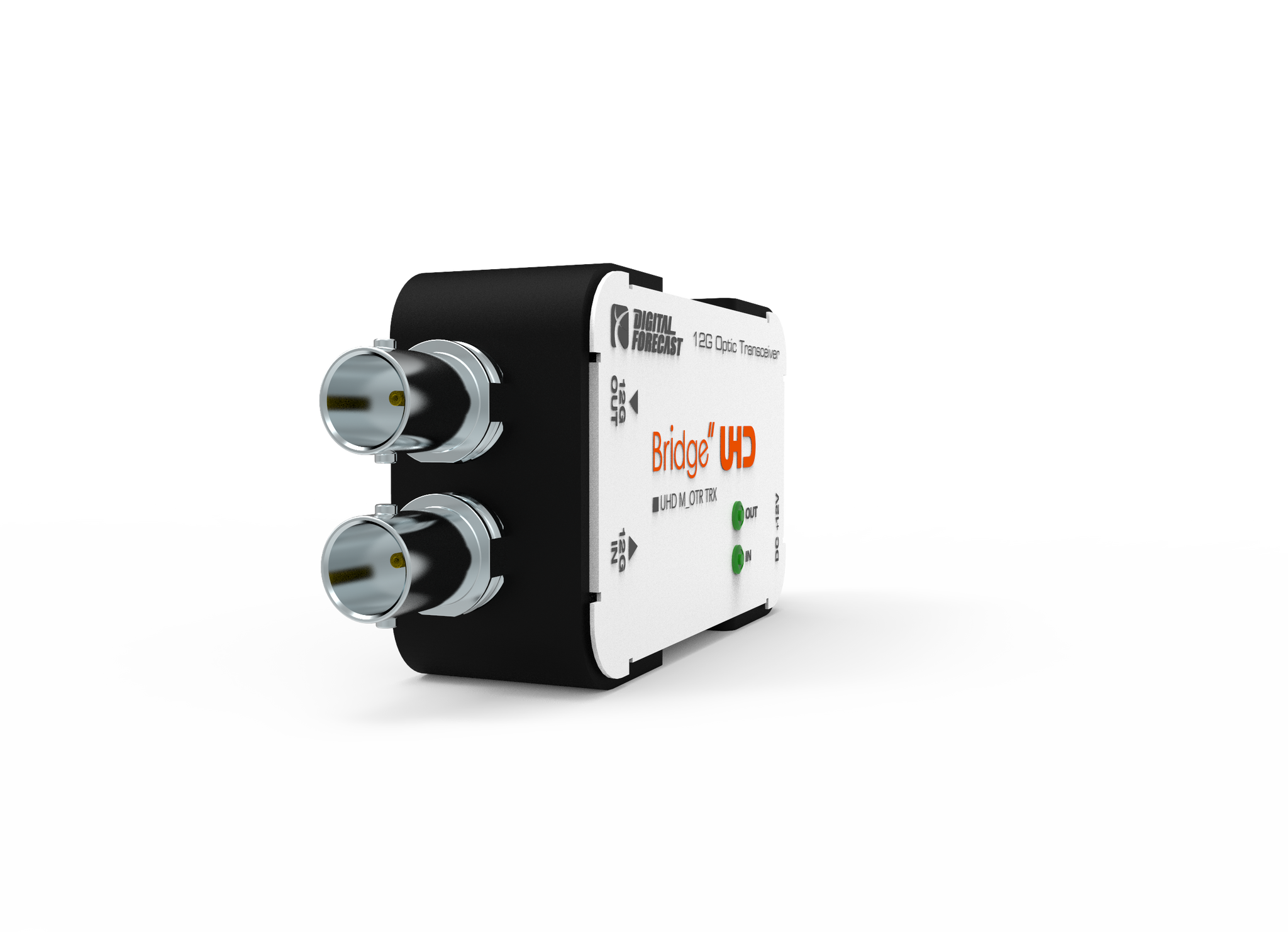

Bridge UHD M_OTR TRX PAIR

DIGITAL FORECAST Bridge UHD M_OTR TRX 12G-SDI Optical Transceiver UHD Optical Extender SET (PAIR)

Uncompressed UHD Conversion and bidirectional Transmission Set

Signal transmission/reception works simultaneously in both directions.

Ordering Number

• UHD M_OTR TRX PAIR : 2EA 12G SDI TRX with SFP

Descriptions

Bridge UHD M_OTR TRX converts 12G SDI to Optical signal for a long range transmission
as up to 2 channel bi-directional transmission through Dual Core fiber.

Feature

12G SFP-s with LC connector included

• Standard SDI (SD, HD, 3G, 6G, 12G) supported
• Bi-directional transmission (TX + RX)
• Universal type SFP supported
• LC Single mode fiber, max 10Km

AC 100-240V to DC 12V Power adapter (with 5.5/2.1mm thread lockable connector) included.

Optical Spec.

Type : Small Form-Factor Pluggable (SFP)
Power : 3.3 V
Datarate : max 12G Single
Wavelength : 1310 nm, 1490 nm

Digital Video Specs.

• SMPTE-296M : 720p (60/59.94/50)
• SMPTE-274M, SMPTE-292M : 1080i (60/59.94/50)
• SMPTE-424M : 1080p (60/59.94/50) 3G
• SMPTE-ST2081 : 2160p (30/29.97/25) 6G
• SMPTE-ST2082 : 2160p (60/59.94/50) 12G
