ATT-30

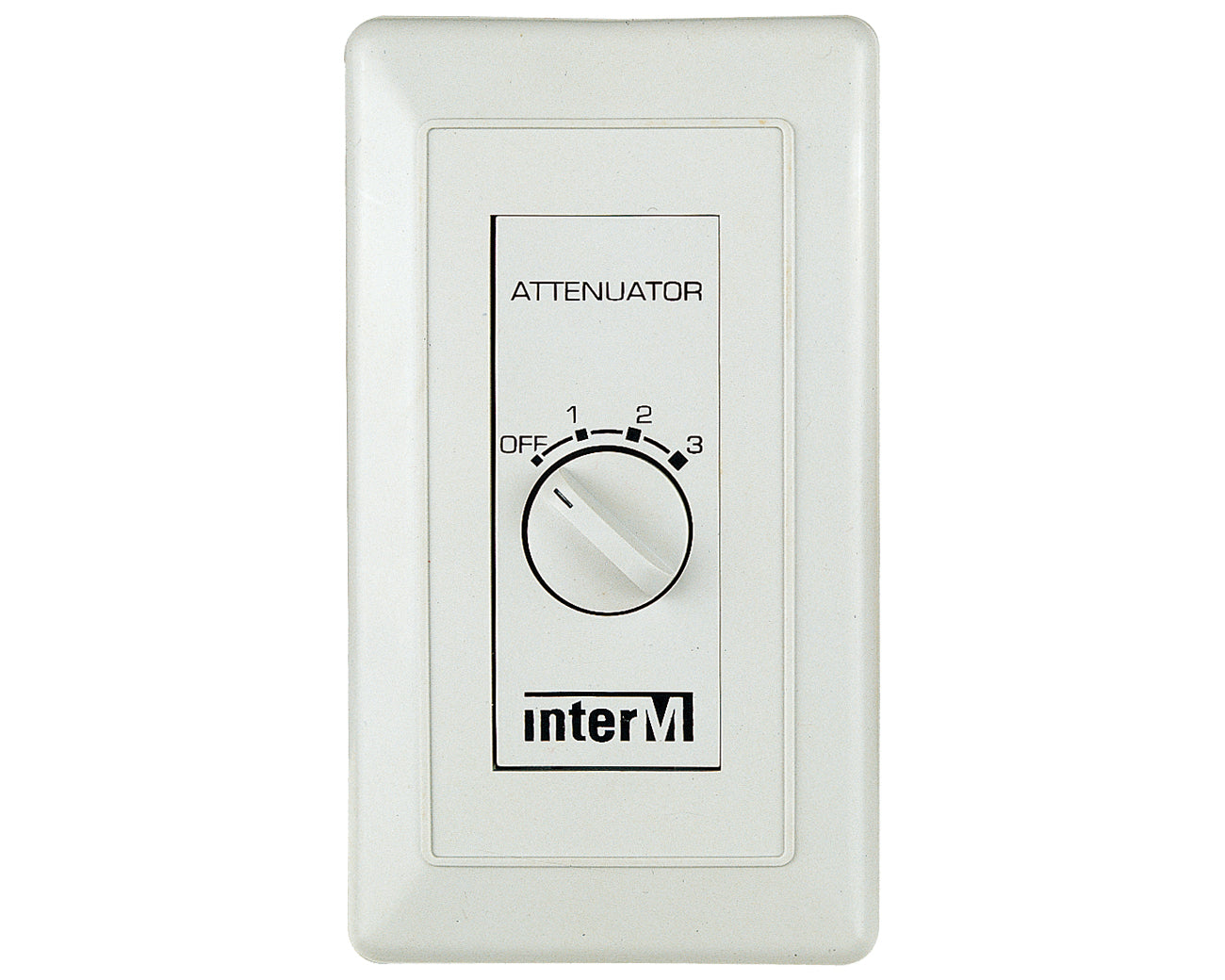

inter-M ATT-30 30W 4-step Volume Control Attenuator
Product Features
- Four-step level control
- Switch-plate-mounted attenuator unit
- Attractive, modern design
- Simple installation
- Screwless terminal block for easy installing
- Steel box for ATT-03 / 30 (Attenuator Box)
Product specification
| ATT-03 | ATT-30 | |
|---|---|---|
| Rated Power | 3W | 30W |
| Application | 2~3W | 7~30W |
| Input Impedance
(Reference Voltage 100V) |
5kΩ~3.3kΩ | 1.4kΩ~330Ω |
| Volume Control | 4 STEP SW (-∞, -10, -4, 0dB) | 4 STEP SW (-∞, -12, -6, 0dB) |
| Method | Resistor | Transformer |
| Material | Plate | SECC 1.0T |
| Front Cover | ABS | |
| Weight | 112g | 196g |
| Dimensions (W × H × D) | 68 × 120 × 38mm | |
