Aries

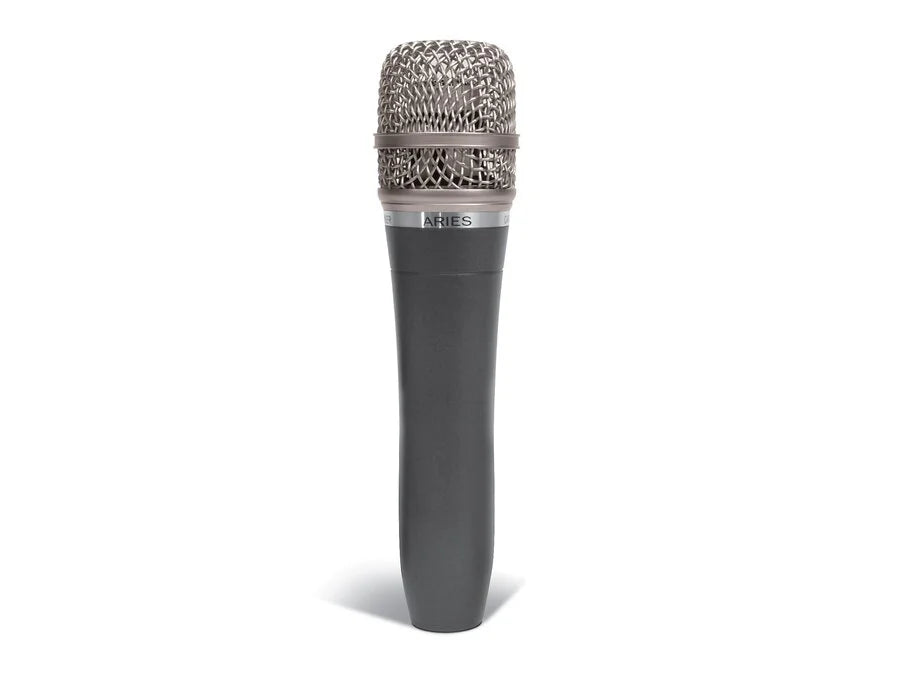

The M-Audio Aries is a professional, handheld cardioid condenser vocal microphone designed for both live stage performances and studio recording applications. It features a 3/4" evaporated gold diaphragm for clear, detailed sound reproduction, internal shock-mounting to minimize handling noise, and a durable metal body. This microphone requires 48V phantom power to operate. The product has since been discontinued.

Key Features

• Studio-Quality Condenser Design: Unlike typical dynamic stage microphones, the Aries uses a condenser element for enhanced responsiveness and sound clarity.

• Gold Diaphragm: Features a 3/4-inch diameter, 6-micron evaporated gold diaphragm within a solid brass capsule, contributing to warm and clear sound reproduction.

• Internal Shock Mounting: M-Audio's proprietary internal shock mounting technology is designed to minimize handling noise, making it suitable for handheld stage use.

• Cardioid Polar Pattern: The cardioid pattern is intended to reject off-axis sound, reducing background noise and minimizing feedback in a live environment.

• Integral Pop Filter: A built-in pop filter helps to minimize plosives and breath noises, further refining the audio output.

• High SPL Handling: The microphone is capable of handling high Sound Pressure Levels (SPLs) up to 134dB, making it suitable for loud concert situations.

• Durable Build: It features a sturdy metal body that is designed to withstand the rigors of road use.

• Class A FET Electronics: Employs Class A FET (Field-Effect Transistor) electronics in a transformerless design for a low noise floor and high output gain.

• Phantom Power Requirement: As a condenser microphone, it requires 48V phantom power to operate.

• Wide Frequency Response: Offers a wide frequency response of 20Hz to 20kHz, allowing it to capture a broad range of sound details.

Technical Specifications

Specification	Detail
Microphone Type	Condenser
Polar Pattern	Cardioid
Diaphragm	3/4" (19mm) diameter, 6-micron evaporated gold
Frequency Response	20Hz - 20kHz
Sensitivity	13.8mV/Pa (-37dBV re 1V/Pa)
Max SPL (for 0.5% THD)	134dB SPL
Equivalent Noise Level	17dB A-weighted
Output Impedance	200 ohms
Recommended Load Imp.	> 1,000 ohms
Preamp Topology	Class A FET, transformerless
Power Requirement	48V Phantom Power
Output Connector	3-pin male XLR
Dimensions	168mm (Length) x 40mm (Diameter)
Weight	260g (9.2 oz)
Pad/Filter	No
