2061

DPA

€345,00
Unit price per

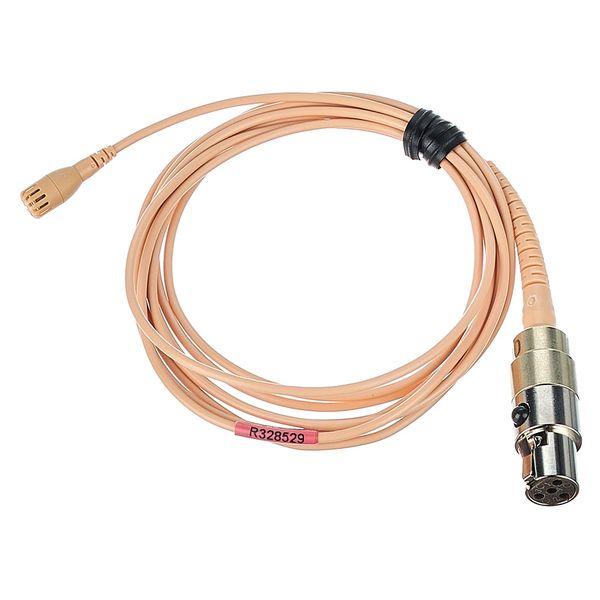

DPA 2061 Omnidirectional Miniature Microphone

Features

Best-in-class speech intelligibility
Robust mechanical construction
Advanced sweat-repelling capabilities
Water-resistant IP57 certification
Available in multiple colors and fixed connectors
Fast, secure mounting with included clip (black and white variants)

Freedom and flexibility of placement

The 2061 exhibits an accurate omnidirectional pattern and therefore does not need to be aimed directly at the sound source to achieve quality pickup. This grants sound designers the freedom to capture ideal sound regardless of microphone positioning on a subject.

Designed as a versatile microphone for capturing the human voice, the 2061 stays neutral to placement, allowing engineers to shape its response through EQ. No matter if you mount the mic on a performer’s chest, forehead or cheek, you will capture natural voice and be able to easily EQ to your desired sound.

The 2061 Miniature Omnidirectional Microphone picks up natural and lifelike sound. It is designed to accurately capture the human voice, with a high level of fidelity and intelligibility and minimal coloration. In addition to amazing speech intelligibility, the 2061 has a durable mechanical construction with good sweat-repellent and water-resistant capabilities.

2061-OL-C-F03
2061 Omni Mic, Loud SPL, Beige, 3-pin LEMO

2061-OL-C-F10
2061 Omni Mic, Loud SPL, Beige, TA4F Mini-XLR

2061-OL-C-F34
2061 Omni Mic, Loud SPL, Beige, Mini-Jack

Specifications:

Directional Pattern: Omnidirectional
Principle of Operation: Pressure
Cartridge Type: Pre-polarized condenser
Frequency Response: 20Hz - 20kHz
Effective Frequency Range (±3dB): 50Hz - 16kHz, 3dB soft boost at 8 - 16kHz
Sensitivity, Nominal, ±3dB at 1kHz: 6mV/Pa; -44dB re. 1V/Pa
Equivalent Noise Level, A-weighted: Typ. 26dB(A) re. 20μPa (max.28dB(A))
Distortion, THD < 1%: 125dB SPL RMS, 128dB SPL peak
Dynamic Range: Typ. 102dB
Max. SPL, THD 10%: 137dB SPL peak
Rated Output Impedance: 112Ω at 1kHz
Minimum Load Impedance: 5kΩ
Power Supply for Full Performance: Min. 5V - Max. 10V (for wireless systems)
Current Consumption: Typ. 0.6mA
Connector: TA4F Mini-XLR, 3-pin LEMO or Mini-Jack
Color: Beige
Weight: 0.35oz (10g)
Microphone Diameter: 0.22" (5.5mm)
Microphone Length: 0.38" (9.7mm)
Cable Length: 4.9' (1.5m)
Cable Color: Beige
Cable Diameter: 0.06" (1.6mm)
Maximum Output Voltage (RMS): 1.6V
Polarity: Positively increasing sound pressure produces positive going voltage
Operating Temperature: -40°F - 113°F (-40°C - 45°C)
Relative Humidity: Up to 90%
