TG I53

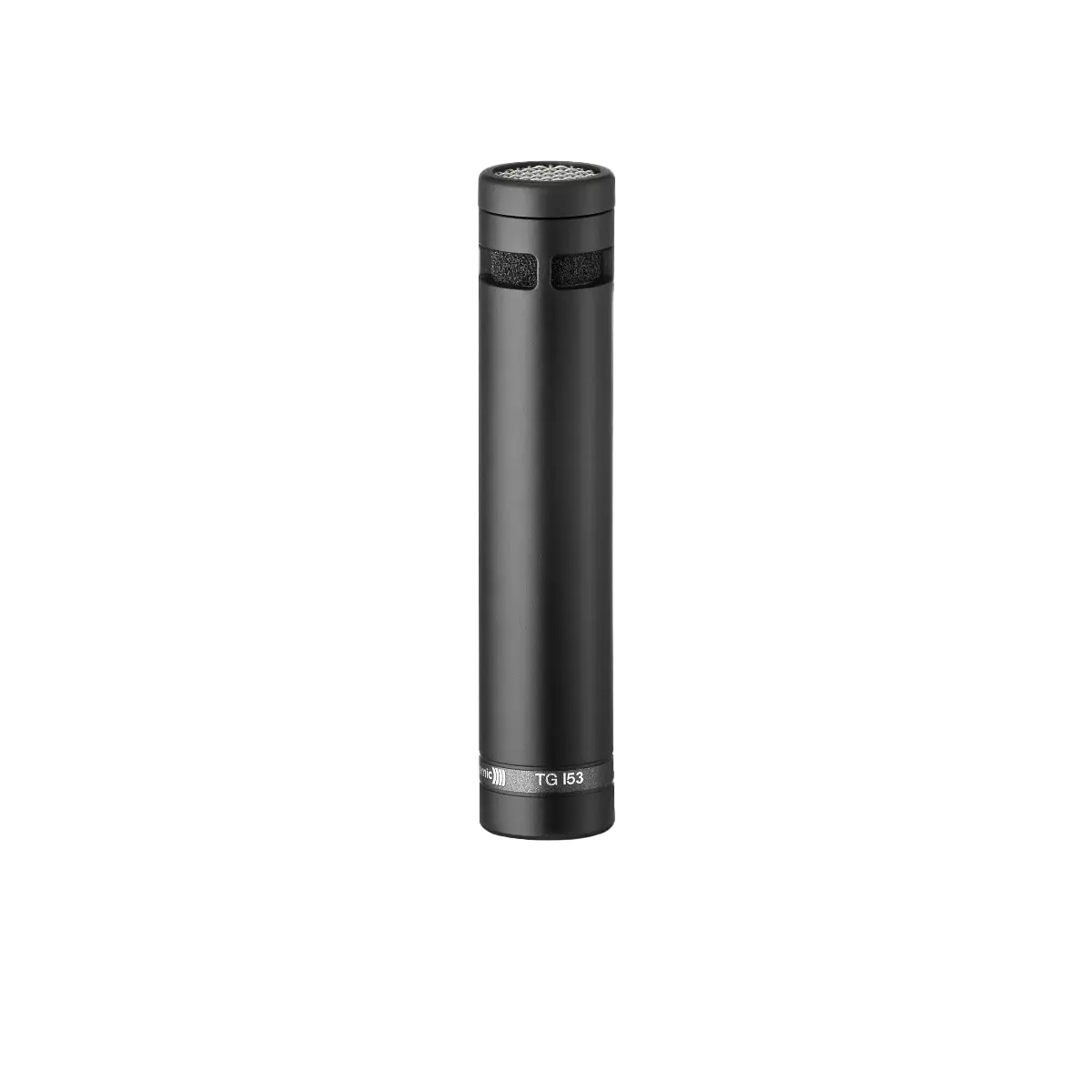

Beyerdynamic TG I53 – Electret Condenser Instrument Microphone (Cardioid)

Product description

The Beyerdynamic TG I53 is a compact electret condenser instrument microphone designed for a wide range of studio and live applications. With its cardioid polar pattern, high SPL capability and carbon‑fibre‑reinforced housing, the TG I53 delivers detailed, natural sound with excellent transient response and durability. “The TG I53 is suitable for miking up a variety of instruments… particularly suited as an overhead microphone for drums and percussion, for the hi-hat, woodwind and brass instruments, guitars and other stringed instruments.”

Its slim form factor and rugged construction make it ideal for close or distant placement, while the wide frequency response ensures accurate capture of complex sound sources.

Applications

• Overheads for drums and percussion

• Hi‑hat

• Woodwind and brass instruments

• Acoustic guitar and other stringed instruments

• Choir and ensemble pickup

• Suitable for close and distant miking thanks to high sensitivity and wide frequency response (as noted: “Because of its high sensitivity, it is also suitable for larger microphone placement distances.”)

Connection

The TG I53 uses a standard 3‑pin XLR male connector and operates on 12–52 V phantom power (recommended: 48 V).

Technical Specifications

• Transducer type: Condenser (back electret)

• Operating principle: Pressure gradient

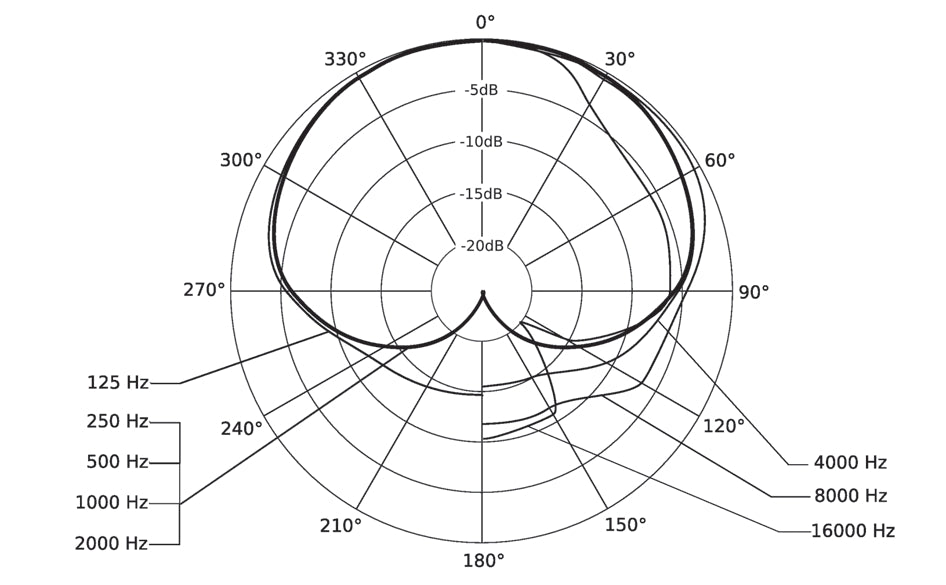

• Polar pattern: Cardioid

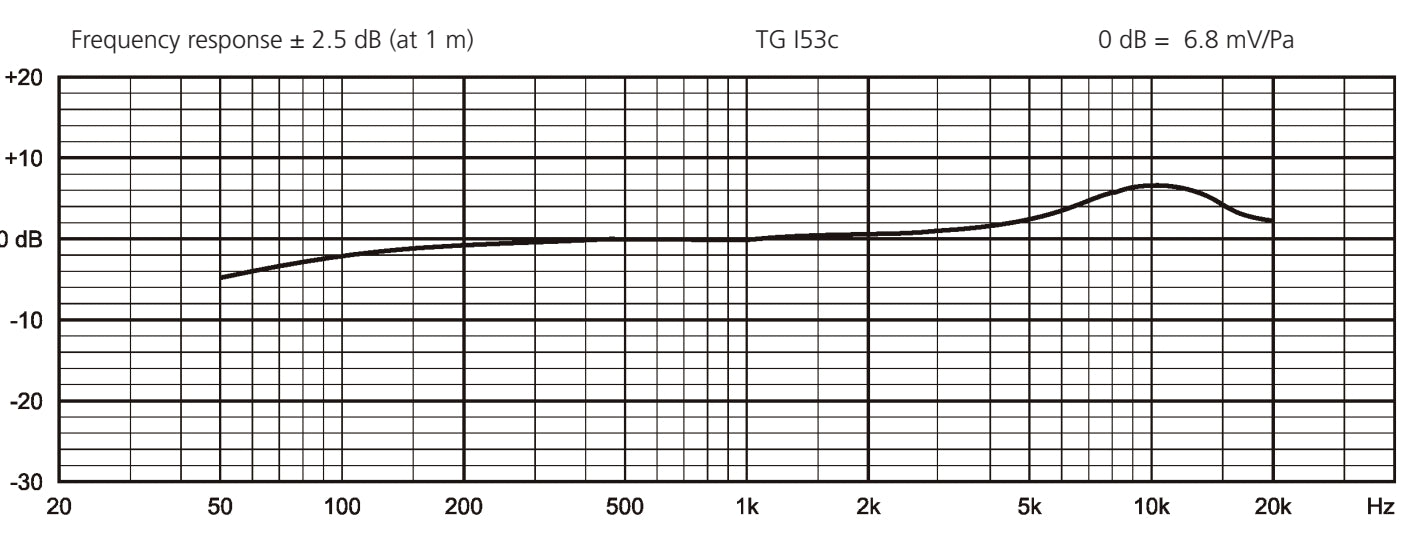

• Frequency response:

  • Close miking: 20–20,000 Hz

  • Distant miking (1 m): 35–20,000 Hz

• Open circuit voltage: 6.8 mV/Pa (‑43.4 dBV) ±2.5 dB

• Nominal impedance: 200 Ω

• Load impedance: ≥ 1 kΩ

• Max SPL (24 V / 48 V phantom): 140 dB

• S/N ratio:

  • 61 dB [CCIR; Q‑Peak]

  • 71 dB [A; RMS]

• Equivalent SPL:

  • 23 dB [A; RMS]

  • 33 dB [CCIR; Q‑Peak]

• Power supply: P12 / P24 / P48 (recommended 48 V)

• Current consumption: 4.7 mA

• Connection: XLR 3‑pin male

• Dimensions: 100 × 19.5 mm

• Weight: 36 g (without clamp)

Included & Optional Accessories

Included:

• MA‑CL 21 microphone clamp (3/8" & 5/8")

Optional:

• MAV 800 – Hanging mount (Order #448.133)

• WS 53 – Black windscreen (Order #436.607)

Compliance

The TG I53 is part of the Touring Gear (TG) series covered under EU Declaration of Conformity No. 2023‑04‑129, confirming compliance with EMC and RoHS directives.
