System 14128/230
Harman Kardon System AVR 141 + DVD 28 – 5.1 Home Theater Receiver & Universal DVD Player Combo
The Harman Kardon AVR 141 + DVD 28 system is a factory‑matched home‑theater electronics bundle designed to deliver high‑quality 5.1 surround sound and versatile disc playback. The AVR 141 provides clean, dynamic amplification and full Dolby Digital/DTS decoding, while the DVD 28 offers wide‑format compatibility including DVD‑Video, DVD‑Audio (MLP), DivX, WMA, MP3 and JPEG.
Together, they form a reliable, elegant and high‑performance AV foundation suitable for modern home‑theater setups.
Key Features
- Factory‑matched Harman Kardon system: AVR 141 receiver + DVD 28 universal DVD player
- 5.1 surround receiver with Dolby Digital & DTS decoding
- Universal DVD player with DVD‑Audio MLP, DivX, MP3, WMA, JPEG
- HDMI output (DVD 28) up to 1080i
- Component, S‑Video and Composite video outputs
- High‑quality 40 W × 5 amplification (AVR 141)
- Elegant Harman Kardon industrial design
- System remote compatible with both units

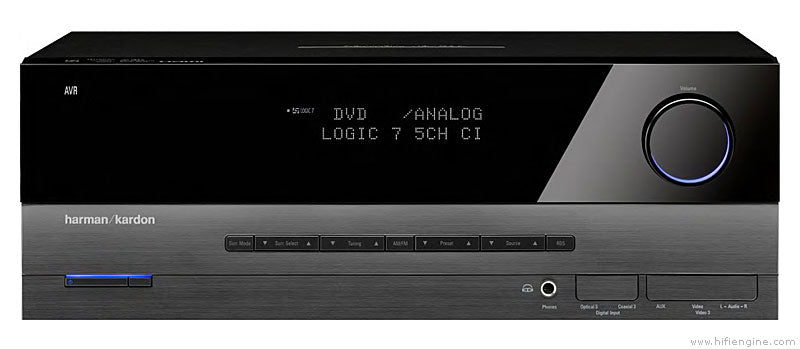

AVR 141 – Audio/Video Receiver Specifications
Amplifier Section
- Power output (stereo): 40 W × 2 into 8 Ω
- Surround output: 35 W × 5
- Frequency response: 10 Hz – 100 kHz
- THD: 0.07%
- Input sensitivity: 200 mV
- Signal‑to‑noise ratio: 95 dB
Tuner
- FM/MW tuner
- Preset memory
- High‑sensitivity digital tuner section
Connectivity
- Analog audio inputs
- Digital audio inputs (optical/coaxial)
- 6‑channel direct input
- Composite & S‑Video switching
- Subwoofer pre‑out
- Headphone output
General
- Dimensions: 440 × 165 × 382 mm
- Weight: 9.6 kg

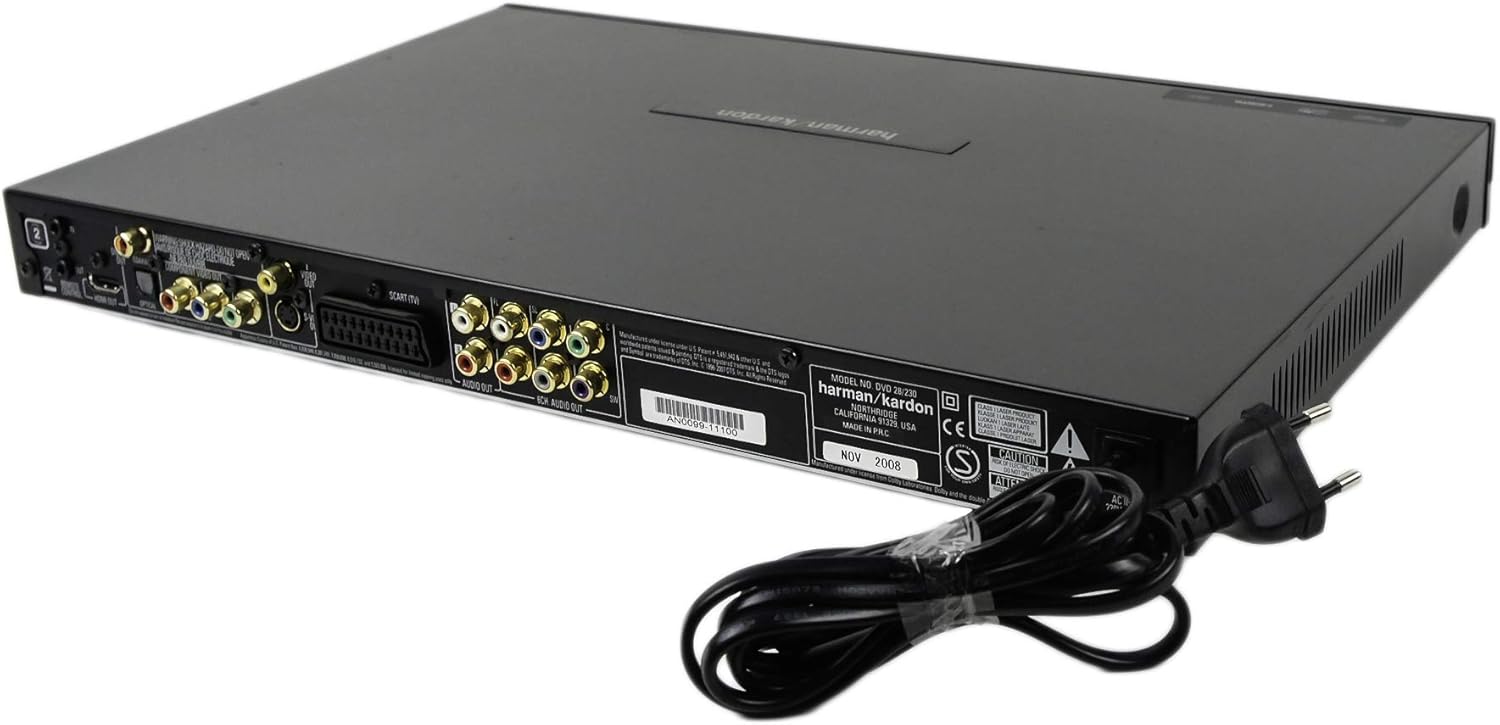

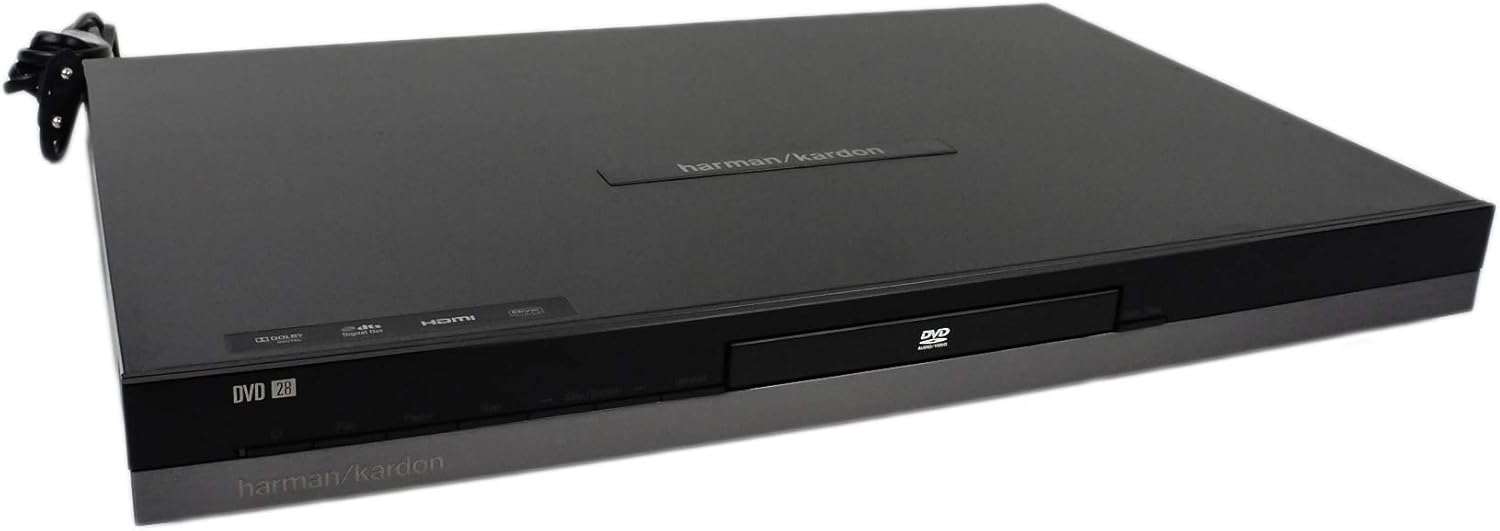

DVD 28 – Universal DVD Player Specifications
Supported Disc Formats
- DVD‑Video
- DVD‑Audio (MLP)
- DVD±R/±RW
- DivX
- VCD
- CD, CD‑R, CD‑RW
- MP3, WMA, JPEG
Video Output
- HDMI 1.0 (HDCP 1.1): 576p / 720p / 1080i
- Component video:
- Y: 1 Vp‑p / 75 Ω
- Pb/Cr: 0.7 Vp‑p / 75 Ω
- S‑Video: Y 1 Vp‑p / 75 Ω, C 0.286 Vp‑p
- Composite: 1 Vp‑p / 75 Ω
- PAL/NTSC compatible
Audio Performance
- DVD‑Audio MLP lossless
- Linear PCM up to 96 kHz
- Dolby Digital, DTS, MPEG, WMA
- S/N ratio: 105 dB (A‑weighted)
- Dynamic range: 100–105 dB
- THD: 0.0025%
General
- Power: 100–240 V
- Standby: 1 W
- Max consumption: 13 W
- Dimensions: 440 × 50 × 285 mm
- Weight: 4.0 kg
Typical Applications
- 5.1 home‑theater systems
- Living rooms and media rooms
- Users wanting a matched Harman Kardon electronics bundle
- DVD‑Audio and high‑quality movie playback setups
