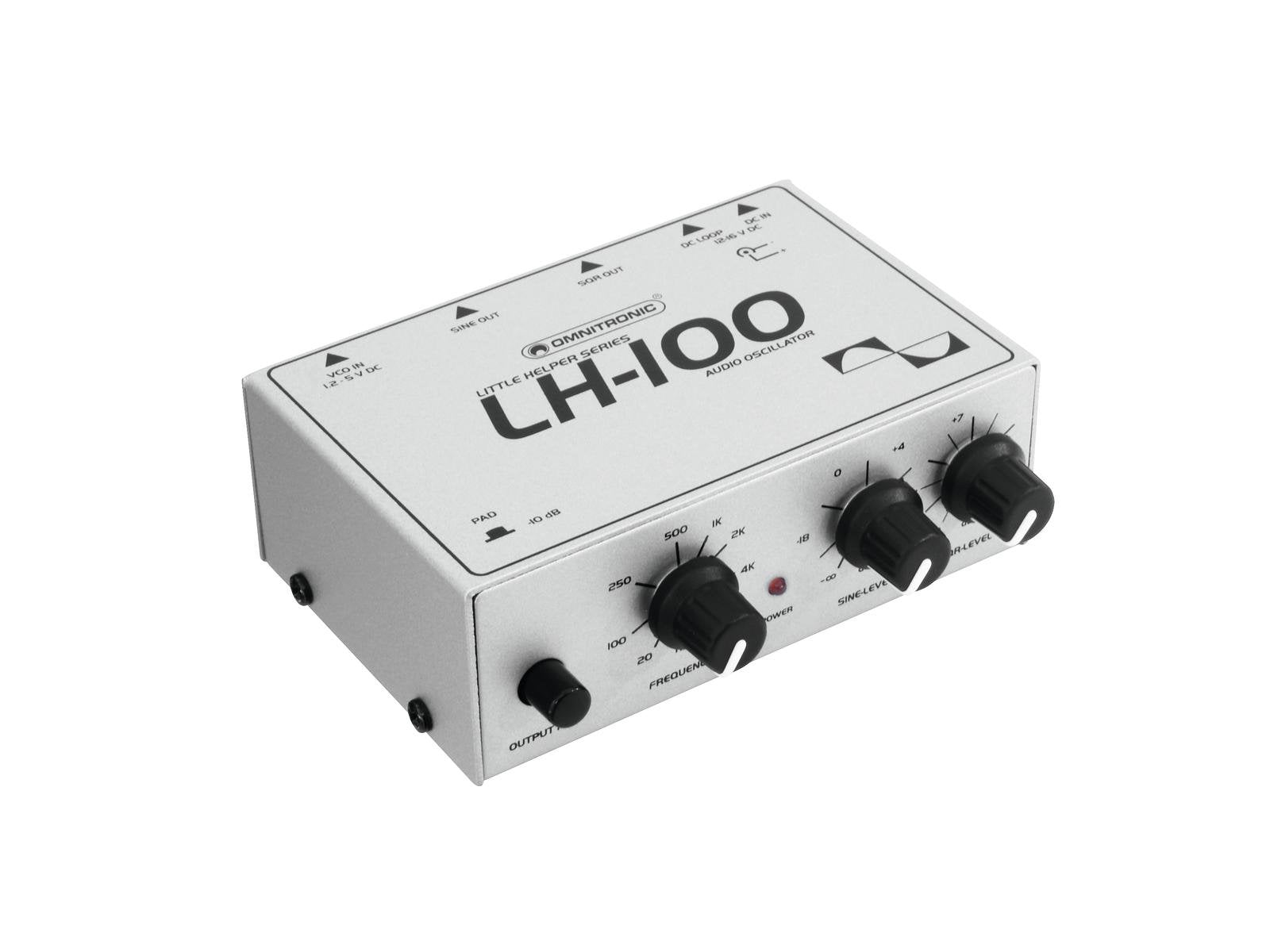

OMNITRONIC LH-100 Audio Oscillator
The LH-100 is a voltage controlled oscillator (VCO) and allows quick and easy testing of audio circuits and speaker systems. The LH-100 generates a precise sine wave and/or square wave at a frequency adjustable from 20 Hz to 20 kHz. The oscillator is equipped with two separate level controls for sine and square wave as well as a -10 dB pad to attenuate the output level. Via the VCO input you can connect external audio signal sources to determine the oscillator's frequency.
Features
Dual oscillator (VCO)
- The LH-100 is voltage controlled (VCO) and produces sine and square wave audio signals to test audio equipment such as speaker systems
- 2 separate outputs with variable amplitudes
- Variable frequency from 20 Hz to 20 kHz (deactivated at VCO input signal)
- Additional audio input for an external signal source
- -10 dB pad for output attenuation
- Feed-through output for supplying a further LH-100 with power
- All audio connections via 6.3 mm jacks (1/4")
- Operation via supplied power unit
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz 12-16 V |
| Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Frequency range: | 20 - 20000 Hz variable |
| Input attenuation: | -10 dB |
| Gain: | -10 dB |
| Connections: | Input: 1 x 6.3 mm plug (unbal.) Output: 2 x 6.3 mm plug (unbal.) |
| Dimensions: | Width: 11,5 cm Depth: 9,2 cm Height: 4 cm |
| Weight: | 0,53 kg |
