HS-300

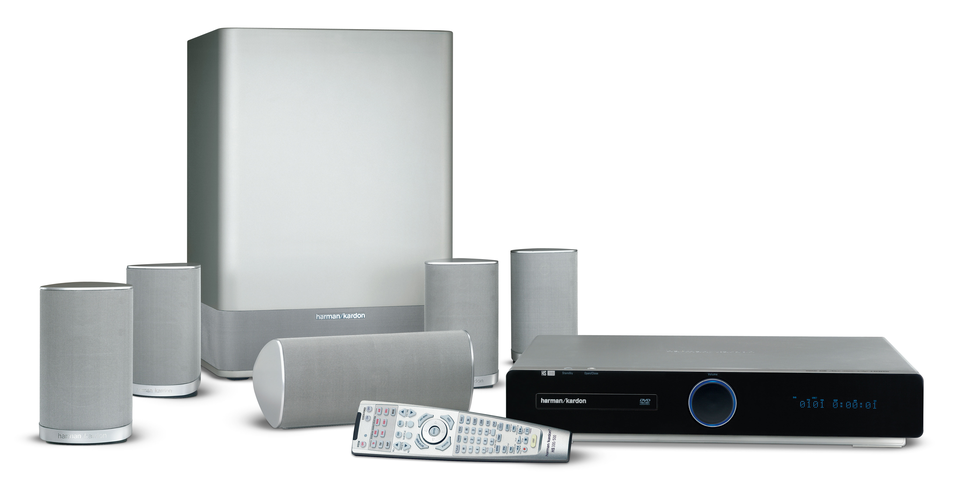

Harman Kardon HS‑300 – 5.1 DVD Home Theater System with HKTS 11 Speaker Package

The Harman Kardon HS‑300 is a premium 5.1 home‑theater system combining a high‑performance DVD‑receiver with the powerful HKTS 11 loudspeaker package. Designed for users who want cinematic surround sound with elegant industrial design, the HS‑300 delivers exceptional audio clarity, deep bass impact and high‑quality progressive‑scan video playback.

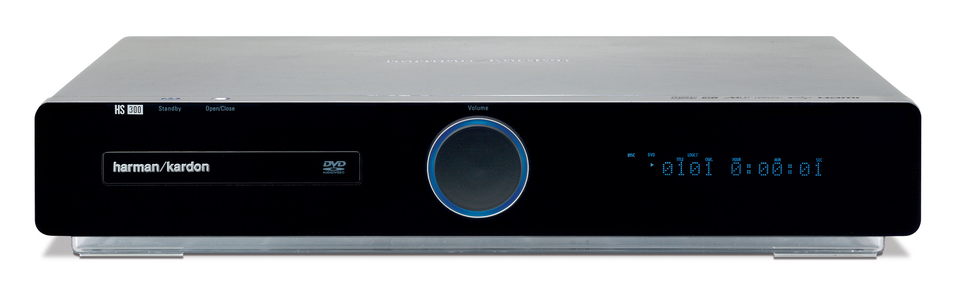

The system includes the HS‑300 DVD‑receiver with Dolby Digital, Dolby Pro Logic II and DTS decoding, paired with the HKTS 11 5.1 speaker system featuring four two‑way satellites, a dedicated center speaker and a powerful 200‑watt subwoofer. Together, they form a complete, voice‑matched home‑theater solution suitable for modern living rooms and media spaces.

Included Speaker System: Harman Kardon HKTS 11

• 4 × two‑way satellite speakers
  • 3" midrange + ¾" dome tweeter
  • Magnetically shielded
  • Wall‑mount brackets included
• 1 × center speaker
  • Dual 3" midrange + ¾" dome tweeter
• 1 × powered subwoofer
  • 10" driver
  • 200 W RMS amplifier
  • Bass‑reflex enclosure
• Frequency response: 45 Hz – 20 kHz
• Recommended amplifier power: 10–120 W
• Impedance: 8 Ω

Key Features

• Complete 5.1 home‑theater system (HS‑300 receiver + HKTS 11 speakers)
• Dolby Digital, Dolby Pro Logic II and DTS decoding
• Progressive‑scan DVD playback
• MP3, WMA and JPEG disc support
• HDMI output (video‑only, model‑dependent)
• Composite, S‑Video and Component video outputs
• Front‑panel A/V input
• FM/AM tuner with digital PLL synthesizer

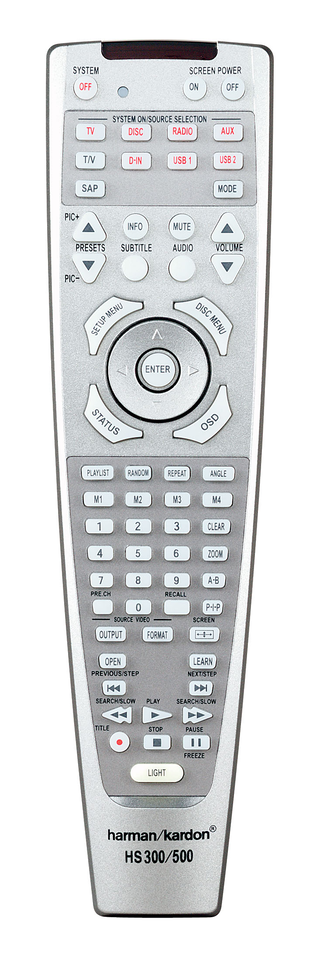

• System remote control included
• Elegant Harman Kardon design with aluminum accents

Audio Performance

• 65 W × 5 channels (region‑dependent)
• Dolby Digital, DTS and Pro Logic II decoding
• Adjustable bass, treble, channel levels and speaker delay
• Night mode
• High‑quality headphone output

Video Performance

• Progressive‑scan DVD playback
• Component video output:
  • Y = 1 Vp‑p / 75 Ω
  • Pb = 0.7 Vp‑p / 75 Ω
  • Pr = 0.7 Vp‑p / 75 Ω
• Composite video output: 1 Vp‑p / 75 Ω
• S‑Video output:
  • Y = 1 Vp‑p / 75 Ω
  • C = 0.286 Vp‑p / 75 Ω (NTSC)

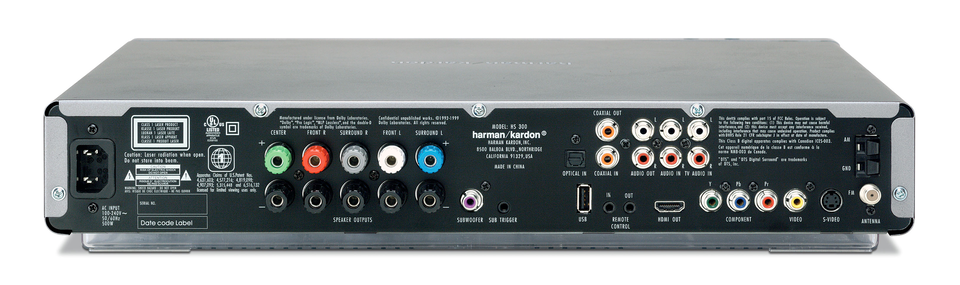

Connectivity

Inputs

• Optical digital audio
• Coaxial digital audio
• Analog stereo inputs
• Front A/V input (composite + stereo)
• FM/AM antenna inputs

Outputs

• 5.1 speaker outputs
• Subwoofer pre‑out
• Composite, S‑Video, Component video
• Headphone output

Tuner Specifications

• FM tuning range: 87.50 – 108.00 MHz
• FM system: PLL quartz‑locked digital synthesizer
• FM IF: 10.7 MHz
• FM antenna: 75 Ω unbalanced
• AM tuning range: 522 – 1620 kHz (EU)
• AM usable sensitivity: 500 µV
• AM S/N ratio: 45 dB
• AM distortion: 0.8% @ 1 kHz
• AM selectivity: ±10 kHz, 30 dB

Disc Player Specifications

• Laser pickup: Semiconductor laser, 650 nm
• Video system: PAL/NTSC (region‑dependent)
• Horizontal resolution: >480 lines
• Frequency response:
  • DVD (PCM): 20 Hz – 22 kHz (±1 dB)
  • CD: 20 Hz – 20 kHz (±1 dB)
• S/N ratio (PCM): >80 dB
• THD (PCM): <0.01%
• Dynamic range: >85 dB

General Specifications

• Power requirements: AC 230 V, 50 Hz (EU)
• Power consumption:
  • Standby: 3 W
  • Maximum: 380 W
• Dimensions (H × W × D): 68 × 440 × 381 mm
• Weight: 5.2 kg (receiver only)
• System shipping weight: ~40 kg (with HKTS 11)


Typical Applications

• Complete home‑theater setup
• Living rooms, media rooms, premium bedroom systems
• Users wanting a ready‑to‑use 5.1 system with powerful subwoofer and high‑quality satellites
