eSMART BG-DH MKII

AUDIOROOT eSMART BG‑DH MKII – Smart DC Power Distributor

Estimated delivery time: 1–2 weeks.

Product description

The Original, Reinvented — Compact Power Distribution for ENG Sound Bags

The Audioroot eSMART BG-DH MKII is a next-generation DC power distributor designed specifically for field sound professionals. As the direct successor to our groundbreaking eSMART BG-DH—the original smart battery distributor introduced in 2009—this compact powerhouse builds upon a legacy that revolutionized portable audio power management.

Before the BG-DH, production sound recordists relied on standard batteries, often without any visibility into how much energy remained—an unacceptable compromise for mission-critical work. The BG-DH changed that forever, introducing real-time battery intelligence through SMbus smart battery technology. The MKII version pushes the concept even further with a refined, more compact design, increased functionality, and superior reliability.

Key Features

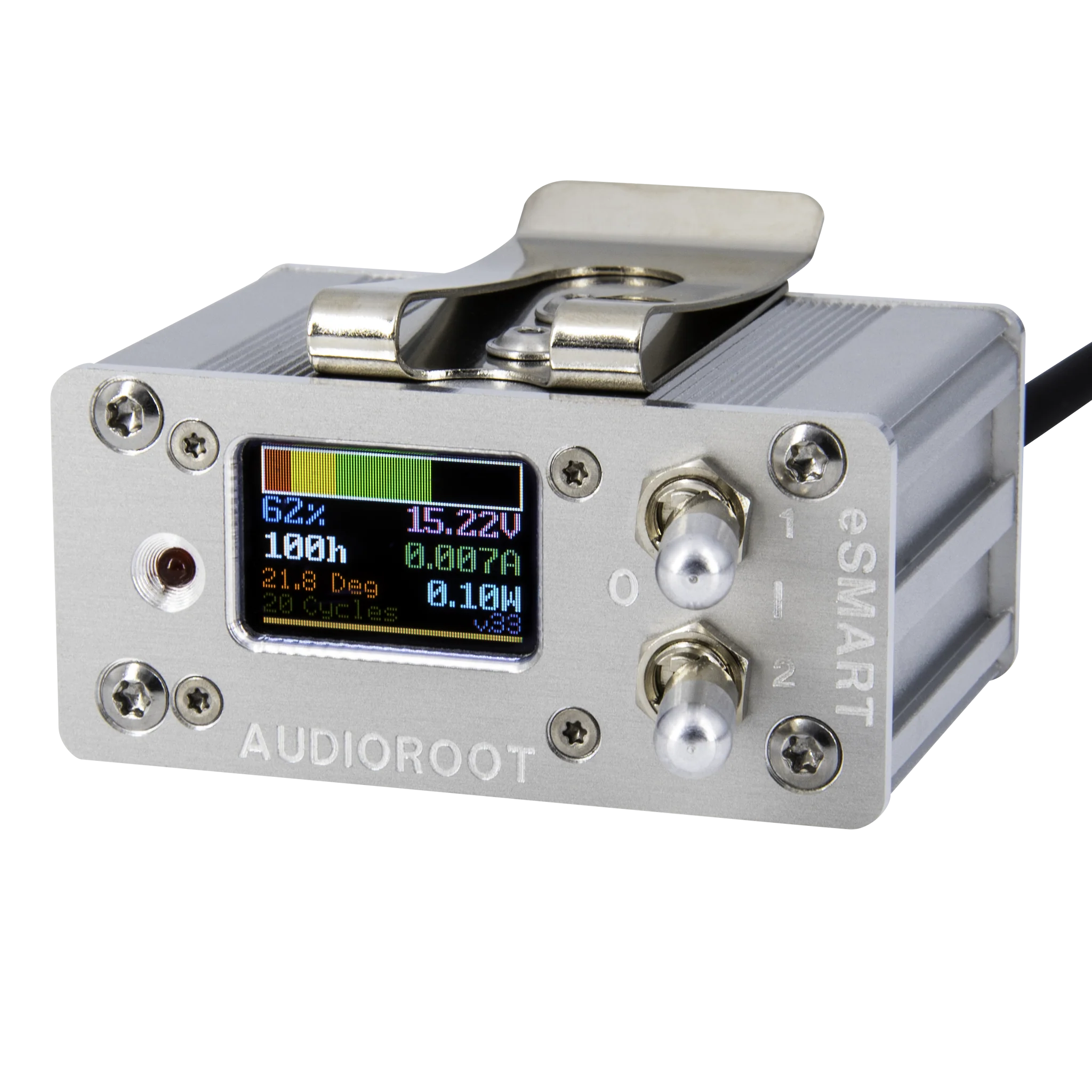

Real-Time Battery Monitoring At a glance, view all critical battery data on a sunlight-readable OLED color screen:

• Remaining capacity (%)

• Estimated runtime (hh:mm)

• Voltage (V)

• Current draw (A)

• Battery temperature (°C)

• Charge/discharge cycle count

Ultra-Compact Form Factor Dimensions: 65 × 50 × 30 mm Weight: 130 g Fits effortlessly into any ENG sound bag with downward-facing cabling for optimal workflow.

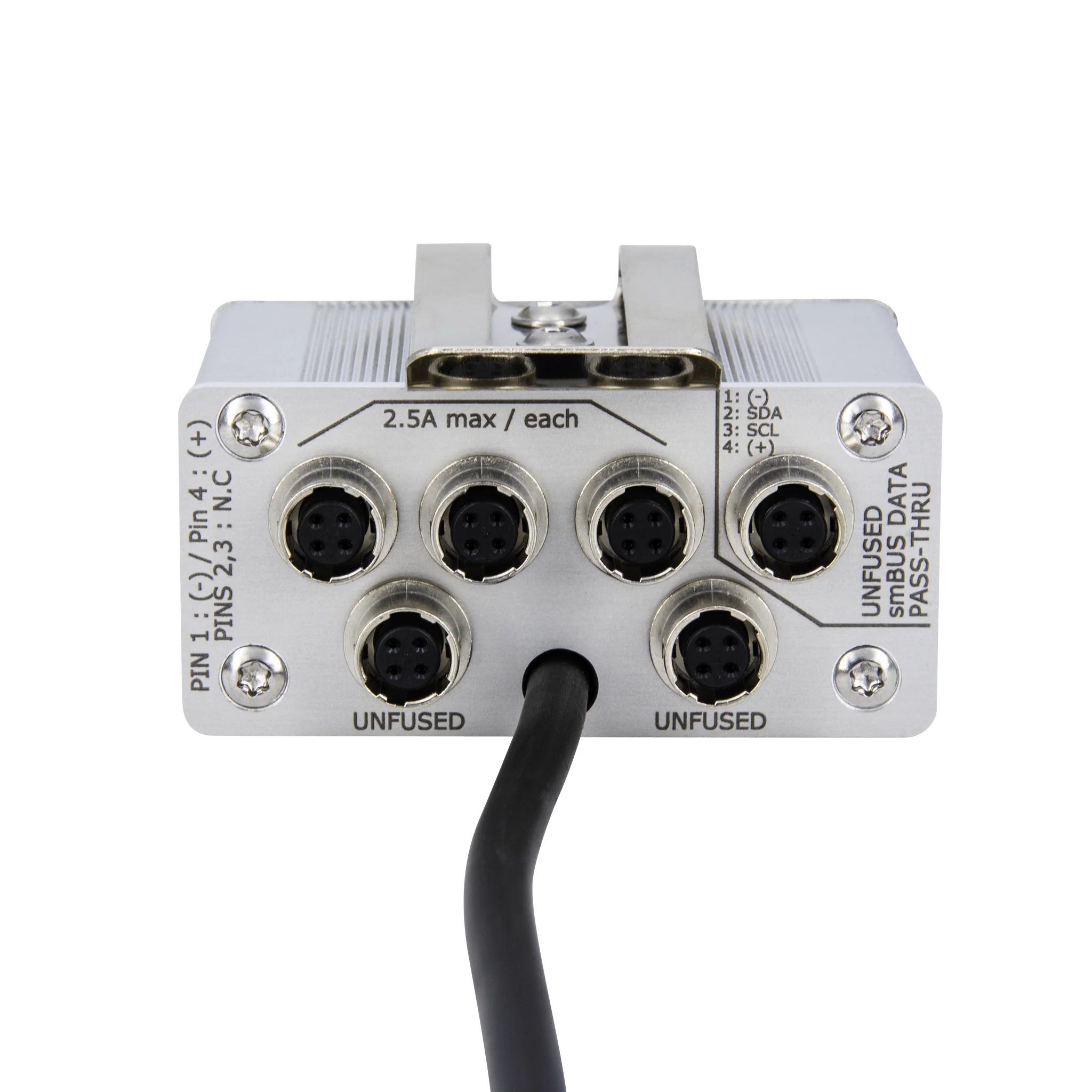

Robust and Flexible Output Options 6 Hirose locking outputs supporting multiple configurations:

• 1 unfused SMbus passthrough output

• 3 fused outputs (2.5A re-settable Polyswitch fuses)

• 2 non-fused auxiliary outputs

Powerful Visual Alerts A blinking red LED warns when battery capacity drops below 10%.

Switchable Output Control Independent locking switches for 4 main outputs and 2 auxiliary outputs.

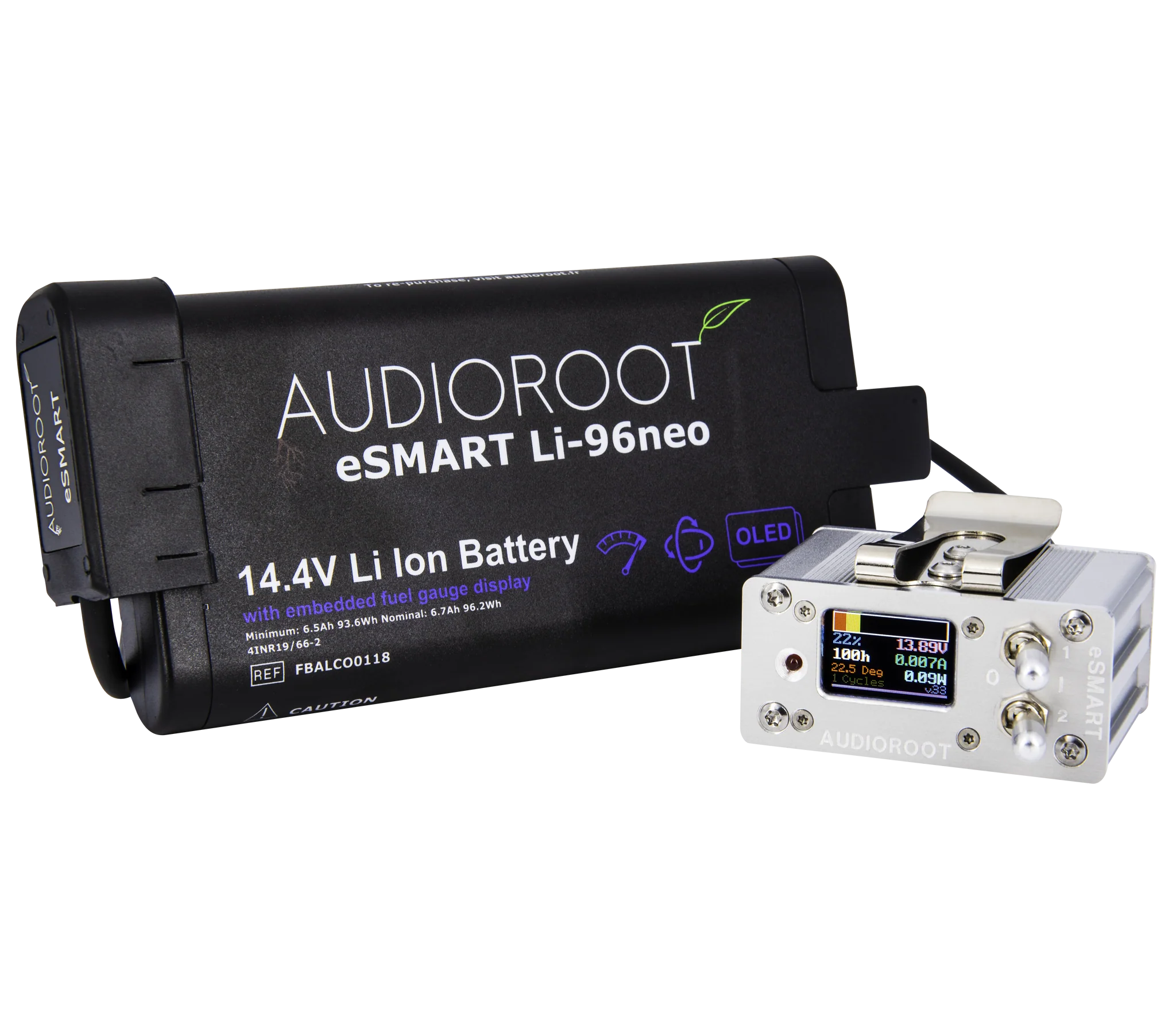

Plug-and-Play Smart Battery Integration Fully compatible with all Audioroot eSMART lithium batteries via SMbus communication.

OLED Color Display 96 × 64 pixel color OLED with a wide 180° viewing angle.

Efficient, Low-Power Operation Extremely low internal consumption to maximize battery autonomy.

Designed for Mobility Includes a durable belt clip and robust Hirose locking connectors.

Technical Specifications

• Dimensions: 65 × 50 × 30 mm

• Weight: 130 g

• Inputs / Outputs: 1 × SMbus input / 6 × Hirose outputs

• Fuses: 3 × 2.5A Polyswitch resettable

• OLED Display: 96 × 64 px, color, 180° viewing angle

• Compatible Batteries: All Audioroot eSMART batteries

• Indicators: Blinking LED (battery <10%)

• Output Switches: Locking type (4+2 split)

Why Choose the BG‑DH MKII?

With over a decade of real-world field use and feedback from top sound professionals, the eSMART BG-DH MKII represents the culmination of innovation and reliability. Whether you're mixing on a mountain, in a dense city, or a remote desert location, this distributor is your unshakable power hub.

Compact. Smart. Reliable. The eSMART BG-DH MKII isn’t just a tool—it’s a milestone in the evolution of portable audio power.
