eLC-SMB

AUDIOROOT eLC‑SMB – Portable Smart Battery Charger

Estimated delivery time: 1–2 weeks.

Product description

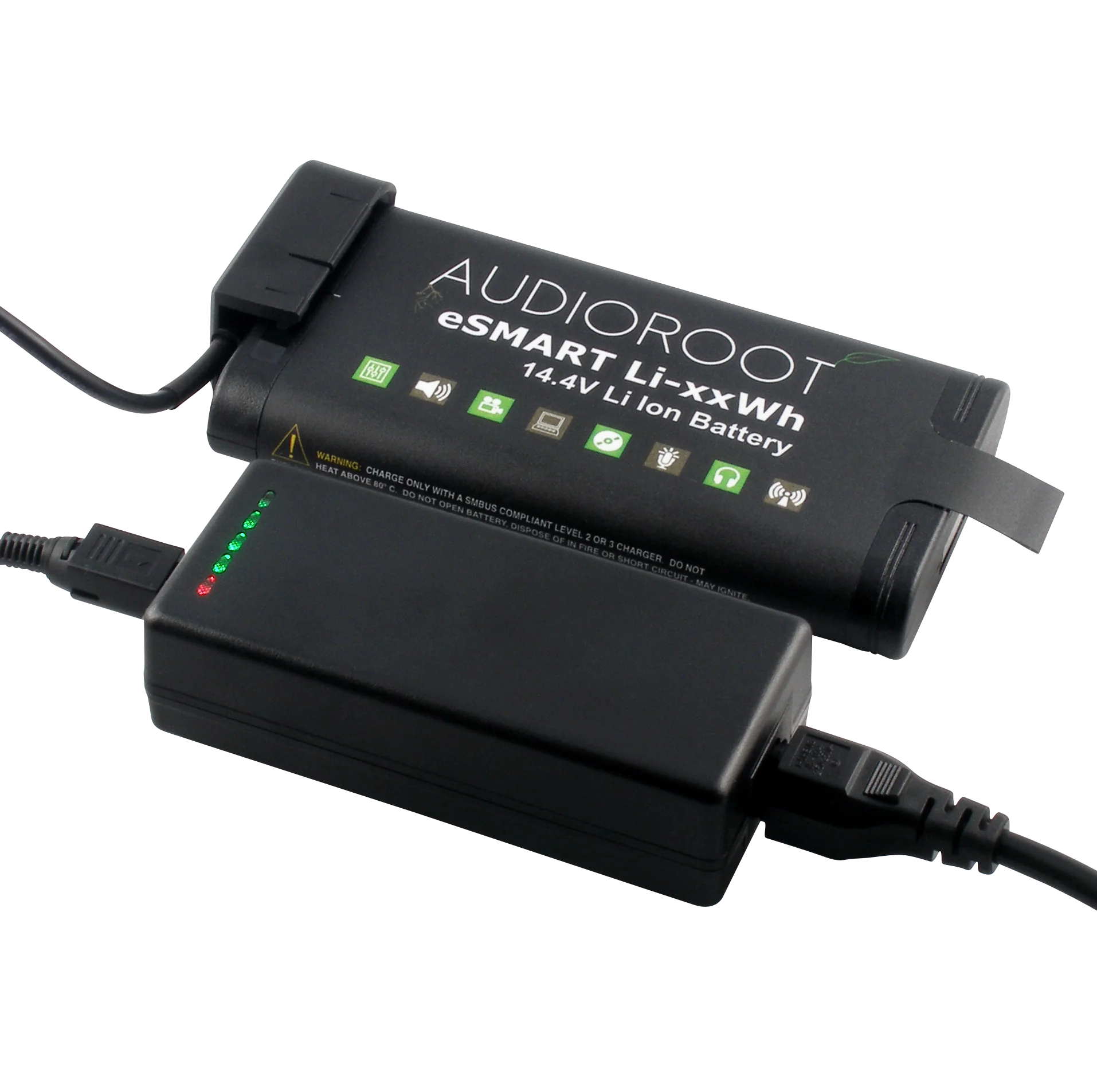

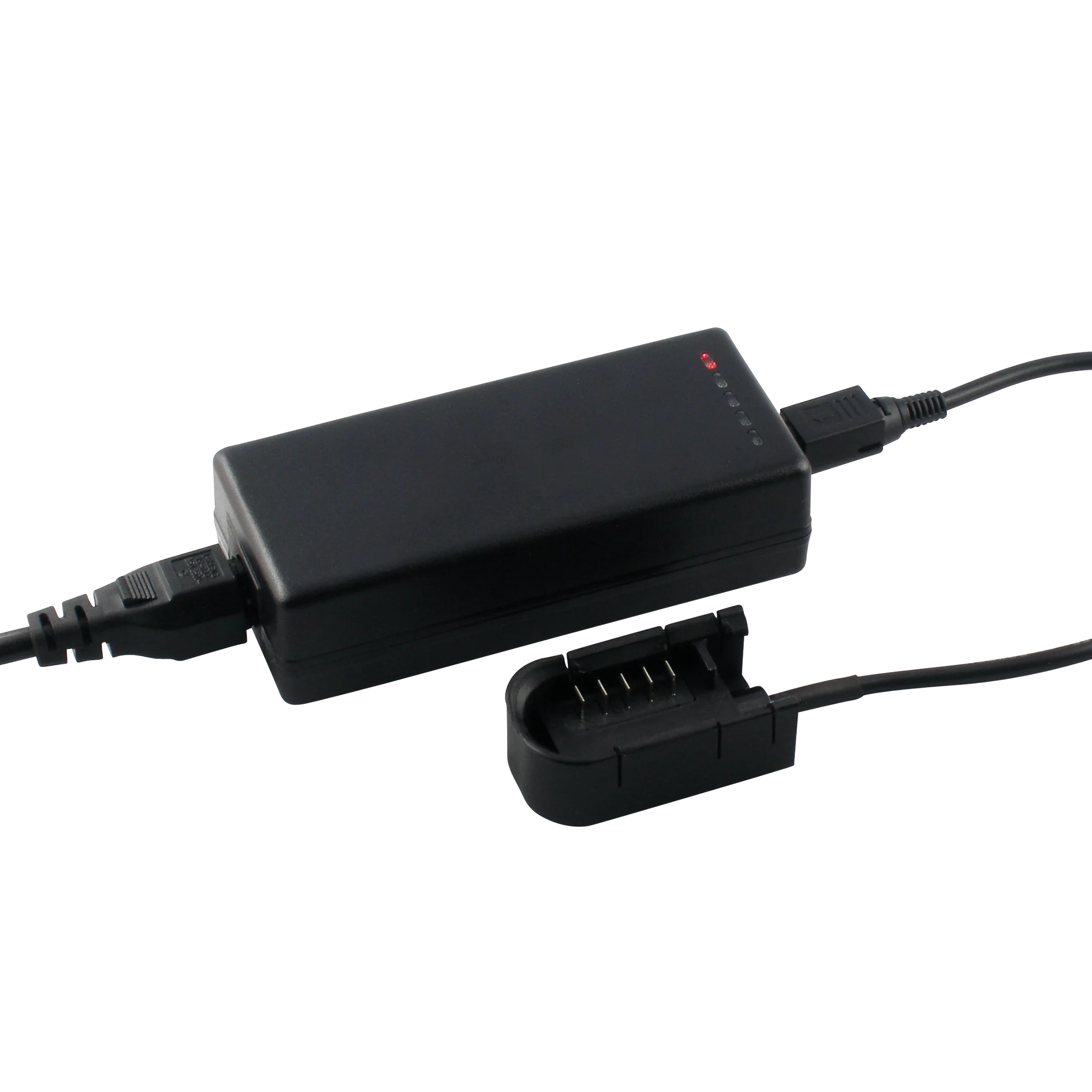

The eLC-SMB is our low-cost portable charger designed for the eSMART Li-XXWh and Li-xxneo lithium battery range. Replacing the discontinued eLC-AMP, this charger delivers fast, reliable, and secure charging in a lightweight, travel-friendly format—perfect for field professionals and mobile setups.

Compact & Portable Small enough to slip into a backpack or sound bag, the eLC-SMB charges a 49Wh or 98Wh battery in just 3 hours.

Smart Charging Protocol Fully compliant with SMBus 1.1, it allows the battery to control the voltage and current each time it connects to the charger.

Real-Time Monitoring Automatically tracks charging current, voltage, and temperature for safe and efficient charging.

LED Indicator A 5-segment LED bar graph shows charging progress at a glance.

Battery Wake-Up Includes a wake-up function to recover and recharge fully depleted batteries.

Technical Specifications

• Dimensions: 128 × 51.5 × 33 mm

• Weight: 200 g

• Input Voltage: AC 100–240 V

• Max Output Power: 40 W

• Standby Power Consumption: <1 W

• Output Voltage: 7.2–14.8 V

• Max Output Current: 2.5 A

The eLC-SMB is your go-to solution for dependable, intelligent, and portable battery charging—whether you're in the studio or on the go.
