DVDO-HDMI-MGR-1

DVDO‑HDMI‑MGR‑1

4K HDMI Manager

Product Description

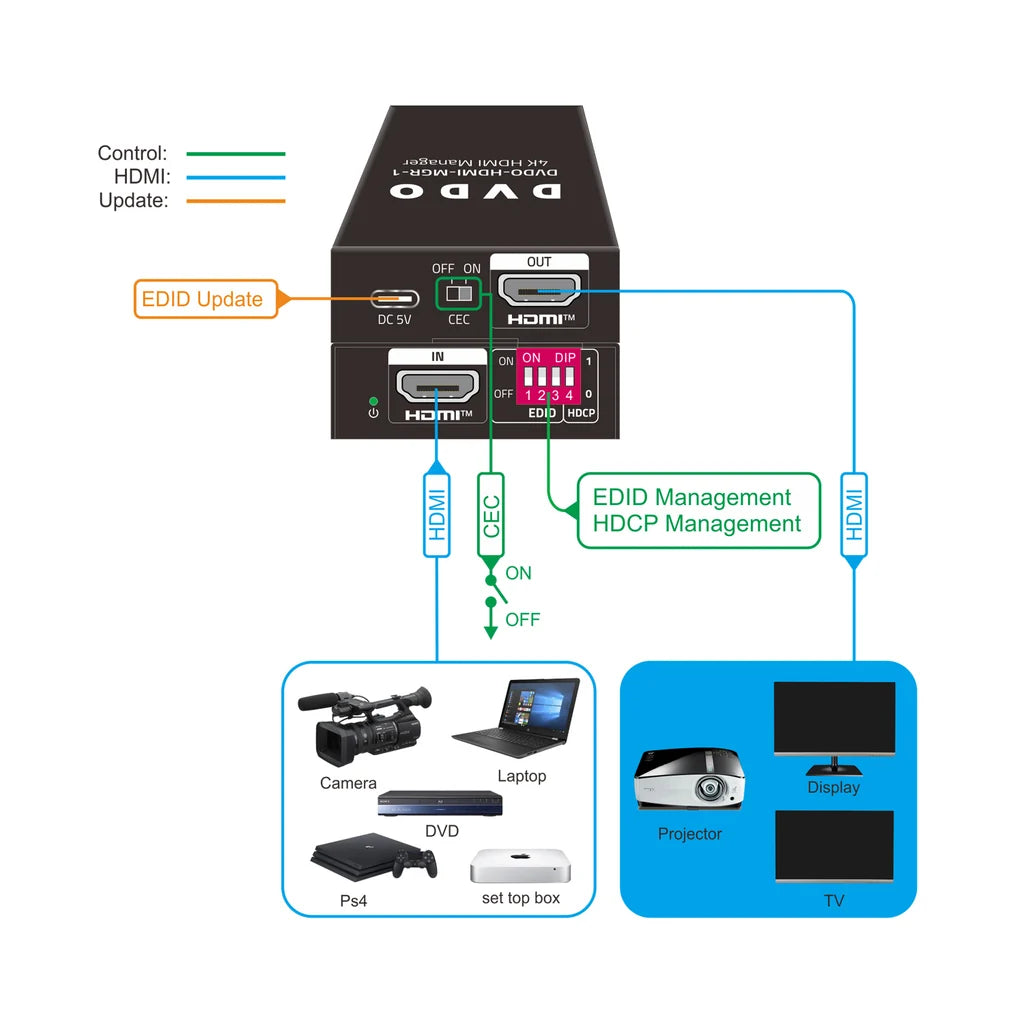

The DVDO‑HDMI‑MGR‑1 is a compact HDMI EDID emulator designed to resolve compatibility issues between HDMI sources and displays. By manipulating the EDID information presented to the connected source device, it ensures stable communication and eliminates common handshake problems, making it an essential troubleshooting tool for AV integrators.

The unit is HDMI 2.0 and HDCP 2.2 compliant, supporting video resolutions up to 4K@60Hz 4:4:4 at 18Gbps. It offers HDCP management, auto downscaling and a CEC blocking mode that allows CEC to be enabled or disabled as needed. Power can be supplied directly through the HDMI cable or via USB‑C, removing the need for a dedicated power adapter. Eight EDID presets are included, with one user‑defined preset uploadable through the USB‑C port.

Key Features

• HDMI 2.0 and HDCP 2.2 compliant

• Supports resolutions up to 4K@60Hz 4:4:4 at 18Gbps

• Converts HDCP 2.2 (source) to HDCP 1.4 (display)

• Eight EDID presets including one user‑defined preset

• 4‑pin DIP switch for EDID and HDCP configuration

• Powered via HDMI or USB‑C

• CEC blocking mode with ON/OFF toggle

• USB‑C port for power, custom EDID upload and firmware updates

• Compact, portable, plug‑and‑play design

Specifications

Video Input

One HDMI 2.0 input using a female Type‑A connector. Supports input resolutions up to 4K@60Hz 4:4:4.

Video Output

One HDMI 2.0 output using a female Type‑A connector. Supports output resolutions up to 4K@60Hz 4:4:4.

General

Maximum bandwidth is 18Gbps. Powered by 5V 1A (HDMI or USB‑C). Maximum power consumption is 2.4W. Operating temperature ranges from –5°C to +55°C. Storage temperature ranges from –25°C to +70°C. Humidity tolerance is 10%–90%. Dimensions: 54 × 18 × 60 mm. Net weight: 85 g.

Identifiers

• SKU: DVDO‑HDMI‑MGR‑1
