DVDO-DAConv-2

DVDO

€88,00
Ühiku hind per

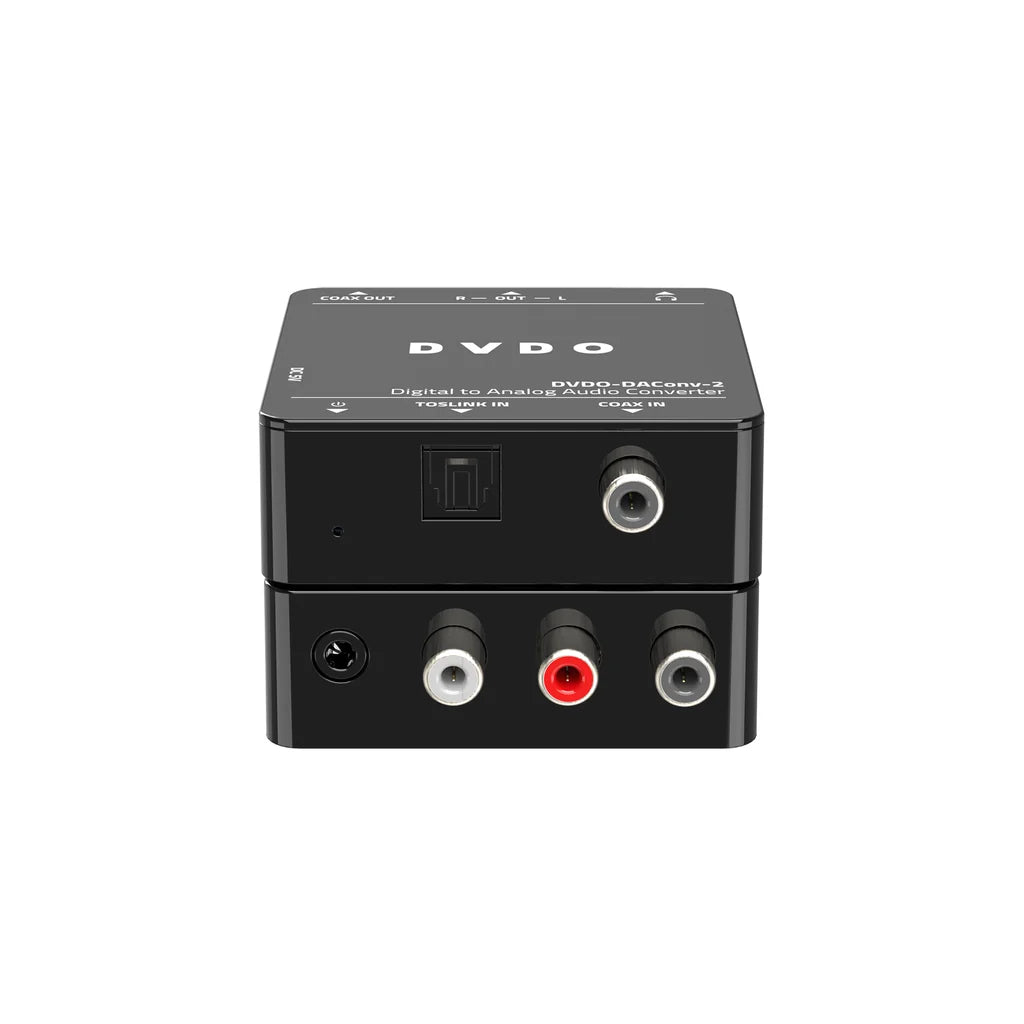

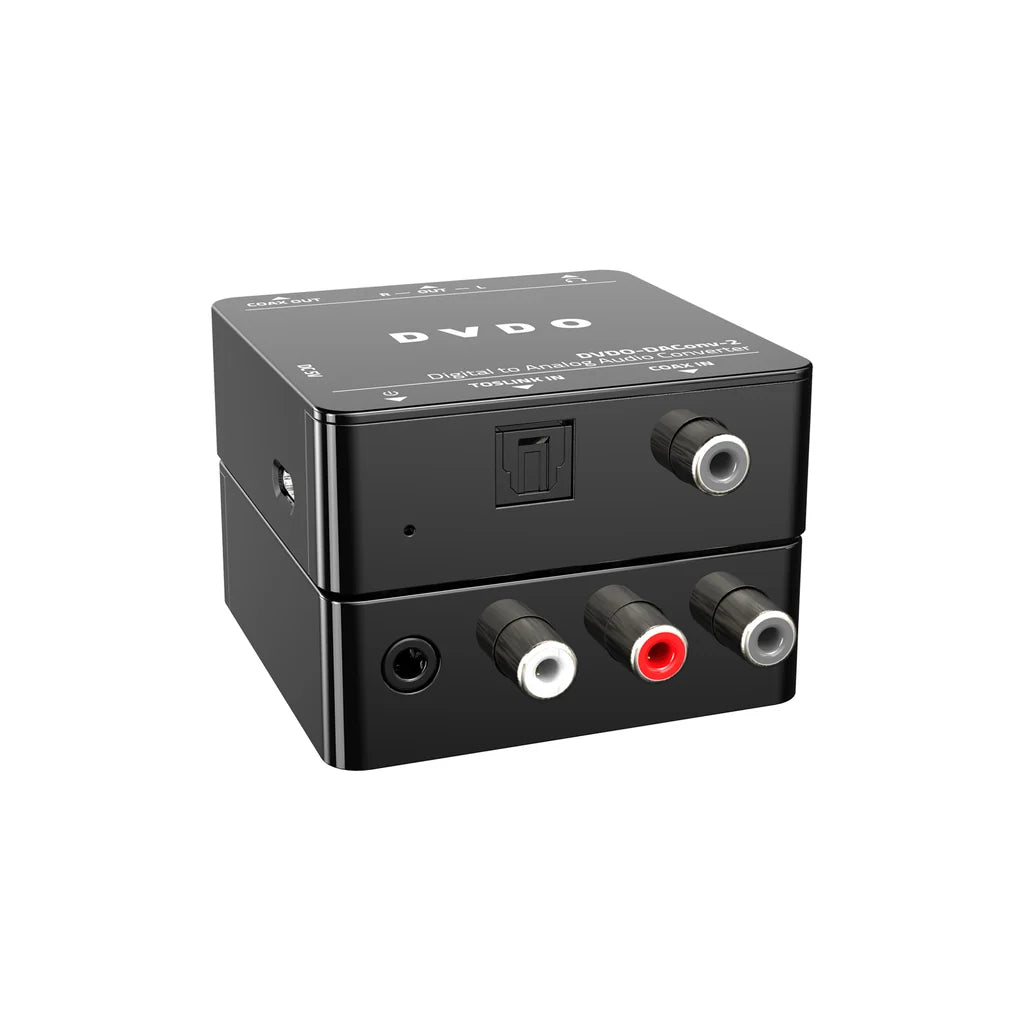

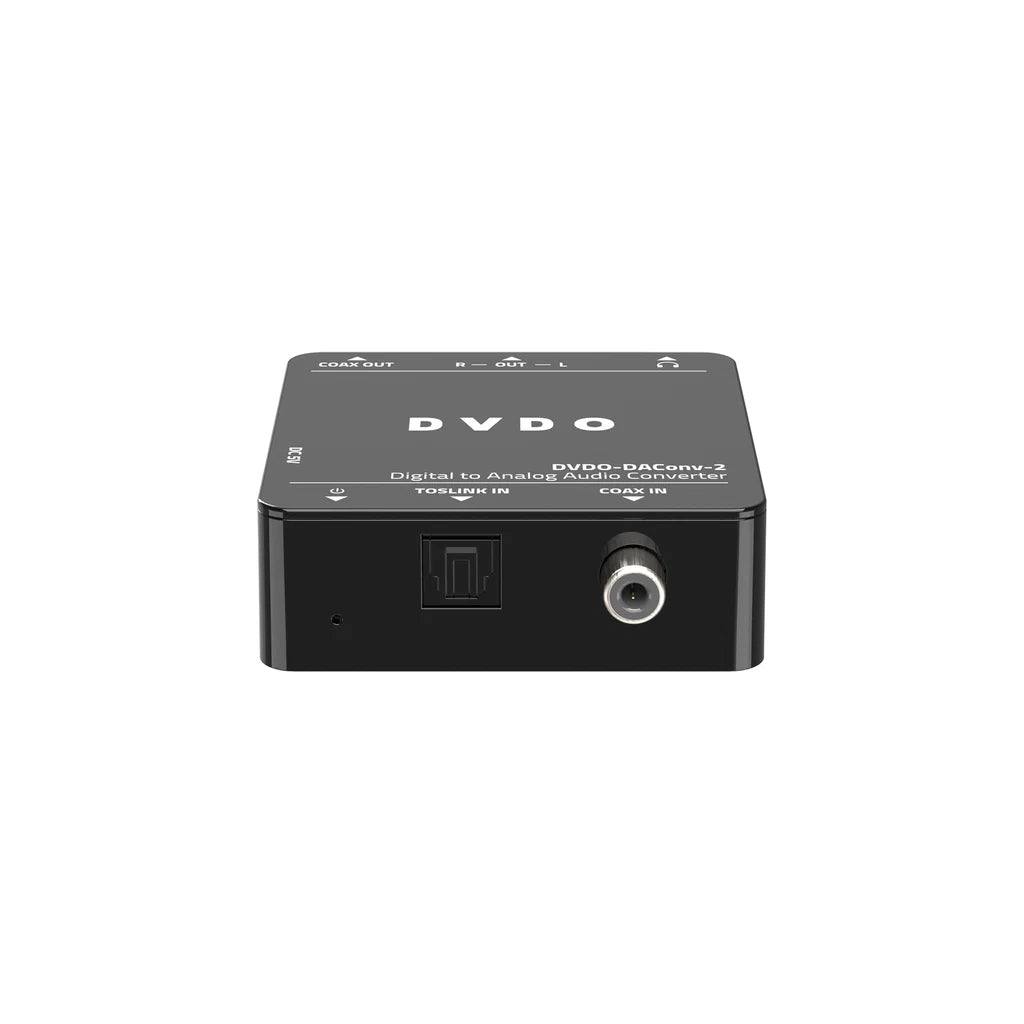

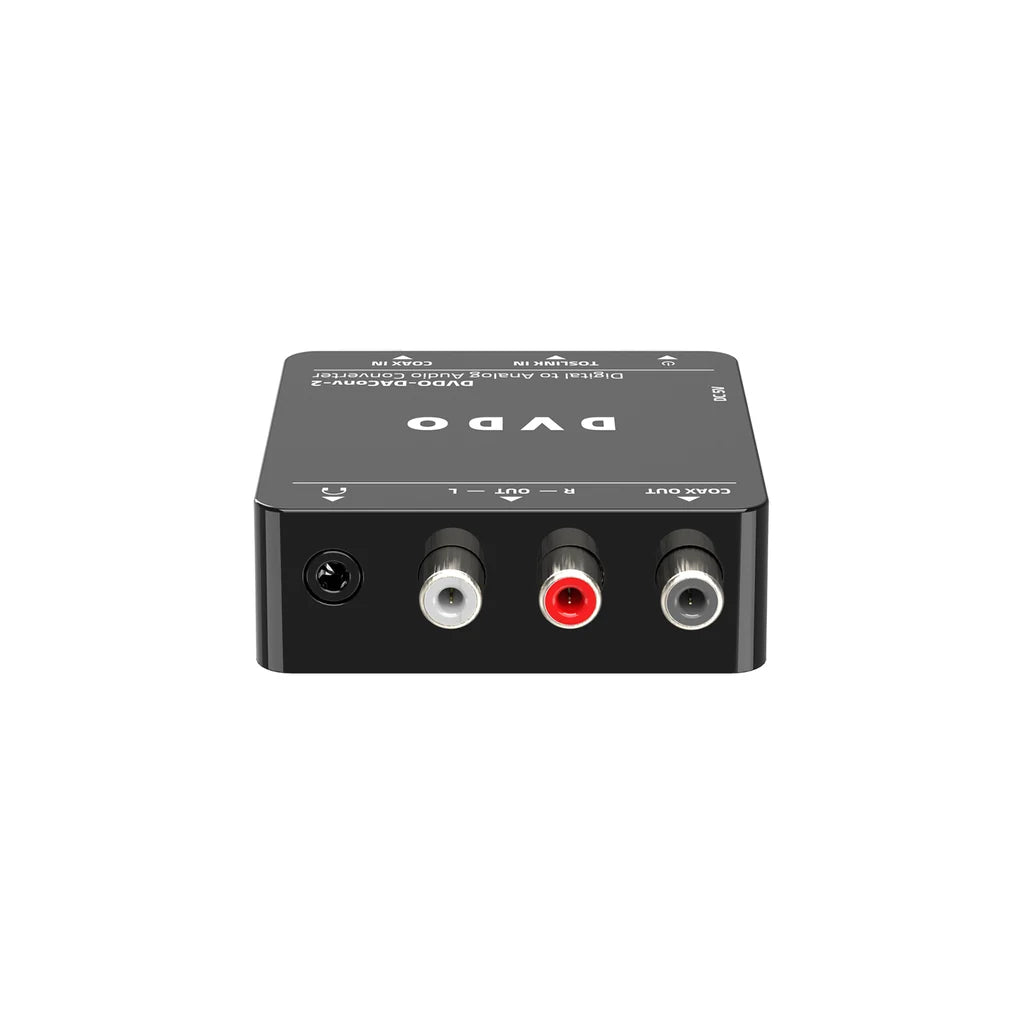

DVDO‑DAConv‑2 – Digital to Analog Audio Converter

SKU: DVDO‑DAConv‑2

Product Description

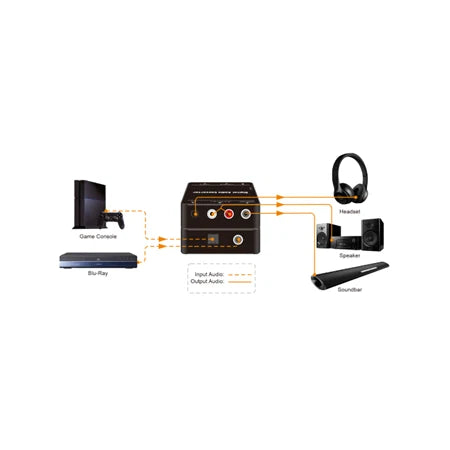

The DVDO‑DAConv‑2 is a compact digital‑to‑analog audio converter designed for both residential and commercial AV environments. It converts TOSLINK (optical) or coaxial digital audio signals into high‑quality stereo analog audio, making it easy to connect modern TVs, media players, gaming consoles and other digital sources to amplifiers, powered speakers, headphones or legacy audio equipment.

Supporting digital audio resolutions up to 24‑bit / 192 kHz, the converter provides simultaneous RCA (L/R) and 3.5 mm stereo analog outputs. When using a TOSLINK input, it also offers a coaxial digital output for extending or distributing the optical audio signal to an additional device. Powered via USB‑C, the DAConv‑2 delivers plug‑and‑play operation suitable for home theater, conference rooms, hospitality, education, retail and digital signage applications.

Key Features

Converts TOSLINK (optical) or coaxial digital audio to analog stereo
Supports high‑resolution digital audio up to 24‑bit / 192 kHz
Simultaneous RCA (L/R) and 3.5 mm stereo analog outputs
Coaxial digital output when using TOSLINK input
Splits one TOSLINK source into three simultaneous outputs
Compatible with LPCM, Dolby Digital® and DTS® formats
Compact, easy‑install design
USB‑C powered
Plug‑and‑play operation

Specifications

Input

Supports TOSLINK or coaxial digital audio input. Compatible with LPCM 2.0, Dolby Digital 2.0/5.1, Dolby TrueHD 5.1/7.1, Dolby Atmos 5.1.2, DTS 2.0/5.1, DTS‑HD 5.1/7.1 and DTS‑HD Master Audio 5.1/7.1. Sample rates supported: 32 / 44.1 / 48 / 96 / 192 kHz, up to 24‑bit.

Analog Output

Provides one 3.5 mm stereo output and two RCA (L/R) outputs. Output format is PCM 2.0. Frequency response is 20 Hz – 20 kHz (±3 dB). THD+N is below 0.05% at 1 kHz. SNR exceeds 80 dB. Crosstalk is below –80 dB at 10 kHz.

Digital Output

Coaxial digital output available when using TOSLINK input. Supports LPCM 2.0, Dolby Digital 2.0/5.1, DTS 2.0/5.1 and DTS‑ES Matrix 6.1. Frequency response is 20 Hz – 20 kHz (±3 dB).

General

Powered by a DC 5V 1A supply via USB‑C. Maximum power consumption is 0.57 W. Operating temperature ranges from –5°C to +55°C. Humidity tolerance is 10%–90%. Dimensions: 66 × 66 × 22.5 mm. Net weight: 50 g.

Identifiers

SKU: DVDO‑DAConv‑2
HS Code: 8518.40 (Audio‑frequency electric amplifiers & converters)
