DRS-95

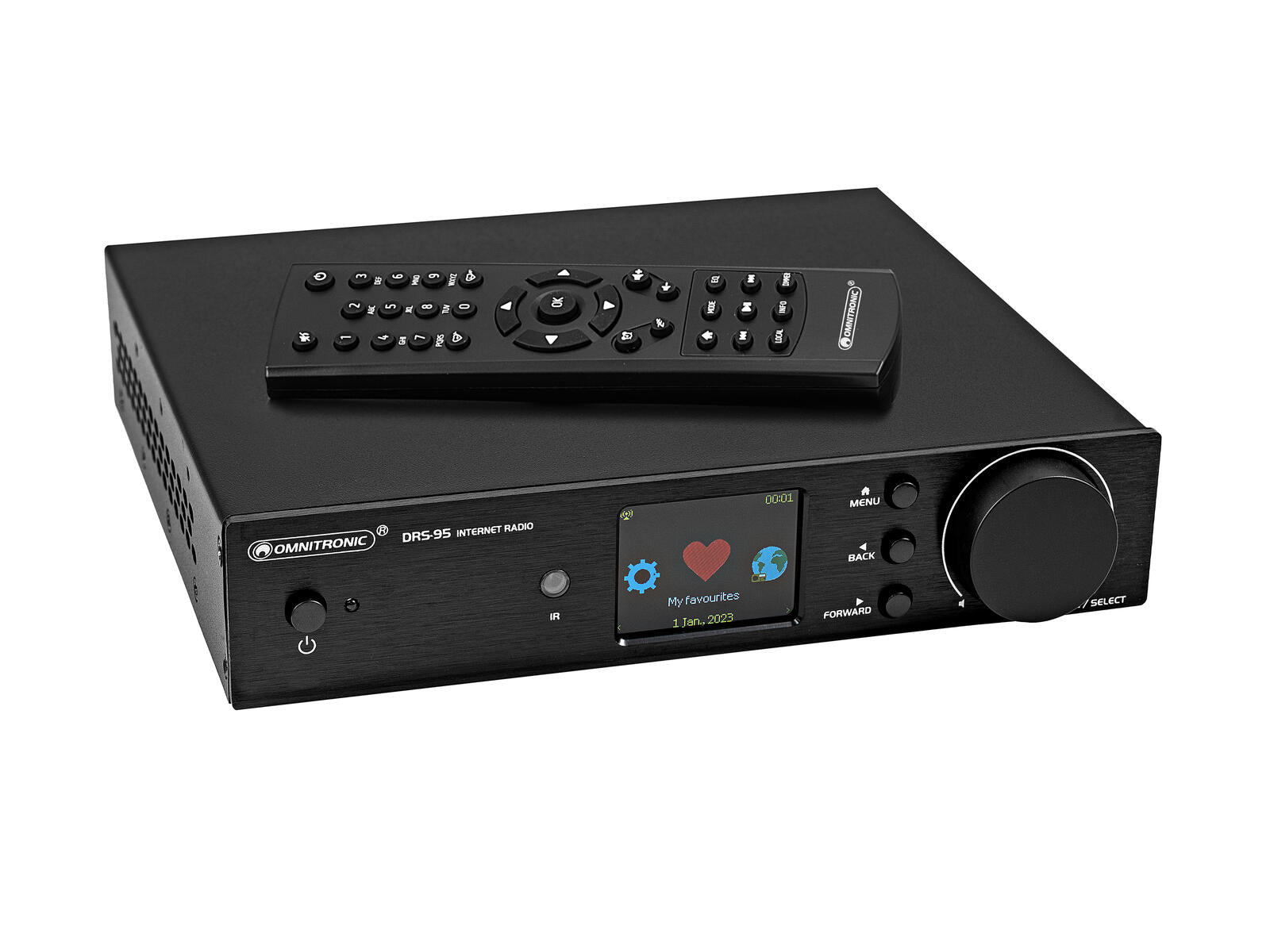

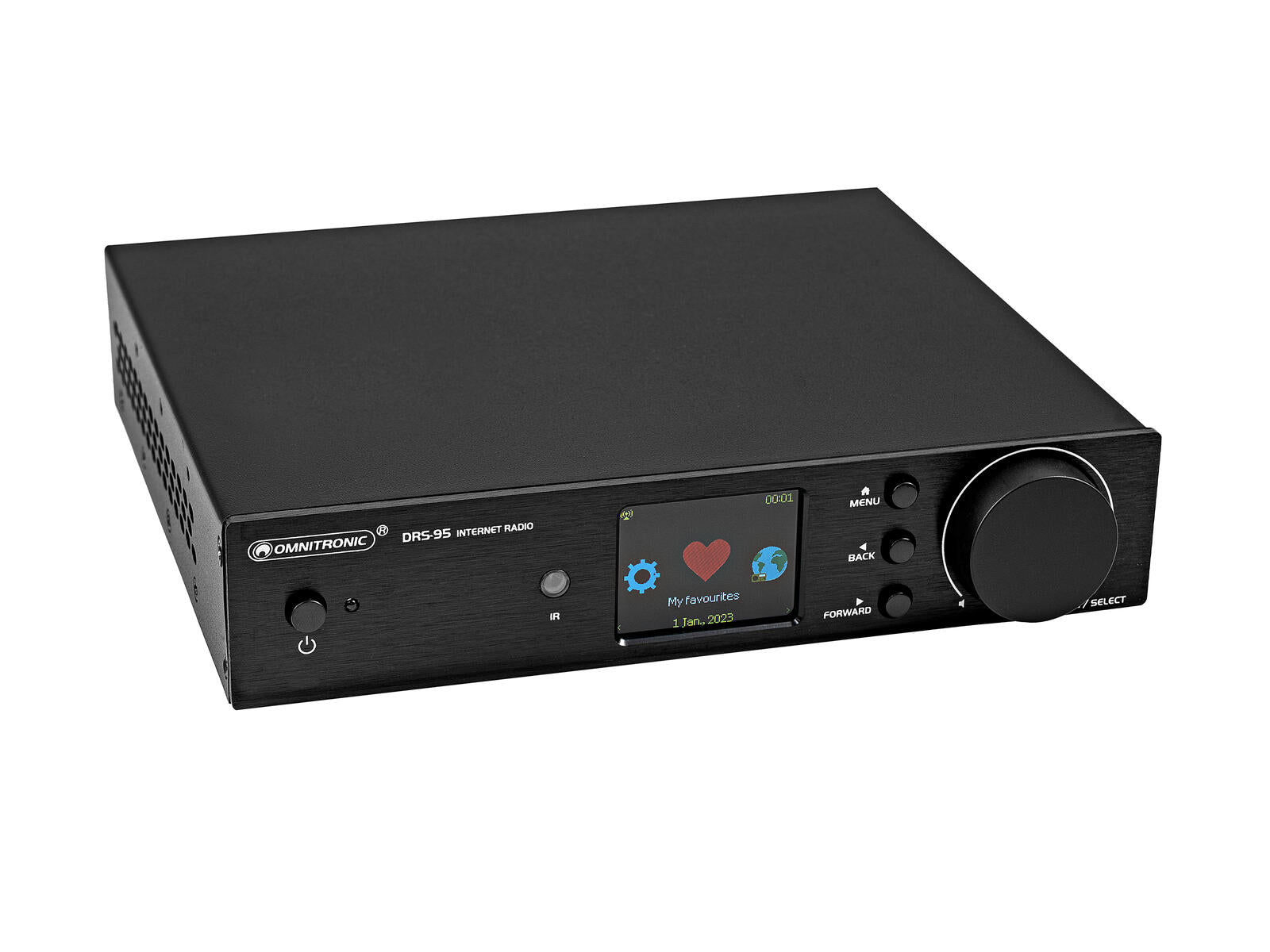

OMNITRONIC DRS-95 Internet Radio with DAB+ and Bluetooth
Internet radio with DAB+ and FM tuner, Bluetooth and UPnP/DLNA support
- Access to thousands of radio stations and podcasts worldwide
- Station scan by genre, station name, location
- Network connection via Wi-Fi or LAN jack
- FM radio and interference-free DAB+ reception
- UPnP and DLNA support for media streaming within the network
- Easy operation via jog dial
- Various equalizer presets
- Summer time/winter time selection
- Sleep timer and alarm function with snooze
- Digital and analog outputs for external amplifiers or active speakers
- Multicolor TFT display
- Rugged steel chassis with aluminum front panel
- Control via IR remote control; Bluetooth; on/off switch on device; Wi-Fi
- IR remote control: operating range up to 10m
- Bluetooth: operating range up to 20m
- Desktop console housing
- (19") 48.3 cm rack installation possible 1 U
- For application areas such as: Clubs/dancing school; installation; restaurants, bars and hotels; sports centres/gyms
Technical specifications
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | Max. 6 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC (M) power supply cord with safety plug (provided) |
| Wi-Fi: | Standard: IEEE 802.11 b/g/n Security protocol: WEP/WPA/WPA2 |
| Network connection: | Protocol: Ethernet TCP/IP via 1x RJ-45 (F) mounting version, 10/100 Mbit/s |
| Control: | IR remote control; Bluetooth; on/off switch on device; Wi-Fi |
| Bluetooth: | Version: 4.2 + BR/EDR |
| Audio player: | FM-tuner + Internet radio + BT + DAB+ |
| Range: | IR remote control: range up to 10m Bluetooth: range up to 20m |
| Carrier frequency: | 2.4 MHz |
| Housing color: | Black |
| Display type: | Multicolor TFT display |
| Tuner frequency range: | FM 87-108 MHz, DAB(+) 174.928-239.200 MHz |
| Control elements: | Power switch, encoder, navigation keys, menu, tone control; source selector, audio player |

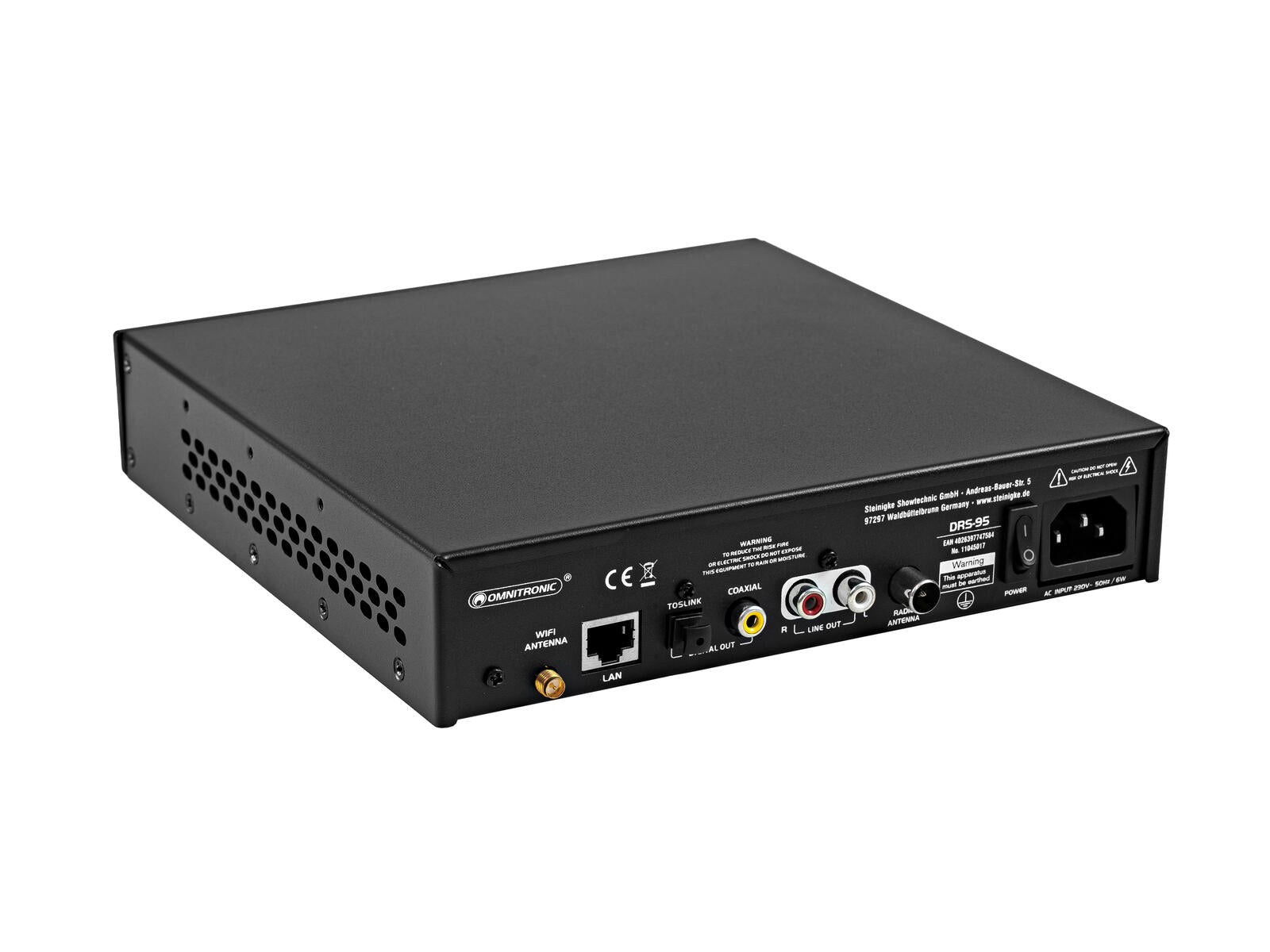

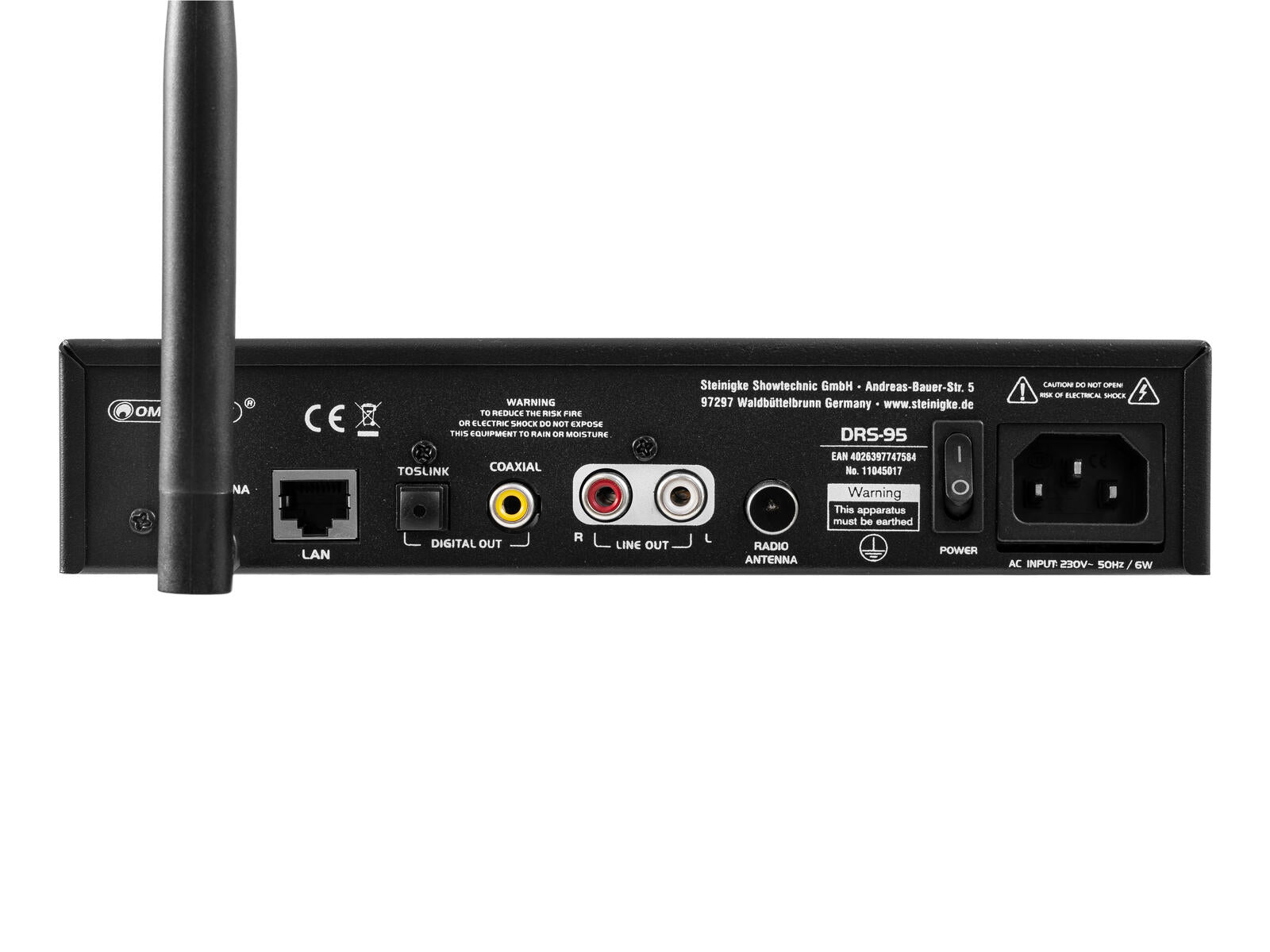

| Connections: | Input: antenna via 1 x Belling-Lee (M) Input: antenna via 1 x SMA (M) Output: line via 1 x stereo RCA Output: coaxial (S/PDIF) via 1 x RCA (F) mounting version Output: optical via 1 x toslink |
| Equalizer: | Tone control |
| Music format: | MP3, AAC/AAC+; FLAC |
| Material: | Metal |
| Housing design: | Desktop console housing (19") 48.3 cm rack installation possible 1 U |
| Dimensions: | Width: 21.5 cm Depth: 23.5 cm Height: 4.40 cm |
| Weight: | 1.70 kg |
| Remote control | |
| Power connection: | Battery/battery pack |
| Battery: | 2 x Micro (AAA) (not included) |
| Weight: | 0.055 kg |
Packaging units
| PU | EAN | Weight | Dimensions |
|---|---|---|---|
| 1 | 4026397747584 | 2,25 kg | 33,5cm x 29cm x 8cm |
