BETA XP TEN

Infinity BETA XP TEN Passive Crossover One pair

The Infinity Beta XP Ten is a high‑performance 2‑way passive crossover designed to deliver precise, clean, and well‑defined sound in advanced car audio systems. Engineered for use with Infinity Kappa 10t tweeters and compatible Beta‑series midrange drivers, the XP Ten ensures accurate power distribution and seamless integration between drivers.

Built around a Linkwitz‑Riley 4th‑order acoustic network, the XP Ten provides exceptionally smooth phase characteristics and steep 24 dB/octave slopes, resulting in a natural, distortion‑free transition between midrange and high frequencies. Its 3.5 kHz crossover point is optimized for the Kappa 10t tweeter’s performance envelope.

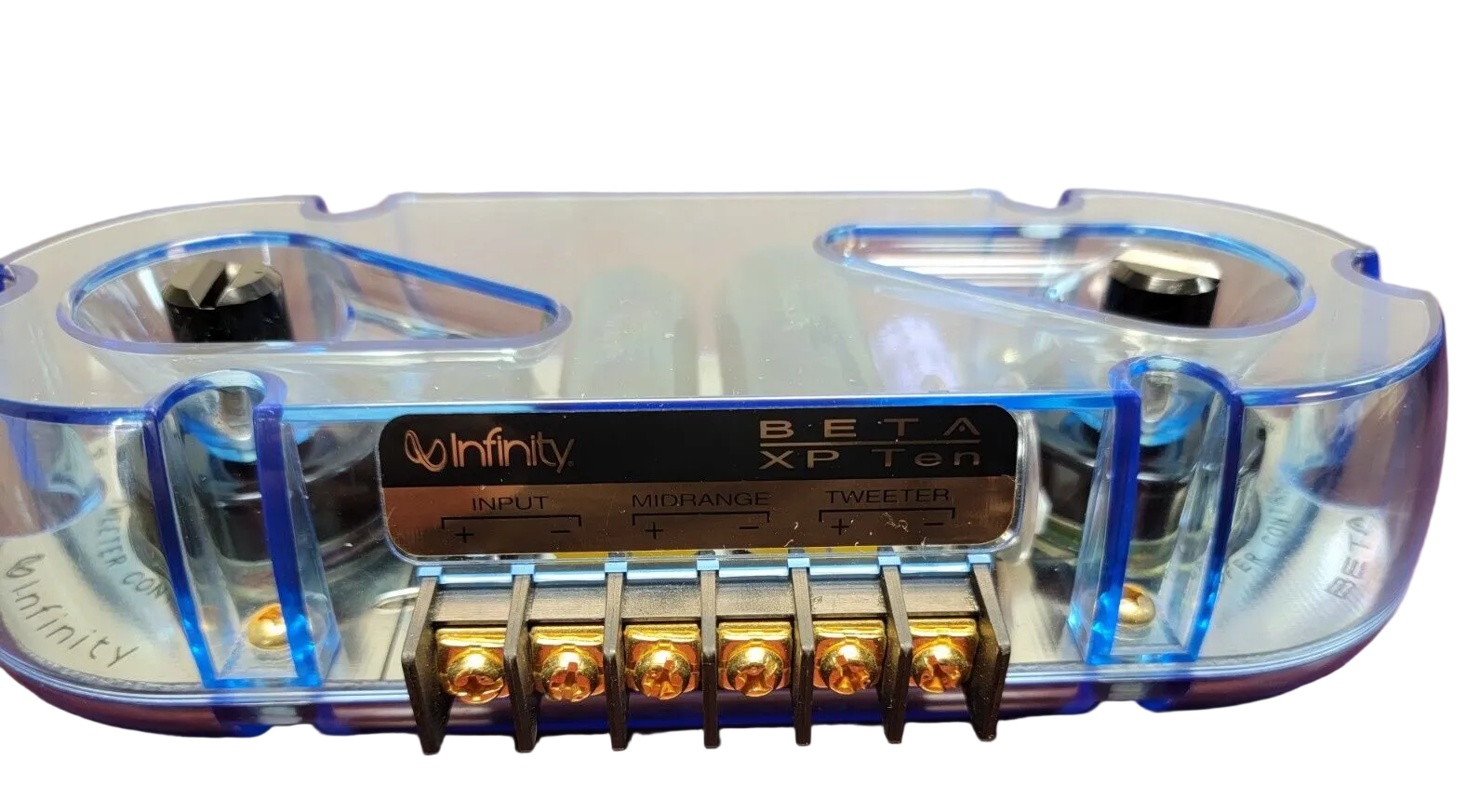

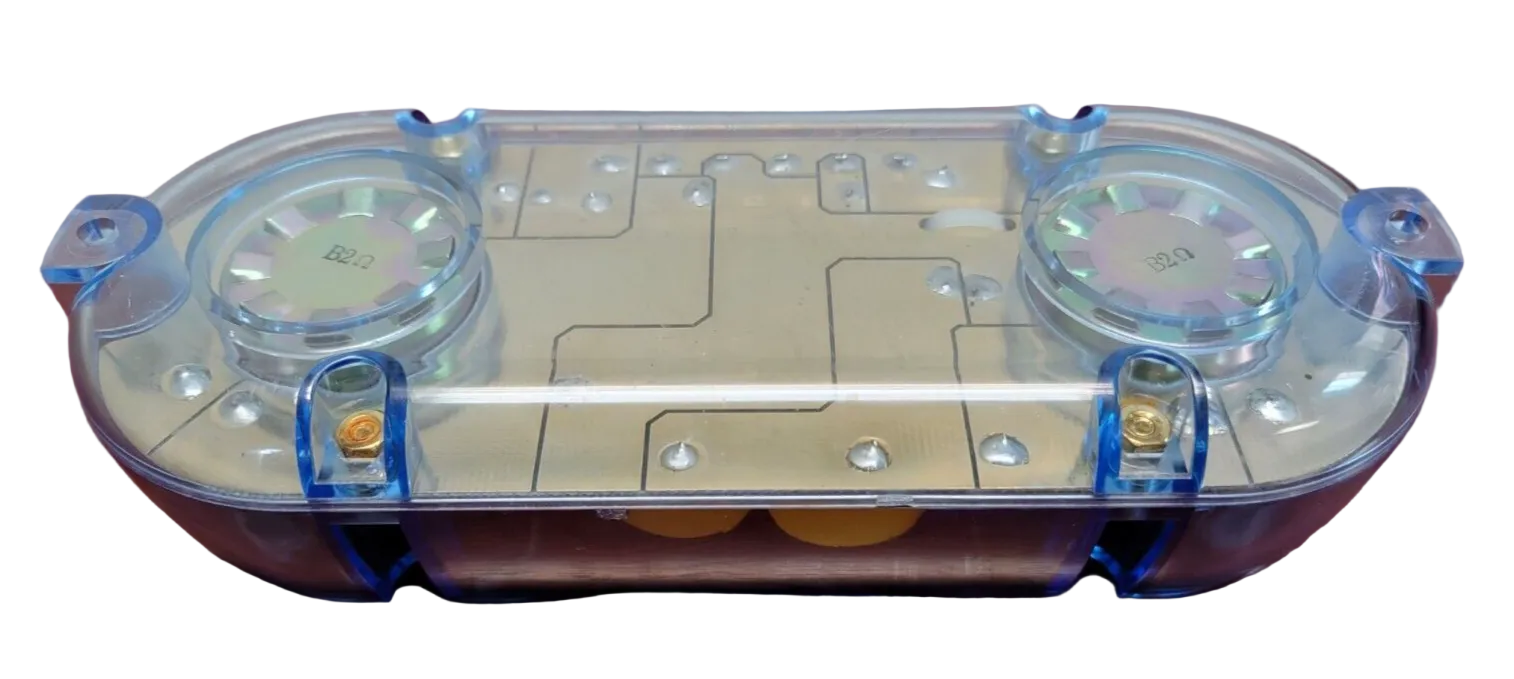

The crossover features adjustable Woofer Contour and Tweeter Level controls, allowing fine‑tuning to match vehicle acoustics, speaker placement, and listener preference. With its transparent housing, gold‑plated terminals, and high‑grade internal components, the Beta XP Ten combines premium sound quality with a visually striking design.

• Crossover Frequency: 3.5 kHz.
• Crossover Type: Linkwitz-Riley; 4th-order acoustic.
• Crossover Slope: 24 dB per octave.
• Physical Dimensions: 50.8 mm x 85.7 mm x 222.3 mm
