BC1150-24V

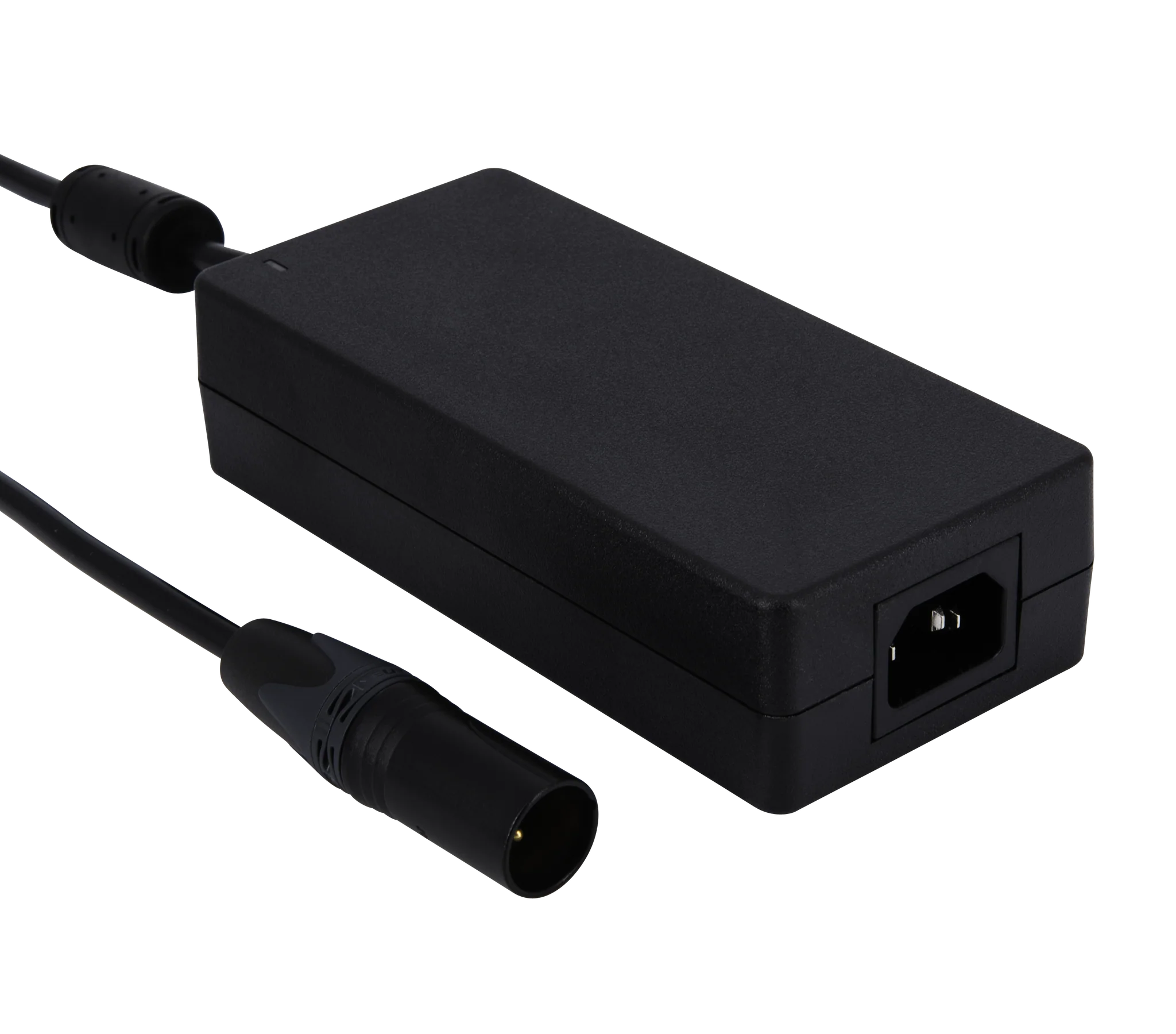

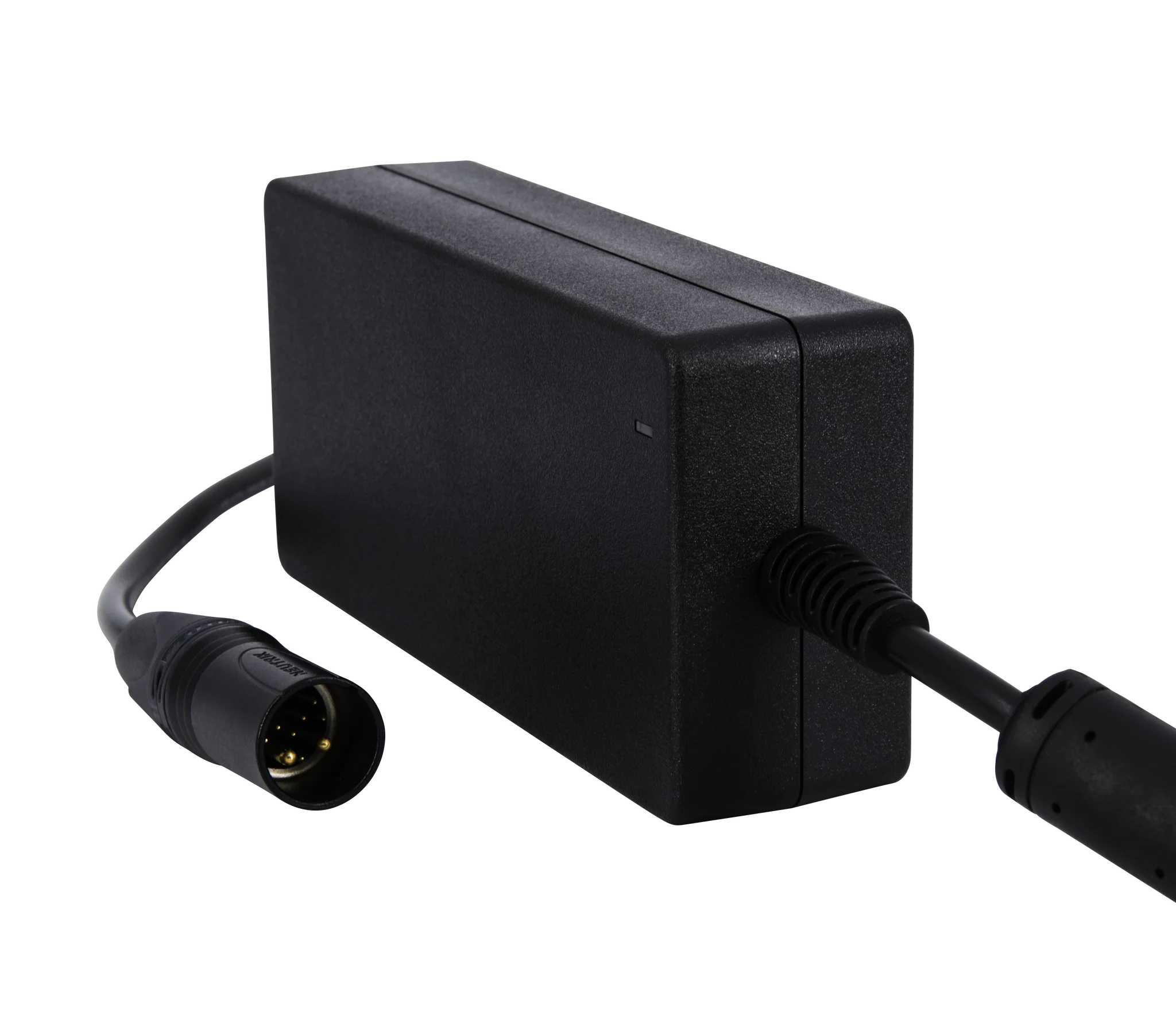

AUDIOROOT BC1150‑24V – 24V Charger Power Supply for BC1150

Estimated delivery time: 1–2 weeks.

Product description

The BC1150‑24V is a dedicated 24V charger power supply designed specifically for the BC1150 dual smart battery charger. When connected, it provides the necessary 24V power to drive the two embedded sequential smart battery chargers within the BC1150, enabling efficient and reliable battery charging.

In addition to powering the battery charging circuit, the BC1150‑24V can also supply power to devices connected to the BC1150 during operation. However, in this configuration, any power drawn by connected devices reduces the power available for charging. To maintain reliable performance when using only the BC1150‑24V, it is recommended not to exceed a current draw of 4A from the BC1150’s outputs.

For optimal charging performance and uninterrupted operation of connected devices, the BC1150‑24V should be used together with the BC1150‑PSU when running from AC mains power. This dual‑supply setup ensures maximum charging speed and consistent power delivery.

Specifications

• Input voltage: 90–264 VAC

• Output voltage: 24 VDC

• Output power: 160 W

• Output current: 6.66 A

• AC inlet type: C14

• Output connector: Neutrik NC10MXX‑14‑B

• Dimensions: 150 × 70 × 38 mm

• Weight: 575 g

• Accessories: AC power cable included

Key Features

• Powers the BC1150’s dual smart battery chargers

• Supports simultaneous device operation and charging

• Compact and robust design for professional use

• High‑efficiency 24V output with Neutrik locking connector

• Compatible with wide‑range AC input voltages

Whether used on its own or in tandem with the BC1150‑PSU, the BC1150‑24V is the essential power source for getting the best performance out of your BC1150 charging setup.
