AVR 347

Harman Kardon AVR 347 – High‑Definition Home Theater, Elevated

The Harman Kardon AVR 347 is a sophisticated 7.1‑channel A/V receiver engineered to deliver cinematic performance, high‑definition video handling and Harman’s signature high‑current sound. With HDMI connectivity, Faroudja DCDi video processing, advanced surround decoding and EzSet/EQ automatic calibration, the AVR 347 transforms your living room into a true home‑theater environment.

Unlike many receivers that advertise inflated wattage, Harman Kardon measures performance according to strict, real‑world standards. The AVR 347 delivers 55 watts × 7 channels (all channels driven, 20 Hz–20 kHz, <0.07% THD, 8 Ω), backed by a robust power supply and wide‑bandwidth amplifier design. This ensures effortless control, clean dynamics and a natural, detailed sound signature that brings out the best in your speakers.

With HDMI 1.1 switching, 1080p passthrough, 720p upconversion, Logic 7 processing, multiroom capability and extensive digital/analog connectivity, the AVR 347 is built for enthusiasts who want premium performance without compromise.

Key Features

• 7.1‑channel A/V receiver with Dolby Digital, DTS and Logic 7
• HDMI 1.1 with 1080p passthrough and 720p upconversion
• Faroudja DCDi Cinema video processing for smooth, artifact‑free images
• 55 W × 7 channels (all channels driven, <0.07% THD)
• 70 W × 2 in stereo mode (8 Ω, <0.07% THD)
• High‑Current Capability for superior speaker control
• EzSet/EQ automatic speaker calibration
• 192 kHz / 24‑bit DACs
• Simplay HD‑verified HDMI compatibility
• XM Radio and iPod support (with optional “The Bridge”)
• Multiroom audio output
• RS‑232 port for firmware updates

Amplifier Performance

• Stereo power: 70 W/ch @ 8 Ω, 20–20 kHz, <0.07% THD
• Surround power: 55 W/ch (front/center/surround), 20–20 kHz, <0.07% THD
• Frequency response: 10 Hz – 130 kHz
• Input sensitivity: 200 mV
• Signal‑to‑noise ratio: 100 dB (line)
• Minimum speaker impedance: 8 Ω

The AVR 347’s wide‑bandwidth amplifier ensures crisp highs, deep bass and a natural midrange — the hallmark of Harman Kardon’s sound philosophy.

Surround Processing

• Dolby Digital 5.1
• DTS 5.1
• Dolby Pro Logic II
• Logic 7 (Cinema, Music)
• 7.1‑channel decoding for expanded speaker layouts
• 5‑channel stereo, Hall, Theater modes

Video Features

• HDMI 1.1 (1080p passthrough)
• 720p upconversion via Faroudja DCDi Cinema
• Component, S‑Video and composite switching
• HDMI repeater for long‑distance cable runs
• Lip‑sync adjustment
• OSD (On‑Screen Display)

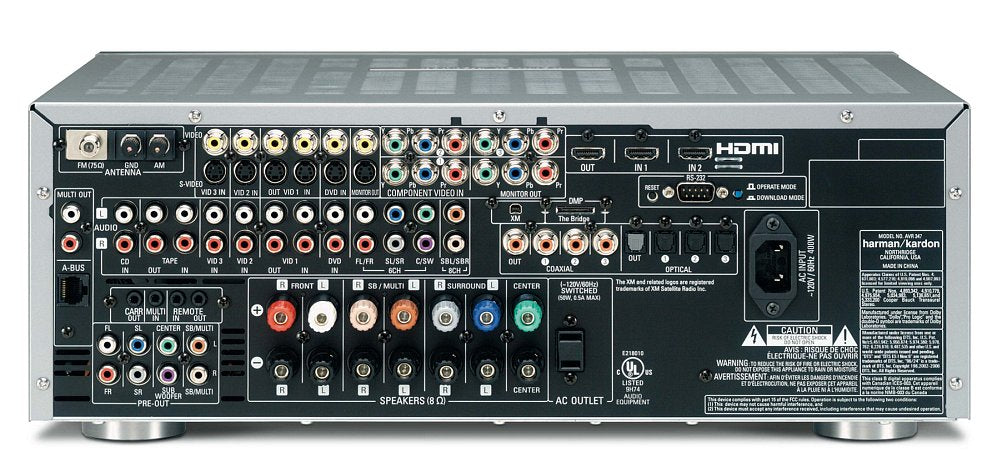

Connectivity

• Digital audio:
• 3× optical inputs
• 3× coaxial inputs
• HDMI: 2 inputs / 1 output
• Component video: 2 in / 1 out
• S‑Video: multiple inputs/outputs
• Composite video: multiple inputs/outputs
• 7.1‑channel pre‑outs
• Multiroom audio output
• Subwoofer pre‑out
• Front A/V inputs for quick access
• The Bridge connector for iPod integration
• RS‑232 for firmware updates

Convenience Features

• EzSet/EQ automatic speaker calibration
• Simplay HD‑verified HDMI compatibility
• XM Radio ready (with optional module)
• iPod support via “The Bridge”
• Multiroom audio capability
• Programmable system remote
• Night mode
• On‑screen display

Dimensions & Weight

• 440 × 165 × 382 mm
• 13.9 kg
