Alfatec I10
Alfatec I10 Audio signal converter high/low, 2 channels

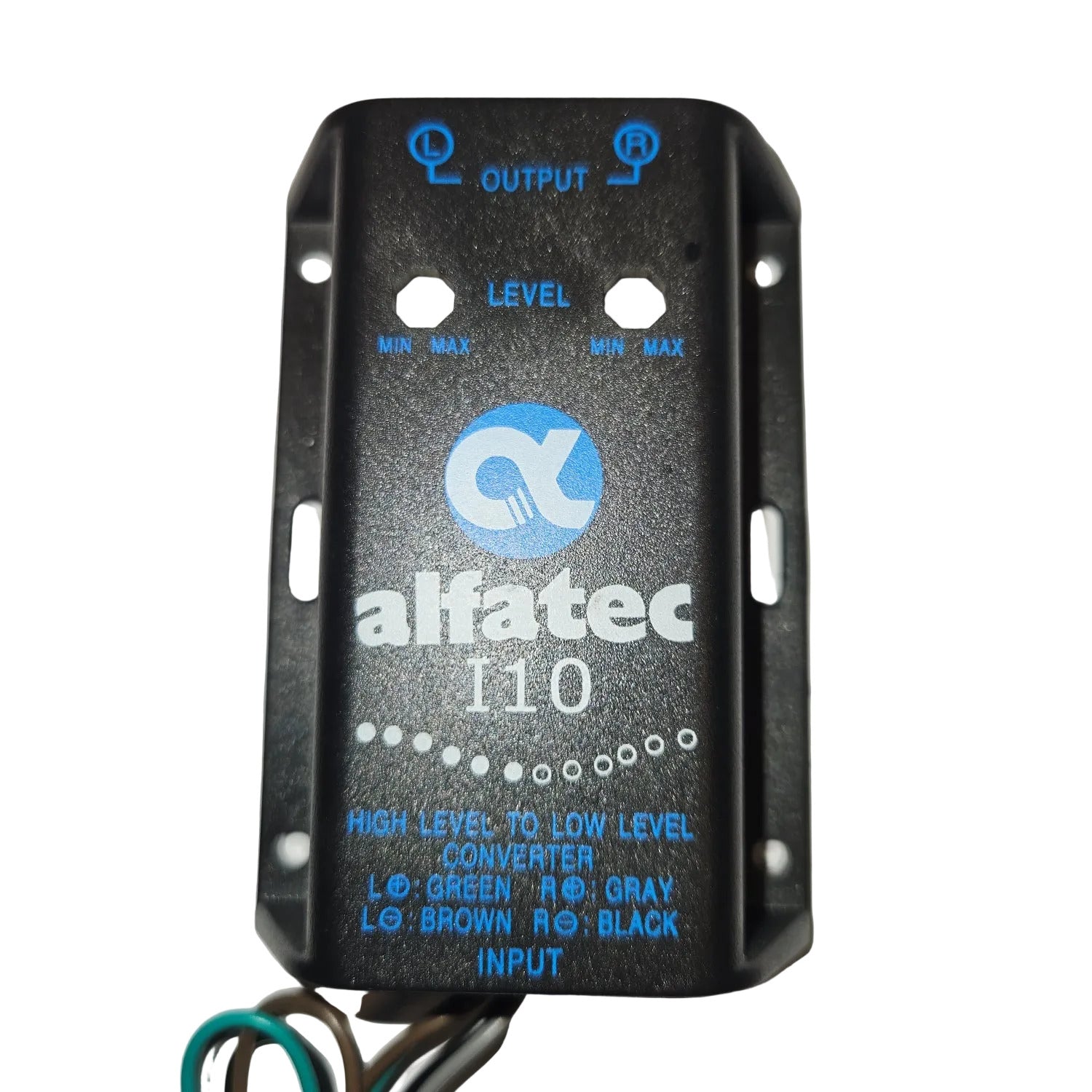

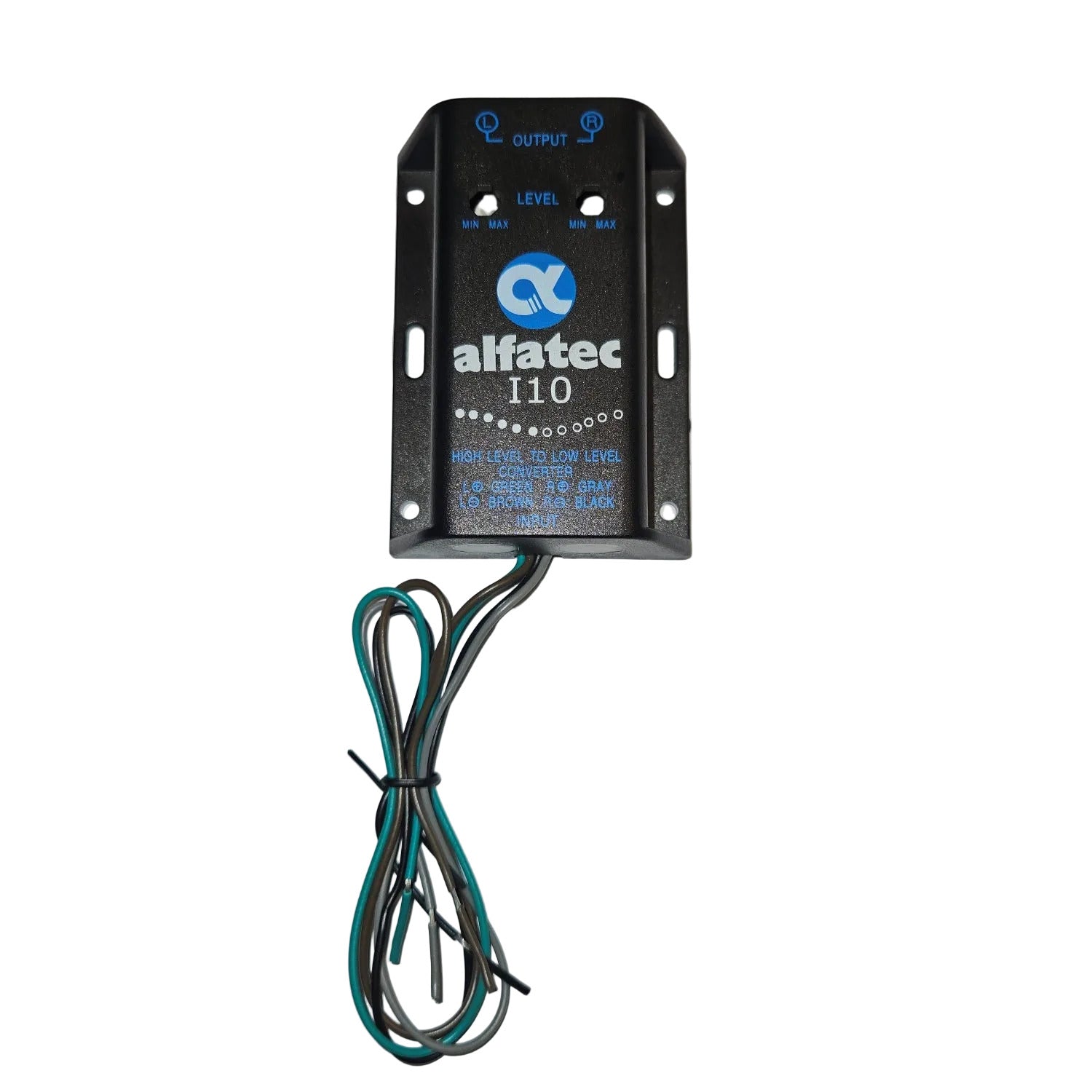

The Alfatec I10 is a 2-channel, high-level to low-level audio signal converter designed primarily for car audio systems. It allows you to connect an amplifier that uses RCA inputs to a car stereo (head unit) that only has standard speaker wire outputs.
- Channels: 2-channel output (stereo left and right).
- Input: Converts high-level (amplified speaker) signals.
- Output: Produces low-level RCA signals suitable for an external amplifier.
- Level Adjustment: Includes a control for adjusting the output level, which helps in precise signal matching with the amplifier's input sensitivity.
- Max Input Power: Supports a maximum input of 30 Watts per channel.
- Frequency Response: Offers a frequency range of 20 - 20,000 Hz.

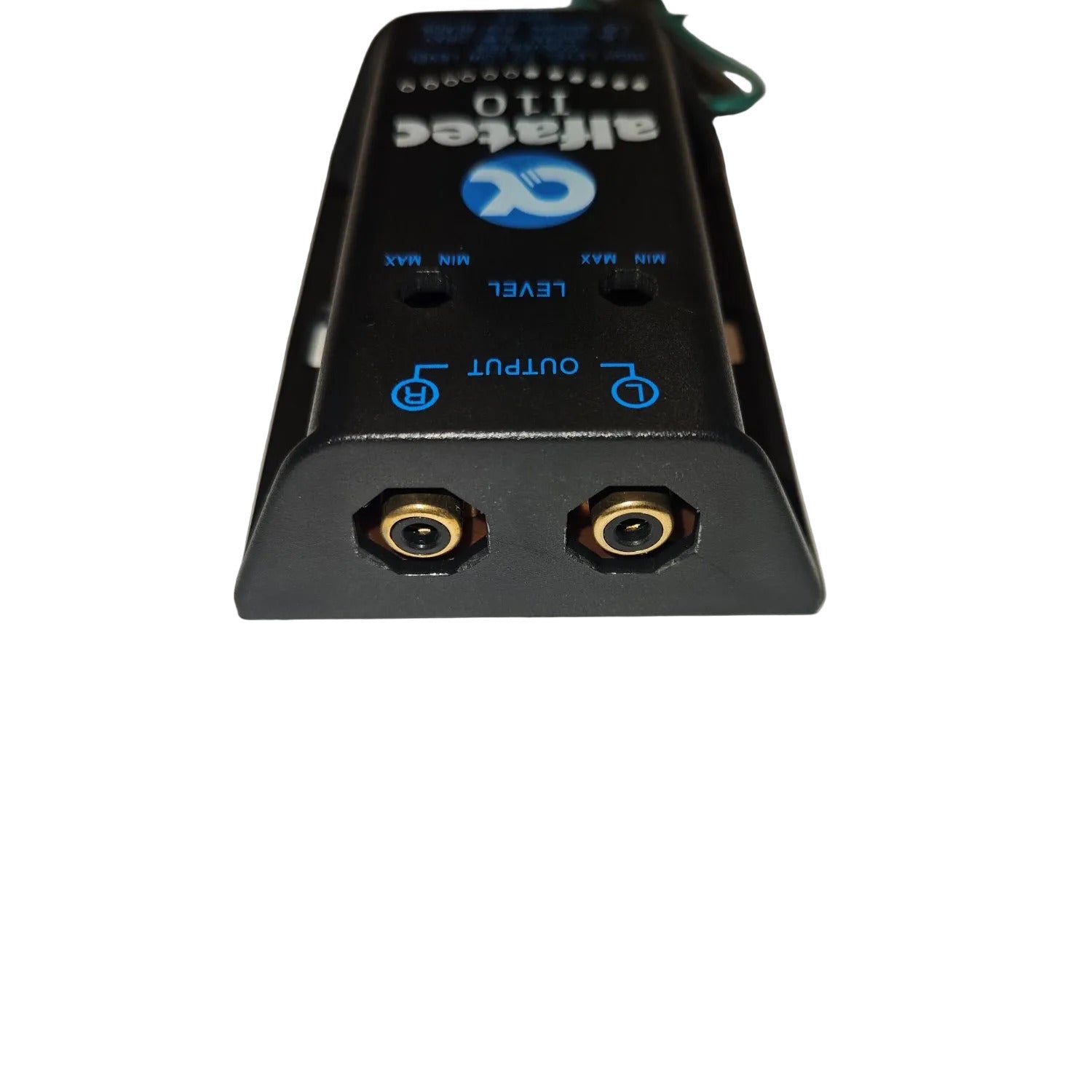

- Connectors: Features gold-plated RCA output connectors for better signal transfer.
Function and Installation
The main purpose of the Alfatec I10 is to bridge the gap between older or factory-installed head units (which often lack RCA pre-outs) and modern aftermarket amplifiers. This allows the user to upgrade their sound system with a more powerful amplifier while retaining the original head unit.
